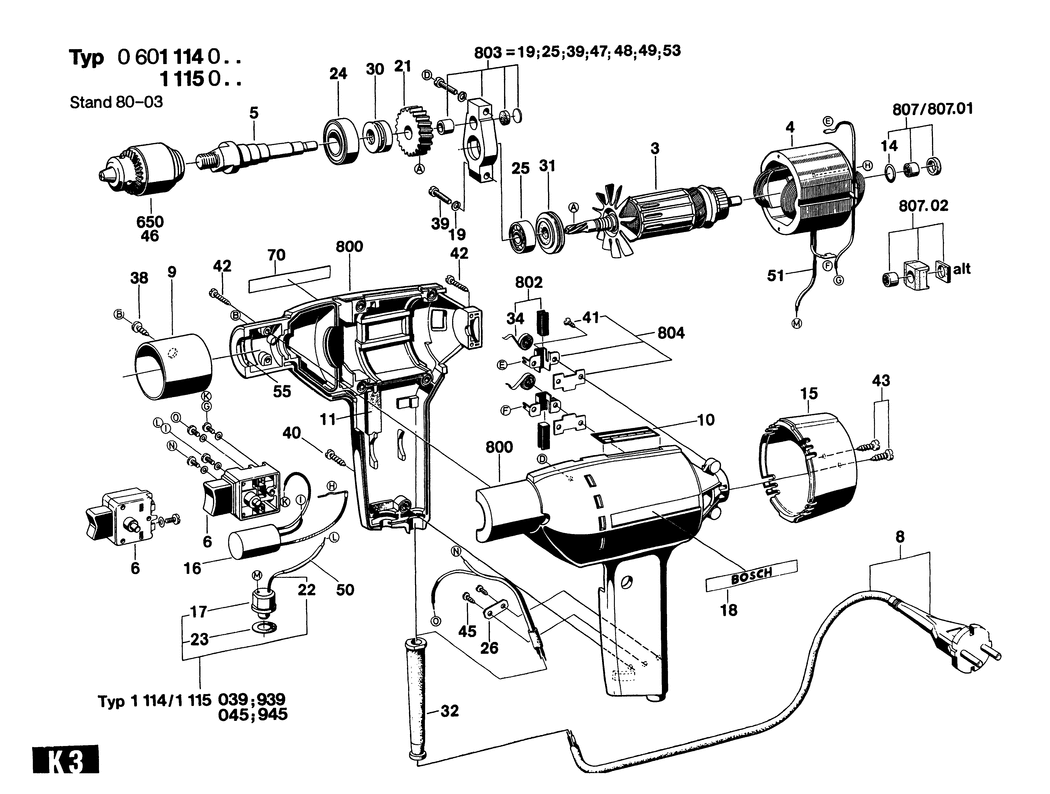

3 - ARMATURE WITH FAN 110-115V
BSD-1604010108.A5
1604010108
|
-
|
|
|
|
4 - POLE SHOE 110-115V
BSD-1604220059.A7
1604220059
|
-
|
|
|
|
5 - DRILLING SPINDLE
BSD-1603523066.A9
1603523066
|
-
|
|
|
|
6 - ON-OFF SWITCH
BSD-1607200040.A41
1607200040
|
-
|
|
|
|
6 - ON-OFF SWITCH
BSD-1607200040.A42
1607200040
|
-
|
|
|
|
8 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A77
1607000227
|
£23.86
|
£28.63
|
|
|
9 - GUIDE SLEEVE dia38xdia43x40 MM
BSD-1600400900.A17
1600400900
|
-
|
|
|
|
10 - NAMEPLATE
BSD-160111A3H3.A417
160111A3H3
|
£2.61
|
£3.13
|
|
|
11 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A328
1602381001
|
-
|
|
|
|
14 - O-RING 8.0x2.5 MM
BSD-1610210014.A342
1610210014
|
-
|
|
|
|
15 - SEALING CAP
BSD-1605500071.A18
1605500071
|
-
|
|
|
|
15 - SEALING CAP
BSD-1605500066.A28
1605500066
|
-
|
|
|
|
15 - SEALING CAP
BSD-1605500092.A19
1605500092
|
-
|
|
|
|
16 - SUPPRESSION CAPACITOR
BSD-1607329014.A24
1607329014
|
-
|
|
|
|
16 - SUPPRESSION CAPACITOR
BSD-2607329069.A116
2607329069
|
-
|
|
|
|
18 - MANUFACTURER'S NAMEPLATE
BSD-1601110481.A189
1601110481
|
£2.16
|
£2.59
|
|
|
19 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A160
2916690003
|
£1.75
|
£2.10
|
|
|
21 - CYLINDRICAL GEAR Z=41
BSD-1606319016.A15
1606319016
|
-
|
|
|
|
24 - GROOVE BALL BEARING 6002-Z DIN 625
BSD-1900905102.A104
1900905102
|
-
|
|
|
|
25 - BALL BEARING 7x22x7
BSD-1900905018.A784
1900905018
|
£18.96
|
£22.75
|
|
|
26 - FASTENING CLAMP
BSD-1601034026.A46
1601034026
|
-
|
|
|
|
30 - GUIDE BUSHING
BSD-1600314001.A17
1600314001
|
-
|
|
|
|
31 - SEALING DISK
BSD-1600190002.A21
1600190002
|
-
|
|
|
|
32 - GROMMET dia6.4-dia7.5x75 MM
BSD-1600703016.A304
1600703016
|
£1.75
|
£2.10
|
|
|
34 - SPIRAL SPRING
BSD-1604652004.A181
1604652004
|
£2.61
|
£3.13
|
|
|
38 - TAPPING SCREW DIN 7971-BZ3.9x6.5
BSD-2910211016.A29
2910211016
|
-
|
|
|
|
39 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-8.8
BSD-2910021128.A90
2910021128
|
-
|
|
|
|
40 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1709
2910211019
|
£1.75
|
£2.10
|
|
|
41 - TAPPING SCREW DIN 7972-BZ2.9x6.5
BSD-2910601004.A136
2910601004
|
-
|
|
|
|
42 - TAPPING SCREW DIN 7971-BZ2.9x13
BSD-2910211006.A727
2910211006
|
£1.75
|
£2.10
|
|
|
43 - TAPPING SCREW DIN 7971-BZ3.9x9.5
BSD-2910211017.A231
2910211017
|
-
|
|
|
|
45 - TAPPING SCREW DIN 7971-BZ2.9x6.5
BSD-2910211004.A496
2910211004
|
-
|
|
|
|
46 - KEY CHUCK dia0.8-10 MM. 1/2
BSD-1608571005.A130
1608571005
|
-
|
|
|
|
800 - MOTOR HOUSING
BSD-1605104917.A18
1605104917
|
-
|
|
|
|
802 - CARBON BRUSH
BSD-1604321900.A198
1604321900
|
-
|
|
|
|
803 - BEARING BRACKET
BSD-1605807901.A19
1605807901
|
-
|
|
|
|
804 - BRUSH HOLDER
BSD-1601323901.A3
1601323901
|
-
|
|
|
|
807 - SINTERED-METAL BUSHING
BSD-1600301900.A268
1600301900
|
-
|
|
|
