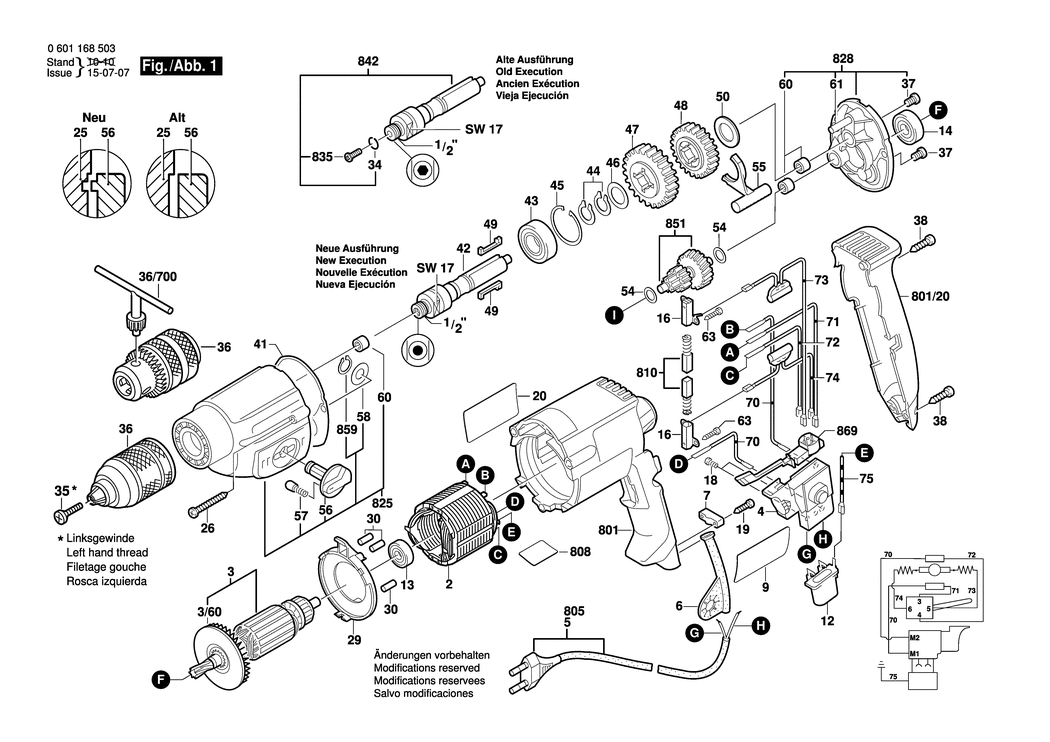

An exploded drawing and listing for the Bosch GBM 10-2 RE / 0601168563 / GB 110 Volt
Ex VAT Inc VAT
2 - FIELD 100V BSD-2604220446.A5 2604220446 £21.52 £25.83
3 - ARMATURE 115V BSD-2604010853.A0 2604010853 £51.22 £61.47
3/60 - FAN BSD-2606610027.A208 2606610027 £2.80 £3.36
4 - SWITCH BSD-2607200210.A6 2607200210 £48.38 £58.06
5 - POWER SUPPLY CORD GB 110V 2.65m 2 x 1.0mm H05 VV-F BSD-2604460207.A2 2604460207 £18.96 £22.75
6 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A1521 2600703012 £2.80 £3.36
7 - CABLE CLIP BSD-2601035001.A1191 2601035001 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-2601116662.A9 2601116662 £4.26 £5.11
12 - SUPPRESSION FILTER BSD-2607329114.A88 2607329114 -
13 - BALL BEARING 7x22x7 BSD-1900905018.A1165 1900905018 £18.96 £22.75
14 - BALL BEARING 9x24x7 BSD-2600905095.A60 2600905095 £12.04 £14.45
16 - BRUSH HOLDER BSD-2604337003.A188 2604337003 £2.16 £2.59
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1094 2603410001 £1.75 £2.10
19 - SCREW 4x16 BSD-2603490022.A315 2603490022 £1.75 £2.10
20 - REFERENCE PLATE BSD-9920490115.A13 9920490115 £3.72 £4.47
26 - TORX OVAL-HEAD SCREW 4x30 BSD-2603490025.A195 2603490025 £1.75 £2.10
29 - COVER DISC BSD-3600590505.A14 3600590505 £1.75 £2.10
30 - RUBBER BUFFER BSD-3602391503.A66 3602391503 -
34 - RETAINING RING BSD-2604601004.A422 2604601004 £1.75 £2.10
35 - COUNTERSUNK-HEAD SCREW M6x20 MM BSD-2603421211.A23 2603421211 £1.95 £2.34
36 - KEYLESS CHUCK BSD-2608572196.A5 2608572196 £48.38 £58.06
37 - THREAD-FORMING TAP. SCREW M4x8 BSD-2603410048.A369 2603410048 £1.75 £2.10
38 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A1555 2603490023 £1.75 £2.10
41 - FLAT SEAL RING BSD-2601015012.A35 2601015012 £1.75 £2.10
42 - DRILLING SPINDLE 1/2. SW 17 BSD-2606135011.A40 2606135011 £27.31 £32.77
43 - BALL BEARING dia15 MM BSD-1900905110.A62 1900905110 £10.10 £12.12
44 - RETAINING CLIP DIN 471-15x1-FSt BSD-2916650006.A347 2916650006 £1.75 £2.10
45 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A199 2916660013 £2.16 £2.59
46 - SHIM 0.5 MM BSD-2600100695.A178 2600100695 £1.75 £2.10
47 - CYLINDRICAL GEAR BSD-2606316316.A45 2606316316 £27.23 £32.68
48 - CYLINDRICAL GEAR BSD-2606316317.A14 2606316317 £23.86 £28.63
49 - FLAT KEY BSD-2602300033.A42 2602300033 £5.58 £6.70
50 - SHIM 1.5 MM BSD-2600101668.A41 2600101668 £2.80 £3.36
54 - SHIM 0.3 MM BSD-2600100607.A984 2600100607 £1.75 £2.10
55 - ADJUSTING SLIDE BSD-2602033007.A32 2602033007 -
56 - ROTARY KNOB BSD-2602026006.A19 2602026006 £4.26 £5.11
57 - RATCHET CAP BSD-2600590006.A1144 2600590006 £1.75 £2.10
58 - SHIM WASHER BSD-2600100618.A215 2600100618 £1.75 £2.10
60 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A463 2600914010 £2.80 £3.36
61 - HOLDING PIN BSD-2603105043.A16 2603105043 -
63 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A1570 2603490017 £2.16 £2.59
70 - CABLE L=130 MM BSD-2604448005.A444 2604448005 £1.75 £2.10
71 - CONNECTING CABLE L=98 MM BSD-2604448074.A13 2604448074 £2.16 £2.59
72 - CONNECTING CABLE L=68 MM BSD-2604448100.A66 2604448100 £1.75 £2.10
73 - SUPPRESSION FILTER L=148 MM BSD-2604465086.A36 2604465086 £5.58 £6.70
74 - SUPPRESSION FILTER L=126 MM BSD-2604465097.A151 2604465097 £5.58 £6.70
75 - EARTH CONDUCTOR BSD-2604448097.A77 2604448097 £1.75 £2.10
801 - HOUSING SET BSD-3605108576.A14 3605108576 £14.91 £17.89
801/20 - HOUSING COVER BSD-3605133521.A5 3605133521 £8.67 £10.41
808 - NAMEPLATE BSD-160111A3H3.A2365 160111A3H3 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-2604321905.A417 2604321905 £11.30 £13.56
825 - GEAR HOUSING BSD-2605806997.A19 2605806997 £41.62 £49.95
828 - INTERMEDIATE FLANGE BSD-2605700940.A26 2605700940 £24.45 £29.34
835 - COUNTERSUNK-HEAD SCREW M 6x34 MM BSD-2603421213.A12 2603421213 £2.61 £3.13
842 - DRILLING SPINDLE BSD-2606135943.A3 2606135943 £24.45 £29.34
851 - TOOTHED SHAFT Z=29/18/11 BSD-2606308915.A23 2606308915 £36.63 £43.96
859 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A31 2916080007 £2.61 £3.13
869 - CHANGE-OVER SWITCH BSD-2607200231.A322 2607200231 £16.41 £19.69
