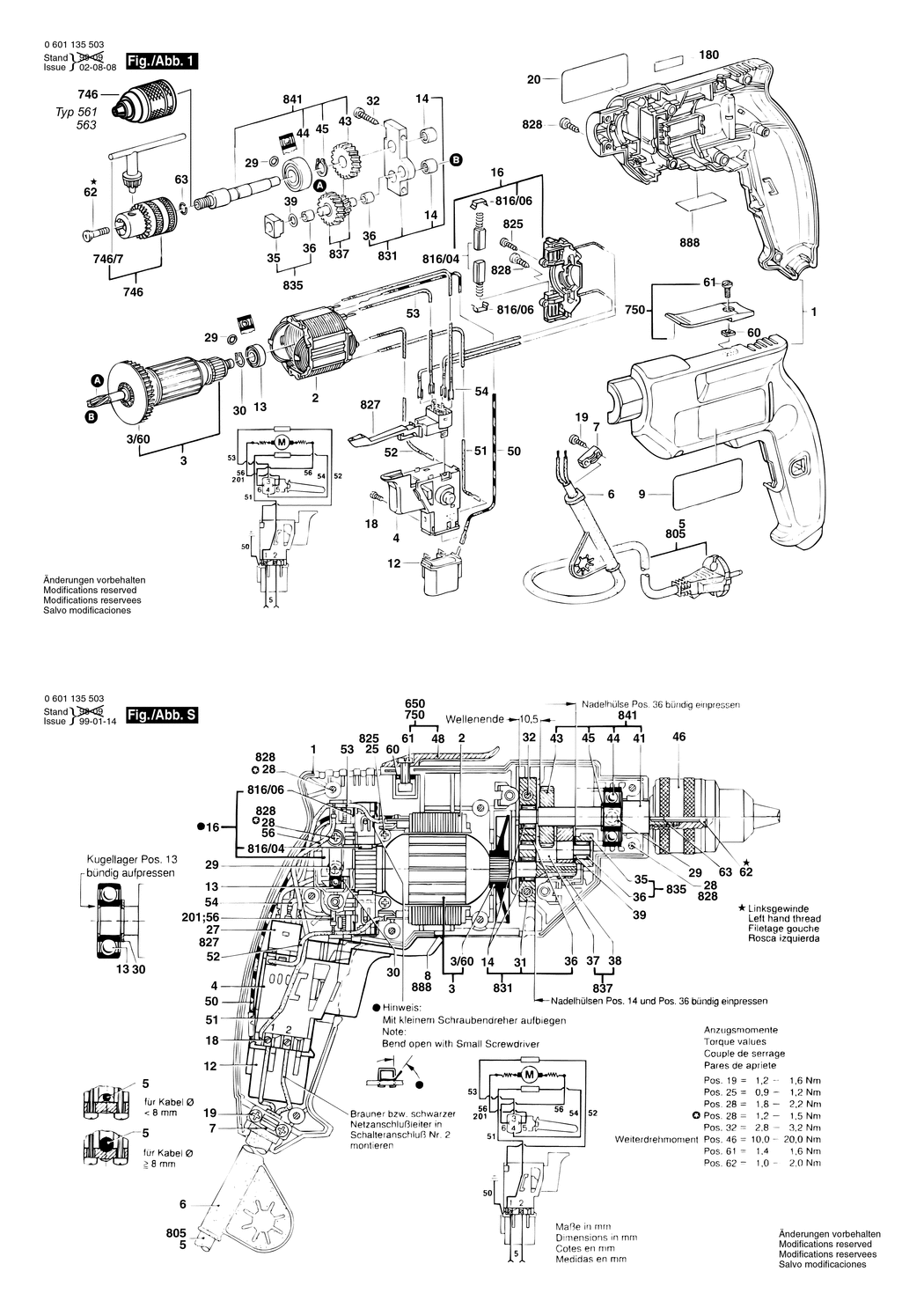

An exploded drawing and listing for the Bosch GBM 10 RE / 0601135560 / EU 230 Volt
Ex VAT Inc VAT
1 - HOUSING SECTION BSD-2605104316.A12 2605104316 -
2 - FIELD 220-240V BSD-2604220423.A37 2604220423 £24.45 £29.34
3 - ARMATURE 220-240V BSD-2604010707.A24 2604010707 -
3/60 - FAN BSD-1606610116.A90 1606610116 £2.52 £3.02
4 - SWITCH BSD-2607200357.A12 2607200357 -
6 - GROMMET dia6.9 MM BSD-2600707059.A607 2600707059 £3.72 £4.47
7 - CABLE CLIP BSD-2601035001.A1301 2601035001 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-2609130745.A3 2609130745 £2.61 £3.13
12 - SUPPRESSION FILTER BSD-2607329114.A145 2607329114 -
13 - BALL BEARING 7x19x6 BSD-2600905032.A795 2600905032 £5.30 £6.36
14 - NEEDLE-ROLLER BEARING dia8x8 MM BSD-2600917003.A427 2600917003 £2.80 £3.36
16 - BRUSH PLATE BSD-2605807060.A94 2605807060 -
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A883 2603410001 £1.75 £2.10
19 - TAPPING SCREW DIN 7981-ST3.9x16-C-H BSD-2910611019.A99 2910611019 £2.80 £3.36
20 - REFERENCE PLATE BSD-2601118572.A11 2601118572 £3.72 £4.47
29 - O-RING 5.0x1.5 MM BSD-1900210000.A614 1900210000 £1.75 £2.10
30 - SPACER RING BSD-2600209004.A65 2600209004 -
32 - TAPPING SCREW DIN 7983 ST4.2x32-C-H BSD-2910611096.A9 2910611096 £1.32 £1.58
35 - BEARING PIECE BSD-2602305003.A15 2602305003 -
36 - NEEDLE BEARING BSD-2600917004.A46 2600917004 £3.72 £4.47
39 - SHIM 0.3 MM BSD-2600100627.A268 2600100627 -
43 - CYLINDRICAL GEAR Z=27 BSD-2606320046.A1 2606320046 -
44 - GROOVE BALL BEARING 6200-2Z DIN 625 BSD-1900905232.A45 1900905232 £21.68 £26.01
45 - SPRING RETAINING RING DIN 471-10x1MM-FSt BSD-2916650001.A436 2916650001 £2.61 £3.13
50 - EARTH CONDUCTOR BSD-2604448103.A90 2604448103 -
51 - CABLE L=173 MM BSD-2604448060.A87 2604448060 -
52 - CABLE L=98 MM BSD-2604448045.A58 2604448045 -
53 - CONNECTING CABLE L=103 MM BSD-2604448132.A137 2604448132 £1.75 £2.10
54 - CONNECTING CABLE BSD-2604448203.A6 2604448203 -
60 - SQUARE NUT DIN 562-M4-04 BSD-2915121004.A55 2915121004 -
61 - PAN HEAD SCREW DIN 85-M4x10-4.8 BSD-2910091120.A23 2910091120 £1.75 £2.10
62 - COUNTERSUNK-HEAD SCREW M6x31 MM BSD-2603421209.A73 2603421209 £1.32 £1.58
63 - RETAINING RING BSD-2604601004.A395 2604601004 £1.75 £2.10
746 - KEY CHUCK 1/2-20 UNF BSD-1608571061.A10 1608571061 £19.24 £23.09
746/7 - CHUCK WRENCH SG2 BSD-2607950007.A1099 2607950007 £6.52 £7.83
750 - CHANNEL END-PLATE BSD-2608040050.A33 2608040050 -
805 - POWER SUPPLY CORD EU 2.6m 2 x 1.0 mm BSD-1607000385.A233 1607000385 £14.91 £17.89
816/04 - CARBON-BRUSH SET BSD-2604321911.A15 2604321911 -
816/06 - RATCHET CAP BSD-2601322013.A120 2601322013 £1.75 £2.10
825 - TAPPING SCREW DIN 7981-B2.9x16-C-H BSD-2910611007.A52 2910611007 £1.75 £2.10
827 - CHANGE-OVER SWITCH BSD-2607200231.A358 2607200231 £16.41 £19.69
828 - TAPPING SCREW DIN 7981-ST3.9x19-C-H BSD-2910611020.A435 2910611020 £1.75 £2.10
831 - BEARING BRACKET BSD-2605807920.A19 2605807920 -
835 - BEARING PIECE BSD-2600917903.A0 2600917903 £6.61 £7.93
837 - TOOTHED SHAFT Z=12/24 BSD-2606311906.A6 2606311906 £21.68 £26.01
841 - DRILLING SPINDLE 1/2. M6 BSD-2606135912.A21 2606135912 £33.45 £40.14
888 - NAMEPLATE BSD-160111A3H3.A2101 160111A3H3 £2.61 £3.13
