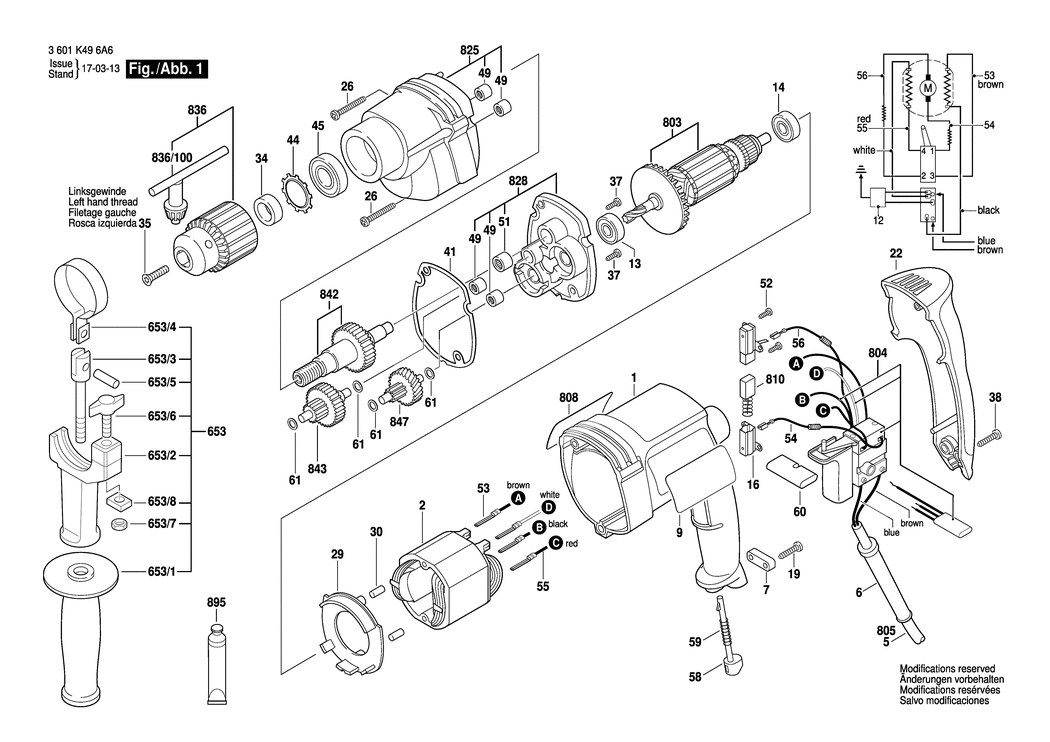

An exploded drawing and listing for the Bosch GBM 13 HRE / 3601K496A6 / EU 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-2610998101.A1 2610998101 £21.52 £25.83
2 - FIELD 230-240V BSD-2604220702.A0 2604220702 £21.52 £25.83
6 - GROMMET dia11.6-dia12.5x84 MM BSD-2600707060.A131 2600707060 £2.61 £3.13
7 - CABLE CLIP BSD-2601035001.A897 2601035001 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-160111C0W1.A1 160111C0W1 £2.61 £3.13
13 - GROOVE BALL BEARING 9x22x7 BSD-2600905107.A10 2600905107 £12.04 £14.45
14 - BALL BEARING 7x22x7 BSD-1900905018.A949 1900905018 £18.96 £22.75
16 - BRUSH HOLDER BSD-2604337003.A321 2604337003 £2.16 £2.59
19 - SCREW 4x16 BSD-2603490022.A724 2603490022 £1.75 £2.10
22 - HOUSING COVER BSD-2610998102.A3 2610998102 £11.30 £13.56
26 - TORX OVAL-HEAD SCREW 4x30 BSD-2603490025.A159 2603490025 £1.75 £2.10
29 - AIR GUIDE PLATE BSD-2610998115.A2 2610998115 £2.16 £2.59
30 - RUBBER BUFFER BSD-2602391004.A62 2602391004 £2.16 £2.59
34 - SPACER BSD-2610998132.A2 2610998132 £2.16 £2.59
35 - COUNTERSUNK-HEAD SCREW 1/4 28UNF-2A BSD-2603421009.A11 2603421009 £2.16 £2.59
37 - THREAD-FORMING TAP. SCREW M4x8 BSD-2603410048.A325 2603410048 £1.75 £2.10
38 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A1043 2603490023 £1.75 £2.10
41 - SEALING DISK BSD-2610998117.A2 2610998117 £1.75 £2.10
44 - SPRING RETAINING RING BSD-2610998128.A11 2610998128 £1.75 £2.10
45 - BALL BEARING BSD-2610968044.A3 2610968044 £11.30 £13.56
49 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A823 2600914010 £2.80 £3.36
51 - NEEDLE BEARING dia8xdia12x8 MM BSD-1600910018.A855 1600910018 £5.30 £6.36
52 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A856 2603490017 £2.16 £2.59
53 - CONNECTING CABLE BSD-2604448294.A1 2604448294 £1.75 £2.10
54 - SUPPRESSION FILTER BSD-2604465110.A6 2604465110 £5.58 £6.70
55 - CONNECTING CABLE BSD-2604448286.A12 2604448286 £1.75 £2.10
56 - SUPPRESSION FILTER BSD-2604465111.A7 2604465111 £5.58 £6.70
58 - LOCKING LEVER BSD-2610998114.A4 2610998114 £2.61 £3.13
59 - COMPRESSION SPRING BSD-2610998116.A12 2610998116 £1.75 £2.10
60 - REVERSING SWITCH BSD-2610998113.A1 2610998113 £2.61 £3.13
61 - SHIM 0.3 MM BSD-2600100607.A812 2600100607 £1.75 £2.10
653 - AUXILIARY HANDLE BSD-1612025020.A107 1612025020 £26.12 £31.35
653/1 - AUXILIARY HANDLE M8 BSD-1612025019.A7 1612025019 £6.52 £7.83
653/2 - SUPPORT CLAMP BSD-1618040077.A98 1618040077 -
653/3 - STUD BOLT M8 BSD-1613521001.A98 1613521001 £5.58 £6.70
653/4 - CLAMPING BAND dia43 MM BSD-1611316003.A135 1611316003 £2.61 £3.13
653/5 - STRAIGHT PIN BSD-1613100012.A247 1613100012 £2.61 £3.13
653/6 - WING SCREW BSD-2603480006.A1 2603480006 £2.61 £3.13
653/7 - HEX NUT M6 BSD-1613300006.A108 1613300006 £1.32 £1.58
653/8 - CLAMPING PLATE BSD-1611030010.A7 1611030010 £2.16 £2.59
803 - ARMATURE BSD-2604011900.A12 2604011900 £63.50 £76.20
804 - SWITCH BSD-2607200920.A9 2607200920 £24.45 £29.34
805 - POWER SUPPLY CORD EU 2.6m 2 x 1.0 mm BSD-1607000385.A114 1607000385 £14.91 £17.89
808 - NAMEPLATE BSD-160111A562.A0 160111A562 £6.52 £7.83
810 - CARBON-BRUSH SET 10 x 2 604 321 905 BSD-1607000484.A30 1607000484 £72.18 £86.62
810 - CARBON-BRUSH SET BSD-2604321905.A709 2604321905 £11.30 £13.56
825 - GEAR HOUSING BSD-2610911949.A0 2610911949 £48.38 £58.06
828 - PIVOT PLATE BSD-2610998153.A13 2610998153 £21.52 £25.83
836 - CHUCK dia1.5-13 MM. 1/2 BSD-1608571069.A130 1608571069 £23.86 £28.63
836/100 - CHUCK WRENCH SG2 BSD-2607950007.A1652 2607950007 £6.52 £7.83
842 - DRIVE SHAFT BSD-2610907370.A6 2610907370 £48.38 £58.06
843 - TOOTHED SHAFT BSD-2610998150.A0 2610998150 £40.80 £48.96
847 - TOOTHED SHAFT BSD-2610998149.A13 2610998149 £23.86 £28.63
895 - GREASE TUBE Albida BSD-3605430003.A36 3605430003 £27.23 £32.68
