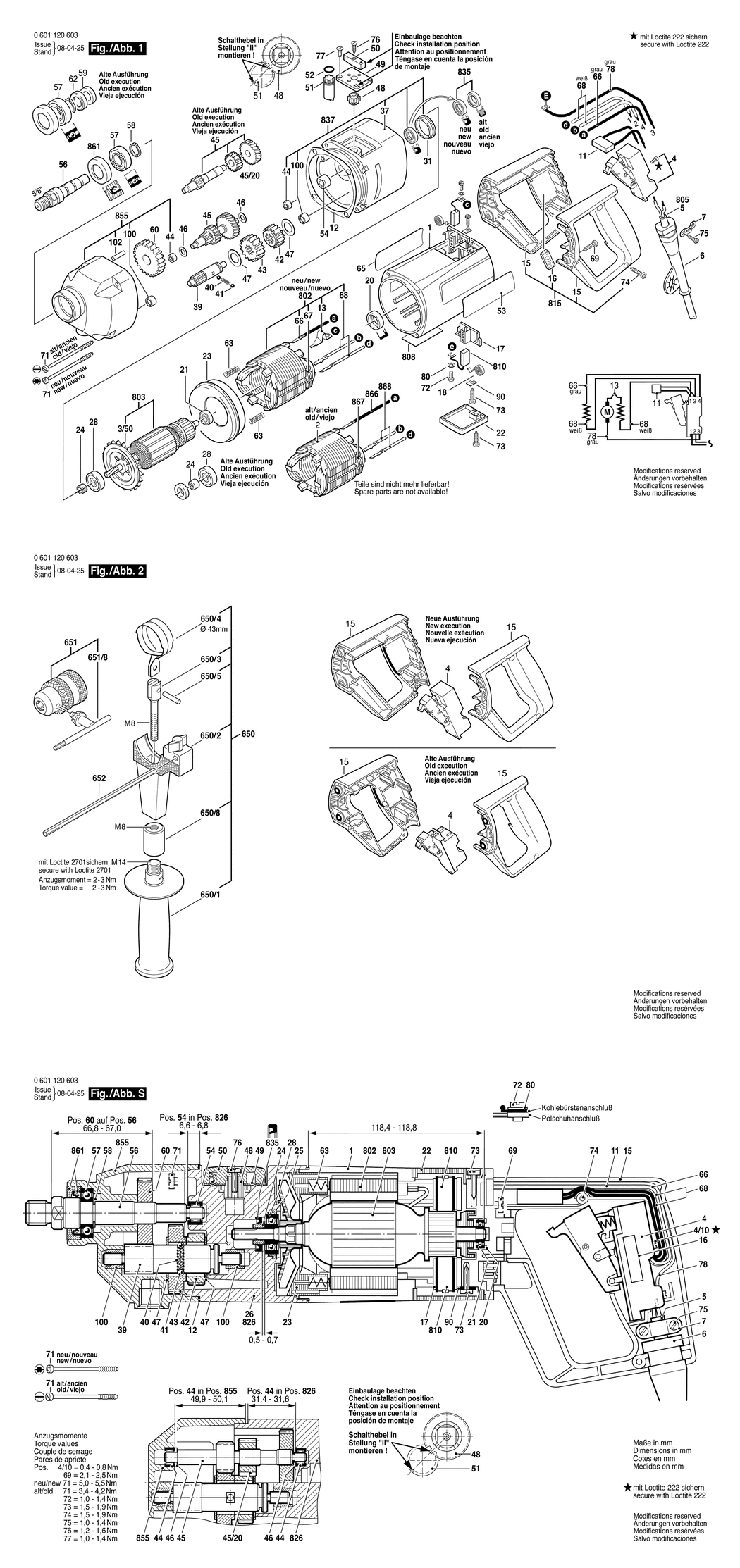

An exploded drawing and listing for the Bosch GBM 16-2 E / 0601120632 / CH 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-3605108145.A12 3605108145 £27.23 £32.68
3/50 - FAN BSD-1606610122.A65 1606610122 £2.80 £3.36
4 - SWITCH BSD-1607200075.A20 1607200075 £68.42 £82.10
5 - POWER SUPPLY CORD CH 4.15m 2 x 1.0mm H05 VV-F BSD-1604460015.A12 1604460015 -
6 - GROMMET dia7.9-dia12.0x120 MM BSD-1600703022.A19 1600703022 £2.80 £3.36
7 - FASTENING CLAMP BSD-1601302014.A898 1601302014 £2.61 £3.13
11 - SUPPRESSION FILTER BSD-1607328028.A414 1607328028 £5.30 £6.36
12 - SEALING PLATE BSD-1601015013.A80 1601015013 £1.75 £2.10
13 - BLADE TERMINAL BSD-1604477001.A105 1604477001 £1.75 £2.10
15 - HANDLE BSD-3605133012.A128 3605133012 -
16 - INSULATING STRIP 33x10x6 MM BSD-1602381001.A572 1602381001 -
17 - BRUSH HOLDER BSD-1604336017.A137 1604336017 £7.36 £8.83
18 - SPIRAL SPRING BSD-1604652006.A91 1604652006 £1.75 £2.10
20 - INTERMEDIATE RING BSD-1600502011.A274 1600502011 £2.61 £3.13
21 - BALL BEARING 7x19x6 BSD-2600905032.A823 2600905032 £5.30 £6.36
22 - SEALING CAP BSD-3605500063.A41 3605500063 £4.26 £5.11
23 - AIR-DEFLECTOR RING BSD-1600502019.A104 1600502019 £3.72 £4.47
24 - INTERMEDIATE RING BSD-1600300090.A79 1600300090 £3.72 £4.47
28 - GROOVE BALL BEARING 9x26x8 BSD-3600905131.A96 3600905131 £11.30 £13.56
31 - INTERMEDIATE RING BSD-1600221003.A117 1600221003 £2.61 £3.13
37 - INTERMEDIATE BEARING BSD-3607030436.A13 3607030436 £93.88 £112.65
39 - TOOTHED SHAFT Z=17 BSD-1606309063.A20 1606309063 £45.67 £54.80
40 - COMPRESSION SPRING BSD-1604611022.A20 1604611022 £1.75 £2.10
41 - BALL DIN 5401-5 G28 BSD-1903230009.A137 1903230009 £1.75 £2.10
42 - CYLINDRICAL GEAR Z=32 BSD-1606317074.A13 1606317074 £31.64 £37.97
43 - CYLINDRICAL GEAR Z=43 BSD-1606317082.A6 1606317082 £37.27 £44.72
44 - NEEDLE BEARING BSD-1600910013.A186 1600910013 £5.58 £6.70
45 - PINION SHAFT Z=14/24/33 BSD-1606309065.A43 1606309065 £81.81 £98.17
45/20 - CYLINDRICAL GEAR Z=33 BSD-1606320077.A2 1606320077 £23.86 £28.63
46 - SHIM 0.5 MM BSD-1600100631.A341 1600100631 £1.75 £2.10
47 - SHIM 0.6 MM BSD-1600101647.A27 1600101647 £2.16 £2.59
48 - CONTROL SHAFT Z=20 BSD-1606325025.A14 1606325025 £2.80 £3.36
49 - NOTCHED PLATE BSD-1601038025.A88 1601038025 £1.75 £2.10
50 - CONTROL LEVER BSD-1602026044.A3 1602026044 £7.36 £8.83
51 - CONTROL SHAFT Z=10 BSD-1606325027.A53 1606325027 £8.67 £10.41
52 - O-RING 8x2.5 MM BSD-1900210105.A16 1900210105 £1.75 £2.10
53 - STICKER BSD-3601110079.A2 3601110079 -
54 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A569 2600910001 £4.26 £5.11
56 - DRILLING SPINDLE 5/8 BSD-1603523087.A17 1603523087 £48.38 £58.06
57 - GROOVE BALL BEARING 15x32x9 BSD-1900905162.A35 1900905162 £18.96 £22.75
58 - RETAINING CLIP DIN 471-15x1-FSt BSD-2916650006.A291 2916650006 £1.75 £2.10
60 - CYLINDRICAL GEAR Z=41 BSD-1606317080.A20 1606317080 £27.23 £32.68
63 - COMPRESSION SPRING BSD-1604613006.A162 1604613006 £1.75 £2.10
65 - STICKER BSD-3601110080.A2 3601110080 -
66 - CONNECTING CABLE L=375 MM BSD-3604438027.A42 3604438027 £10.10 £12.12
67 - WIRE GUIDE BSD-3601025003.A104 3601025003 £1.75 £2.10
68 - CONNECTING CABLE L=360 MM BSD-3604460027.A5 3604460027 £6.52 £7.83
69 - TORX OVAL-HEAD SCREW BSD-2914201527.A5 2914201527 £2.16 £2.59
71 - LENS HEAD SCREW BSD-3603435042.A8 3603435042 £1.75 £2.10
72 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1595 2910021118 £1.75 £2.10
73 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A2253 2910211019 £1.75 £2.10
74 - TORX OVAL-HEAD SCREW BSD-2914201507.A1 2914201507 £1.75 £2.10
75 - TAPPING SCREW DIN 7971-ST3.9x13-F BSD-2910211018.A123 2910211018 £1.75 £2.10
76 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A2252 2910211019 £1.75 £2.10
77 - COUNTERSUNK-HEAD SCREW DIN 63-AM4x10-5.8 BSD-2910501120.A51 2910501120 £1.75 £2.10
78 - CONNECTING CABLE L=290 MM BSD-1604445006.A51 1604445006 £5.58 £6.70
80 - SPRING WASHER DIN 137-A 4-ST BSD-2916060005.A169 2916060005 £1.75 £2.10
90 - TAB WASHER BSD-1601030022.A18 1601030022 £1.75 £2.10
100 - BUSHING BSD-3600328033.A3 3600328033 £8.49 £10.19
102 - STRAIGHT PIN 5 H 8x18 DIN 7 BSD-2917500121.A125 2917500121 £1.75 £2.10
650 - AUXILIARY HANDLE dia43 MM BSD-3602025021.A28 3602025021 £40.80 £48.96
650/1 - AUXILIARY HANDLE M14 BSD-1602025022.A859 1602025022 £13.41 £16.09
650/1 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A3 1602025030 £18.96 £22.75
650/2 - SUPPORT CLAMP BSD-1618040077.A159 1618040077 -
650/3 - STUD BOLT M8 BSD-1613521001.A163 1613521001 £5.58 £6.70
650/4 - CLAMPING BAND dia43 MM BSD-3601038048.A51 3601038048 £18.96 £22.75
650/5 - STRAIGHT PIN BSD-1613100012.A223 1613100012 £2.61 £3.13
650/8 - HANDLE BAR BSD-3602025022.A22 3602025022 £18.96 £22.75
651 - KEY CHUCK dia3-16MM.5/8 BSD-1608571083.A42 1608571083 £72.18 £86.62
651/8 - CHUCK WRENCH SG2 BSD-2607950011.A18 2607950011 £11.30 £13.56
652 - DEPTH-GAUGE SW 6x330 MM BSD-1613001008.A16 1613001008 £8.67 £10.41
802 - FIELD 230V BSD-3604220122.A1 3604220122 £54.42 £65.30
803 - ARMATURE 230V BSD-1604010314.A0 1604010314 -
808 - NAMEPLATE BSD-160111A3H3.A2144 160111A3H3 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-1607014126.A42 1607014126 £16.41 £19.69
815 - HANDLE BSD-3605133012.A110 3605133012 -
835 - ROTARY SHAFT LIP SEAL BSD-3600290070.A25 3600290070 £12.04 £14.45
837 - INTERMEDIATE BEARING BSD-3607030436.A11 3607030436 £93.88 £112.65
855 - SPINDLE BEARING M14 BSD-1605806368.A16 1605806368 £72.18 £86.62
861 - RETAINING SNAP RING BSD-3607030355.A72 3607030355 £18.96 £22.75
866 - CONNECTING CABLE L=345 MM BSD-1604438013.A47 1604438013 £7.36 £8.83
867 - WIRE GUIDE BSD-1601025001.A65 1601025001 £1.75 £2.10
868 - CONNECTING CABLE L=330 MM BSD-1604438012.A15 1604438012 £7.36 £8.83
