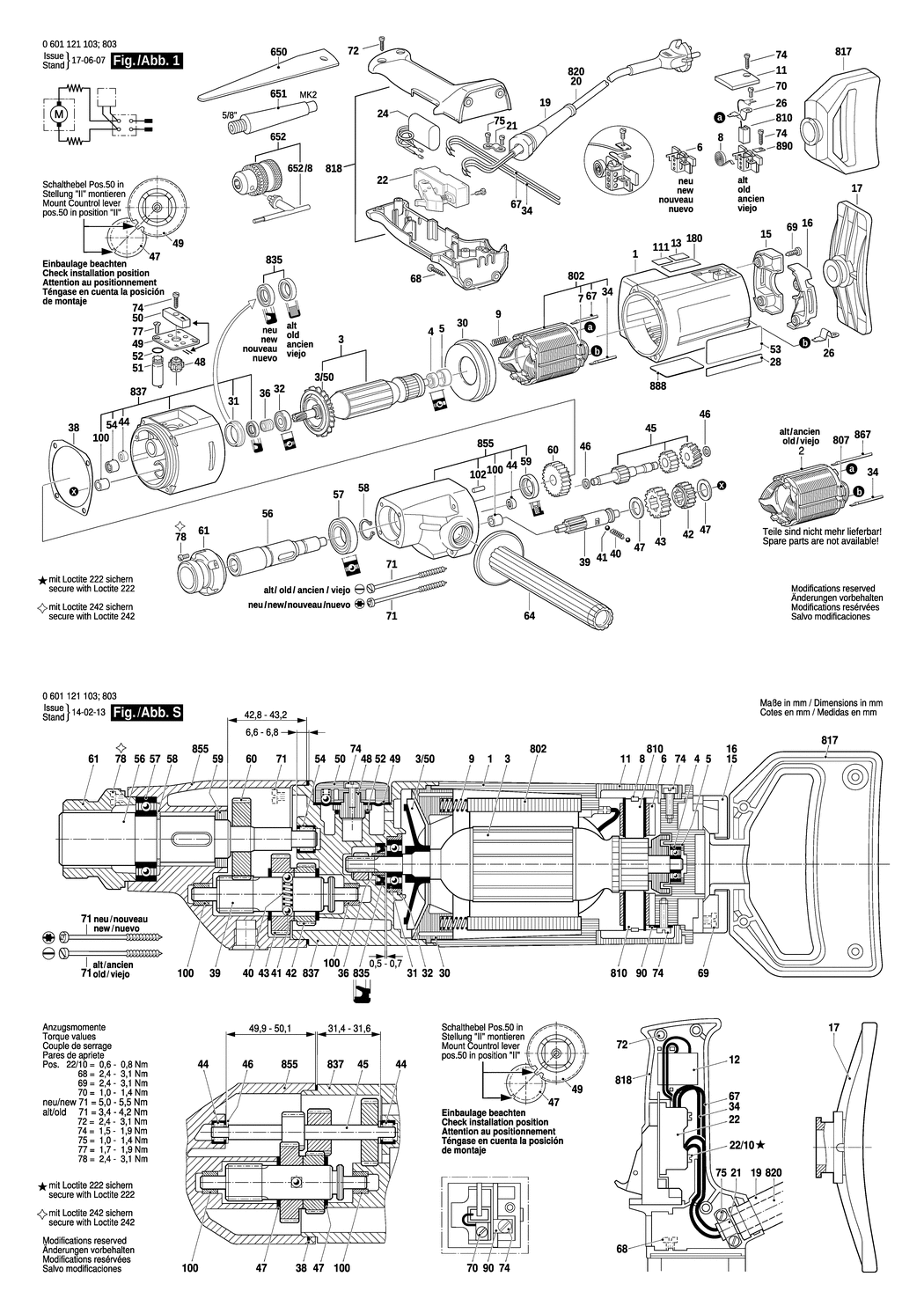

1 - MOTOR HOUSING
BSD-3605108091.A15
3605108091
|
£33.74
|
£40.49
|
|
|
3 - ARMATURE
BSD-1619P13608.A6
1619P13608
|
£120.11
|
£144.13
|
|
|
3/50 - FAN
BSD-1606610122.A93
1606610122
|
£2.80
|
£3.36
|
|
|
4 - BALL BEARING 7x19x6
BSD-2600905032.A2221
2600905032
|
£5.30
|
£6.36
|
|
|
5 - INTERMEDIATE RING
BSD-1600502011.A344
1600502011
|
£2.61
|
£3.13
|
|
|
6 - BRUSH HOLDER
BSD-3604336012.A171
3604336012
|
£5.58
|
£6.70
|
|
|
7 - WIRE GUIDE
BSD-3601025003.A16
3601025003
|
£1.75
|
£2.10
|
|
|
8 - SPIRAL SPRING
BSD-1604652006.A360
1604652006
|
£1.75
|
£2.10
|
|
|
9 - COMPRESSION SPRING
BSD-1604613006.A64
1604613006
|
£1.75
|
£2.10
|
|
|
11 - SEALING CAP
BSD-3605500063.A117
3605500063
|
£4.26
|
£5.11
|
|
|
15 - SEALING CAP
BSD-3605500058.A97
3605500058
|
£13.12
|
£15.75
|
|
|
16 - SEALING CAP
BSD-3605500059.A5
3605500059
|
£14.91
|
£17.89
|
|
|
17 - PRESSURE PLATE
BSD-3601012003.A2
3601012003
|
£8.67
|
£10.41
|
|
|
19 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A169
3600703011
|
£2.80
|
£3.36
|
|
|
21 - FASTENING CLAMP
BSD-1601302014.A532
1601302014
|
£2.61
|
£3.13
|
|
|
22 - SWITCH
BSD-1607200078.A98
1607200078
|
£40.80
|
£48.96
|
|
|
24 - SUPPRESSION FILTER
BSD-1607328028.A257
1607328028
|
£5.30
|
£6.36
|
|
|
26 - BLADE TERMINAL
BSD-1604477001.A39
1604477001
|
£1.75
|
£2.10
|
|
|
30 - AIR-DEFLECTOR RING
BSD-1600502019.A32
1600502019
|
£3.72
|
£4.47
|
|
|
31 - INTERMEDIATE RING
BSD-1600221003.A127
1600221003
|
£2.61
|
£3.13
|
|
|
32 - GROOVE BALL BEARING 9x26x8
BSD-3600905131.A40
3600905131
|
£11.30
|
£13.56
|
|
|
34 - CONNECTING CABLE L=330 MM
BSD-1604438012.A77
1604438012
|
£7.36
|
£8.83
|
|
|
36 - INTERMEDIATE RING
BSD-1600300090.A29
1600300090
|
£3.72
|
£4.47
|
|
|
38 - SEALING PLATE
BSD-1601015013.A1
1601015013
|
£1.75
|
£2.10
|
|
|
39 - TOOTHED SHAFT Z=9
BSD-1606309066.A34
1606309066
|
£81.81
|
£98.17
|
|
|
40 - COMPRESSION SPRING
BSD-1604611022.A56
1604611022
|
£1.75
|
£2.10
|
|
|
41 - BALL DIN 5401-5 G28
BSD-1903230009.A875
1903230009
|
£1.75
|
£2.10
|
|
|
42 - CYLINDRICAL GEAR Z=32
BSD-1606317074.A86
1606317074
|
£31.64
|
£37.97
|
|
|
43 - CYLINDRICAL GEAR Z=43
BSD-1606317082.A57
1606317082
|
£37.27
|
£44.72
|
|
|
44 - NEEDLE BEARING
BSD-1600910013.A22
1600910013
|
£5.58
|
£6.70
|
|
|
45 - PINION SHAFT Z=14/24/33
BSD-1606309065.A9
1606309065
|
£81.81
|
£98.17
|
|
|
46 - SHIM 0.5 MM
BSD-1600100631.A87
1600100631
|
£1.75
|
£2.10
|
|
|
47 - SHIM 0.6 MM
BSD-1600101647.A120
1600101647
|
£2.16
|
£2.59
|
|
|
48 - CONTROL SHAFT Z=20
BSD-1606325025.A43
1606325025
|
£2.80
|
£3.36
|
|
|
49 - NOTCHED PLATE
BSD-1601038025.A13
1601038025
|
£1.75
|
£2.10
|
|
|
50 - CONTROL LEVER
BSD-1602026044.A101
1602026044
|
£7.36
|
£8.83
|
|
|
51 - CONTROL SHAFT Z=10
BSD-1606325027.A24
1606325027
|
£8.67
|
£10.41
|
|
|
52 - O-RING 8x2.5 MM
BSD-1900210105.A59
1900210105
|
£1.75
|
£2.10
|
|
|
53 - STICKER
BSD-3601110363.A7
3601110363
|
£3.72
|
£4.47
|
|
|
54 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A427
2600910001
|
£4.26
|
£5.11
|
|
|
56 - DRILLING SPINDLE
BSD-3606135009.A0
3606135009
|
£81.81
|
£98.17
|
|
|
57 - GROOVE BALL BEARING 25x47x12
BSD-1900905126.A7
1900905126
|
£33.74
|
£40.49
|
|
|
58 - SPRING RETAINING RING DIN 471 25x1.2
BSD-2916650014.A67
2916650014
|
£1.75
|
£2.10
|
|
|
59 - SEAL RING 20x31x7 MM
BSD-3600290035.A27
3600290035
|
£13.12
|
£15.75
|
|
|
60 - CYLINDRICAL GEAR
BSD-3606316108.A30
3606316108
|
£33.74
|
£40.49
|
|
|
61 - FASTENING FLANGE
BSD-1605703075.A6
1605703075
|
£48.38
|
£58.06
|
|
|
64 - HANDLE 400 MM
BSD-1600763010.A99
1600763010
|
£40.80
|
£48.96
|
|
|
67 - CONNECTING CABLE L=470 MM
BSD-3604438025.A17
3604438025
|
£7.36
|
£8.83
|
|
|
68 - TAPPING SCREW 5x30
BSD-3603435027.A25
3603435027
|
£1.75
|
£2.10
|
|
|
69 - TORX OVAL-HEAD SCREW
BSD-2914201529.A20
2914201529
|
£1.75
|
£2.10
|
|
|
70 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A793
2910021118
|
£1.75
|
£2.10
|
|
|
71 - LENS HEAD SCREW
BSD-3603435042.A16
3603435042
|
£1.75
|
£2.10
|
|
|
72 - TORX OVAL-HEAD SCREW
BSD-2914201508.A18
2914201508
|
£1.75
|
£2.10
|
|
|
74 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A786
2910211019
|
£1.75
|
£2.10
|
|
|
75 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A787
2910211019
|
£1.75
|
£2.10
|
|
|
77 - COUNTERSUNK-HEAD SCREW DIN 63-AM4x10-5.8
BSD-2910501120.A28
2910501120
|
£1.75
|
£2.10
|
|
|
78 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-8.8
BSD-2910021154.A253
2910021154
|
£1.75
|
£2.10
|
|
|
100 - BUSHING
BSD-3600328033.A37
3600328033
|
£8.49
|
£10.19
|
|
|
102 - STRAIGHT PIN 5 H 8x18 DIN 7
BSD-2917500121.A62
2917500121
|
£1.75
|
£2.10
|
|
|
111 - STICKER
BSD-3601110366.A0
3601110366
|
£3.72
|
£4.47
|
|
|
650 - DRIFT
BSD-3601030002.A1
3601030002
|
£12.04
|
£14.45
|
|
|
802 - FIELD 230V
BSD-3604220125.A1
3604220125
|
£72.18
|
£86.62
|
|
|
807 - WIRE GUIDE
BSD-1601025001.A174
1601025001
|
£1.75
|
£2.10
|
|
|
810 - CARBON-BRUSH SET
BSD-3607014012.A48
3607014012
|
£23.86
|
£28.63
|
|
|
817 - HANDLE
BSD-3605133010.A23
3605133010
|
-
|
|
|
|
818 - HANDLE
BSD-3605132031.A6
3605132031
|
£31.64
|
£37.97
|
|
|
820 - POWER SUPPLY CORD
BSD-3607030489.A107
3607030489
|
£31.64
|
£37.97
|
|
|
835 - ROTARY SHAFT LIP SEAL
BSD-3600290070.A54
3600290070
|
£12.04
|
£14.45
|
|
|
837 - INTERMEDIATE BEARING
BSD-3607030436.A30
3607030436
|
£93.88
|
£112.65
|
|
|
855 - SPINDLE BEARING
BSD-1605806382.A17
1605806382
|
£135.25
|
£162.30
|
|
|
867 - CONNECTING CABLE L=450 MM
BSD-3604460009.A22
3604460009
|
£6.52
|
£7.83
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A4844
160111A3H3
|
£2.61
|
£3.13
|
|
|
890 - TAB WASHER
BSD-1601030022.A520
1601030022
|
£1.75
|
£2.10
|
|
