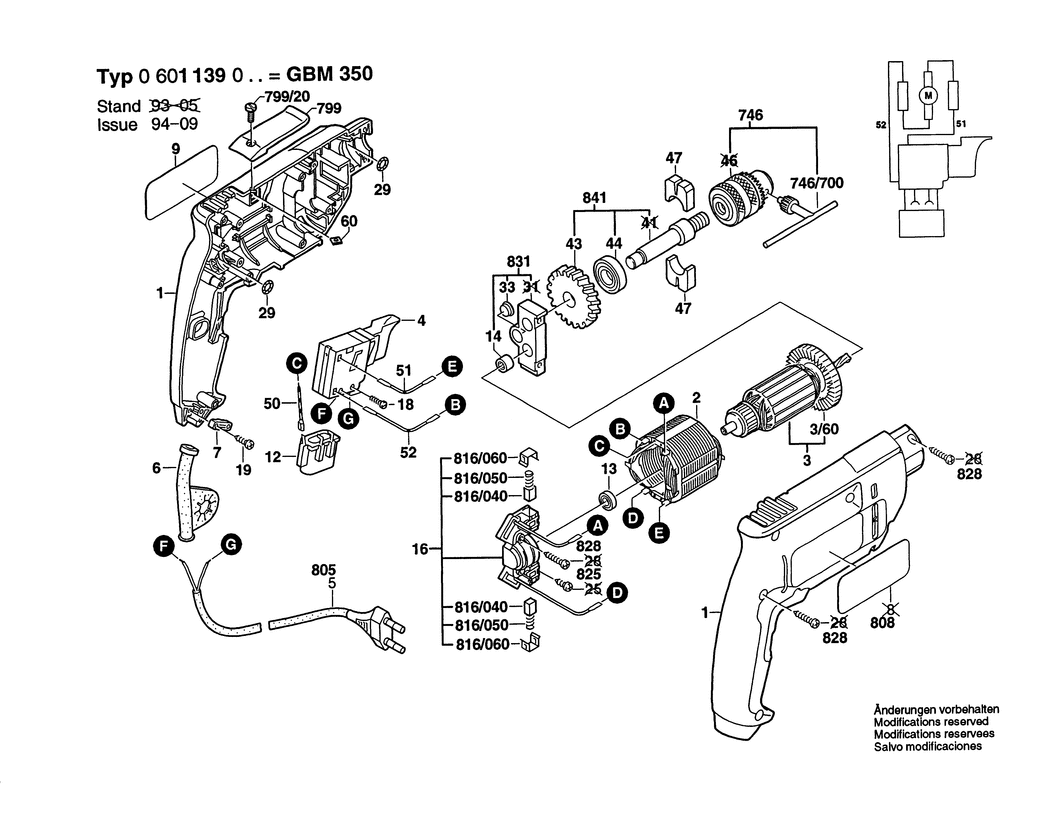

1 - HOUSING SECTION
BSD-2605104316.A45
2605104316
|
-
|
|
|
|
2 - FIELD 230-240V
BSD-2604220522.A5
2604220522
|
-
|
|
|
|
3 - ARMATURE 230-240V
BSD-2604011024.A5
2604011024
|
-
|
|
|
|
3/60 - FAN
BSD-1606610116.A138
1606610116
|
£2.52
|
£3.02
|
|
|
4 - SWITCH
BSD-2607200260.A228
2607200260
|
£11.30
|
£13.56
|
|
|
5 - POWER SUPPLY CORD I / BR 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460282.A14
2604460282
|
£16.41
|
£19.69
|
|
|
6 - GROMMET dia6.9 MM
BSD-2600707059.A70
2600707059
|
£3.72
|
£4.47
|
|
|
6 - GROMMET dia8.8 MM
BSD-2600707061.A27
2600707061
|
£2.80
|
£3.36
|
|
|
7 - CABLE CLIP
BSD-2601035001.A2504
2601035001
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601118355.A7
2601118355
|
-
|
|
|
|
12 - SUPPRESSION CAPACITOR
BSD-2607329138.A6
2607329138
|
-
|
|
|
|
13 - GROOVE BALL BEARING 8x19x6
BSD-2600905046.A63
2600905046
|
£11.30
|
£13.56
|
|
|
14 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A86
2600917003
|
£2.80
|
£3.36
|
|
|
16 - BRUSH PLATE
BSD-2604337118.A125
2604337118
|
£23.86
|
£28.63
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2503
2603410001
|
£1.75
|
£2.10
|
|
|
19 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A685
2910611019
|
£2.80
|
£3.36
|
|
|
29 - O-RING 5.0x1.75 MM
BSD-2600210036.A20
2600210036
|
-
|
|
|
|
33 - SEALING CAP
BSD-2605500111.A18
2605500111
|
-
|
|
|
|
43 - CYLINDRICAL GEAR Z=69
BSD-2606316140.A3
2606316140
|
-
|
|
|
|
44 - GROOVE BALL BEARING 6200-2Z DIN 625
BSD-1900905232.A109
1900905232
|
£21.68
|
£26.01
|
|
|
47 - FELT SHEET
BSD-2600005005.A6
2600005005
|
-
|
|
|
|
51 - CONNECTING CABLE L=83 MM
BSD-2604448129.A22
2604448129
|
-
|
|
|
|
52 - CABLE L=173 MM
BSD-2604448060.A202
2604448060
|
-
|
|
|
|
60 - SQUARE NUT DIN 562-M4-04
BSD-2915121004.A24
2915121004
|
-
|
|
|
|
746 - KEY CHUCK dia1-10 MM. 1/2-24UNF
BSD-1608571054.A36
1608571054
|
-
|
|
|
|
746/700 - CHUCK WRENCH SG2
BSD-2607950007.A704
2607950007
|
£6.52
|
£7.83
|
|
|
799 - CHANNEL END-PLATE
BSD-2608040050.A23
2608040050
|
-
|
|
|
|
799/20 - PAN HEAD SCREW DIN 85-M4x10-4.8
BSD-2910091120.A90
2910091120
|
£1.75
|
£2.10
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A4173
160111A3H3
|
£2.61
|
£3.13
|
|
|
816/040 - CARBON-BRUSH SET
BSD-2604321917.A68
2604321917
|
-
|
|
|
|
816/050 - COMPRESSION SPRING
BSD-2604610026.A82
2604610026
|
£2.61
|
£3.13
|
|
|
816/060 - RATCHET CAP
BSD-2601322013.A304
2601322013
|
£1.75
|
£2.10
|
|
|
825 - TAPPING SCREW DIN 7981-B2.9x16-C-H
BSD-2910611007.A12
2910611007
|
£1.75
|
£2.10
|
|
|
828 - TAPPING SCREW DIN 7981-ST3.9x19-C-H
BSD-2910611020.A17
2910611020
|
£1.75
|
£2.10
|
|
|
831 - BEARING BRACKET
BSD-2605807927.A10
2605807927
|
-
|
|
|
|
841 - DRILLING SPINDLE 1/2
BSD-2606135921.A2
2606135921
|
-
|
|
|
