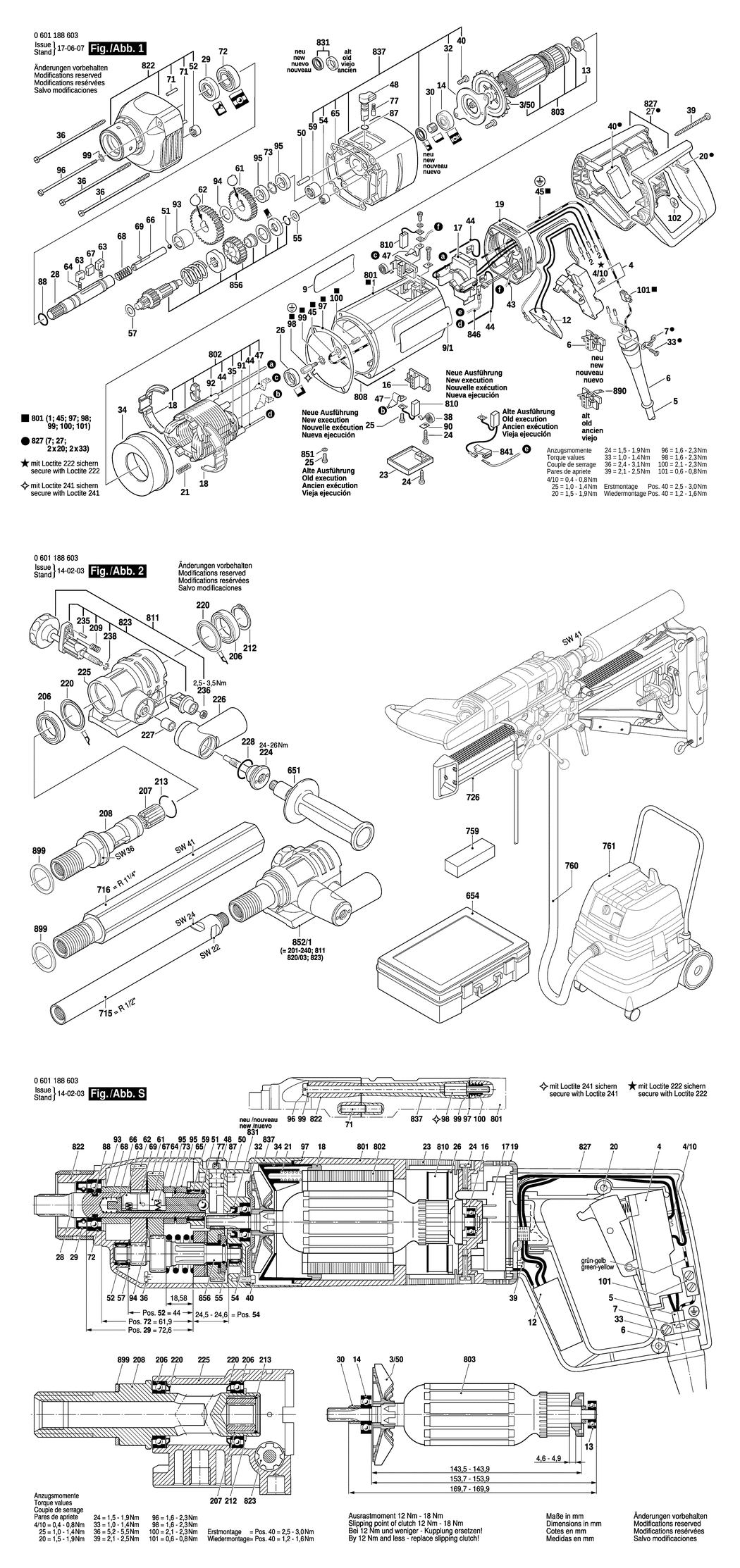

An exploded drawing and listing for the Bosch GDB 1600 DE / 0601188632 / CH 230 Volt
Ex VAT Inc VAT
3/50 - FAN BSD-3606610002.A77 3606610002 £2.33 £2.80
4 - SWITCH BSD-3607200074.A14 3607200074 £40.80 £48.96
4/10 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x6-5.8 BSD-2910011082.A34 2910011082 £1.75 £2.10
5 - POWER SUPPLY CORD CH 5m BSD-3604460097.A0 3604460097 £31.64 £37.97
6 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A531 3600703011 £2.80 £3.36
7 - FASTENING CLAMP BSD-1601302013.A487 1601302013 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-3601110512.A5 3601110512 £2.80 £3.36
9/1 - REFERENCE PLATE BSD-3601110433.A2 3601110433 £4.26 £5.11
12 - SUPPRESSION FILTER BSD-3607328013.A1 3607328013 -
13 - BALL BEARING 7x19x6 BSD-2600905032.A1402 2600905032 £5.30 £6.36
14 - GROOVE BALL BEARING 9x26x8 BSD-3600905131.A43 3600905131 £11.30 £13.56
16 - BRUSH HOLDER BSD-3604336012.A119 3604336012 £5.58 £6.70
17 - SPEED GOVERNOR 220-240V BSD-1607233156.A12 1607233156 £45.67 £54.80
18 - SEGMENTED RING BSD-3600460006.A15 3600460006 £2.61 £3.13
19 - COVER BSD-3605500153.A3 3605500153 £4.26 £5.11
20 - TORX OVAL-HEAD SCREW BSD-2914201507.A37 2914201507 £1.75 £2.10
21 - COMPRESSION SPRING BSD-1604613006.A33 1604613006 £1.75 £2.10
23 - SEALING CAP BSD-3605500063.A179 3605500063 £4.26 £5.11
24 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A112 2910211019 £1.75 £2.10
25 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A361 2910021118 £1.75 £2.10
26 - INTERMEDIATE RING BSD-1600502011.A499 1600502011 £2.61 £3.13
28 - DRILLING SPINDLE BSD-3606135005.A3 3606135005 £93.88 £112.65
29 - ROTARY SHAFT LIP SEAL 17X32X7 BSD-3600283042.A13 3600283042 £18.96 £22.75
30 - INTERMEDIATE RING BSD-1600300090.A45 1600300090 £3.72 £4.47
32 - BEARING COVER BSD-3605500156.A14 3605500156 £5.58 £6.70
33 - TAPPING SCREW DIN 7971-ST3.9x13-F BSD-2910211018.A571 2910211018 £1.75 £2.10
34 - AIR-DEFLECTOR RING BSD-3600499016.A2 3600499016 £4.26 £5.11
35 - WIRE GUIDE BSD-3601025003.A71 3601025003 £1.75 £2.10
36 - LENS HEAD SCREW BSD-3603435039.A12 3603435039 £2.61 £3.13
38 - SPIRAL SPRING BSD-3604652001.A15 3604652001 £2.61 £3.13
39 - TAPPING SCREW DIN 79-4.8x45-C-ST BSD-2910211239.A3 2910211239 £1.75 £2.10
40 - THREAD-FORMING TAP. SCREW BSD-3604411040.A21 3604411040 £2.61 £3.13
43 - CONNECTING CABLE L=160 MM BSD-3604460068.A2 3604460068 £2.61 £3.13
44 - CONNECTING CABLE BSD-3604438031.A15 3604438031 £2.16 £2.59
45 - EARTH CONDUCTOR L=415 MM BSD-3604414049.A16 3604414049 £13.12 £15.75
47 - BLADE TERMINAL BSD-1604477001.A82 1604477001 £1.75 £2.10
48 - ROTARY KNOB BSD-3603231008.A2 3603231008 £14.91 £17.89
50 - STRAIGHT PIN DIN 6325-4m6x20 BSD-2917550099.A15 2917550099 £1.75 £2.10
51 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A843 1903230013 £2.16 £2.59
52 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A150 2600910001 £4.26 £5.11
54 - NEEDLE BEARING dia8xdia12x8 MM BSD-1600910018.A70 1600910018 £5.30 £6.36
55 - SHIM 0.5 MM BSD-1600100617.A6 1600100617 £1.75 £2.10
57 - SHIM BSD-3600100083.A17 3600100083 £1.75 £2.10
59 - NEEDLE BEARING BSD-1610910088.A18 1610910088 £5.58 £6.70
61 - CYLINDRICAL GEAR Z=34 BSD-3606317047.A14 3606317047 £54.42 £65.30
62 - CYLINDRICAL GEAR Z=45 BSD-3606317048.A3 3606317048 £54.42 £65.30
63 - WEDGE BSD-3602317037.A2 3602317037 £18.96 £22.75
64 - COMPRESSION SPRING BSD-3604610048.A16 3604610048 £1.75 £2.10
65 - SEAL BSD-3601015009.A29 3601015009 £2.61 £3.13
66 - CARRIER BSD-3600101051.A0 3600101051 £54.42 £65.30
67 - GUIDE KEY BSD-3602317050.A15 3602317050 £5.30 £6.36
68 - COMPRESSION SPRING BSD-3604610049.A1 3604610049 £2.16 £2.59
69 - COILED SPRING PIN DIN 7343-4x2 BSD-2917800032.A0 2917800032 £1.75 £2.10
71 - STRAIGHT PIN 5 H 8x18 DIN 7 BSD-2917500121.A3 2917500121 £1.75 £2.10
72 - GROOVE BALL BEARING 6003 Y DIN 625 BSD-1900900273.A54 1900900273 £21.68 £26.01
73 - SPRING RETAINING RING DIN 471 17x1 MM BSD-2916650008.A49 2916650008 £1.75 £2.10
77 - RATCHET CAP BSD-2600590006.A355 2600590006 £1.75 £2.10
87 - O-RING 6.0x2.0 MM BSD-3600210028.A37 3600210028 £2.16 £2.59
88 - O-RING 12.5x2.5 MM BSD-3600210115.A17 3600210115 £1.75 £2.10
91 - SHRINKABLE TUBE BSD-3600707022.A90 3600707022 £3.72 £4.47
92 - SHRINKABLE TUBE BSD-3600707022.A91 3600707022 £3.72 £4.47
93 - SPACER SLEEVE BSD-3600400028.A2 3600400028 £8.67 £10.41
94 - PLAIN WASHER BSD-3600400025.A16 3600400025 £2.80 £3.36
95 - SPACER SLEEVE BSD-3600400026.A1 3600400026 £10.10 £12.12
96 - SOCKET HEAD CAP SCREW M4x103 MM BSD-3603414022.A16 3603414022 £8.67 £10.41
97 - CONTACT SHEET BSD-3601016003.A2 3601016003 £21.68 £26.01
98 - BOLT BSD-3603100033.A15 3603100033 £2.80 £3.36
99 - TOOTHED LOCK WASHER BSD-2916031006.A15 2916031006 £1.75 £2.10
100 - THREADED INSERT BSD-3603100034.A3 3603100034 £1.75 £2.10
101 - SOCKET-TERMINAL STRIP 1x1.5 MM BSD-3602319041.A2 3602319041 £1.75 £2.10
102 - REFERENCE PLATE BSD-3601119070.A15 3601119070 £3.72 £4.47
206 - GROOVE BALL BEARING 30x47x9 BSD-3600905114.A18 3600905114 £31.64 £37.97
207 - CARRIER BSD-3606319029.A2 3606319029 £48.38 £58.06
208 - HOLLOW SHAFT 1 1/4 . R 1/2 BSD-3603130010.A2 3603130010 £251.67 £302.00
209 - COMPRESSION SPRING BSD-3604610155.A17 3604610155 £2.61 £3.13
212 - SPRING RETAINING RING DIN 471 30x1.5 MM BSD-2916650017.A23 2916650017 £1.75 £2.10
213 - RETAINING RING BSD-3600224050.A3 3600224050 £1.75 £2.10
220 - SEAL RING BSD-3600283044.A6 3600283044 £5.58 £6.70
224 - RETAINING PIN BSD-3603100037.A0 3603100037 £48.38 £58.06
225 - HOUSING BSD-3605102083.A2 3605102083 £156.22 £187.46
226 - SUCTION CONNECTOR BSD-3603386046.A0 3603386046 £3.72 £4.47
227 - CLAMPING SLEEVE BSD-3600400027.A7 3600400027 £3.72 £4.47
228 - O-RING 25.0x2.65 MM BSD-3600210112.A28 3600210112 £1.75 £2.10
235 - STRAIGHT PIN DIN 6325-3M6x12 BSD-2917550077.A2 2917550077 £1.75 £2.10
236 - SELF-LOCKING NUT M5 BSD-3603386057.A18 3603386057 £2.16 £2.59
238 - SPRING RETAINING RING BSD-3600224056.A16 3600224056 £1.75 £2.10
651 - AUXILIARY HANDLE M14 BSD-3602025014.A3 3602025014 £4.26 £5.11
654 - CARRYING CASE BSD-1615438373.A3 1615438373 -
715 - LENGTHENING PIECE R 1/2 BSD-2608598044.A2 2608598044 £51.33 £61.60
716 - LENGTHENING PIECE 1 1/4 BSD-2608598045.A4 2608598045 £71.51 £85.81
726 - DRILL STAND BSD-0601190025.A26 0601190025 -
759 - WHETSTONE BSD-2609390315.A28 2609390315 -
760 - AIR HOSE dia 35 MM. L=5 M BSD-1609202230.A142 1609202230 £85.74 £102.89
761 - ALL PURPOSE VACUUM CLEANE BSD-0601989132.A5 0601989132 -
801 - MOTOR HOUSING BSD-3605108181.A1 3605108181 £54.42 £65.30
802 - FIELD 220-240V BSD-3604220154.A3 3604220154 £45.67 £54.80
803 - ARMATURE 220-240V BSD-3604010088.A0 3604010088 -
808 - NAMEPLATE BSD-160111A3H7.A25 160111A3H7 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-3607014003.A13 3607014003 £31.64 £37.97
811 - STAR KNOB BSD-3603349003.A18 3603349003 £21.52 £25.83
822 - SPINDLE BEARING BSD-3605806184.A16 3605806184 £135.25 £162.30
823 - CLAMP BUSHING BSD-3600300055.A17 3600300055 £13.12 £15.75
827 - HANDLE BSD-3605133019.A2 3605133019 -
831 - ROTARY SHAFT LIP SEAL BSD-3600290070.A45 3600290070 £12.04 £14.45
837 - INTERMEDIATE BEARING BSD-3607030438.A16 3607030438 £135.25 £162.30
841 - HOLDING PLATE BSD-3602329036.A3 3602329036 £1.75 £2.10
846 - CONNECTING CABLE L=170 MM BSD-3604441010.A14 3604441010 £2.16 £2.59
851 - SPRING WASHER DIN 137-A 4-ST BSD-2916060005.A134 2916060005 £1.75 £2.10
852/1 - EXTRACTOR HEAD 1 1/4. R 1/2 BSD-3607031574.A6 3607031574 £458.51 £550.21
856 - SPUR WHEEL CLUTCH BSD-3606309054.A16 3606309054 £357.27 £428.72
890 - TAB WASHER BSD-1601030022.A370 1601030022 £1.75 £2.10
899 - GLIDE RING dia32.2xdia41x1 MM BSD-1600190043.A17 1600190043 £7.36 £8.83
