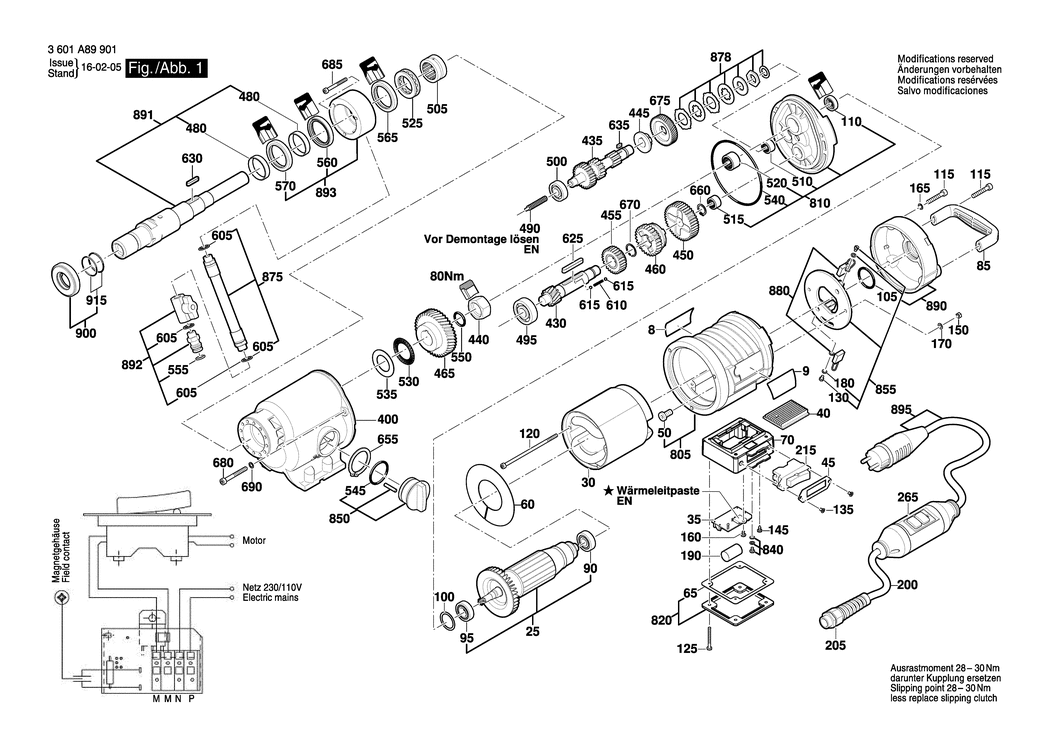

An exploded drawing and listing for the Bosch GDB 350 WE / 3601A89971 / GB 230 Volt
Ex VAT Inc VAT
8 - NAMEPLATE BSD-1619PB1105.A0 1619PB1105 -
9 - NAMEPLATE BSD-1619PB0396.A3 1619PB0396 -
25 - ARMATURE WITH FAN 230V BSD-1600A0073D.A4 1600A0073D £553.99 £664.79
30 - FIELD 230V BSD-160422053E.A5 160422053E £357.27 £428.72
35 - PRINTED CIRCUIT BOARD BSD-1600A01AM1.A6 1600A01AM1 -
40 - COOLING SHEET BSD-1600A0073F.A2 1600A0073F £40.80 £48.96
45 - SEAL BSD-1600A00742.A1 1600A00742 £12.04 £14.45
50 - INSULATING SLEEVE BSD-1600325008.A3 1600325008 £11.30 £13.56
60 - AIR-DEFLECTOR RING BSD-160059105P.A5 160059105P £13.12 £15.75
65 - SEAL BSD-1600A0073G.A6 1600A0073G £8.67 £10.41
70 - TERMINAL BOX BSD-1600A00MZ7.A2 1600A00MZ7 -
85 - CARRYING HANDLE BSD-1600A0073K.A6 1600A0073K £31.64 £37.97
90 - GROOVE BALL BEARING BSD-160090004R.A6 160090004R £37.27 £44.72
95 - GROOVE BALL BEARING BSD-160090004S.A2 160090004S £37.27 £44.72
100 - SHIM BSD-1600A0073L.A2 1600A0073L £5.58 £6.70
105 - O-RING BSD-1600210067.A6 1600210067 £3.72 £4.47
110 - ROTARY SHAFT LIP SEAL BSD-1600A004Y0.A11 1600A004Y0 £21.68 £26.01
115 - HEX SOCKET HEAD CAP SCREW BSD-1600A0073N.A6 1600A0073N £2.16 £2.59
120 - HEX SOCKET HEAD CAP SCREW BSD-1600A0073P.A2 1600A0073P £12.04 £14.45
125 - SOCKET HEAD CAP SCREW BSD-160341001D.A6 160341001D £2.16 £2.59
130 - SOCKET HEAD CAP SCREW BSD-160341001E.A2 160341001E £1.75 £2.10
135 - COUNTERSUNK-HEAD SCREW BSD-1603490A0D.A6 1603490A0D £1.75 £2.10
145 - OVAL-HEAD SCREW BSD-1600A019B5.A8 1600A019B5 -
150 - HEX NUT BSD-1600A0073S.A6 1600A0073S £1.75 £2.10
160 - OVAL-HEAD SCREW BSD-1601A013TB.A3 1601A013TB -
165 - LOCKING WASHER BSD-1600A0073V.A12 1600A0073V £1.75 £2.10
170 - SPRING WASHER BSD-1600150021.A6 1600150021 £1.75 £2.10
180 - PLAIN WASHER BSD-1600A0073W.A3 1600A0073W £1.75 £2.10
190 - SUPPRESSION CAPACITOR BSD-1600A0073X.A5 1600A0073X £21.68 £26.01
200 - MAINS CABLE BSD-1600A0073Y.A3 1600A0073Y -
205 - CABLE GLAND BSD-1600A0073Z.A3 1600A0073Z £21.52 £25.83
215 - MAINS SWITCH BSD-1600A00741.A5 1600A00741 £102.57 £123.08
265 - SWITCH BSD-1607200329.A2 1607200329 £283.50 £340.20
400 - GEAR HOUSING BSD-160580659Y.A3 160580659Y £500.46 £600.55
430 - PINION SHAFT BSD-1600A00743.A4 1600A00743 £251.67 £302.00
435 - GEAR SHAFT BSD-1600A00744.A4 1600A00744 £306.65 £367.98
440 - HEX NUT BSD-1600A0077E.A4 1600A0077E £33.74 £40.49
445 - BUSHING BSD-160030010H.A4 160030010H £48.38 £58.06
450 - CYLINDRICAL GEAR BSD-1600A0076R.A4 1600A0076R £179.37 £215.24
455 - CYLINDRICAL GEAR BSD-1600A0076S.A4 1600A0076S £135.25 £162.30
460 - CYLINDRICAL GEAR BSD-1600A0076T.A4 1600A0076T £251.67 £302.00
465 - CYLINDRICAL GEAR BSD-1600A0076U.A4 1600A0076U £135.25 £162.30
480 - PROTECTION SLEEVE BSD-1600A00746.A4 1600A00746 £23.86 £28.63
490 - WORM SHAFT BSD-1600A0076V.A4 1600A0076V £45.67 £54.80
495 - GROOVE BALL BEARING BSD-160090004U.A4 160090004U £45.67 £54.80
500 - GROOVE BALL BEARING BSD-160090004V.A4 160090004V £40.80 £48.96
505 - NEEDLE-ROLLER BEARING BSD-160090004W.A4 160090004W £102.57 £123.08
510 - NOZZLE SOCKET BSD-1600A0076W.A4 1600A0076W £45.67 £54.80
515 - NEEDLE BEARING BSD-1600A0076X.A4 1600A0076X £37.27 £44.72
520 - NEEDLE BEARING BSD-1600A0076Y.A4 1600A0076Y £40.80 £48.96
525 - NEEDLE AXIAL BALL BEARIN BSD-1600A0076Z.A4 1600A0076Z £81.81 £98.17
530 - THRUST NEEDLE RIM BSD-1600A00770.A4 1600A00770 £27.23 £32.68
535 - THRUST BEARING DISC BSD-1600A00771.A4 1600A00771 £12.04 £14.45
540 - O-RING BSD-1600210068.A4 1600210068 £8.67 £10.41
545 - O-RING BSD-1600210069.A4 1600210069 £2.16 £2.59
550 - O-RING BSD-1600210063.A9 1600210063 £2.16 £2.59
555 - O-RING BSD-1600210064.A3 1600210064 £2.16 £2.59
560 - SHAFT SEAL BSD-1600A00772.A4 1600A00772 £23.86 £28.63
565 - SHAFT SEAL BSD-1600A00773.A4 1600A00773 £23.86 £28.63
570 - SHAFT SEAL BSD-1600A00774.A4 1600A00774 £23.86 £28.63
605 - SEAL RING BSD-1600A004YF.A11 1600A004YF £1.75 £2.10
610 - HELICAL COMPRESS. SPRING BSD-1600A00777.A4 1600A00777 £4.26 £5.11
615 - BALL BSD-1600A0077A.A4 1600A0077A £1.75 £2.10
625 - PARALLEL KEY BSD-1600A0077B.A4 1600A0077B £3.72 £4.47
630 - PARALLEL KEY BSD-1600A0077C.A4 1600A0077C £2.80 £3.36
635 - PARALLEL KEY BSD-1600A0077D.A4 1600A0077D £2.61 £3.13
655 - SPRING RETAINING RING BSD-1600150022.A2 1600150022 £8.67 £10.41
660 - SPRING RETAINING RING BSD-1600150023.A6 1600150023 £1.75 £2.10
670 - RETAINING RING BSD-160460102P.A7 160460102P £1.75 £2.10
675 - CYLINDRICAL GEAR BSD-1600A0079B.A8 1600A0079B £102.57 £123.08
680 - HEX SOCKET HEAD CAP SCREW BSD-1600A0077G.A5 1600A0077G £2.61 £3.13
685 - HEX SOCKET HEAD CAP SCREW BSD-1600A0077H.A3 1600A0077H £2.80 £3.36
690 - LOCKING WASHER BSD-1600A0073V.A11 1600A0073V £1.75 £2.10
805 - MOTOR HOUSING BSD-16051082C1.A3 16051082C1 £306.65 £367.98
810 - INTERMEDIATE FLANGE BSD-1600A0077L.A5 1600A0077L £357.27 £428.72
820 - COVER BSD-16055002BL.A2 16055002BL -
840 - THREADED JOINT BSD-1600A0077N.A5 1600A0077N £7.36 £8.83
850 - CLAMP HANDLE BSD-1602026102.A3 1602026102 £81.81 £98.17
855 - BRUSH HOLDER BSD-1600A0077P.A3 1600A0077P £93.88 £112.65
875 - HOSE BSD-1600A008WC.A0 1600A008WC £63.50 £76.20
878 - SLIDING CLUTCH BSD-1600A0077R.A5 1600A0077R £120.11 £144.13
880 - CARBON-BRUSH SET BSD-160701417M.A3 160701417M £40.80 £48.96
890 - BEARING COVER BSD-160582023B.A6 160582023B £102.57 £123.08
891 - DRILLING SPINDLE BSD-1600A0077S.A3 1600A0077S £357.27 £428.72
892 - ISOLATING VALVE BSD-1600A005AY.A7 1600A005AY £68.42 £82.10
893 - WATER CONNECTION BSD-1600A0077U.A5 1600A0077U £135.25 £162.30
895 - MAINS CABLE BSD-1600A0077Y.A1 1600A0077Y -
900 - GLIDE RING BSD-1600A00780.A0 1600A00780 £135.25 £162.30
915 - O-RING BSD-160021006D.A4 160021006D £2.80 £3.36
