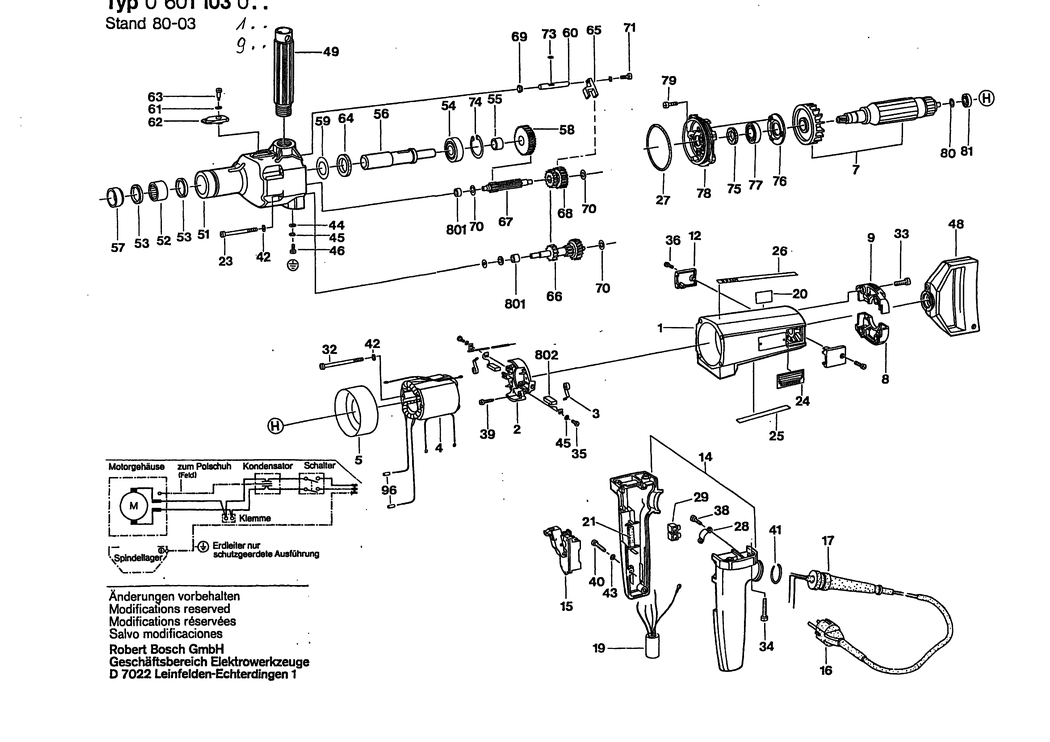

An exploded drawing and listing for the Bosch UB2J77 / 0601103141 / GB 110 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1605108045.A15 1605108045 -
2 - BRUSH HOLDER BSD-1604336006.A194 1604336006 -
3 - SPIRAL SPRING BSD-1604652015.A27 1604652015 £2.80 £3.36
4 - POLE SHOE 110V BSD-1604220037.A5 1604220037 -
5 - AIR-DEFLECTOR RING BSD-1600209002.A172 1600209002 £5.30 £6.36
7 - ARMATURE 110V BSD-1604010046.A10 1604010046 -
8 - SEALING CAP BSD-3605500058.A21 3605500058 £13.12 £15.75
9 - SEALING CAP BSD-3605500059.A81 3605500059 £14.91 £17.89
14 - HANDLE BSD-3605132023.A32 3605132023 -
15 - SWITCH BSD-1607200037.A24 1607200037 £45.67 £54.80
16 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000227.A337 1607000227 £23.86 £28.63
17 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A1394 3600703011 £2.80 £3.36
21 - INSULATING STRIP 33x10x6 MM BSD-1602381001.A548 1602381001 -
23 - SOCKET HEAD CAP SCREW DIN 84-BM5x82 BSD-1603410001.A65 1603410001 -
24 - NAMEPLATE BSD-160111A3H3.A2191 160111A3H3 £2.61 £3.13
26 - MANUFACTURER'S NAMEPLATE BSD-1601110003.A105 1601110003 -
27 - O-RING 74.0x3.0 MM BSD-1600210006.A125 1600210006 £1.75 £2.10
28 - FASTENING CLAMP BSD-1601302014.A869 1601302014 £2.61 £3.13
29 - CONNECTING TERMINAL BSD-1601091003.A15 1601091003 -
32 - SOCKET HEAD CAP SCREW BSD-2910021181.A22 2910021181 -
33 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8 BSD-2910011162.A9 2910011162 £1.75 £2.10
34 - SOCKET HEAD CAP SCREW DIN 84-AM5x22-8.8 BSD-2910021163.A52 2910021163 -
35 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1628 2910021118 £1.75 £2.10
36 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8 BSD-2910021125.A77 2910021125 £1.75 £2.10
38 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8 BSD-2910021116.A227 2910021116 £2.16 £2.59
39 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A2295 2910211019 £1.75 £2.10
40 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A867 2910021122 £2.16 £2.59
41 - RETAINING RING 32 DIN 9045 BSD-2916600017.A51 2916600017 £1.32 £1.58
42 - SPRING LOCK WASHER DIN 127-B 5 BSD-2916680006.A413 2916680006 -
43 - SPRING LOCK WASHER B 4 DIN 127 BSD-2916681005.A89 2916681005 £1.75 £2.10
44 - PLAIN WASHER A 4.3 DIN 125-ST BSD-2916010410.A142 2916010410 -
46 - PAN HEAD SCREW DIN 85 AM 4x6-MS BSD-2910110116.A143 2910110116 £1.75 £2.10
48 - HANDLE BSD-3605133010.A63 3605133010 -
49 - HANDLE 400 MM BSD-1600763010.A10 1600763010 £40.80 £48.96
51 - SPINDLE BEARING BSD-3605806066.A15 3605806066 -
52 - NEEDLE BEARING BSD-1600910013.A228 1600910013 £5.58 £6.70
53 - ROTARY SHAFT LIP SEAL BSD-1600283003.A111 1600283003 £4.26 £5.11
54 - GROOVE BALL BEARING BSD-1600900004.A33 1600900004 -
55 - SPACER BUSHING BSD-1600300028.A29 1600300028 -
56 - DRILLING SPINDLE BSD-1606135009.A15 1606135009 -
57 - SHIM 0.5 MM BSD-1600100631.A296 1600100631 £1.75 £2.10
58 - CYLINDRICAL GEAR Z=50 BSD-1606317045.A33 1606317045 -
59 - SHIM 0.8 MM BSD-1600102678.A30 1600102678 -
60 - ADJUSTING BOLT BSD-1603104005.A84 1603104005 -
61 - SHIM 0.2 MM BSD-1420100620.A35 1420100620 £1.32 £1.58
62 - CONTROL LEVER BSD-1602026026.A75 1602026026 -
63 - SOCKET HEAD CAP SCREW M3.5x5.5 MM BSD-1603413005.A56 1603413005 £2.52 £3.02
64 - FELT WASHER BSD-1600205009.A27 1600205009 -
65 - CONTROL LEVER BSD-1602120006.A33 1602120006 -
66 - SPINDLE WITH GEAR Z=15/26/33 BSD-1606328060.A27 1606328060 -
67 - SPINDLE WITH GEAR Z=12 BSD-1606309036.A63 1606309036 -
68 - CYLINDRICAL GEAR Z=30/41 BSD-1606328059.A23 1606328059 -
69 - ROTARY SHAFT LIP SEAL BSD-1600283003.A112 1600283003 £4.26 £5.11
70 - SHIM 0.5 MM BSD-1600100631.A297 1600100631 £1.75 £2.10
71 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A868 2910021122 £2.16 £2.59
73 - SPRING LOCK WASHER DIN 127-B3.5 BSD-2916680004.A72 2916680004 -
74 - SPRING RETAINING RING DIN 472-42x1.75MM BSD-2916660019.A43 2916660019 £4.26 £5.11
75 - FELT DISC BSD-1600108003.A130 1600108003 £1.32 £1.58
76 - BEARING COVER BSD-1600501019.A317 1600501019 £23.86 £28.63
77 - GROOVE BALL BEARING 17x35x10 BSD-1600900001.A124 1600900001 -
78 - INTERMEDIATE BEARING BSD-3605820033.A53 3605820033 -
79 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8 BSD-2910021125.A76 2910021125 £1.75 £2.10
80 - SHIM 0.10 MM BSD-1420100023.A107 1420100023 -
80 - SHIM 0.2 MM BSD-1600100632.A119 1600100632 £1.75 £2.10
81 - BALL BEARING 7x22x7 BSD-1900905018.A1051 1900905018 £18.96 £22.75
96 - END SPLICE BSD-3604477009.A249 3604477009 £2.61 £3.13
650 - DRIFT BSD-1601030009.A24 1601030009 -
801 - BUSHING BSD-1600300902.A11 1600300902 £14.72 £17.67
802 - CARBON-BRUSH SET BSD-1607014102.A13 1607014102 -
