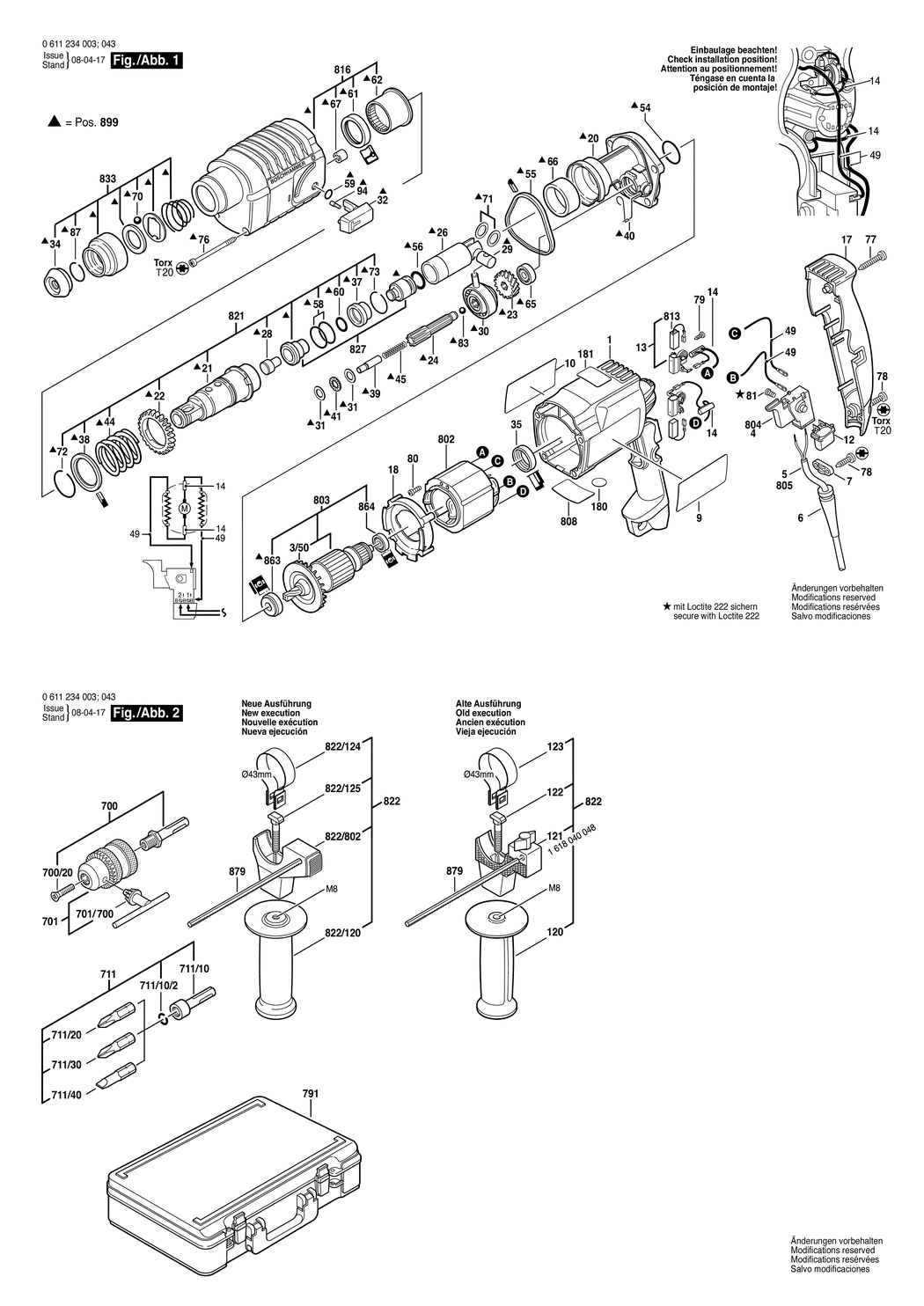

An exploded drawing and listing for the Bosch GBH 2-20 S / 0611234003 / EU 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1615108112.A18 1615108112 £13.41 £16.09
3/50 - FAN BSD-1616610072.A27 1616610072 £2.16 £2.59
4 - ON-OFF SWITCH BSD-1617200047.A27 1617200047 £21.68 £26.01
6 - GROMMET dia7.3-dia8.6x76 MM BSD-2600703018.A177 2600703018 £2.61 £3.13
7 - CABLE CLIP BSD-1611035005.A54 1611035005 £2.16 £2.59
9 - MANUFACTURER'S NAMEPLATE BSD-1611110838.A4 1611110838 £3.34 £4.01
10 - MANUFACTURER'S NAMEPLATE BSD-1611110838.A5 1611110838 £3.34 £4.01
12 - SUPPRESSION FILTER BSD-1617328025.A32 1617328025 £5.58 £6.70
13 - BRUSH HOLDER BSD-1617000343.A34 1617000343 £11.30 £13.56
14 - SUPPRESSION FILTER L=55 MM BSD-1614465008.A60 1614465008 £7.36 £8.83
17 - HOUSING COVER BSD-1615132065.A6 1615132065 -
18 - AIR-DEFLECTOR RING BSD-1610522008.A78 1610522008 £1.75 £2.10
20 - INTERMEDIATE FLANGE BSD-1615700037.A26 1615700037 £40.80 £48.96
21 - RATCHET SLEEVE SDS-PLUS BSD-1616490058.A18 1616490058 £218.41 £262.09
22 - CYLINDRICAL GEAR Z=46 BSD-1616320007.A26 1616320007 £7.36 £8.83
23 - CYLINDRICAL GEAR Z=6/21 BSD-1616320002.A7 1616320002 £24.45 £29.34
24 - TOOTHED SHAFT Z=6/10 BSD-1613060010.A129 1613060010 £54.42 £65.30
26 - HAMMER PISTON BSD-1618700052.A130 1618700052 £13.12 £15.75
28 - STRIKER PIN BSD-1613124026.A148 1613124026 £2.80 £3.36
29 - PISTON PIN BSD-1613105012.A423 1613105012 £3.72 £4.47
30 - DRIVE BEARING BSD-1615819005.A115 1615819005 £31.64 £37.97
31 - SUPPORT DISC 0.8 MM BSD-1610100003.A7 1610100003 £1.75 £2.10
32 - CLAMP HANDLE BSD-1612026023.A33 1612026023 £2.61 £3.13
34 - PROTECTIVE CAP L=17 MM. SDS-PLUS BSD-1610508008.A250 1610508008 £2.16 £2.59
35 - RUBBER RING BSD-1610206021.A169 1610206021 £1.75 £2.10
37 - DAMPING BUSHING BSD-1610390011.A133 1610390011 £3.72 £4.47
38 - SUPPORTING DISC BSD-1610102022.A126 1610102022 £2.16 £2.59
39 - STRAIGHT PIN BSD-1613100013.A31 1613100013 £2.16 £2.59
40 - HOLDING SPRING BSD-1614690001.A4 1614690001 £1.75 £2.10
41 - ROLLER-CAGE ASSEMBLY BSD-1610920003.A50 1610920003 £4.26 £5.11
44 - COMPRESSION SPRING BSD-1614633001.A138 1614633001 £2.52 £3.02
45 - COMPRESSION SPRING BSD-1614614001.A11 1614614001 £1.75 £2.10
49 - CABLE L=130 MM BSD-2604448005.A175 2604448005 £1.75 £2.10
54 - O-RING 24.0x2.5 MM BSD-1610210068.A240 1610210068 £1.75 £2.10
55 - SEAL RING BSD-1610206023.A31 1610206023 £2.80 £3.36
56 - O-RING 14.0x3.0 MM BSD-1610210070.A130 1610210070 £2.61 £3.13
58 - O-RING 18.0x3.0 MM BSD-1610210058.A137 1610210058 £2.61 £3.13
59 - O-RING 6.0x2.5 MM BSD-1610210069.A32 1610210069 £1.75 £2.10
60 - O-RING 10.0x3.5 MM BSD-1610210073.A7 1610210073 £2.16 £2.59
61 - ROTARY SHAFT LIP SEAL BSD-1610283017.A159 1610283017 £7.36 £8.83
62 - PLAIN BEARING BSD-1610202026.A51 1610202026 £5.30 £6.36
65 - GROOVE BALL BEARING 8x22x7 BSD-1900900228.A155 1900900228 £6.61 £7.93
66 - BUSHING dia30xdia37x15.7 MM BSD-1610301000.A23 1610301000 £3.34 £4.01
67 - NEEDLE BEARING BSD-1610910064.A74 1610910064 £2.52 £3.02
70 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A550 1903230013 £2.16 £2.59
71 - SHIM WASHER 1.2 MM BSD-1610101011.A231 1610101011 £1.75 £2.10
72 - RETAINING RING DIN 7993-A32 BSD-2916540018.A141 2916540018 £3.72 £4.47
73 - RETAINING RING DIN 9045-24 BSD-1614601009.A43 1614601009 £1.95 £2.34
76 - TAPPING SCREW ST-4.8x57.5-TORX.T20 BSD-1613435009.A14 1613435009 £1.75 £2.10
77 - TAPPING SCREW ST3.9x32 BSD-1603435051.A26 1603435051 £1.95 £2.34
78 - TAPPING SCREW ST3.9x19-TORX.T20 BSD-1603435050.A69 1603435050 £2.33 £2.80
79 - TAPPING SCREW DIN 7971-ST2.9x9.5-F BSD-2910211005.A535 2910211005 £1.75 £2.10
80 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A509 2603435015 £2.16 £2.59
81 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2920 2603410001 £1.75 £2.10
83 - BALL 5 MM V DIN 5401 BSD-1903230309.A142 1903230309 £1.75 £2.10
87 - RETAINING RING DIN 7993-A22 BSD-2916540012.A266 2916540012 -
94 - DETENT PIN BSD-1613120017.A0 1613120017 £1.75 £2.10
700 - DRILL CHUCK SHANK 1/2 BSD-1617000154.A86 1617000154 £31.64 £37.97
700/20 - COUNTERSUNK-HEAD SCREW M6x27 BSD-2603421226.A331 2603421226 £1.75 £2.10
701 - CHUCK BSD-1608571088.A123 1608571088 £27.23 £32.68
701/700 - CHUCK WRENCH SG2 BSD-2607950007.A678 2607950007 £6.52 £7.83
711 - PARTS SET BSD-1617000133.A161 1617000133 -
711/10/2 - RETAINING RING BSD-2604601004.A178 2604601004 £1.75 £2.10
711/20 - SCREWDRIVER BLADE NR.2.1/4 BSD-1608521004.A78 1608521004 -
711/30 - SCREWDRIVER BIT BSD-2607000248.A71 2607000248 -
711/40 - SCREWDRIVER BLADE GR.1.0x6. 1/4 BSD-1608511020.A50 1608511020 -
791 - CARRYING CASE BSD-1615438146.A11 1615438146 -
802 - FIELD 220-230V BSD-2604220429.A55 2604220429 £23.86 £28.63
803 - ARMATURE WITH FAN 220-240V BSD-1614010052.A22 1614010052 -
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1614460026.A48 1614460026 £18.96 £22.75
808 - NAMEPLATE BSD-160111A3H5.A104 160111A3H5 £2.61 £3.13
813 - CARBON-BRUSH SET BSD-1617014132.A8 1617014132 £12.04 £14.45
816 - GEAR HOUSING BSD-1615806077.A91 1615806077 £45.67 £54.80
821 - RATCHET SLEEVE BSD-1617000812.A0 1617000812 -
822 - AUXILIARY HANDLE dia43 MM BSD-2602025118.A35 2602025118 £14.91 £17.89
822/120 - AUXILIARY HANDLE M8 BSD-1612025019.A340 1612025019 £6.52 £7.83
822/124 - CLAMPING BAND dia43 MM BSD-1611316006.A100 1611316006 £2.61 £3.13
822/125 - T-HEAD BOLT M8x40 MM BSD-1613490002.A202 1613490002 £4.26 £5.11
822/802 - SUPPORT CLAMP dia43 MM BSD-2608040176.A22 2608040176 £6.52 £7.83
827 - STRIKER BSD-1617000338.A7 1617000338 £27.23 £32.68
833 - PROTECTION SLEEVE BSD-1617000163.A218 1617000163 £7.36 £8.83
863 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A251 1610905048 £8.67 £10.41
864 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A0 1610905025 £6.52 £7.83
879 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A86 1613001009 £3.72 £4.47
899 - IMPACT MECHANISM BSD-1617000353.A0 1617000353 £88.07 £105.68
