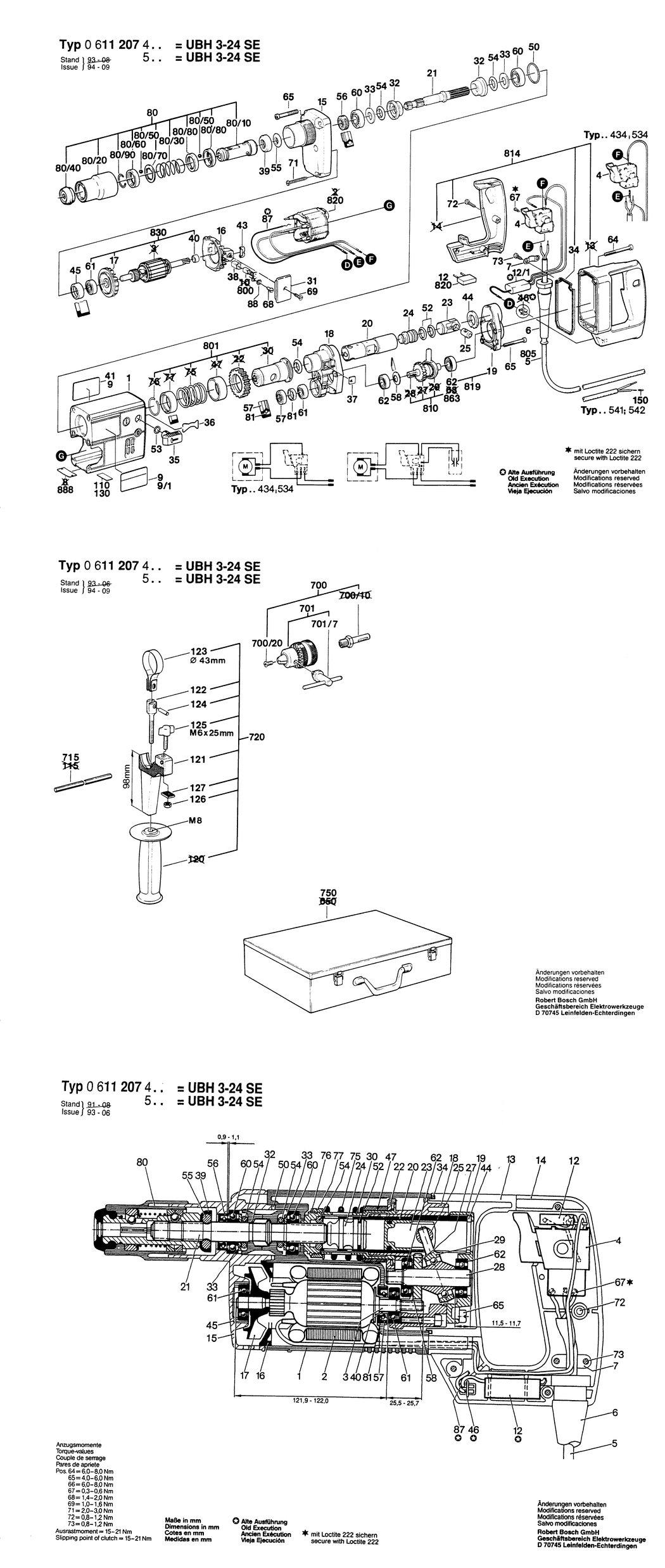

An exploded drawing and listing for the Bosch UBH 3/24 SE / 0611207550 / I 220 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1615108049.A0 1615108049 -
4 - ON-OFF SWITCH BSD-2607200371.A20 2607200371 -
5 - POWER SUPPLY CORD I 4.15m 2 x 1.0mm H07 RN-F BSD-1614460039.A9 1614460039 £16.74 £20.09
6 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A593 3600703011 £2.80 £3.36
7 - FASTENING CLAMP BSD-1601302014.A8 1601302014 £2.61 £3.13
9 - MANUFACTURER'S NAMEPLATE BSD-1611110452.A0 1611110452 -
12 - SUPPRESSION FILTER BSD-1607328028.A226 1607328028 £5.30 £6.36
15 - HOUSING COVER BSD-1615500277.A15 1615500277 -
16 - AIR-DEFLECTOR RING BSD-1615820059.A12 1615820059 -
17 - FAN BSD-2606610059.A3 2606610059 -
18 - BEARING PEDESTAL BSD-1615820058.A17 1615820058 -
19 - BEARING COVER BSD-1615808065.A0 1615808065 -
20 - GUIDE TUBE BSD-1615806031.A24 1615806031 -
21 - DRILLING SPINDLE BSD-1618597047.A3 1618597047 £48.38 £58.06
23 - HAMMER PISTON BSD-1618700045.A12 1618700045 -
24 - STRIKER PIN BSD-1618710040.A13 1618710040 -
25 - PISTON PIN BSD-1613105012.A229 1613105012 £3.72 £4.47
31 - SEALING CAP BSD-1615500278.A2 1615500278 -
32 - SPACER BUSHING BSD-1610329000.A14 1610329000 -
33 - SUPPORTING DISC 2.0 MM BSD-1610101611.A24 1610101611 -
34 - SEALING FRAME BSD-1611015022.A27 1611015022 -
35 - CLAMP HANDLE BSD-1612026017.A15 1612026017 -
36 - HOLDING SPRING BSD-1614680002.A24 1614680002 -
37 - SEALING PLATE BSD-1611031004.A6 1611031004 -
38 - BRUSH HOLDER BSD-1614336003.A15 1614336003 -
39 - BACKUP RING BSD-1610508006.A43 1610508006 -
40 - INTERMEDIATE RING BSD-1610200011.A5 1610200011 -
41 - MANUFACTURER'S NAMEPLATE BSD-1611110453.A4 1611110453 -
43 - RUBBER BUFFER BSD-1611091005.A8 1611091005 -
44 - RUBBER RING BSD-1610109015.A26 1610109015 -
44 - RUBBER RING BSD-1610206017.A51 1610206017 -
50 - O-RING 33.0x3.5 MM BSD-1610210087.A15 1610210087 £1.75 £2.10
52 - O-RING 16.0x3.15 MM BSD-1610210038.A12 1610210038 -
53 - O-RING 10.5x2.7 MM BSD-1610210046.A188 1610210046 £2.16 £2.59
54 - O-RING 16.0x5.0 MM BSD-1610210040.A17 1610210040 -
55 - O-RING 11.0x7.0 MM BSD-1610210035.A34 1610210035 £2.52 £3.02
56 - ROTARY SHAFT LIP SEAL dia 26x15x7.5 MM BSD-1610283015.A30 1610283015 £4.75 £5.70
57 - ROTARY SHAFT LIP SEAL dia13.8xdia26x7.5 MM BSD-1610283014.A14 1610283014 -
58 - DISC SPRING BSD-1610550026.A16 1610550026 -
60 - GROOVE BALL BEARING 15x32x9 BSD-1900900272.A8 1900900272 -
61 - BALL BEARING 9x26x8 BSD-1900905025.A83 1900905025 £21.52 £25.83
62 - GROOVE BALL BEARING 12x28x8 BSD-1900900287.A208 1900900287 £21.68 £26.01
64 - HEX SOCKET HEAD CAP SCREW M 5x50 DIN 912-8.8 BSD-2910141174.A14 2910141174 £2.33 £2.80
65 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x35-8.8 BSD-2910141168.A91 2910141168 £3.80 £4.56
67 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2603 2603410001 £1.75 £2.10
68 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A3 2910021118 £1.75 £2.10
69 - TAPPING SCREW DIN 7972-B3.9x13 BSD-2910601118.A16 2910601118 £1.75 £2.10
71 - TAPPING SCREW DIN 7971-ST4.8x38-F BSD-2910211038.A27 2910211038 £1.75 £2.10
72 - TAPPING SCREW DIN 7971-B 3.9x22 BSD-2910211221.A8 2910211221 -
73 - TAPPING SCREW DIN 7971-ST3.9x13-F BSD-2910211018.A482 2910211018 £1.75 £2.10
80 - BIT HOLDER BSD-1618598131.A18 1618598131 -
80/20 - PROTECTION SLEEVE BSD-1610499009.A11 1610499009 -
80/30 - COMPRESSION SPRING BSD-1614632000.A39 1614632000 -
80/40 - PROTECTIVE CAP L=17 MM. SDS-PLUS BSD-1610508008.A1 1610508008 £2.16 £2.59
80/50 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A361 1903230013 £2.16 £2.59
80/60 - THRUST RING BSD-1610251002.A26 1610251002 -
80/70 - HOLDING PLATE BSD-1610190007.A15 1610190007 -
80/80 - RETAINING SNAP RING BSD-1610250003.A24 1610250003 £5.58 £6.70
80/90 - RETAINING RING DIN 7993-A22 BSD-2916540012.A403 2916540012 -
81 - LUBRICATING FELT BSD-1610205003.A31 1610205003 -
87 - CONNECTING CABLE BSD-1614448000.A0 1614448000 -
121 - SUPPORT CLAMP BSD-1618040077.A34 1618040077 -
122 - STUD BOLT M8 BSD-1613521001.A9 1613521001 £5.58 £6.70
123 - CLAMPING BAND dia43 MM BSD-1611316003.A24 1611316003 £2.61 £3.13
124 - STRAIGHT PIN BSD-1613100012.A28 1613100012 £2.61 £3.13
125 - WING SCREW M6x25 MM BSD-1613480009.A32 1613480009 £1.88 £2.25
126 - HEX NUT M6 BSD-1613300006.A37 1613300006 £1.32 £1.58
127 - CLAMPING PLATE BSD-1611030009.A42 1611030009 -
700 - DRILL CHUCK SHANK 1/2 BSD-1617000154.A7 1617000154 £31.64 £37.97
700/20 - COUNTERSUNK-HEAD SCREW M6x27 BSD-2603421226.A145 2603421226 £1.75 £2.10
701 - CHUCK dia1.5-13 MM. 1/2 BSD-1608571069.A451 1608571069 £23.86 £28.63
701/7 - CHUCK WRENCH SG2 BSD-2607950007.A429 2607950007 £6.52 £7.83
715 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A233 1613001009 £3.72 £4.47
720 - AUXILIARY HANDLE BSD-1612025020.A22 1612025020 £26.12 £31.35
750 - CARRYING CASE BSD-1615438144.A5 1615438144 -
800 - CARBON BRUSH BSD-1617014118.A15 1617014118 -
800 - CARBON BRUSH BSD-1617014112.A3 1617014112 £19.45 £23.34
801 - OVERLOAD CLUTCH BSD-1617031017.A15 1617031017 -
810 - ASSEMBLY OF SERVICE PARTS BSD-1617000902.A25 1617000902 -
814 - PARTS SET BSD-1617000924.A11 1617000924 -
819 - PARTS SET BSD-1617000926.A5 1617000926 -
820 - PARTS SET 220V BSD-1617000145.A6 1617000145 -
830 - ARMATURE 220V BSD-1614010047.A8 1614010047 -
863 - GROOVE BALL BEARING 12x32x10 BSD-1900900302.A59 1900900302 -
888 - NAMEPLATE BSD-160111A3H3.A3094 160111A3H3 £2.61 £3.13
