Bosch GOF 1200 A / 0601613050 / I 230 Volt Spare Parts

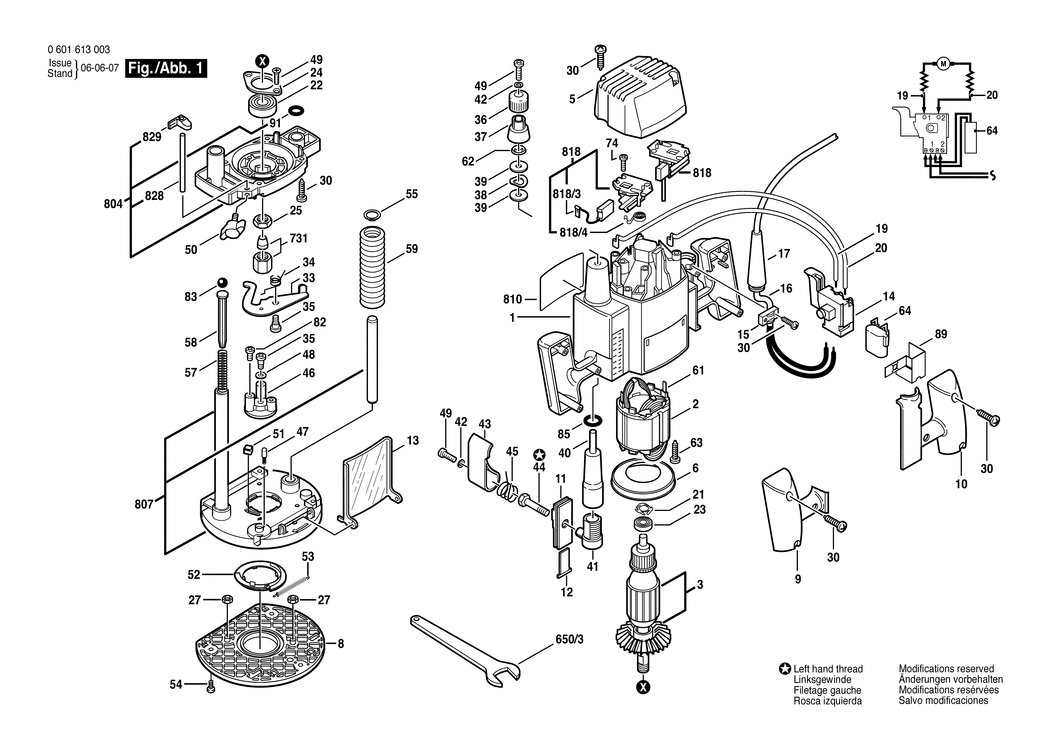

An exploded drawing and listing for the Bosch GOF 1200 A / 0601613050 / I 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605108583.A1 3605108583	£31.64	£37.97
2 - FIELD 230 V BSD-2610934200.A3 2610934200	-
3 - ARMATURE 230 V BSD-2610934198.A2 2610934198	-
5 - HOUSING COVER BSD-3605500597.A4 3605500597	-
6 - AIR-DEFLECTOR RING BSD-3600590508.A9 3600590508	£3.34	£4.01
8 - INTERMEDIATE PLATE BSD-3600190521.A8 3600190521	-
9 - HANDLE COVER LT BSD-3605133531.A4 3605133531	£10.10	£12.12
10 - HANDLE COVER RT BSD-3605133530.A11 3605133530	£10.10	£12.12
11 - INSERT BSD-3601010519.A22 3601010519	£2.52	£3.02
12 - INSERT BSD-3601010521.A0 3601010521	£3.34	£4.01
13 - CHIP DEFLECTOR BSD-2610912599.A42 2610912599	-
14 - ON-OFF SWITCH BSD-1607000231.A46 1607000231	£18.96	£22.75
15 - CABLE CLIP BSD-2601035001.A1373 2601035001	£1.75	£2.10
16 - POWER SUPPLY CORD CH 4.25m 2 x 1.0mm H07 RN-F BSD-3604460541.A10 3604460541	-
17 - GROMMET dia 9.4 MM BSD-3600703508.A21 3600703508	£3.34	£4.01
19 - CONNECTING CABLE BSD-3604445518.A4 3604445518	£3.72	£4.47
20 - CONNECTING CABLE BSD-3604445519.A6 3604445519	£3.72	£4.47
21 - SPRING LOCK WASHER BSD-3600150501.A10 3600150501	£2.33	£2.80
22 - BALL BEARING BSD-1600900088.A25 1600900088	-
23 - BALL GUIDE BSD-3600905513.A9 3600905513	£12.04	£14.45
24 - RETAINING PLATE BSD-3600034506.A12 3600034506	£5.87	£7.04
25 - HEX NUT BSD-3603300502.A15 3603300502	£4.75	£5.70
27 - HEX NUT DIN 934 -M4-m-8 BSD-2915011005.A392 2915011005	£1.75	£2.10
30 - TAPPING SCREW BSD-2610910566.A27 2610910566	£1.32	£1.58
33 - SWING-PLATE BSD-3601021510.A19 3601021510	£6.61	£7.93
34 - TORSION SPRING BSD-3604651502.A4 3604651502	£2.33	£2.80
35 - SHOULDER SCREW M4 BSD-3603415556.A35 3603415556	£2.33	£2.80
36 - KNOB BSD-3603231539.A12 3603231539	£2.33	£2.80
37 - INDICATOR RING BSD-3600209500.A21 3600209500	£3.80	£4.56
38 - SPRING WASHER BSD-3600100528.A38 3600100528	£1.95	£2.34
39 - WASHER BSD-3600100527.A1 3600100527	£2.52	£3.02
40 - ADJUSTING SLEEVE BSD-3600360507.A16 3600360507	-
41 - LOCKING PIECE BSD-3600400507.A13 3600400507	£2.80	£3.36
42 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A565 2916690003	£1.75	£2.10
43 - LOCKING LEVER BSD-3602000510.A3 3602000510	£2.61	£3.13
44 - LOCK BOLT BSD-3603450504.A16 3603450504	£5.30	£6.36
45 - LOCK SPRING BSD-3604651503.A41 3604651503	£2.33	£2.80
46 - DEPTH-GAUGE BSD-2610997191.A2 2610997191	£13.41	£16.09
47 - RATCHET CAP BSD-2600590006.A1406 2600590006	£1.75	£2.10
48 - SPRING WASHER BSD-3916060500.A42 3916060500	£1.75	£2.10
49 - OVAL-HEAD SCREW DIN 7985-M4X12-4.8-H BSD-2910641122.A7 2910641122	£2.16	£2.59
50 - WING SCREW M6x25 MM BSD-1613480009.A104 1613480009	£1.88	£2.25
51 - KNOB BSD-3603211501.A15 3603211501	£2.61	£3.13
52 - LOCKING RING BSD-3600240500.A13 3600240500	£5.58	£6.70
53 - EXTENSION SPRING BSD-3604648504.A7 3604648504	-
54 - SCREW BSD-2610915161.A78 2610915161	-
55 - SPRING RETAINING RING DIN 471-12x1-FSt BSD-2916650003.A290 2916650003	£1.75	£2.10
57 - COMPRESSION SPRING BSD-3604613508.A15 3604613508	£2.33	£2.80
58 - GUIDE PIECE BSD-3603120502.A9 3603120502	£2.52	£3.02
59 - BELLOWS BSD-3605510548.A6 3605510548	£5.58	£6.70
61 - BLADE TERMINAL BSD-1604477005.A133 1604477005	£2.61	£3.13
62 - RETAINING SNAP RING BSD-3604680502.A22 3604680502	£2.33	£2.80
63 - TAPPING SCREW BSD-2610991306.A28 2610991306	£1.75	£2.10
64 - SUPPRESSION FILTER BSD-1617328025.A63 1617328025	£5.58	£6.70
74 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A1382 2603490017	£2.16	£2.59
83 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A49 1903230007	£1.75	£2.10
85 - O-RING BSD-3600210507.A32 3600210507	£2.33	£2.80
89 - SET RING BSD-2610996090.A21 2610996090	-
91 - O-RING 12.0x2.0 MM BSD-1610210233.A19 1610210233	£2.80	£3.36
650/3 - SINGLE-HEAD ENG. WRENCH DIN 894 SW27 BSD-1907950514.A16 1907950514	-
731 - COLLET 12 MM BSD-2608570107.A12 2608570107	£27.12	£32.54
731 - COLLET 3/8 BSD-2608570106.A24 2608570106	£27.99	£33.59
731 - COLLET 8 MM BSD-2608570105.A8 2608570105	£27.12	£32.54
731 - COLLET 1/4 BSD-2608570104.A24 2608570104	£24.49	£29.39
731 - COLLET 6 MM BSD-2608570103.A12 2608570103	£25.82	£30.99
731 - COLLET 10 MM BSD-2608570125.A19 2608570125	-
804 - FAN HOUSING BSD-2610907863.A5 2610907863	£36.63	£43.96
807 - BASE PLATE BSD-3605702598.A4 3605702598	-
818 - BRUSH HOLDER BSD-3604336506.A6 3604336506	-
818/3 - CARBON-BRUSH SET BSD-2610007957.A16 2610007957	£11.30	£13.56
818/4 - SPRING BSD-3604652501.A4 3604652501	£3.72	£4.47
828 - ROD BSD-2610907864.A4 2610907864	£11.30	£13.56
829 - POINTER BSD-2610907865.A19 2610907865	£10.10	£12.12

Attribute Name	Value
Brand	Bosch
