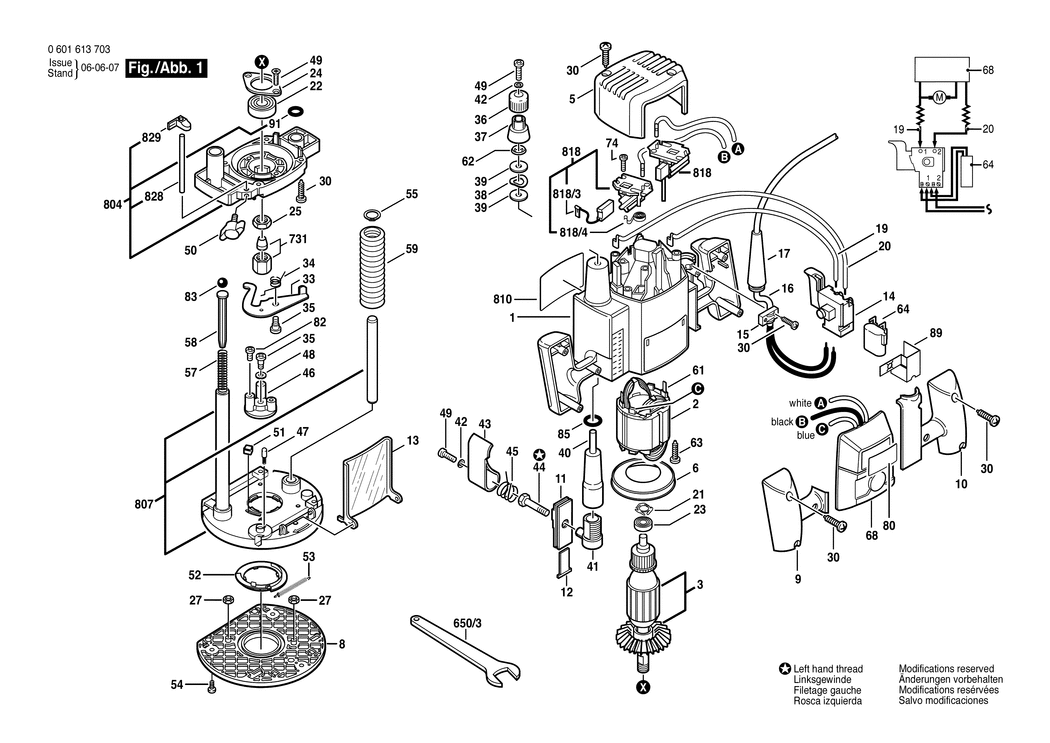

An exploded drawing and listing for the Bosch GOF 1300 ACE / 0601613750 / I 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-3605108584.A6 3605108584 £36.63 £43.96
2 - FIELD 230V BSD-2610941203.A1 2610941203 £59.53 £71.44
3 - ARMATURE 230V BSD-2610941202.A12 2610941202 -
5 - HOUSING COVER BSD-3605500598.A5 3605500598 -
6 - AIR-DEFLECTOR RING BSD-3600590508.A0 3600590508 £3.34 £4.01
8 - INTERMEDIATE PLATE BSD-3600190521.A1 3600190521 -
9 - HANDLE COVER LT BSD-3605133531.A15 3605133531 £10.10 £12.12
10 - HANDLE COVER RT BSD-3605133530.A0 3605133530 £10.10 £12.12
11 - INSERT BSD-3601010519.A4 3601010519 £2.52 £3.02
12 - INSERT BSD-3601010521.A18 3601010521 £3.34 £4.01
13 - CHIP DEFLECTOR BSD-2610912599.A31 2610912599 -
14 - ON-OFF SWITCH BSD-1607000231.A59 1607000231 £18.96 £22.75
15 - CABLE CLIP BSD-2601035001.A1356 2601035001 £1.75 £2.10
16 - POWER SUPPLY CORD CH 4.25m 2 x 1.0mm H07 RN-F BSD-3604460541.A5 3604460541 -
17 - GROMMET dia 9.4 MM BSD-3600703508.A26 3600703508 £3.34 £4.01
19 - CONNECTING CABLE BSD-3604445518.A7 3604445518 £3.72 £4.47
20 - CONNECTING CABLE BSD-3604445519.A3 3604445519 £3.72 £4.47
21 - SPRING LOCK WASHER BSD-3600150501.A8 3600150501 £2.33 £2.80
22 - BALL BEARING BSD-1600900088.A13 1600900088 -
23 - BALL GUIDE BSD-3600905513.A0 3600905513 £12.04 £14.45
24 - RETAINING PLATE BSD-3600034506.A1 3600034506 £5.87 £7.04
25 - HEX NUT BSD-3603300502.A1 3603300502 £4.75 £5.70
27 - HEX NUT DIN 934 -M4-m-8 BSD-2915011005.A396 2915011005 £1.75 £2.10
30 - TAPPING SCREW BSD-2610910566.A16 2610910566 £1.32 £1.58
33 - SWING-PLATE BSD-3601021510.A1 3601021510 £6.61 £7.93
34 - TORSION SPRING BSD-3604651502.A11 3604651502 £2.33 £2.80
35 - SHOULDER SCREW M4 BSD-3603415556.A49 3603415556 £2.33 £2.80
36 - KNOB BSD-3603231539.A21 3603231539 £2.33 £2.80
37 - INDICATOR RING BSD-3600209500.A39 3600209500 £3.80 £4.56
38 - SPRING WASHER BSD-3600100528.A19 3600100528 £1.95 £2.34
39 - WASHER BSD-3600100527.A20 3600100527 £2.52 £3.02
40 - ADJUSTING SLEEVE BSD-3600360507.A26 3600360507 -
41 - LOCKING PIECE BSD-3600400507.A23 3600400507 £2.80 £3.36
42 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A577 2916690003 £1.75 £2.10
43 - LOCKING LEVER BSD-3602000510.A19 3602000510 £2.61 £3.13
44 - LOCK BOLT BSD-3603450504.A2 3603450504 £5.30 £6.36
45 - LOCK SPRING BSD-3604651503.A34 3604651503 £2.33 £2.80
46 - DEPTH-GAUGE BSD-2610997191.A19 2610997191 £13.41 £16.09
47 - RATCHET CAP BSD-2600590006.A1401 2600590006 £1.75 £2.10
48 - SPRING WASHER BSD-3916060500.A58 3916060500 £1.75 £2.10
49 - OVAL-HEAD SCREW DIN 7985-M4X12-4.8-H BSD-2910641122.A20 2910641122 £2.16 £2.59
50 - WING SCREW M6x20 MM BSD-1613480008.A89 1613480008 £1.75 £2.10
51 - KNOB BSD-3603211501.A12 3603211501 £2.61 £3.13
52 - LOCKING RING BSD-3600240500.A21 3600240500 £5.58 £6.70
53 - EXTENSION SPRING BSD-3604648504.A13 3604648504 -
54 - SCREW BSD-2610915161.A71 2610915161 -
55 - SPRING RETAINING RING DIN 471-12x1-FSt BSD-2916650003.A271 2916650003 £1.75 £2.10
57 - COMPRESSION SPRING BSD-3604613508.A26 3604613508 £2.33 £2.80
58 - GUIDE PIECE BSD-3603120502.A12 3603120502 £2.52 £3.02
59 - BELLOWS BSD-3605510548.A19 3605510548 £5.58 £6.70
61 - BLADE TERMINAL BSD-1604477005.A138 1604477005 £2.61 £3.13
62 - RETAINING SNAP RING BSD-3604680502.A33 3604680502 £2.33 £2.80
63 - TAPPING SCREW BSD-2610991306.A13 2610991306 £1.75 £2.10
64 - SUPPRESSION FILTER BSD-1617328025.A78 1617328025 £5.58 £6.70
68 - CONTROL UNIT 230V BSD-1607233153.A7 1607233153 £72.18 £86.62
74 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A1400 2603490017 £2.16 £2.59
80 - REFERENCE PLATE BSD-3601119816.A0 3601119816 £3.72 £4.47
82 - SOCKET HEAD CAP SCREW BSD-3603410504.A42 3603410504 £2.52 £3.02
83 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A56 1903230007 £1.75 £2.10
85 - O-RING BSD-3600210507.A16 3600210507 £2.33 £2.80
89 - SET RING BSD-2610996090.A13 2610996090 -
91 - O-RING 12.0x2.0 MM BSD-1610210233.A2 1610210233 £2.80 £3.36
650/3 - SINGLE-HEAD ENG. WRENCH DIN 894 SW27 BSD-1907950514.A7 1907950514 -
731 - COLLET 1/2 BSD-2608507108.A4 2608507108 -
731 - COLLET 12 MM BSD-2608570107.A2 2608570107 £27.12 £32.54
731 - COLLET 3/8 BSD-2608570106.A34 2608570106 £27.99 £33.59
731 - COLLET 8 MM BSD-2608570105.A0 2608570105 £27.12 £32.54
731 - COLLET 1/4 BSD-2608570104.A36 2608570104 £24.49 £29.39
731 - COLLET 6 MM BSD-2608570103.A0 2608570103 £25.82 £30.99
731 - COLLET 10 MM BSD-2608570125.A15 2608570125 -
804 - FAN HOUSING BSD-2610907863.A0 2610907863 £36.63 £43.96
807 - BASE PLATE BSD-3605702598.A5 3605702598 -
810 - NAMEPLATE BSD-3601119779.A20 3601119779 -
818 - BRUSH HOLDER BSD-2610013632.A7 2610013632 £30.28 £36.33
818/3 - CARBON-BRUSH SET BSD-2610007957.A21 2610007957 £11.30 £13.56
818/4 - SPRING BSD-3604652501.A12 3604652501 £3.72 £4.47
828 - ROD BSD-2610907864.A9 2610907864 £11.30 £13.56
829 - POINTER BSD-2610907865.A14 2610907865 £10.10 £12.12
