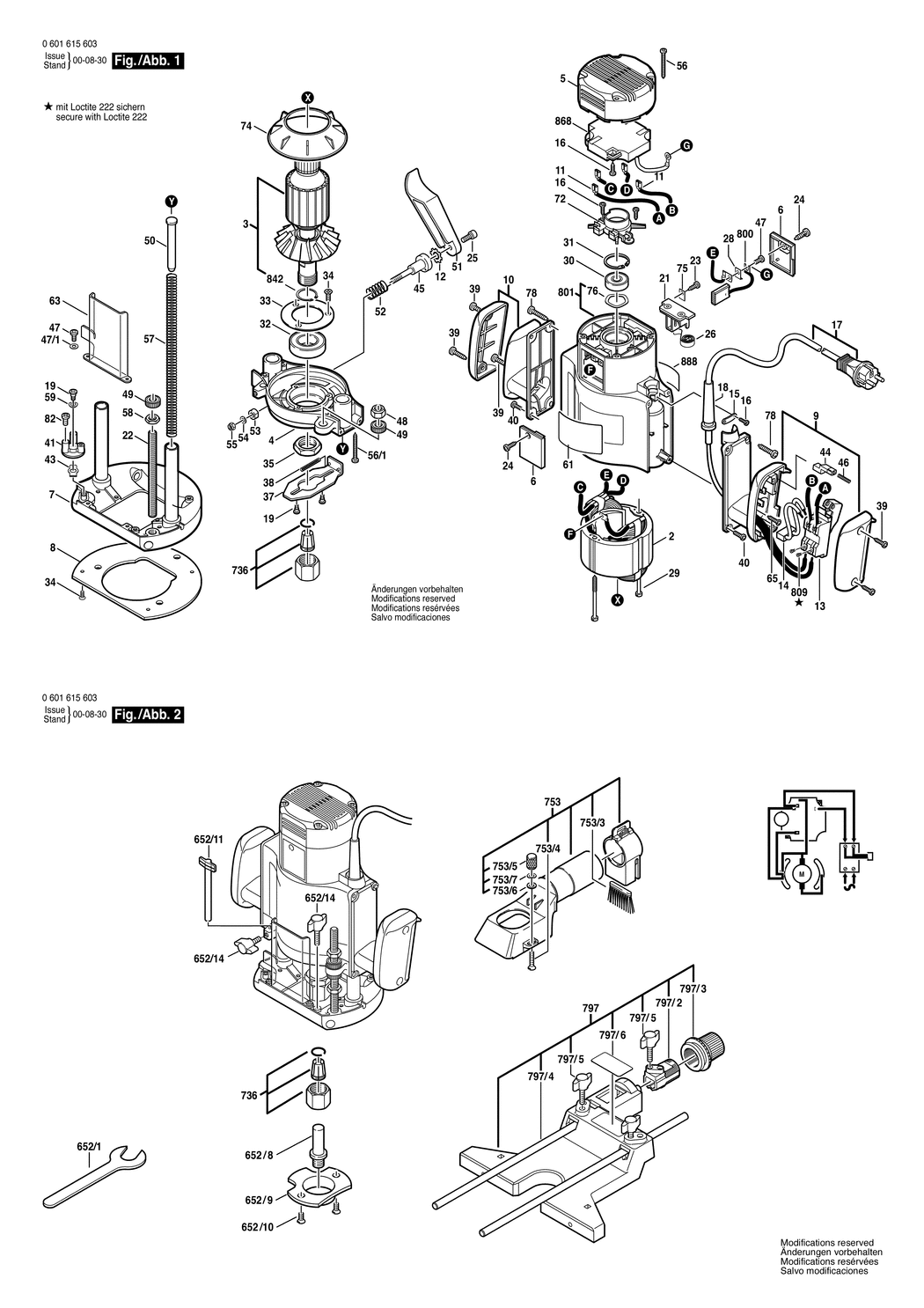

An exploded drawing and listing for the Bosch GOF 1700 ACE / 0601615641 / GB 110 Volt
Ex VAT Inc VAT
2 - FIELD 110-115V BSD-3604220536.A1 3604220536 -
3 - ARMATURE 110V BSD-3604011627.A1 3604011627 -
4 - FAN HOUSING BSD-3605702592.A10 3605702592 £81.81 £98.17
5 - HOUSING COVER BSD-3605500574.A6 3605500574 -
6 - SEALING CAP BSD-3605500596.A11 3605500596 £2.52 £3.02
7 - BASE PLATE BSD-3605702595.A12 3605702595 £120.11 £144.13
8 - INTERMEDIATE PLATE BSD-3600190515.A17 3600190515 -
9 - HANDLE BSD-3605133519.A11 3605133519 -
10 - HANDLE BSD-3605133520.A11 3605133520 -
11 - CONNECTOR CABLE BSD-3604441507.A0 3604441507 -
12 - TOOTHED LOCK WASHER BSD-3600190516.A5 3600190516 £2.61 £3.13
13 - ON-OFF SWITCH BSD-3607200510.A3 3607200510 -
14 - SUPPRESSION FILTER BSD-1607328034.A8 1607328034 £4.26 £5.11
15 - FASTENING CLAMP BSD-3601032500.A56 3601032500 £7.36 £8.83
16 - TAPPING SCREW DIN 7981-ST3.5x13-C-H BSD-2910611011.A27 2910611011 -
17 - POWER SUPPLY CORD GB 4.25m 2 x 1.5mm H05RR-F BSD-2610992448.A5 2610992448 £23.86 £28.63
18 - GROMMET dia 9.4 MM BSD-3600707503.A1 3600707503 £3.72 £4.47
19 - SHOULDER SCREW M4 BSD-3603415556.A22 3603415556 £2.33 £2.80
21 - BRUSH HOLDER BSD-1604336008.A258 1604336008 £21.52 £25.83
22 - THREADED SPINDLE BSD-3603500500.A22 3603500500 -
23 - TAPPING SCREW DIN 7981-ST3.9x13-C-H BSD-2910611018.A54 2910611018 -
24 - TAPPING SCREW DIN 7981-ST3.9x16-C-H BSD-2910611019.A619 2910611019 £2.80 £3.36
25 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A394 2910141197 £1.75 £2.10
26 - SPIRAL SPRING BSD-1614652001.A19 1614652001 £3.72 £4.47
28 - TAB WASHER BSD-1611331007.A66 1611331007 £1.32 £1.58
29 - TAPPING SCREW B 4.8x68 MM BSD-1613412001.A63 1613412001 £1.75 £2.10
30 - GROOVE BALL BEARING 6200-2 RS/C 3 BSD-1900905276.A19 1900905276 -
31 - SPRING RETAINING RING BSD-3600119507.A16 3600119507 -
32 - GROOVE BALL BEARING BSD-3600900526.A25 3600900526 £31.64 £37.97
33 - FIXING PLATE BSD-3600034503.A12 3600034503 -
34 - REC CT-SUNK TAPPING SCREW BSD-3603415559.A2 3603415559 £1.95 £2.34
35 - HEX NUT BSD-3603301522.A22 3603301522 -
37 - RETAINING BRACKET BSD-3601961500.A16 3601961500 -
38 - COMPRESSION SPRING BSD-3604613502.A7 3604613502 -
39 - SCREW DIN 7982-ST4.8x19 BSD-2910611034.A16 2910611034 -
40 - SCREW 4x13 MM BSD-3603415540.A34 3603415540 £2.61 £3.13
41 - DEPTH-GAUGE BSD-2610997191.A26 2610997191 £13.41 £16.09
43 - LEAF SPRING BSD-3601254501.A4 3601254501 £8.49 £10.19
44 - LOCKING LEVER BSD-3602033500.A7 3602033500 £1.75 £2.10
45 - AXLE BSD-3603053503.A8 3603053503 -
46 - COMPRESSION SPRING BSD-3604613503.A18 3604613503 £2.61 £3.13
47 - OVAL-HEAD SCREW DIN 7985-M4x8-8.8-H BSD-2910951118.A13 2910951118 £1.75 £2.10
47/1 - PLAIN WASHER DIN 125-A4.3-ST BSD-2916011010.A223 2916011010 £1.75 £2.10
48 - HEX NUT DIN 985-M10-10 BSD-2915065007.A1 2915065007 -
49 - ADJUSTING NUT BSD-2603345015.A17 2603345015 -
50 - GUIDE PIECE BSD-3603120501.A3 3603120501 -
51 - CATCH LEVER BSD-3602000511.A4 3602000511 -
52 - CLAMPING SPRING BSD-3604651501.A7 3604651501 -
53 - ADJUSTING ECCENTRIC BSD-3602202500.A15 3602202500 -
54 - PLAIN WASHER DIN 125-A4.3-ST BSD-2916011010.A222 2916011010 £1.75 £2.10
55 - HEX NUT DIN 985-M4-8 BSD-2915061002.A32 2915061002 £1.75 £2.10
56 - SCREW B 4.8x45 MM BSD-3603415560.A156 3603415560 £1.75 £2.10
56/1 - TAPPING SCREW 19x2 MM BSD-2610908660.A2 2610908660 -
57 - COMPRESSION SPRING BSD-3604619502.A7 3604619502 £2.61 £3.13
58 - HEX NUT DIN 439-BM10-04 BSD-2915055108.A1 2915055108 -
59 - SPRING WASHER BSD-3916060500.A7 3916060500 £1.75 £2.10
61 - MANUFACTURER'S NAMEPLATE BSD-3601119788.A1 3601119788 -
63 - PROTECTIVE SHIELD BSD-3605510526.A3 3605510526 -
65 - REC CT-SUNK TAPPING SCREW DIN 7982-ST4.8x18-F-H BSD-2910601433.A12 2910601433 -
72 - SPRING RETAINING RING BSD-3608040506.A6 3608040506 -
74 - AIR-DEFLECTOR RING BSD-3600590504.A4 3600590504 -
75 - TAB WASHER BSD-1601030022.A477 1601030022 £1.75 £2.10
76 - SPRING WASHER BSD-3916060501.A4 3916060501 -
78 - TAPPING SCREW DIN 7981-ST4.8x25-C-H BSD-2910611036.A10 2910611036 -
82 - SOCKET HEAD CAP SCREW BSD-3603410504.A4 3603410504 £2.52 £3.02
652/1 - SINGLE-HEAD ENG. WRENCH SW12 BSD-1607950514.A2 1607950514 -
652/8 - THREADED SPINDLE M 12x1 MM BSD-3603523501.A10 3603523501 -
652/9 - GUIDE BUSHING BSD-3605703531.A7 3605703531 -
652/10 - SOCKET HEAD CAP SCREW BSD-3603415553.A22 3603415553 £2.61 £3.13
652/11 - DEPTH-GAUGE BSD-3603029500.A3 3603029500 -
652/14 - WING SCREW M6x20 MM BSD-1613480008.A397 1613480008 £1.75 £2.10
736 - COLLET 1/2 BSD-2608570114.A5 2608570114 £29.99 £35.99
736 - COLLET 1/4 BSD-2608570110.A5 2608570110 £28.32 £33.99
736 - COLLET 3/8 BSD-2608570112.A7 2608570112 -
736 - COLLET 10 MM BSD-2608570126.A4 2608570126 -
736 - COLLET 8 BSD-2608570111.A4 2608570111 £28.32 £33.99
736 - COLLET 6 BSD-2608570109.A4 2608570109 £28.32 £33.99
753 - VACUUM ADAPTER BSD-3608939626.A12 3608939626 -
753/3 - BRUSH-COVER BSD-3607929500.A14 3607929500 -
753/4 - COUNTERSUNK-HEAD SCREW DIN 963-M5x25-4.8 BSD-2910761164.A11 2910761164 -
753/5 - KNURLED NUT BSD-3603345509.A7 3603345509 £2.80 £3.36
753/6 - PLAIN WASHER DIN 125-A5.3-ST BSD-2916011012.A154 2916011012 £1.75 £2.10
753/7 - SPRING WASHER BSD-3600100520.A8 3600100520 £2.16 £2.59
797 - PARALLEL-GUIDE BSD-3607000620.A2 3607000620 -
797/2 - LOCKING PIECE BSD-3600400508.A6 3600400508 £10.10 £12.12
797/3 - ADJUSTMENT KNOB BSD-3600360508.A12 3600360508 £5.58 £6.70
797/4 - GUIDE ROD 10 MM BSD-3603001518.A13 3603001518 -
797/5 - WING SCREW M6x20 MM BSD-1613480008.A396 1613480008 £1.75 £2.10
797/6 - STICKER BSD-3601119780.A8 3601119780 -
800 - CARBON-BRUSH SET BSD-1607014103.A129 1607014103 £14.91 £17.89
801 - MOTOR HOUSING BSD-3605108589.A19 3605108589 -
809 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2318 2603410001 £1.75 £2.10
842 - SPRING RETAINING RING DIN 471 25x1.2 BSD-2916650014.A102 2916650014 £1.75 £2.10
868 - REGULATOR BSD-3607000547.A1 3607000547 -
888 - NAMEPLATE BSD-160111A3H3.A3333 160111A3H3 £2.61 £3.13
