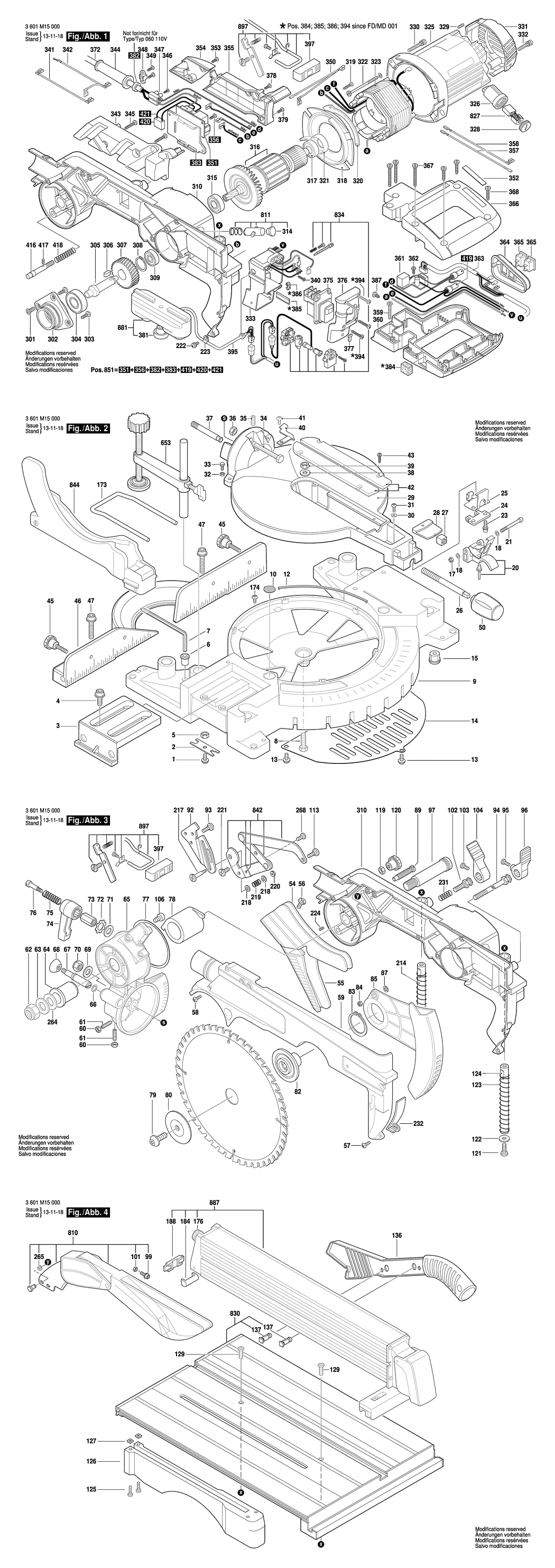

An exploded drawing and listing for the Bosch GTM 12 / 3601M15060 / GB 110 Volt
Ex VAT Inc VAT
1 - SCREW M 8x0.8-10 BSD-2610911466.A9 2610911466 -
2 - THREADED PLATE BSD-2610910844.A5 2610910844 £1.75 £2.10
3 - EXTENSION STAND BSD-2610907826.A8 2610907826 £12.04 £14.45
4 - SCREW BSD-2610356733.A8 2610356733 £1.75 £2.10
5 - HEX NUT BSD-2610910794.A10 2610910794 £1.75 £2.10
6 - SET OF KEYS BSD-2610911470.A12 2610911470 £3.80 £4.56
7 - HEXAGON SOCKET WRENCH BSD-1619P04000.A0 1619P04000 £3.80 £4.56
8 - STUD BOLT M8x1.25-30 BSD-2610992377.A8 2610992377 £1.75 £2.10
9 - BASE PLATE BSD-1619P04817.A1 1619P04817 £156.22 £187.46
10 - WARNING LABEL BSD-2610909006.A5 2610909006 £3.72 £4.47
12 - WEAR PLATE BSD-2610907854.A4 2610907854 £1.75 £2.10
13 - SCREW BSD-1609203L65.A5 1609203L65 £1.32 £1.58
14 - COVER PLATE BSD-1609203G92.A3 1609203G92 £5.01 £6.01
15 - RUBBER BUSHING BSD-1619P03548.A13 1619P03548 -
17 - NUT BSD-2610910774.A10 2610910774 £1.32 £1.58
18 - WASHER BSD-2610309996.A11 2610309996 £1.75 £2.10
20 - LEVER BSD-2610910775.A5 2610910775 -
21 - SCREW BSD-2610910776.A9 2610910776 £1.32 £1.58
23 - SCREW BSD-2615303029.A6 2615303029 £1.75 £2.10
24 - END PLATE BSD-2610910833.A10 2610910833 £5.01 £6.01
25 - PLATE BSD-2610916122.A8 2610916122 £4.75 £5.70
26 - CLAMPING BOLT BSD-1619P04214.A2 1619P04214 £5.30 £6.36
27 - NUT BSD-2610934688.A7 2610934688 £1.95 £2.34
28 - SCALE PLATE BSD-2610907846.A4 2610907846 -
29 - SAW TABLE BSD-1619P04013.A0 1619P04013 £102.57 £123.08
30 - WASHER BSD-2610908270.A7 2610908270 £1.75 £2.10
31 - SCREW BSD-2610910777.A5 2610910777 £1.75 £2.10
32 - HEX NUT BSD-2610912549.A11 2610912549 £1.75 £2.10
33 - SCREW BSD-2610355267.A7 2610355267 £1.75 £2.10
34 - STUD BOLT BSD-2610910778.A4 2610910778 £2.33 £2.80
35 - SET SCREW BSD-2610910786.A19 2610910786 -
36 - NUT BSD-2610912551.A4 2610912551 £1.75 £2.10
37 - SHAFT BSD-2610908288.A4 2610908288 £1.75 £2.10
38 - WASHER BSD-2610910779.A5 2610910779 £1.75 £2.10
39 - NUT BSD-2610358172.A1 2610358172 £1.32 £1.58
40 - POINTER BSD-2610907852.A5 2610907852 -
41 - SCREW BSD-2610910782.A4 2610910782 £1.75 £2.10
42 - INSET PLATE BSD-1619P03782.A5 1619P03782 -
43 - SCREW BSD-2610910781.A9 2610910781 -
45 - KNOB BSD-1619P04002.A1 1619P04002 £2.16 £2.59
46 - MITRE FENCE BSD-1619P04003.A1 1619P04003 -
47 - SCREW BSD-2610910793.A4 2610910793 £2.80 £3.36
50 - KNOB BSD-1619P04004.A1 1619P04004 -
54 - INLET CHUTE BSD-1619P04005.A1 1619P04005 £16.74 £20.09
55 - PROTECTIVE GUARD BSD-1619P04006.A1 1619P04006 -
56 - SCREW BSD-1619P04164.A2 1619P04164 £1.75 £2.10
57 - SCREW BSD-1619P04165.A0 1619P04165 £1.75 £2.10
58 - SCREW BSD-1619P04166.A4 1619P04166 £1.75 £2.10
59 - SAFETY COVER BSD-1619P04007.A1 1619P04007 £40.80 £48.96
60 - HEX NUT BSD-2610912549.A8 2610912549 £1.75 £2.10
61 - SCREW BSD-2610912548.A3 2610912548 -
62 - NUT BSD-1619P04167.A0 1619P04167 £2.80 £3.36
63 - WASHER BSD-1609902582.A5 1609902582 £1.32 £1.58
64 - BUSHING BSD-1619P04008.A1 1619P04008 £21.52 £25.83
65 - PIVOT BSD-1619P04009.A1 1619P04009 £63.50 £76.20
66 - O-RING BSD-2610912553.A2 2610912553 £1.75 £2.10
67 - LOCKING BOLT BSD-2610907847.A5 2610907847 £2.61 £3.13
68 - KNOB BSD-2610912554.A4 2610912554 £1.75 £2.10
69 - WASHER BSD-2610910792.A15 2610910792 £1.75 £2.10
70 - SQUARE NUT BSD-2610355332.A15 2610355332 -
71 - PLAIN WASHER BSD-2610355264.A1 2610355264 £3.34 £4.01
72 - WASHER BSD-2615297329.A8 2615297329 £1.75 £2.10
73 - SLEEVE BSD-2610910766.A10 2610910766 £5.87 £7.04
74 - TENSIONING LEVER BSD-2610910838.A11 2610910838 -
75 - COMPRESSION SPRING BSD-2610910765.A4 2610910765 £1.75 £2.10
76 - SCREW BSD-2610910762.A10 2610910762 £5.01 £6.01
77 - BEARING RING BSD-1619P04010.A1 1619P04010 £5.58 £6.70
78 - TORSION SPRING BSD-1619P04011.A1 1619P04011 £5.58 £6.70
79 - BOLT BSD-1619P03482.A12 1619P03482 £2.41 £2.89
80 - FLANGE BSD-1609203G78.A1 1609203G78 -
82 - FLANGE BSD-1609203G77.A5 1609203G77 £11.78 £14.13
83 - RETAINING SNAP RING BSD-1619P04168.A2 1619P04168 £2.61 £3.13
84 - NUT BSD-1619P04169.A0 1619P04169 £1.75 £2.10
85 - PROTECTIVE COVER BSD-1619P04012.A1 1619P04012 -
87 - WASHER BSD-1619P03689.A4 1619P03689 -
89 - STOP SCREW BSD-1619P04017.A1 1619P04017 £1.75 £2.10
92 - LINKAGE PART BSD-1619P04019.A1 1619P04019 £10.10 £12.12
93 - SCREW BSD-1619P04171.A2 1619P04171 £1.75 £2.10
94 - LOCK SCREW BSD-1619P04020.A1 1619P04020 £6.61 £7.93
95 - SCREW BSD-1619P04172.A1 1619P04172 £1.75 £2.10
96 - HANDLE BSD-1619P04021.A2 1619P04021 £5.58 £6.70
97 - BOLT BSD-1619P04022.A1 1619P04022 £12.04 £14.45
99 - SCREW BSD-1619P04173.A2 1619P04173 £1.32 £1.58
101 - HEX NUT BSD-2610912549.A10 2610912549 £1.75 £2.10
102 - LOCK SCREW BSD-1619P04024.A1 1619P04024 £2.52 £3.02
103 - SCREW BSD-1619P04172.A0 1619P04172 £1.75 £2.10
104 - HANDLE BSD-1619P04021.A3 1619P04021 £5.58 £6.70
106 - BOLT BSD-1619P04175.A0 1619P04175 £1.75 £2.10
113 - SCREW BSD-1619P04027.A2 1619P04027 £1.95 £2.34
119 - HEX NUT BSD-2610912549.A9 2610912549 £1.75 £2.10
120 - KNOB BSD-1619P04033.A1 1619P04033 £4.26 £5.11
121 - SCREW BSD-1619P04176.A2 1619P04176 £1.75 £2.10
122 - WASHER BSD-1619P04177.A0 1619P04177 £1.75 £2.10
123 - COMPRESSION SPRING BSD-1619P04034.A1 1619P04034 £1.95 £2.34
124 - ROD BSD-1619P04035.A1 1619P04035 £10.10 £12.12
125 - SCREW BSD-1619P04178.A2 1619P04178 £1.75 £2.10
126 - PROTECTIVE COVER BSD-1619P04036.A1 1619P04036 £12.04 £14.45
127 - NUT BSD-1619P04179.A0 1619P04179 £1.75 £2.10
129 - SCREW BSD-1619P04180.A2 1619P04180 £1.75 £2.10
136 - PUSHER BSD-1619P04042.A1 1619P04042 £14.91 £17.89
137 - CLIP BSD-1619P04043.A1 1619P04043 £1.75 £2.10
173 - ROD BSD-1619P04053.A1 1619P04053 £6.61 £7.93
174 - ROD BSD-1619P04182.A0 1619P04182 £2.52 £3.02
176 - KNOB BSD-1619P04054.A1 1619P04054 £1.95 £2.34
184 - CLAMPING PIECE BSD-1619P04060.A1 1619P04060 £1.95 £2.34
188 - STOP PLATE BSD-1619P04063.A1 1619P04063 £5.87 £7.04
214 - ROD BSD-1619P04082.A1 1619P04082 £10.82 £12.99
217 - BOLT BSD-1619P04085.A1 1619P04085 £2.61 £3.13
218 - WASHER BSD-1619P04188.A2 1619P04188 -
219 - COMPRESSION SPRING BSD-1619P04086.A1 1619P04086 £1.75 £2.10
220 - NUT BSD-2610910774.A12 2610910774 £1.32 £1.58
221 - SCREW BSD-1619P04027.A3 1619P04027 £1.95 £2.34
222 - SCREW M 8x0.8-10 BSD-2610911466.A8 2610911466 -
223 - CABLE CLIP BSD-1619P04088.A1 1619P04088 -
224 - SPRING BSD-1619P04189.A0 1619P04189 £1.32 £1.58
231 - SPRING BSD-1619P04089.A1 1619P04089 £1.32 £1.58
232 - TRANSPARENT COVER BSD-1619P04090.A1 1619P04090 £2.80 £3.36
264 - WASHER BSD-1619P04097.A1 1619P04097 £1.32 £1.58
265 - SPACER BSD-1619P04015.A1 1619P04015 £1.75 £2.10
268 - SCREW BSD-1619P04014.A1 1619P04014 £2.16 £2.59
301 - SCREW BSD-1619P04191.A2 1619P04191 £1.32 £1.58
302 - BEARING COVER PLATE BSD-1619P04095.A1 1619P04095 £23.86 £28.63
303 - SCREW BSD-1619P04192.A0 1619P04192 £1.75 £2.10
304 - BALL BEARING BSD-2610910789.A1 2610910789 £13.41 £16.09
305 - SHAFT BSD-1619P04154.A0 1619P04154 £21.52 £25.83
306 - WOODRUFF KEY BSD-1619P04155.A2 1619P04155 £2.16 £2.59
307 - TOOTHED GEAR BSD-1619P04156.A0 1619P04156 £31.64 £37.97
308 - RETAINING SNAP RING BSD-2610355320.A6 2610355320 £5.58 £6.70
309 - BALL BEARING BSD-2610910787.A1 2610910787 £11.78 £14.13
310 - GEAR HOUSING BSD-1619P04096.A1 1619P04096 £102.57 £123.08
314 - KNOB BSD-1619P04100.A1 1619P04100 £1.75 £2.10
315 - GROOVE BALL BEARING BSD-1609902600.A7 1609902600 £5.01 £6.01
316 - ARMATURE 110V BSD-1619P04102.A0 1619P04102 -
317 - GROOVE BALL BEARING 6200-2Z DIN 625 BSD-1900905232.A13 1900905232 £21.68 £26.01
318 - AIR-DEFLECTOR RING BSD-1619P04103.A0 1619P04103 £2.61 £3.13
319 - SCREW BSD-1619P04194.A4 1619P04194 -
320 - COVER PLATE BSD-1619P04104.A2 1619P04104 £2.80 £3.36
321 - BEARING SLEEVE BSD-2610911485.A6 2610911485 £1.95 £2.34
322 - SCREW BSD-1619P04196.A2 1619P04196 £1.75 £2.10
323 - FIELD 110V BSD-1619P04106.A0 1619P04106 -
325 - MOTOR HOUSING BSD-1619P04107.A0 1619P04107 -
326 - BRUSH HOLDER BSD-1619P04108.A2 1619P04108 £11.30 £13.56
328 - BRUSH-COVER BSD-1619P03545.A4 1619P03545 -
329 - SCREW BSD-1619P04195.A0 1619P04195 £1.32 £1.58
330 - SCREW BSD-1619P04197.A0 1619P04197 £1.75 £2.10
331 - HOUSING COVER BSD-1619P04109.A0 1619P04109 £8.67 £10.41
332 - SCREW BSD-1619P04198.A2 1619P04198 -
333 - SWITCH HOUSING BSD-1619P04110.A2 1619P04110 £13.41 £16.09
340 - SCREW BSD-1619P04200.A0 1619P04200 £1.95 £2.34
341 - CABLE BSD-1619P04115.A2 1619P04115 £3.72 £4.47
342 - CABLE BSD-1619P04116.A0 1619P04116 £1.75 £2.10
343 - CONTROL HOUSING BSD-1619P04117.A2 1619P04117 £7.78 £9.33
344 - CORD GUARD BSD-1609203J00.A6 1609203J00 -
345 - SCREW BSD-1619P04201.A2 1619P04201 £1.75 £2.10
346 - SCREW BSD-1619P04202.A0 1619P04202 -
347 - CONNECTION BLOCK BSD-1609902081.A3 1609902081 £1.75 £2.10
348 - FASTENING CLAMP BSD-1609203J01.A1 1609203J01 £1.75 £2.10
349 - SCREW BSD-1619P03662.A5 1619P03662 £1.75 £2.10
350 - CABLE BSD-1619P04118.A0 1619P04118 £3.72 £4.47
351 - PRINTED CIRCUIT BOARD BSD-1619P04120.A0 1619P04120 -
352 - WARNING LABEL BSD-1619P04340.A0 1619P04340 -
353 - SCREW BSD-1619P03662.A6 1619P03662 £1.75 £2.10
354 - HOUSING COVER BSD-1619P04121.A0 1619P04121 £5.87 £7.04
355 - HOUSING COVER BSD-1619P04122.A2 1619P04122 £12.04 £14.45
356 - SCREW BSD-1619P04194.A5 1619P04194 -
357 - CABLE BSD-1619P04123.A0 1619P04123 £1.75 £2.10
358 - CABLE BSD-1619P04124.A2 1619P04124 £1.75 £2.10
359 - SCREW BSD-1619P04203.A2 1619P04203 -
360 - HANDLE BSD-1619P04125.A0 1619P04125 £14.91 £17.89
361 - PRINTED CIRCUIT BOARD BSD-1619P04126.A0 1619P04126 £21.42 £25.71
362 - SCREW BSD-1619P04204.A0 1619P04204 £1.75 £2.10
363 - CABLE BSD-1619P04127.A0 1619P04127 £11.30 £13.56
364 - HOUSING COVER BSD-1619P04128.A2 1619P04128 £5.30 £6.36
365 - MAINS SWITCH BSD-1619P04129.A0 1619P04129 £11.78 £14.13
366 - HANDLE BSD-1619P04130.A2 1619P04130 £13.41 £16.09
367 - SCREW BSD-1619P04205.A2 1619P04205 £1.75 £2.10
368 - SCREW BSD-1619P04206.A0 1619P04206 £1.32 £1.58
372 - POWER SUPPLY CORD BSD-1619P04136.A0 1619P04136 £51.22 £61.47
375 - MAINS SWITCH BSD-1619P04139.A0 1619P04139 £48.38 £58.06
376 - HOUSING COVER BSD-1619P04140.A0 1619P04140 £8.67 £10.41
377 - RUBBER PLUG BSD-1619P04141.A2 1619P04141 £1.32 £1.58
378 - SCREW BSD-1619P04209.A2 1619P04209 £1.32 £1.58
379 - SCREW BSD-1619P04166.A5 1619P04166 £1.75 £2.10
381 - KNOB BSD-1619P04142.A0 1619P04142 £5.01 £6.01
382 - INDUCTOR BSD-2610007056.A0 2610007056 £1.75 £2.10
383 - HOLDING PLATE BSD-2610007054.A2 2610007054 £1.75 £2.10
384 - SEAL BSD-2610008578.A2 2610008578 £1.75 £2.10
385 - BASE PLATE BSD-2610008579.A0 2610008579 £1.32 £1.58
386 - PLUG BSD-2610008580.A2 2610008580 £1.32 £1.58
387 - SCREW BSD-2610008581.A0 2610008581 £1.75 £2.10
394 - SCREW BSD-1619P04210.A0 1619P04210 £1.75 £2.10
395 - STRAIN-RELIEF CLAMP BSD-1619P04148.A2 1619P04148 £1.75 £2.10
397 - PUSH-BUTTON BSD-1619P04152.A0 1619P04152 £1.95 £2.34
416 - BOLT BSD-1619P04030.A1 1619P04030 £5.58 £6.70
417 - SPRING PIN BSD-1619P04159.A0 1619P04159 £1.75 £2.10
418 - COMPRESSION SPRING BSD-1619P04032.A1 1619P04032 £1.75 £2.10
419 - CONNECTING TERMINAL BSD-1619PA0385.A1 1619PA0385 -
420 - SUPPRESSION CAPACITOR BSD-2610015692.A1 2610015692 -
421 - CONNECTING CABLE BSD-2610015693.A1 2610015693 £1.75 £2.10
653 - CLAMP BSD-2610014395.A0 2610014395 £24.45 £29.34
810 - PROTECTIVE COVER BSD-1619P05643.A1 1619P05643 £40.80 £48.96
811 - LOCKING PIN BSD-1619P04162.A2 1619P04162 £3.72 £4.47
827 - CARBON-BRUSH SET BSD-1619P04451.A17 1619P04451 -
830 - TABLE BSD-1619P04029.A1 1619P04029 £283.50 £340.20
834 - LASER BSD-1619P04111.A0 1619P04111 £37.27 £44.72
842 - LINKAGE BSD-1619P04048.A1 1619P04048 £10.82 £12.99
844 - PROTECTIVE COVER BSD-2610011065.A2 2610011065 -
881 - LIGHT UNIT BSD-1619P04158.A1 1619P04158 £33.74 £40.49
887 - EDGE GUIDE BSD-1619P04153.A2 1619P04153 £135.25 £162.30
897 - LINKAGE BSD-1619P04163.A0 1619P04163 £16.41 £19.69

Recently Viewed


x
Powered by kartris
