Bosch AdvancedRotak 670 / 3600HB9202 / EU 230 Volt Spare Parts

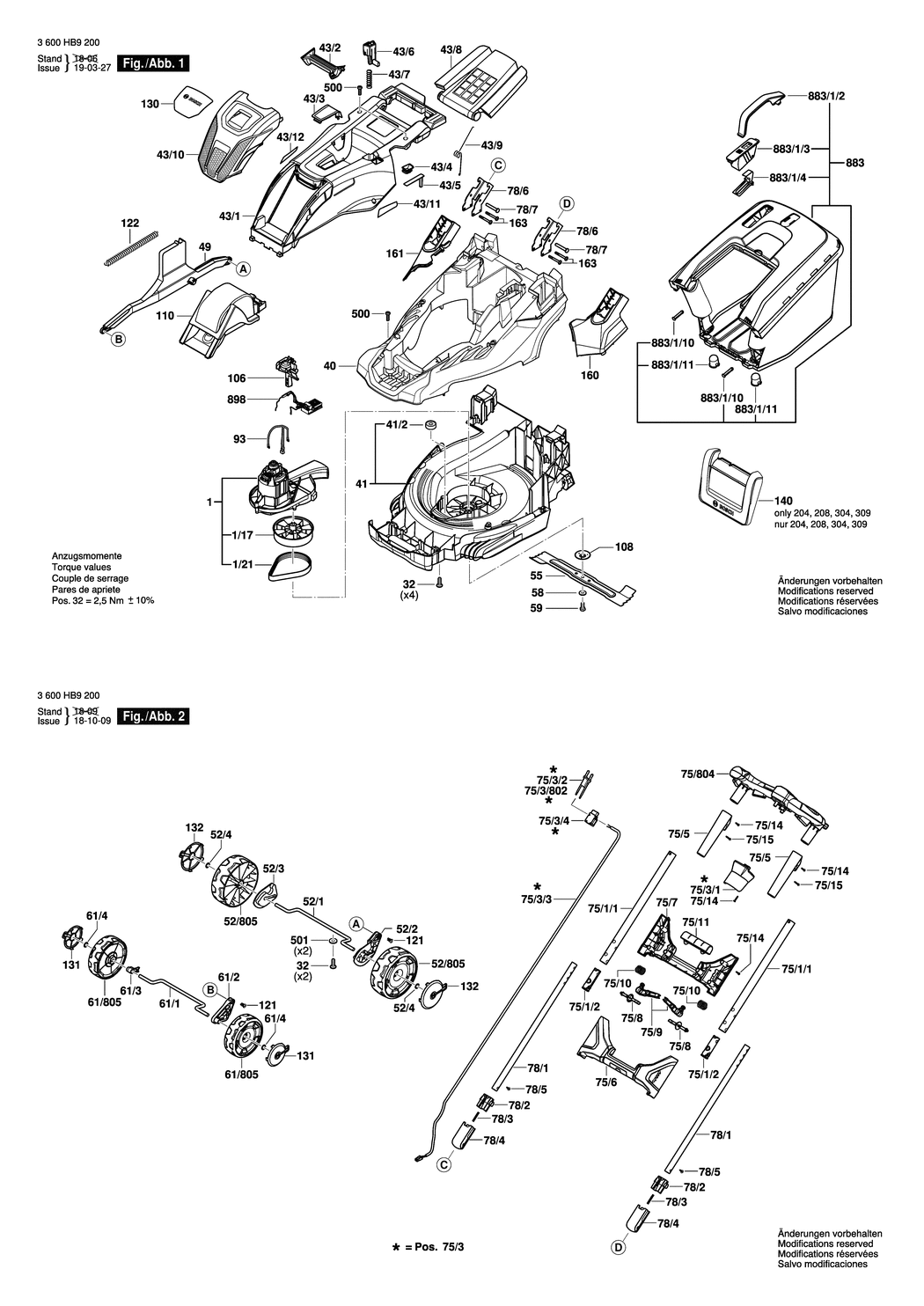

An exploded drawing and listing for the Bosch AdvancedRotak 670 / 3600HB9202 / EU 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR BSD-F016L90455.A17 F016L90455	£156.22	£187.46
1/17 - DRIVE SHAFT BSD-F016L65108.A65 F016L65108	£13.12	£15.75
1/21 - DRIVE BELT BSD-F016L65109.A36 F016L65109	£16.41	£19.69
32 - SELF-CUTTING SCREW BSD-F016L37433.A202 F016L37433	£1.75	£2.10
40 - MOWER DECK BSD-F016L90016.A2 F016L90016	£31.64	£37.97
41 - HOUSING 42 cm BSD-F016L90443.A2 F016L90443	£57.05	£68.46
41/2 - BEARING 6003 BSD-F016L64387.A85 F016L64387	£5.30	£6.36
43/1 - MOTOR HOOD BSD-F016L90017.A40 F016L90017	£18.96	£22.75
43/2 - CARRYING HANDLE BSD-F016L90018.A27 F016L90018	£1.75	£2.10
43/3 - COVER BSD-F016L90081.A0 F016L90081	£1.75	£2.10
43/4 - TRANSPARENT COVER BSD-F016L90432.A43 F016L90432	£1.75	£2.10
43/5 - INDICATOR BSD-F016L90433.A15 F016L90433	£3.72	£4.47
43/6 - BUTTON BSD-F016L90019.A17 F016L90019	£3.12	£3.75
43/7 - BUTTON SPRING BSD-F016L91168.A28 F016L91168	£1.75	£2.10
43/8 - GUARD FLAP BSD-F016L90022.A27 F016L90022	£7.36	£8.83
43/9 - SPRING BSD-F016L66165.A88 F016L66165	£2.82	£3.39
43/10 - GRILLE BSD-F016L90400.A21 F016L90400	£8.67	£10.41
43/11 - STICKER logo l BSD-F016L90076.A2 F016L90076	£2.61	£3.13
43/12 - STICKER logo r BSD-F016L90077.A52 F016L90077	£2.61	£3.13
49 - LINKAGE PART BSD-F016L90028.A27 F016L90028	£10.10	£12.12
52/1 - AXLE BSD-F016L90007.A16 F016L90007	£5.30	£6.36
52/2 - LINK PIECE BSD-F016L90033.A14 F016L90033	£1.75	£2.10
52/3 - LINK PIECE BSD-F016L90037.A14 F016L90037	£1.75	£2.10
52/4 - RATCHET CAP BSD-F016L68095.A187 F016L68095	£1.75	£2.10
52/805 - WHEEL BSD-F016105109.A14 F016105109	£9.49	£11.39
55 - CUTTER BLADE 42 cm BSD-F016L69572.A4 F016L69572	£21.52	£25.83
58 - LOCKING WASHER 1/2 BSD-F016L18181.A60 F016L18181	£2.16	£2.59
59 - HEX SCREW BSD-F04N004003.A45 F04N004003	£1.75	£2.10
61/1 - AXLE 42/46 BSD-F016L90006.A25 F016L90006	£5.30	£6.36
61/2 - LINK PIECE BSD-F016L90032.A53 F016L90032	£1.75	£2.10
61/3 - SPACER BSD-F016L90036.A53 F016L90036	£1.75	£2.10
61/4 - RATCHET CAP BSD-F016L68095.A186 F016L68095	£1.75	£2.10
61/805 - WHEEL BSD-F016105111.A9 F016105111	£7.78	£9.33
75/1/1 - HANDLE BSD-F016L90012.A23 F016L90012	£16.41	£19.69
75/1/2 - BUSHING BSD-F016L90064.A34 F016L90064	£1.75	£2.10
75/3 - WIRING UNIT BSD-F016L90703.A3 F016L90703	£27.23	£32.68
75/3/1 - SWITCH HOUSING BSD-F016L67217.A40 F016L67217	£5.58	£6.70
75/3/2 - TERMINAL BLOCK BSD-F016L90781.A42 F016L90781	£13.12	£15.75
75/3/3 - CONNECTION CABLE BSD-F016L90709.A4 F016L90709	-
75/3/4 - ON-OFF SWITCH BSD-F016L67490.A4 F016L67490	-
75/5 - SLEEVE BSD-F016L90070.A5 F016L90070	£2.16	£2.59
75/6 - HANDLE BSD-F016L90066.A34 F016L90066	£5.30	£6.36
75/7 - HANDLE BSD-F016L90067.A5 F016L90067	£5.58	£6.70
75/8 - LOCKING PIN BSD-F016L90068.A34 F016L90068	£1.75	£2.10
75/9 - LEVER BSD-F016L90543.A18 F016L90543	£1.75	£2.10
75/10 - COMPRESSION SPRING BSD-F016L90074.A37 F016L90074	£1.75	£2.10
75/11 - BUTTON BSD-F016L90065.A3 F016L90065	£2.80	£3.36
75/14 - SCREW M5x8 Csk Hd. BSD-F016L36542.A93 F016L36542	£2.61	£3.13
75/15 - TORX HEAD SCREW BSD-F016L68124.A140 F016L68124	£1.75	£2.10
75/804 - SWITCHING UNIT BSD-F016105287.A41 F016105287	-
78/1 - BOTTOM HANDLE BSD-F016L90013.A16 F016L90013	£12.04	£14.45
78/2 - RELEASE MECHANISM BSD-F016L90063.A5 F016L90063	£1.75	£2.10
78/3 - COMPRESSION SPRING BSD-F016L90841.A42 F016L90841	£1.75	£2.10
78/4 - RELEASE MECHANISM BSD-F016L90062.A38 F016L90062	£2.61	£3.13
78/5 - SCREW M5x8 Csk Hd. BSD-F016L36542.A94 F016L36542	£2.61	£3.13
78/6 - BRACKET BSD-F016L90082.A41 F016L90082	£5.58	£6.70
78/7 - PIVOT PIN BSD-F016L90014.A27 F016L90014	£1.75	£2.10
93 - THERMAL PROTECTOR BSD-F016L90717.A33 F016L90717	£7.36	£8.83
106 - WIRE GUIDE BSD-F016L90419.A29 F016L90419	£4.26	£5.11
108 - BEARING COVER BSD-F016L67627.A168 F016L67627	£2.71	£3.25
110 - BAFFLE BSD-F016L90089.A20 F016L90089	£7.36	£8.83
121 - CLIP BSD-F016L91066.A15 F016L91066	£1.75	£2.10
122 - SPRING BSD-F016L90072.A2 F016L90072	£2.80	£3.36
130 - FRONT COVER P2 BSD-F016L90878.A13 F016L90878	£6.52	£7.83
131 - COVER BSD-F016L90164.A1 F016L90164	£2.61	£3.13
132 - COVER BSD-F016L90168.A2 F016L90168	£2.61	£3.13
140 - DEFLECTOR PLATE BSD-F016L90830.A14 F016L90830	£21.52	£25.83
160 - COVER BSD-F016L90060.A37 F016L90060	£2.61	£3.13
161 - COVER BSD-F016L90061.A4 F016L90061	£2.61	£3.13
163 - TORX OVAL-HEAD SCREW M6x50 BSD-1613490011.A37 1613490011	£2.16	£2.59
500 - TORX HEAD SCREW BSD-F016L68124.A141 F016L68124	£1.75	£2.10
501 - PLAIN WASHER BSD-8716107299.A39 8716107299	-
883 - COLLECTION BOX BSD-F016105378.A15 F016105378	£59.53	£71.44
883/1/2 - HANDLE BSD-F016L90040.A67 F016L90040	£2.19	£2.63
883/1/3 - COVER BSD-F016L90557.A39 F016L90557	£2.16	£2.59
883/1/4 - PIVOT PLATE BSD-F016L90558.A15 F016L90558	£1.75	£2.10
883/1/10 - PIN BSD-F016L90638.A3 F016L90638	£1.32	£1.58
883/1/11 - SOCKET INSERT BSD-F016L90639.A30 F016L90639	-
898 - SPEED GOVERNOR BSD-F016105113.A14 F016105113	-
