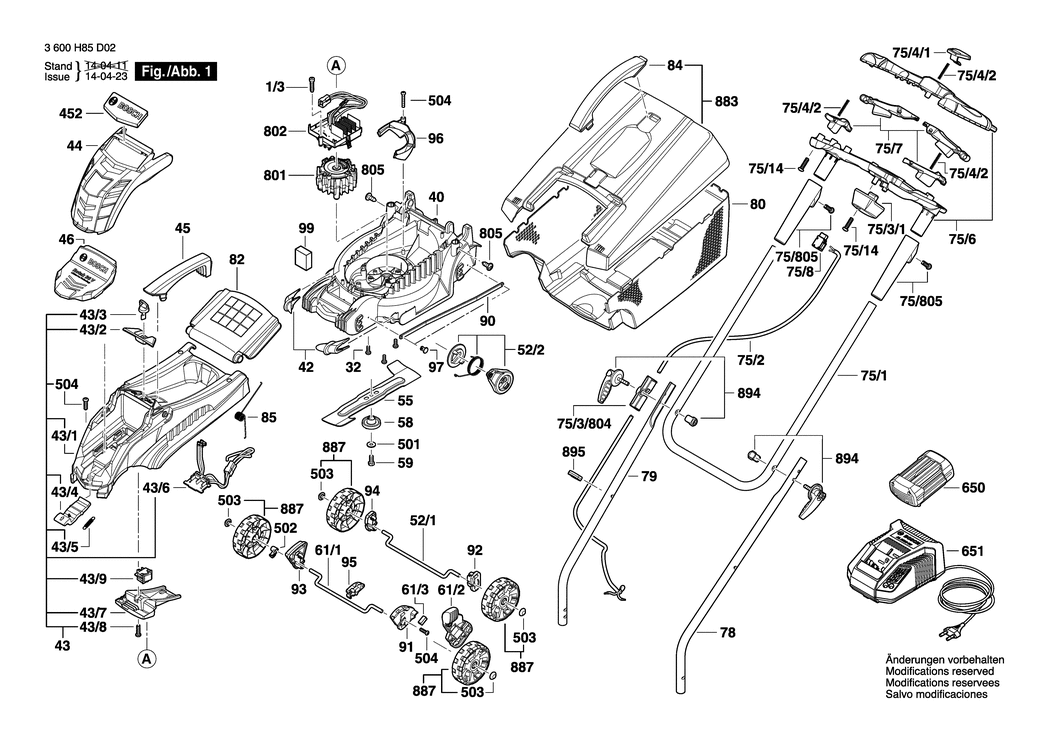

32 - SCREW
BSD-F016L66162.A31
F016L66162
|
£1.75
|
£2.10
|
|
|
40 - MOWER DECK
BSD-F016L68051.A4
F016L68051
|
£33.74
|
£40.49
|
|
|
42 - COMB
BSD-F016L66697.A3
F016L66697
|
£1.75
|
£2.10
|
|
|
43 - MOTOR HOOD
BSD-F016L68000.A4
F016L68000
|
£40.80
|
£48.96
|
|
|
43/1 - MOTOR HOOD
BSD-F016L68001.A3
F016L68001
|
£16.41
|
£19.69
|
|
|
43/2 - COVER
BSD-F016L68002.A4
F016L68002
|
£1.75
|
£2.10
|
|
|
43/3 - KEY
BSD-F016L68003.A4
F016L68003
|
£2.49
|
£2.99
|
|
|
43/4 - RELEASE LEVER
BSD-F016L68004.A41
F016L68004
|
£1.95
|
£2.34
|
|
|
43/5 - SPRING
BSD-F016L66108.A32
F016L66108
|
£1.75
|
£2.10
|
|
|
43/6 - WIRING HARNESS
BSD-F016104654.A3
F016104654
|
-
|
|
|
|
43/7 - CABLE ROUTING
BSD-F016L68017.A2
F016L68017
|
£1.75
|
£2.10
|
|
|
43/8 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A613
F016T49429
|
£1.75
|
£2.10
|
|
|
43/9 - SWITCH
BSD-F016104250.A3
F016104250
|
£8.67
|
£10.41
|
|
|
44 - GRILLE
BSD-F016L68005.A2
F016L68005
|
£11.30
|
£13.56
|
|
|
45 - CARRYING HANDLE
BSD-F016L66654.A20
F016L66654
|
£2.80
|
£3.36
|
|
|
46 - BATTERY COVER
BSD-F016L68006.A5
F016L68006
|
£6.52
|
£7.83
|
|
|
52/1 - AXLE
BSD-F016L68031.A16
F016L68031
|
£2.80
|
£3.36
|
|
|
52/2 - LEVER
BSD-F016L68050.A3
F016L68050
|
£6.52
|
£7.83
|
|
|
55 - CUTTER BLADE
BSD-1600A025F8.A1
1600A025F8
|
£16.74
|
£20.09
|
|
|
58 - ADAPTOR PLATE
BSD-F016L68024.A7
F016L68024
|
£5.30
|
£6.36
|
|
|
59 - HEX SCREW
BSD-160343508F.A2
160343508F
|
-
|
|
|
|
61/1 - AXLE
BSD-F016L68029.A2
F016L68029
|
£2.61
|
£3.13
|
|
|
61/2 - LEVER
BSD-F016L68012.A12
F016L68012
|
£2.80
|
£3.36
|
|
|
61/3 - SPRING
BSD-F016L68027.A14
F016L68027
|
£2.61
|
£3.13
|
|
|
75/1 - HANDLE
BSD-F016L90608.A63
F016L90608
|
£16.41
|
£19.69
|
|
|
75/2 - CONNECTING CABLE
BSD-F016104165.A7
F016104165
|
£13.41
|
£16.09
|
|
|
75/3/1 - CONNECTOR HOUSING
BSD-F016L67218.A28
F016L67218
|
£5.30
|
£6.36
|
|
|
75/3/804 - CABLE GUIDE
BSD-F016104213.A61
F016104213
|
£8.67
|
£10.41
|
|
|
75/4/1 - PUSH-BUTTON
BSD-F016L67150.A13
F016L67150
|
£2.08
|
£2.50
|
|
|
75/4/2 - BUTTON SPRING
BSD-F016L67151.A128
F016L67151
|
£1.75
|
£2.10
|
|
|
75/6 - HOUSING SET
BSD-F016104159.A15
F016104159
|
£21.52
|
£25.83
|
|
|
75/7 - SWITCH SEGMENT
BSD-F016104160.A126
F016104160
|
£10.82
|
£12.99
|
|
|
75/8 - SWITCH KIT
BSD-F016104163.A6
F016104163
|
£14.91
|
£17.89
|
|
|
75/14 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A610
F016T49429
|
£1.75
|
£2.10
|
|
|
75/805 - SLEEVE
BSD-F016104161.A15
F016104161
|
£5.58
|
£6.70
|
|
|
78 - BOTTOM HANDLE
BSD-F016L66682.A13
F016L66682
|
£8.67
|
£10.41
|
|
|
79 - BOTTOM HANDLE
BSD-F016L66655.A13
F016L66655
|
£8.67
|
£10.41
|
|
|
80 - COLLECTOR BOX BOTTOM
BSD-F016L66683.A21
F016L66683
|
£14.91
|
£17.89
|
|
|
82 - GUARD FLAP
BSD-F016L66686.A21
F016L66686
|
£4.26
|
£5.11
|
|
|
84 - CARRYING HANDLE
BSD-F016L66685.A13
F016L66685
|
£3.49
|
£4.19
|
|
|
85 - CLOSING SPRING
BSD-F016L66687.A13
F016L66687
|
£1.75
|
£2.10
|
|
|
90 - LINKAGE PART
BSD-F016L68025.A1
F016L68025
|
£7.36
|
£8.83
|
|
|
91 - INSERT
BSD-F016L68007.A3
F016L68007
|
£2.49
|
£2.99
|
|
|
92 - INSERT
BSD-F016L68008.A13
F016L68008
|
£1.75
|
£2.10
|
|
|
93 - INSERT
BSD-F016L68009.A3
F016L68009
|
£1.75
|
£2.10
|
|
|
94 - INSERT
BSD-F016L68010.A13
F016L68010
|
£1.75
|
£2.10
|
|
|
95 - INSERT
BSD-F016L68011.A3
F016L68011
|
£1.75
|
£2.10
|
|
|
96 - GRILLE
BSD-F016L68018.A5
F016L68018
|
£1.75
|
£2.10
|
|
|
97 - CLIP
BSD-F016L68014.A3
F016L68014
|
£1.75
|
£2.10
|
|
|
99 - BALANCE WEIGHTS
BSD-F016L68034.A6
F016L68034
|
£8.67
|
£10.41
|
|
|
452 - COMPANY LOGO Rotak 32 LI High Power
BSD-F016L68241.A1
F016L68241
|
£2.80
|
£3.36
|
|
|
501 - PLAIN WASHER dia8.15 MM
BSD-F016T40590.A31
F016T40590
|
£1.75
|
£2.10
|
|
|
502 - SPACER dia8.15 MM
BSD-F016L68015.A13
F016L68015
|
£1.75
|
£2.10
|
|
|
503 - SECURING CAP dia8 MM
BSD-F016T48990.A77
F016T48990
|
£1.75
|
£2.10
|
|
|
504 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A609
F016T49429
|
£1.75
|
£2.10
|
|
|
650 - BATTERY PACK 36V. 1.3Ah. LI
BSD-2607336631.A5
2607336631
|
£134.16
|
£160.99
|
|
|
650 - BATTERY PACK GBA 36V 2.6Ah H-B Li
BSD-2607336633.A1
2607336633
|
£187.56
|
£225.07
|
|
|
651 - CHARGER EU 230V/14.4-36V
BSD-2607225657.A14
2607225657
|
£70.24
|
£84.29
|
|
|
801 - DC MOTOR
BSD-F016104219.A6
F016104219
|
£195.26
|
£234.31
|
|
|
802 - PRINTED-BOARD ASSEMBLY
BSD-F016104596.A7
F016104596
|
£93.88
|
£112.65
|
|
|
805 - SCREW M5x8 Csk Hd.
BSD-F016L36542.A48
F016L36542
|
£2.61
|
£3.13
|
|
|
883 - COLLECTOR BOX TOP
BSD-F016104032.A20
F016104032
|
£21.68
|
£26.01
|
|
|
887 - WHEEL
BSD-F016104220.A1
F016104220
|
£11.30
|
£13.56
|
|
|
894 - CLAMPING LEVER
BSD-F016L67530.A24
F016L67530
|
£11.30
|
£13.56
|
|
|
895 - CABLE CLIP
BSD-F016L66895.A31
F016L66895
|
£1.75
|
£2.10
|
|
