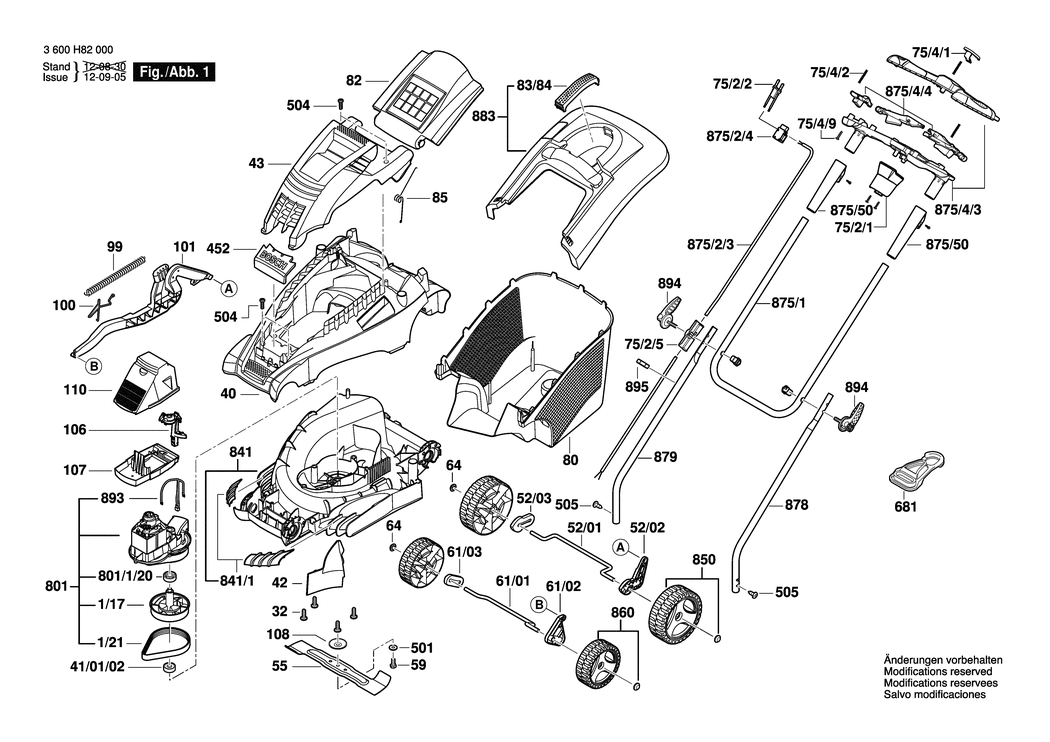

1/17 - DRIVE SHAFT
BSD-F016103758.A10
F016103758
|
£14.91
|
£17.89
|
|
|
1/21 - DRIVE BELT
BSD-F016L65351.A3
F016L65351
|
£13.41
|
£16.09
|
|
|
32 - SELF-CUTTING SCREW
BSD-F016L37433.A19
F016L37433
|
£1.75
|
£2.10
|
|
|
40 - MOWER DECK
BSD-F016L66158.A12
F016L66158
|
£33.74
|
£40.49
|
|
|
41/01/02 - BEARING 6002-2RS
BSD-F016L67442.A28
F016L67442
|
£4.22
|
£5.06
|
|
|
42 - COVER PANEL
BSD-F016L65497.A10
F016L65497
|
-
|
|
|
|
43 - MOTOR HOOD
BSD-F016L65159.A7
F016L65159
|
£30.28
|
£36.33
|
|
|
52/01 - AXLE
BSD-F016L66465.A25
F016L66465
|
£3.34
|
£4.01
|
|
|
52/02 - LEVER
BSD-F016L90582.A66
F016L90582
|
-
|
|
|
|
52/03 - SPACER
BSD-F016L90583.A126
F016L90583
|
£2.33
|
£2.80
|
|
|
55 - CUTTER BLADE
BSD-F016L65400.A12
F016L65400
|
£31.64
|
£37.97
|
|
|
59 - HEX SCREW M8x20 MM
BSD-F016T48547.A56
F016T48547
|
£2.61
|
£3.13
|
|
|
61/01 - AXLE
BSD-F016L66464.A28
F016L66464
|
£4.75
|
£5.70
|
|
|
61/02 - LEVER
BSD-F016L90581.A126
F016L90581
|
£7.78
|
£9.33
|
|
|
61/03 - SPACER
BSD-F016L90585.A66
F016L90585
|
£1.75
|
£2.10
|
|
|
64 - RATCHET CAP 9 MM
BSD-F016F05700.A53
F016F05700
|
£1.95
|
£2.34
|
|
|
75/2/1 - SWITCH HOUSING
BSD-F016L67217.A87
F016L67217
|
£5.58
|
£6.70
|
|
|
75/2/2 - CONNECTING CABLE EU
BSD-F016104214.A30
F016104214
|
£8.49
|
£10.19
|
|
|
75/2/5 - CABLE GUIDE
BSD-F016104213.A38
F016104213
|
£8.67
|
£10.41
|
|
|
75/4/1 - PUSH-BUTTON
BSD-F016L67150.A5
F016L67150
|
£2.08
|
£2.50
|
|
|
75/4/2 - BUTTON SPRING
BSD-F016L67151.A136
F016L67151
|
£1.75
|
£2.10
|
|
|
75/4/9 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A482
F016T49429
|
£1.75
|
£2.10
|
|
|
80 - COLLECTOR BOX BOTTOM
BSD-F016L65674.A30
F016L65674
|
£40.80
|
£48.96
|
|
|
82 - GUARD FLAP
BSD-F016L66137.A84
F016L66137
|
£13.32
|
£15.99
|
|
|
83/84 - HANDLE
BSD-F016L66441.A46
F016L66441
|
£4.75
|
£5.70
|
|
|
85 - SPRING
BSD-F016L66165.A217
F016L66165
|
£2.82
|
£3.39
|
|
|
99 - SPRING
BSD-F016L59327.A21
F016L59327
|
£2.80
|
£3.36
|
|
|
100 - SPRING
BSD-F016L65790.A7
F016L65790
|
£1.95
|
£2.34
|
|
|
101 - LINKAGE PART
BSD-F016L67260.A5
F016L67260
|
-
|
|
|
|
106 - WIRE GUIDE
BSD-F016L65802.A7
F016L65802
|
£1.32
|
£1.58
|
|
|
107 - FILTER HOUSING
BSD-F016L65538.A5
F016L65538
|
£6.61
|
£7.93
|
|
|
108 - BEARING COVER
BSD-F016L67627.A64
F016L67627
|
£2.71
|
£3.25
|
|
|
110 - FILTER HOUSING
BSD-F016L65709.A25
F016L65709
|
£5.87
|
£7.04
|
|
|
452 - COMPANY LOGO ROTAK 36 H
BSD-F016L68429.A0
F016L68429
|
£3.72
|
£4.47
|
|
|
501 - PLAIN WASHER dia8.15
BSD-F016T48185.A37
F016T48185
|
£3.72
|
£4.47
|
|
|
504 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A481
F016T49429
|
£1.75
|
£2.10
|
|
|
505 - SCREW
BSD-F016L65803.A54
F016L65803
|
-
|
|
|
|
681 - STRAIN-RELIEF CLAMP
BSD-3601398000.A102
3601398000
|
£5.30
|
£6.36
|
|
|
801 - MOTOR
BSD-F016103595.A3
F016103595
|
£120.11
|
£144.13
|
|
|
801/1/20 - BEARING
BSD-F016L64594.A7
F016L64594
|
£3.75
|
£4.50
|
|
|
841 - HOUSING
BSD-F016103598.A6
F016103598
|
£27.31
|
£32.77
|
|
|
841/1 - COVER
BSD-F016104316.A19
F016104316
|
£8.49
|
£10.19
|
|
|
850 - WHEEL
BSD-F016103992.A34
F016103992
|
-
|
|
|
|
860 - WHEEL
BSD-F016103908.A9
F016103908
|
£7.78
|
£9.33
|
|
|
875/1 - HANDLE
BSD-F016L90608.A54
F016L90608
|
£16.41
|
£19.69
|
|
|
875/2/3 - CONNECTING CABLE
BSD-F016104164.A72
F016104164
|
£11.78
|
£14.13
|
|
|
875/2/4 - SWITCH KIT
BSD-F016104162.A11
F016104162
|
£13.12
|
£15.75
|
|
|
875/4/3 - HOUSING SET
BSD-F016104360.A0
F016104360
|
£16.41
|
£19.69
|
|
|
875/4/4 - SWITCH SEGMENT
BSD-F016104160.A101
F016104160
|
£10.82
|
£12.99
|
|
|
875/50 - SLEEVE
BSD-F016104361.A102
F016104361
|
£4.26
|
£5.11
|
|
|
878 - BOTTOM HANDLE
BSD-F016L68091.A0
F016L68091
|
£10.10
|
£12.12
|
|
|
879 - HANDLE
BSD-F016L90891.A26
F016L90891
|
£10.10
|
£12.12
|
|
|
883 - COLLECTOR BOX TOP
BSD-F016104362.A3
F016104362
|
£14.72
|
£17.67
|
|
|
893 - THERMAL PROTECTOR
BSD-F016103604.A11
F016103604
|
£8.49
|
£10.19
|
|
|
894 - CLAMPING LEVER
BSD-F016L67530.A4
F016L67530
|
£11.30
|
£13.56
|
|
|
895 - CABLE CLIP
BSD-F016L66895.A17
F016L66895
|
£1.75
|
£2.10
|
|
