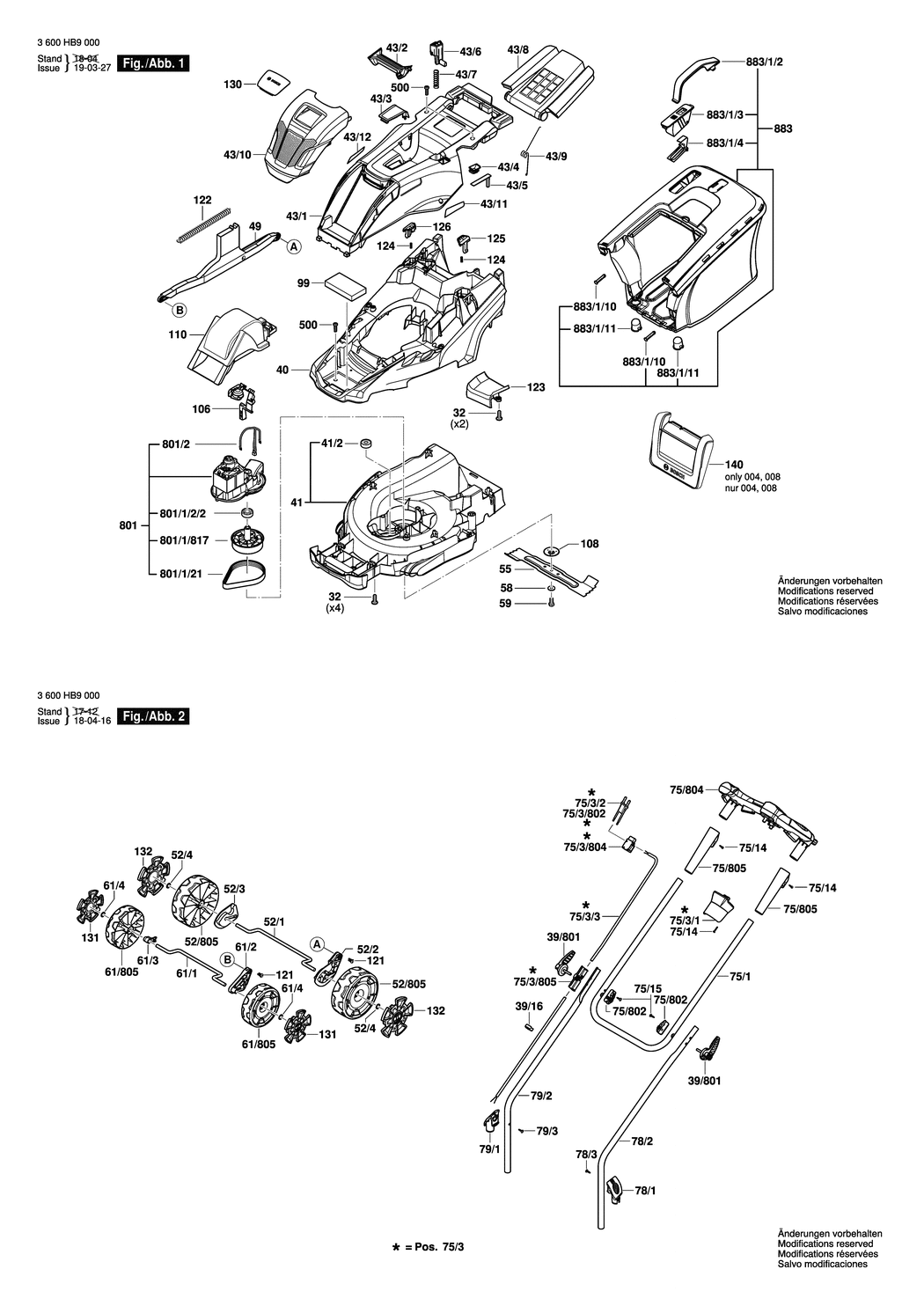

32 - SELF-CUTTING SCREW
BSD-F016L37433.A155
F016L37433
|
£1.75
|
£2.10
|
|
|
39/16 - CABLE CLIP
BSD-F016L66895.A115
F016L66895
|
£1.75
|
£2.10
|
|
|
39/801 - CLAMPING LEVER
BSD-F016105363.A27
F016105363
|
£4.37
|
£5.24
|
|
|
40 - MOWER DECK
BSD-F016L90981.A0
F016L90981
|
-
|
|
|
|
41 - HOUSING 36 cm
BSD-F016L90441.A10
F016L90441
|
£45.67
|
£54.80
|
|
|
41/2 - BEARING 6002-2RS
BSD-F016L67442.A74
F016L67442
|
£4.22
|
£5.06
|
|
|
43/1 - MOTOR HOOD
BSD-F016L90017.A54
F016L90017
|
£18.96
|
£22.75
|
|
|
43/2 - CARRYING HANDLE
BSD-F016L90018.A13
F016L90018
|
£1.75
|
£2.10
|
|
|
43/3 - COVER
BSD-F016L90081.A54
F016L90081
|
£1.75
|
£2.10
|
|
|
43/4 - TRANSPARENT COVER
BSD-F016L90432.A10
F016L90432
|
£1.75
|
£2.10
|
|
|
43/5 - INDICATOR
BSD-F016L90434.A15
F016L90434
|
£1.75
|
£2.10
|
|
|
43/6 - HANDLE
BSD-F016L90040.A9
F016L90040
|
£2.19
|
£2.63
|
|
|
43/7 - BUTTON SPRING
BSD-F016L90071.A16
F016L90071
|
£1.75
|
£2.10
|
|
|
43/8 - GUARD FLAP
BSD-F016L90022.A53
F016L90022
|
£7.36
|
£8.83
|
|
|
43/9 - SPRING
BSD-F016L90868.A32
F016L90868
|
£2.83
|
£3.40
|
|
|
43/10 - GRILLE
BSD-F016L90020.A14
F016L90020
|
£8.67
|
£10.41
|
|
|
43/11 - STICKER logo l
BSD-F016L90845.A8
F016L90845
|
-
|
|
|
|
43/12 - STICKER logo r
BSD-F016L90846.A5
F016L90846
|
-
|
|
|
|
49 - LINKAGE PART
BSD-F016L90027.A18
F016L90027
|
£8.67
|
£10.41
|
|
|
52/1 - AXLE
BSD-F016L90005.A0
F016L90005
|
£5.30
|
£6.36
|
|
|
52/2 - LINK PIECE
BSD-F016L90033.A60
F016L90033
|
£1.75
|
£2.10
|
|
|
52/3 - LINK PIECE
BSD-F016L90037.A60
F016L90037
|
£1.75
|
£2.10
|
|
|
52/4 - RATCHET CAP
BSD-F016L68095.A110
F016L68095
|
£1.75
|
£2.10
|
|
|
52/805 - WHEEL
BSD-F016105108.A14
F016105108
|
£9.47
|
£11.36
|
|
|
55 - CUTTER BLADE 36 cm
BSD-F016L69570.A0
F016L69570
|
£21.68
|
£26.01
|
|
|
58 - LOCKING WASHER 1/2
BSD-F016L18181.A14
F016L18181
|
£2.16
|
£2.59
|
|
|
59 - HEX SCREW
BSD-F04N004003.A5
F04N004003
|
£1.75
|
£2.10
|
|
|
61/1 - AXLE
BSD-F016L90004.A25
F016L90004
|
£4.26
|
£5.11
|
|
|
61/2 - LINK PIECE
BSD-F016L90032.A7
F016L90032
|
£1.75
|
£2.10
|
|
|
61/3 - SPACER
BSD-F016L90036.A7
F016L90036
|
£1.75
|
£2.10
|
|
|
61/4 - RATCHET CAP
BSD-F016L68095.A111
F016L68095
|
£1.75
|
£2.10
|
|
|
61/805 - WHEEL
BSD-F016105110.A13
F016105110
|
£7.36
|
£8.83
|
|
|
75/1 - HANDLE
BSD-F016L90608.A4
F016L90608
|
£16.41
|
£19.69
|
|
|
75/3 - WIRING UNIT
BSD-F016L90750.A0
F016L90750
|
£31.64
|
£37.97
|
|
|
75/3/1 - SWITCH HOUSING
BSD-F016L67497.A3
F016L67497
|
£5.30
|
£6.36
|
|
|
75/3/3 - CONNECTION CABLE
BSD-F016L90708.A14
F016L90708
|
-
|
|
|
|
75/3/802 - POWER SUPPLY CORD CH
BSD-F016104216.A9
F016104216
|
£10.10
|
£12.12
|
|
|
75/3/804 - SWITCH KIT
BSD-F016104162.A56
F016104162
|
£13.12
|
£15.75
|
|
|
75/3/805 - CABLE GUIDE
BSD-F016104213.A80
F016104213
|
£8.67
|
£10.41
|
|
|
75/14 - SCREW M5x8 Csk Hd.
BSD-F016L36542.A213
F016L36542
|
£2.61
|
£3.13
|
|
|
75/15 - TORX HEAD SCREW
BSD-F016L68124.A82
F016L68124
|
£1.75
|
£2.10
|
|
|
75/802 - NUT HOLDER
BSD-F016105314.A14
F016105314
|
£2.80
|
£3.36
|
|
|
75/804 - SWITCHING UNIT
BSD-F016105287.A22
F016105287
|
-
|
|
|
|
75/804 - .
BSD-F016105287.A23
F016105287
|
-
|
|
|
|
75/805 - SLEEVE
BSD-F016104361.A2
F016104361
|
£4.26
|
£5.11
|
|
|
78/1 - BRACKET
BSD-F016L91163.A16
F016L91163
|
-
|
|
|
|
78/2 - HANDLE
BSD-F016L90890.A0
F016L90890
|
£10.10
|
£12.12
|
|
|
78/3 - SCREW M5x8 Csk Hd.
BSD-F016L36542.A214
F016L36542
|
£2.61
|
£3.13
|
|
|
79/1 - BRACKET
BSD-F016L91164.A9
F016L91164
|
-
|
|
|
|
79/2 - HANDLE
BSD-F016L90891.A25
F016L90891
|
£10.10
|
£12.12
|
|
|
79/3 - SCREW M5x8 Csk Hd.
BSD-F016L36542.A215
F016L36542
|
£2.61
|
£3.13
|
|
|
99 - BALANCE WEIGHTS
BSD-F016L69400.A13
F016L69400
|
£21.52
|
£25.83
|
|
|
106 - WIRE GUIDE
BSD-F016L90419.A51
F016L90419
|
£4.26
|
£5.11
|
|
|
108 - BEARING COVER
BSD-F016L67627.A107
F016L67627
|
£2.71
|
£3.25
|
|
|
110 - BAFFLE
BSD-F016L90089.A54
F016L90089
|
£7.36
|
£8.83
|
|
|
121 - CLIP
BSD-F016L91066.A61
F016L91066
|
£1.75
|
£2.10
|
|
|
122 - SPRING
BSD-F016L59327.A140
F016L59327
|
£2.80
|
£3.36
|
|
|
123 - PLASTIC INSERT
BSD-F016L90721.A11
F016L90721
|
£2.61
|
£3.13
|
|
|
124 - BUTTON SPRING
BSD-F016L90701.A23
F016L90701
|
£1.75
|
£2.10
|
|
|
125 - BUTTON
BSD-F016L90197.A17
F016L90197
|
£2.16
|
£2.59
|
|
|
126 - BUTTON
BSD-F016L90198.A8
F016L90198
|
£2.16
|
£2.59
|
|
|
130 - FRONT COVER P1
BSD-F016L90872.A7
F016L90872
|
£6.52
|
£7.83
|
|
|
131 - COVER
BSD-F016L91046.A1
F016L91046
|
-
|
|
|
|
132 - COVER
BSD-F016L91047.A36
F016L91047
|
-
|
|
|
|
500 - TORX HEAD SCREW
BSD-F016L68124.A84
F016L68124
|
£1.75
|
£2.10
|
|
|
801 - MOTOR
BSD-F016105105.A11
F016105105
|
£102.57
|
£123.08
|
|
|
801/1/21 - DRIVE BELT
BSD-F016L65351.A42
F016L65351
|
£13.41
|
£16.09
|
|
|
801/1/817 - DRIVE SHAFT
BSD-F016103758.A50
F016103758
|
£14.91
|
£17.89
|
|
|
801/1/2/2 - BEARING
BSD-F016L64594.A127
F016L64594
|
£3.75
|
£4.50
|
|
|
801/2 - THERMAL PROTECTOR
BSD-F016L90879.A22
F016L90879
|
£12.04
|
£14.45
|
|
|
883 - COLLECTION BOX
BSD-F016105282.A17
F016105282
|
-
|
|
|
|
883/1/2 - HANDLE
BSD-F016L90040.A7
F016L90040
|
£2.19
|
£2.63
|
|
|
883/1/3 - COVER
BSD-F016L90557.A59
F016L90557
|
£2.16
|
£2.59
|
|
|
883/1/4 - PIVOT PLATE
BSD-F016L91038.A37
F016L91038
|
-
|
|
|
|
883/1/10 - PIN
BSD-F016L91107.A1
F016L91107
|
-
|
|
|
|
883/1/11 - SOCKET INSERT
BSD-F016L91108.A32
F016L91108
|
-
|
|
|
