Dewalt DW720 Type 1 - US Radial Arm Saw Spare Parts

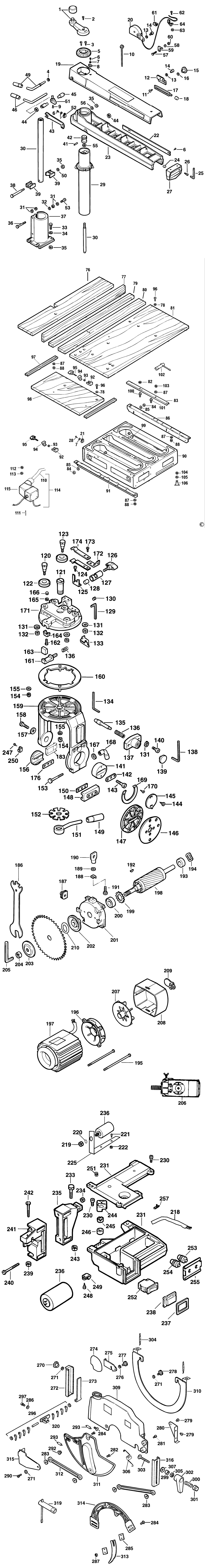

An exploded drawing and spare parts listing for the Dewalt DW720 Type 1 - US Radial Arm Saw

	Ex VAT	Inc VAT
1 - KNOB SA BDE-860792-00.A25 860792-00	£3.80	£4.56
2 - SCREW BDE-934401-00.A37 934401-00	£1.50	£1.80
3 - SCREW BDE-860093-06.A90 860093-06	£1.50	£1.80
4 - WASHER SPACER BDE-860073-06.A21 860073-06	£1.50	£1.80
5 - CAP BDE-860784-00.A48 860784-00	£7.85	£9.42
6 - SCREW BDE-860531-00.A30 860531-00	£1.50	£1.80
7 - WASHER BDE-860073-00.A117 860073-00	£1.50	£1.80
8 - POINTER BDE-860237-00.A49 860237-00	£3.80	£4.56
9 - SCREW BDE-860085-11.A0 860085-11	£1.50	£1.80
10 - SPRING BDE-863723-00.A7 863723-00	-
11 - SCREW BDE-860301-00.A82 860301-00	£1.50	£1.80
12 - SUPPORT BDE-860787-90.A48 860787-90	£5.72	£6.87
13 - WASHER BDE-860074-03.A231 860074-03	£1.50	£1.80
14 - SCREW BDE-860093-07.A12 860093-07	£1.50	£1.80
15 - KNOB BDE-946469-00.A54 946469-00	£1.50	£1.80
16 - WASHER BDE-720959-00.A98 720959-00	£1.50	£1.80
17 - ARM BDE-860852-90.A18 860852-90	-
18 - STOP RUBBER BDE-860786-00.A11 860786-00	£1.50	£1.80
19 - NO LONGER AVAILABLE BDE-000000-00.A14651 000000-00	-
20 - FSO REPAIR KIT BDE-N152003.A1 N152003	£84.42	£101.30
22 - NO LONGER AVAILABLE BDE-000000-00.A14652 000000-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A14653 000000-00	-
24 - BUMPER BDE-860429-00.A29 860429-00	£1.50	£1.80
25 - HEX KEY 5 MM BDE-930574-00.A15 930574-00	£1.50	£1.80
26 - SCREW.TEMP BDE-860093-05.A12 860093-05	£1.50	£1.80
27 - NO LONGER AVAILABLE BDE-000000-00.A14654 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A14655 000000-00	-
30 - TUBE ELEVATING SA BDE-860791-00.A8 860791-00	£93.62	£112.35
31 - NUT BDE-860083-04.A142 860083-04	£1.50	£1.80
32 - WASHER M8 BDE-860073-03.A360 860073-03	£1.50	£1.80
33 - SCREW BDE-860085-05.A61 860085-05	£1.82	£2.19
34 - WASHER BDE-860073-04.A46 860073-04	£1.50	£1.80
35 - NUT RH BDE-860083-05.A133 860083-05	£1.50	£1.80
36 - SCREW BDE-860085-02.A2 860085-02	£1.82	£2.19
37 - BASE BDE-860016-04.A2 860016-04	-
38 - SCREW BDE-860086-00.A49 860086-00	£3.80	£4.56
39 - SPACER BDE-860065-00.A37 860065-00	£1.82	£2.19
41 - PIN BDE-860096-06.A12 860096-06	£1.50	£1.80
42 - PINION BDE-860831-90.A41 860831-90	£18.91	£22.69
43 - WRENCH BDE-860423-00.A6 860423-00	£4.69	£5.63
44 - NUT BDE-860232-00.A17 860232-00	£3.80	£4.56
45 - SCREW BDE-860231-00.A43 860231-00	£14.57	£17.48
46 - LEVER BDE-864723-01.A19 864723-01	£34.00	£40.80
49 - LEVER BDE-860795-00.A1 860795-00	£18.91	£22.69
50 - WASHER BDE-860074-04.A77 860074-04	£1.50	£1.80
51 - LATCH BDE-864672-01.A16 864672-01	-
53 - SCREW BDE-949853-11.A1 949853-11	£37.35	£44.82
55 - WASHER BDE-860226-01.A36 860226-01	£1.50	£1.80
56 - WASHER BDE-860802-90.A27 860802-90	£1.50	£1.80
57 - SCREW BDE-860301-00.A83 860301-00	£1.50	£1.80
58 - WASHER BDE-720959-00.A97 720959-00	£1.50	£1.80
59 - CATCH BDE-860858-00.A11 860858-00	-
60 - NUT BDE-860083-03.A321 860083-03	£1.50	£1.80
61 - CLAMP BDE-860521-00.A20 860521-00	-
62 - SCREW BDE-860090-02.A44 860090-02	-
63 - NUT BDE-860083-01.A59 860083-01	£1.50	£1.80
64 - NO LONGER AVAILABLE BDE-000000-00.A14656 000000-00	-
76 - TABLE BDE-864944-00.A7 864944-00	£33.13	£39.76
77 - GUIDE BDE-864914-00.A3 864914-00	£18.42	£22.10
78 - WASHER M8 BDE-860073-03.A361 860073-03	£1.50	£1.80
79 - NO LONGER AVAILABLE BDE-000000-00.A14657 000000-00	-
80 - NO LONGER AVAILABLE BDE-000000-00.A14658 000000-00	-
81 - TABLE BDE-864943-00.A7 864943-00	£57.22	£68.66
82 - QUICKLOCK BDE-860077-02.A8 860077-02	£1.42	£1.70
83 - BAR BDE-860007-00.A9 860007-00	-
84 - NUT RH BDE-860083-05.A134 860083-05	£1.50	£1.80
85 - WASHER BDE-860074-04.A76 860074-04	£1.50	£1.80
86 - NO LONGER AVAILABLE BDE-000000-00.A14659 000000-00	-
87 - WASHER BDE-860074-03.A232 860074-03	£1.50	£1.80
88 - NUT BDE-860083-04.A141 860083-04	£1.50	£1.80
90 - NO LONGER AVAILABLE BDE-000000-00.A14660 000000-00	-
91 - NO LONGER AVAILABLE BDE-000000-00.A14661 000000-00	-
92 - SLIDER BDE-860069-00.A19 860069-00	-
93 - NUT BDE-860083-03.A322 860083-03	£1.50	£1.80
94 - NO LONGER AVAILABLE BDE-000000-00.A14662 000000-00	-
95 - KNOB BDE-863310-00.A57 863310-00	-
96 - SCREW BDE-949703-01.A18 949703-01	£1.50	£1.80
97 - SUPPORT BRACKET BDE-863130-04.A10 863130-04	£10.85	£13.02
98 - NO LONGER AVAILABLE BDE-000000-00.A14663 000000-00	-
99 - BOLT BDE-860085-00.A1 860085-00	£1.42	£1.70
100 - STUD BDE-760565-01.A8 760565-01	-
101 - NO LONGER AVAILABLE BDE-000000-00.A14664 000000-00	-
102 - SPANNER BOX BDE-869235-00.A58 869235-00	£17.48	£20.97
103 - NUT BDE-860083-15.A99 860083-15	£1.50	£1.80
104 - NUT BDE-860083-04.A139 860083-04	£1.50	£1.80
105 - WASHER M8 BDE-860073-03.A373 860073-03	£1.50	£1.80
106 - FOOT BDE-941614-00.A47 941614-00	£1.50	£1.80
115 - NO LONGER AVAILABLE BDE-000000-00.A14665 000000-00	-
120 - SHAFT BDE-760421-00.A24 760421-00	£7.85	£9.42
121 - PIVOT SHAFT BDE-860123-00.A17 860123-00	-
122 - BEARING BDE-860154-00.A18 860154-00	£16.03	£19.24
123 - SHAFT BDE-760417-00.A39 760417-00	£10.85	£13.02
124 - SCREW BDE-949894-06.A73 949894-06	£1.50	£1.80
125 - NO LONGER AVAILABLE BDE-000000-00.A14666 000000-00	-
126 - KNOB BDE-862427-00.A24 862427-00	£1.50	£1.80
127 - CLAMP BDE-860121-00.A39 860121-00	-
128 - NO LONGER AVAILABLE BDE-000000-00.A14667 000000-00	-
129 - KEY BDE-938539-00.A47 938539-00	£1.50	£1.80
130 - SCREW BDE-860088-27.A52 860088-27	£1.50	£1.80
131 - WASHER BDE-860074-03.A227 860074-03	£1.50	£1.80
132 - NUT BDE-860083-08.A40 860083-08	£1.50	£1.80
133 - COVER BDE-860817-01.A15 860817-01	£1.42	£1.70
134 - WRENCH 4 MM BDE-949882-01.A59 949882-01	£1.50	£1.80
135 - PIN BDE-863977-00.A32 863977-00	£14.57	£17.48
136 - SPRING BDE-860112-11.A27 860112-11	£1.50	£1.80
137 - SUPPORT BDE-860835-00.A25 860835-00	£16.03	£19.24
138 - WRENCH 6 MM BDE-860098-04.A102 860098-04	£1.50	£1.80
139 - KNOB BDE-946469-00.A48 946469-00	£1.50	£1.80
140 - SCREW BDE-860093-00.A44 860093-00	£1.50	£1.80
141 - FRONT TRUNNION BDE-860119-01.A42 860119-01	£38.80	£46.56
142 - PLATE BDE-860120-00.A18 860120-00	£1.82	£2.19
143 - SCREW BDE-860093-18.A21 860093-18	-
144 - SCREW BDE-860531-00.A34 860531-00	£1.50	£1.80
145 - POINTER BDE-862721-01.A29 862721-01	£5.88	£7.06
146 - PLATE BDE-860830-00.A17 860830-00	-
147 - SHIELD BDE-860827-00.A40 860827-00	£14.57	£17.48
148 - PLATE BDE-860828-00.A10 860828-00	-
149 - KNOB BDE-860796-01.A63 860796-01	-
150 - PLATE BDE-860809-00.A10 860809-00	-
151 - NO LONGER AVAILABLE BDE-000000-00.A14668 000000-00	-
152 - NO LONGER AVAILABLE BDE-000000-00.A14669 000000-00	-
153 - SCREW BDE-860086-11.A56 860086-11	£1.50	£1.80
154 - NUT BDE-860092-00.A157 860092-00	£1.50	£1.80
155 - WASHER BDE-720959-00.A93 720959-00	£1.50	£1.80
156 - BACKPLATE BDE-860822-00.A18 860822-00	-
157 - WASHER BDE-941602-00.A187 941602-00	£1.50	£1.80
158 - SCREW BDE-860093-00.A43 860093-00	£1.50	£1.80
159 - YOKE BDE-N045684.A12 N045684	£96.55	£115.86
160 - RING SA BDE-860824-00.A39 860824-00	£55.30	£66.36
161 - NO LONGER AVAILABLE BDE-000000-00.A14670 000000-00	-
162 - SCREW BDE-860085-06.A7 860085-06	£1.42	£1.70
163 - CAP BDE-760427-00.A26 760427-00	£1.78	£2.13
164 - CATCH BDE-860816-00.A42 860816-00	£1.42	£1.70
165 - WASHER BDE-860073-01.A130 860073-01	£1.50	£1.80
166 - NUT M5 BDE-860092-03.A6 860092-03	£1.50	£1.80
167 - WASHER BDE-860074-03.A228 860074-03	£1.50	£1.80
168 - CLAMP BDE-860825-00.A18 860825-00	-
169 - POINTER BDE-860829-00.A47 860829-00	£5.88	£7.06
170 - SCREW BDE-860205-06.A22 860205-06	£1.50	£1.80
171 - NO LONGER AVAILABLE BDE-000000-00.A14671 000000-00	-
172 - BRACKET BDE-863726-00.A8 863726-00	£2.26	£2.71
173 - SCREW BDE-860094-03.A176 860094-03	£1.50	£1.80
174 - SPRING BDE-860820-00.A6 860820-00	£1.82	£2.19
176 - PLATE BDE-863010-00.A6 863010-00	-
186 - NO LONGER AVAILABLE BDE-000000-00.A14672 000000-00	-
187 - BUSHING BDE-860447-00.A28 860447-00	£7.85	£9.42
188 - PLATE BDE-860807-00.A10 860807-00	£1.78	£2.13
189 - WASHER M8 BDE-860073-03.A372 860073-03	£1.50	£1.80
190 - NUT BDE-860655-01.A7 860655-01	-
191 - SCREW BDE-860085-19.A88 860085-19	£1.50	£1.80
192 - KEY BDE-860318-01.A33 860318-01	£1.50	£1.80
193 - BEARING BDE-868768-07.A76 868768-07	£7.85	£9.42
194 - RING BDE-860080-02.A56 860080-02	£1.50	£1.80
195 - ROD BDE-860446-00.A33 860446-00	£1.50	£1.80
196 - END CAP BDE-860443-00.A29 860443-00	£4.69	£5.63
199 - RING BDE-860806-00.A22 860806-00	£1.50	£1.80
200 - BEARING BDE-861721-12.A59 861721-12	£7.85	£9.42
201 - HOUSING BDE-860808-00.A22 860808-00	-
202 - INNER FLANGE BDE-863266-00.A1 863266-00	-
203 - OUTER FLANGE BDE-861241-00.A27 861241-00	-
204 - NUT BDE-860126-01.A20 860126-01	-
205 - HEX KEY 8 MM BDE-860098-05.A56 860098-05	£3.30	£3.96
207 - FAN BDE-860444-00.A39 860444-00	£4.69	£5.63
208 - COVER BDE-860445-00.A40 860445-00	£7.18	£8.62
209 - CAP BDE-863112-00.A38 863112-00	£1.50	£1.80
230 - SCREW BDE-930076-00.A78 930076-00	£1.50	£1.80
233 - SCREW BDE-860093-00.A45 860093-00	£1.50	£1.80
234 - NUT BDE-860083-02.A88 860083-02	£1.50	£1.80
235 - HANDLE RH BDE-863318-00.A5 863318-00	-
239 - NUT BDE-860083-03.A326 860083-03	£1.50	£1.80
240 - SCREW BDE-760219-00.A15 760219-00	£1.50	£1.80
240 - SCREW BDE-949886-10.A6 949886-10	£1.78	£2.13
241 - HANDLE LH BDE-863319-00.A15 863319-00	-
242 - SCREW BDE-860093-20.A25 860093-20	£1.50	£1.80
243 - NUT BDE-860083-04.A138 860083-04	£1.50	£1.80
244 - NO LONGER AVAILABLE BDE-000000-00.A14673 000000-00	-
245 - BLOCK BDE-863111-00.A11 863111-00	-
246 - NUT BDE-944590-00.A96 944590-00	£1.50	£1.80
247 - SCREW BDE-860094-03.A175 860094-03	£1.50	£1.80
248 - SCREW BDE-860084-20.A107 860084-20	£1.50	£1.80
250 - BRACKET BDE-860843-02.A51 860843-02	£1.50	£1.80
270 - KNOB BDE-946469-00.A47 946469-00	£1.50	£1.80
271 - WASHER BDE-860075-00.A122 860075-00	£1.50	£1.80
272 - SUPPORT BDE-863709-00.A23 863709-00	-
273 - PROTECTOR BDE-863703-00.A41 863703-00	-
274 - TUBE EXTRACTION BDE-864095-00.A64 864095-00	£7.85	£9.42
275 - SQUARE BDE-863708-00.A44 863708-00	£10.85	£13.02
276 - WASHER BDE-860073-01.A129 860073-01	£1.50	£1.80
277 - KNOB BDE-861842-01.A32 861842-01	£1.50	£1.80
278 - KNOB BDE-861842-00.A5 861842-00	£1.50	£1.80
279 - SCREW BDE-760273-00.A26 760273-00	£1.50	£1.80
280 - BRACKET BDE-863707-01.A27 863707-01	£9.41	£11.29
281 - SCREW BDE-760998-00.A116 760998-00	£1.50	£1.80
282 - SCREW BDE-249412-20.A80 249412-20	£1.50	£1.80
283 - WASHER BDE-864053-00.A67 864053-00	£3.80	£4.56
284 - SCREW BDE-860301-00.A80 860301-00	£1.50	£1.80
285 - SHIM BDE-864086-00.A7 864086-00	£3.70	£4.44
286 - WASHER BDE-860074-02.A113 860074-02	£1.50	£1.80
287 - NUT BDE-860083-03.A327 860083-03	£1.50	£1.80
290 - SCREW BDE-860094-12.A11 860094-12	£1.50	£1.80
292 - BUSH BDE-863705-00.A28 863705-00	£1.82	£2.19
293 - ROLLER BDE-864054-00.A7 864054-00	£1.82	£2.19
296 - KICK BACK SA BDE-864814-01.A12 864814-01	-
297 - SCREW BDE-760219-00.A14 760219-00	£1.50	£1.80
299 - SPACER BDE-863599-02.A8 863599-02	£1.50	£1.80
300 - SPRING BDE-760483-00.A22 760483-00	£1.50	£1.80
301 - CAP BDE-863073-00.A22 863073-00	£4.69	£5.63
302 - LEVER BDE-863320-00.A6 863320-00	£5.88	£7.06
303 - SCREW BDE-949891-03.A3 949891-03	£1.50	£1.80
305 - NUT BDE-860083-15.A100 860083-15	£1.50	£1.80
307 - WASHER M8 BDE-860073-03.A374 860073-03	£1.50	£1.80
309 - GUARD BDE-862235-04.A4 862235-04	-
310 - PROTECTOR BDE-863706-01.A15 863706-01	£10.85	£13.02
311 - GUARD BDE-862417-00.A13 862417-00	£10.85	£13.02
312 - LEVER BDE-862084-01.A11 862084-01	-
313 - RIVING KNIFE BDE-863269-00.A7 863269-00	-
314 - BRACKET BDE-862083-00.A17 862083-00	-
315 - BRACKET BDE-863775-01.A13 863775-01	-
316 - PROTECTOR BDE-863434-00.A13 863434-00	-
319 - SPANNER BOX BDE-760601-00.A4 760601-00	£2.26	£2.71
320 - BRACKET BDE-945632-90.A6 945632-90	-

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt DW720 Type 1 - US Radial Arm Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Dewalt DW720 Type 1 - US Radial Arm Saw Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Dewalt DW720 Type 1 - US Radial Arm Saw Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
