Dewalt DW722KN Type 1 Radial Arm Saw Spare Parts

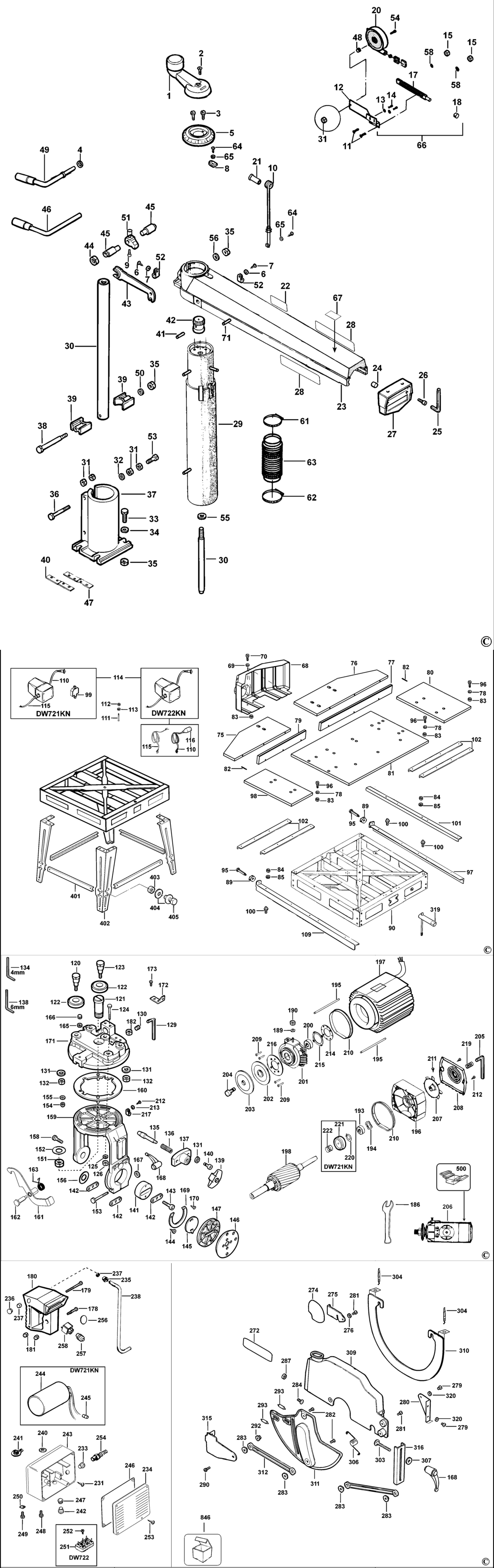

An exploded drawing and spare parts listing for the Dewalt DW722KN Type 1 Radial Arm Saw

	Ex VAT	Inc VAT
1 - KNOB SA BDE-860792-00.A15 860792-00	£3.80	£4.56
2 - SCREW BDE-934401-00.A26 934401-00	£1.50	£1.80
3 - SCREW BDE-860093-06.A13 860093-06	£1.50	£1.80
4 - WASHER SPACER BDE-860073-06.A44 860073-06	£1.50	£1.80
5 - CAP BDE-860784-00.A28 860784-00	£7.85	£9.42
6 - SCREW BDE-860531-00.A68 860531-00	£1.50	£1.80
7 - WASHER BDE-860073-00.A31 860073-00	£1.50	£1.80
8 - POINTER BDE-860237-00.A17 860237-00	£3.80	£4.56
9 - SCREW BDE-860085-11.A21 860085-11	£1.50	£1.80
10 - SUPPORT BDE-863912-00.A32 863912-00	£7.18	£8.62
11 - SCREW BDE-860301-16.A27 860301-16	£1.50	£1.80
12 - BRACKET BDE-863724-00.A0 863724-00	£16.03	£19.24
13 - WASHER BDE-860074-03.A17 860074-03	£1.50	£1.80
14 - SCREW BDE-860093-14.A34 860093-14	£1.50	£1.80
15 - NUT BDE-860083-03.A207 860083-03	£1.50	£1.80
17 - BAR BDE-864080-00.A0 864080-00	-
18 - TIP BDE-864081-00.A4 864081-00	£7.18	£8.62
20 - AUTO SAFETY RETURN BDE-863929-00.A11 863929-00	£135.36	£162.43
21 - PROTECTOR BDE-863259-00.A22 863259-00	£3.80	£4.56
23 - ARM BDE-N045681.A4 N045681	£804.38	£965.26
24 - BUMPER BDE-860429-00.A47 860429-00	£1.50	£1.80
25 - HEX KEY 5 MM BDE-930574-00.A119 930574-00	£1.50	£1.80
26 - SCREW.TEMP BDE-860093-05.A67 860093-05	£1.50	£1.80
27 - CAP BDE-861111-01.A5 861111-01	£17.48	£20.97
28 - BRAND LABEL BDE-861738-05.A1 861738-05	£12.17	£14.60
29 - COLUMN SA BDE-N045682.A0 N045682	£336.69	£404.03
30 - TUBE ELEVATING SA BDE-860791-00.A28 860791-00	£93.62	£112.35
31 - NUT BDE-860083-04.A278 860083-04	£1.50	£1.80
32 - WASHER M8 BDE-860073-03.A114 860073-03	£1.50	£1.80
33 - SCREW BDE-860085-05.A30 860085-05	£1.82	£2.19
34 - WASHER BDE-860073-04.A96 860073-04	£1.50	£1.80
35 - NUT RH BDE-860083-05.A74 860083-05	£1.50	£1.80
36 - SCREW BDE-860085-02.A44 860085-02	£1.82	£2.19
37 - BASE SA BDE-860909-03.A5 860909-03	£104.31	£125.17
38 - SCREW BDE-860086-00.A16 860086-00	£3.80	£4.56
39 - SPACER BDE-860065-00.A15 860065-00	£1.82	£2.19
40 - SPACER LH BDE-860273-00.A8 860273-00	£10.85	£13.02
41 - PIN BDE-860096-06.A41 860096-06	£1.50	£1.80
42 - PINION BDE-860831-90.A15 860831-90	£18.91	£22.69
43 - WRENCH BDE-860423-00.A42 860423-00	£4.69	£5.63
44 - NUT BDE-860232-00.A46 860232-00	£3.80	£4.56
45 - SCREW BDE-860231-00.A14 860231-00	£14.57	£17.48
46 - LEVER BDE-864723-01.A11 864723-01	£34.00	£40.80
47 - SPACER RH BDE-860273-02.A31 860273-02	£10.85	£13.02
48 - SPACER BDE-867190-01.A4 867190-01	£3.30	£3.96
49 - LEVER BDE-860795-00.A26 860795-00	£18.91	£22.69
50 - WASHER BDE-860074-04.A157 860074-04	£1.50	£1.80
51 - LATCH BDE-861240-00.A10 861240-00	£71.44	£85.73
52 - BRACKET BDE-860843-02.A1 860843-02	£1.50	£1.80
53 - SCREW BDE-949853-11.A29 949853-11	£37.35	£44.82
54 - SCREW BDE-860093-00.A160 860093-00	£1.50	£1.80
55 - WASHER BDE-860226-01.A10 860226-01	£1.50	£1.80
56 - WASHER BDE-860802-90.A1 860802-90	£1.50	£1.80
58 - WASHER BDE-720959-00.A163 720959-00	£1.50	£1.80
61 - CLIP BDE-949700-06.A28 949700-06	£7.18	£8.62
62 - STRAP BDE-949700-07.A7 949700-07	£9.41	£11.29
63 - PROTECTOR BDE-863324-00.A6 863324-00	£25.70	£30.84
64 - SCREW BDE-860238-03.A6 860238-03	£1.50	£1.80
65 - WASHER BDE-860074-01.A4 860074-01	£1.50	£1.80
66 - STOP BDE-869356-09.A5 869356-09	£192.14	£230.57
67 - WARNING LABEL BDE-N034454.A6 N034454	£5.88	£7.06
68 - DUST COLLECTOR BDE-N032402.A3 N032402	£131.46	£157.75
69 - WASHER BDE-941602-00.A46 941602-00	£1.50	£1.80
70 - SCREW BDE-860085-04.A71 860085-04	£1.50	£1.80
71 - PIN BDE-330036-08.A28 330036-08	£1.50	£1.80
75 - ELEMENT BDE-N027622.A1 N027622	£74.15	£88.98
76 - ELEMENT BDE-N030449.A3 N030449	£96.55	£115.86
77 - GUIDE BDE-N027624.A3 N027624	£38.80	£46.56
78 - WASHER M8 BDE-860073-03.A112 860073-03	£1.50	£1.80
79 - GUIDE BDE-N029923.A1 N029923	£38.80	£46.56
80 - TABLE BDE-N027626.A3 N027626	£55.30	£66.36
81 - TABLE BDE-N027625.A1 N027625	£157.18	£188.61
82 - PIN BDE-N032917.A7 N032917	£1.50	£1.80
83 - NUT BDE-860083-14.A66 860083-14	£1.50	£1.80
84 - NUT BDE-860083-04.A280 860083-04	£1.50	£1.80
85 - WASHER BDE-860074-03.A15 860074-03	£1.50	£1.80
89 - NUT BDE-864078-00.A9 864078-00	£3.80	£4.56
90 - BASE BDE-869320-00.A8 869320-00	£958.68	£1150.41
95 - SCREW BDE-N035392.A0 N035392	£7.85	£9.42
96 - SCREW BDE-949703-09.A6 949703-09	£1.50	£1.80
97 - SUPPORT BDE-N030068.A2 N030068	£45.14	£54.17
98 - EXTENSION BDE-N027627.A1 N027627	£45.14	£54.17
99 - OVERLOAD PROTECTOR BDE-868878-02.A2 868878-02	£44.14	£52.97
100 - SCREW.SPECIAL BDE-868459-00.A4 868459-00	£3.30	£3.96
101 - TABLE SUPPORT BDE-N034713.A1 N034713	£34.00	£40.80
102 - SUPPORT BRACKET BDE-863130-04.A19 863130-04	£10.85	£13.02
109 - SUPPORT LH BDE-N033664.A4 N033664	£45.14	£54.17
111 - SCREW BDE-949701-03.A13 949701-03	£1.50	£1.80
112 - NUT BDE-860083-02.A171 860083-02	£1.50	£1.80
113 - WASHER BDE-860073-01.A264 860073-01	£1.50	£1.80
120 - SHAFT BDE-760421-00.A62 760421-00	£7.85	£9.42
121 - PIN BDE-N045683.A3 N045683	£17.48	£20.97
122 - BEARING BDE-860154-00.A42 860154-00	£16.03	£19.24
123 - SHAFT BDE-760417-00.A1 760417-00	£10.85	£13.02
124 - SCREW.TEMP BDE-860085-26.A4 860085-26	£1.50	£1.80
125 - WASHER BDE-860074-02.A205 860074-02	£1.50	£1.80
126 - NUT BDE-860083-03.A205 860083-03	£1.50	£1.80
129 - KEY BDE-938539-00.A43 938539-00	£1.50	£1.80
130 - SCREW BDE-941880-00.A34 941880-00	£1.50	£1.80
131 - WASHER BDE-860074-03.A14 860074-03	£1.50	£1.80
132 - NUT BDE-860083-08.A32 860083-08	£1.50	£1.80
134 - WRENCH 4 MM BDE-949882-01.A1 949882-01	£1.50	£1.80
135 - PIN BDE-863977-00.A50 863977-00	£14.57	£17.48
136 - SPRING BDE-860112-11.A60 860112-11	£1.50	£1.80
137 - SUPPORT BDE-860835-00.A56 860835-00	£16.03	£19.24
138 - WRENCH 6 MM BDE-860098-04.A134 860098-04	£1.50	£1.80
139 - KNOB BDE-942453-00.A6 942453-00	£3.80	£4.56
140 - SCREW BDE-860093-00.A161 860093-00	£1.50	£1.80
141 - FRONT TRUNNION BDE-860119-01.A18 860119-01	£38.80	£46.56
142 - PLATE BDE-860120-00.A42 860120-00	£1.82	£2.19
143 - SCREW BDE-860093-00.A162 860093-00	£1.50	£1.80
144 - SCREW BDE-860531-00.A67 860531-00	£1.50	£1.80
145 - POINTER BDE-862721-01.A0 862721-01	£5.88	£7.06
146 - PLATE BDE-N032399.A2 N032399	£7.85	£9.42
147 - SHIELD BDE-860827-00.A13 860827-00	£14.57	£17.48
151 - NUT BDE-N032397.A2 N032397	£3.30	£3.96
152 - WASHER BDE-N035393.A4 N035393	£1.82	£2.19
153 - SCREW BDE-860086-11.A0 860086-11	£1.50	£1.80
154 - NUT BDE-860092-00.A55 860092-00	£1.50	£1.80
155 - WASHER BDE-720959-00.A164 720959-00	£1.50	£1.80
156 - DISC BDE-864160-00.A0 864160-00	£1.50	£1.80
158 - SCREW BDE-864058-00.A0 864058-00	£5.88	£7.06
159 - YOKE BDE-N045684.A6 N045684	£96.55	£115.86
160 - RING SA BDE-860824-00.A13 860824-00	£55.30	£66.36
161 - LEVER BDE-N030650.A2 N030650	£25.70	£30.84
162 - BOLT BDE-N034670.A5 N034670	£7.18	£8.62
163 - SPRING BDE-N032405.A7 N032405	£2.78	£3.34
165 - WASHER BDE-860073-01.A265 860073-01	£1.50	£1.80
166 - NUT M5 BDE-860092-03.A83 860092-03	£1.50	£1.80
167 - WASHER BDE-860074-03.A16 860074-03	£1.50	£1.80
168 - LEVER BDE-861840-03.A5 861840-03	£7.29	£8.75
169 - POINTER BDE-860829-00.A14 860829-00	£5.88	£7.06
170 - SCREW BDE-860205-06.A55 860205-06	£1.50	£1.80
171 - ROLLER HEAD BDE-N045685.A2 N045685	£65.52	£78.62
172 - BRACKET BDE-863726-00.A21 863726-00	£2.26	£2.71
173 - SCREW BDE-860094-02.A140 860094-02	£1.50	£1.80
178 - SCREW BDE-949701-12.A36 949701-12	£1.50	£1.80
179 - SCREW BDE-860089-39.A29 860089-39	£1.50	£1.80
180 - HANDLE BDE-N031178.A1 N031178	£14.57	£17.48
181 - NUT BDE-860083-02.A170 860083-02	£1.50	£1.80
182 - NUT M6 BDE-860083-12.A156 860083-12	£1.50	£1.80
186 - SPANNER 10-13MM BDE-949751-07.A33 949751-07	£3.80	£4.56
189 - WASHER M8 BDE-860073-03.A111 860073-03	£1.50	£1.80
190 - NUT BDE-860083-04.A281 860083-04	£1.50	£1.80
193 - BEARING BDE-868768-07.A160 868768-07	£7.85	£9.42
194 - RING BDE-860080-02.A92 860080-02	£1.50	£1.80
195 - BOLT BDE-860446-01.A19 860446-01	£1.50	£1.80
196 - END CAP SA BDE-861863-00.A8 861863-00	£55.30	£66.36
197 - STATOR BDE-868401-00.A3 868401-00	£283.82	£340.58
200 - BEARING BDE-868768-10.A0 868768-10	£14.57	£17.48
201 - HOUSING BDE-862162-00.A0 862162-00	£24.39	£29.27
202 - FLANGE BDE-N026918.A0 N026918	£30.08	£36.10
203 - OUTER FLANGE BDE-N071377.A2 N071377	£41.24	£49.49
204 - BLADE BOLT BDE-869245-00.A73 869245-00	£3.54	£4.25
205 - WRENCH 6 MM BDE-860098-04.A133 860098-04	£1.50	£1.80
207 - FAN BDE-945841-00.A23 945841-00	£2.78	£3.34
208 - END CAP BDE-N027614.A4 N027614	£7.85	£9.42
209 - SCREW BDE-860538-00.A14 860538-00	£1.50	£1.80
210 - SEAL BDE-860718-00.A25 860718-00	£7.18	£8.62
211 - SCREW BDE-860088-25.A34 860088-25	£1.50	£1.80
212 - SCREW BDE-860094-01.A1 860094-01	£1.50	£1.80
213 - WASHER BDE-933652-00.A8 933652-00	£1.50	£1.80
214 - CAP BDE-123302-01.A30 123302-01	£3.80	£4.56
215 - GASKET BDE-863878-00.A19 863878-00	£3.30	£3.96
216 - PLATE BDE-864085-01.A0 864085-01	£5.88	£7.06
217 - CLAMP BDE-860843-01.A61 860843-01	£1.50	£1.80
219 - SPRING BDE-869246-00.A11 869246-00	£1.50	£1.80
220 - CIRCLIP BDE-949727-06.A1 949727-06	£1.50	£1.80
221 - BRAKE ADAPTER BDE-861336-05.A1 861336-05	£10.85	£13.02
222 - SPRING BDE-861338-05.A2 861338-05	£1.50	£1.80
231 - SCREW BDE-860094-03.A10 860094-03	£1.50	£1.80
233 - NUT BDE-N033752.A1 N033752	£1.50	£1.80
234 - COVER BDE-868961-00.A1 868961-00	£5.88	£7.06
235 - GLAND BDE-949747-07.A14 949747-07	£1.50	£1.80
236 - CAP BDE-949747-18.A23 949747-18	£1.50	£1.80
237 - NUT BDE-944590-00.A2 944590-00	£1.50	£1.80
238 - LEAD BDE-N032403.A0 N032403	£7.85	£9.42
240 - GROMMET BDE-868963-00.A1 868963-00	£1.50	£1.80
241 - GROMMET BDE-944652-00.A2 944652-00	£4.69	£5.63
242 - RETAINER BDE-868964-00.A3 868964-00	£1.50	£1.80
243 - HOUSING BDE-N036361.A4 N036361	£7.85	£9.42
245 - CONNECTOR BDE-861257-00.A28 861257-00	£1.50	£1.80
246 - GASKET BDE-868962-00.A5 868962-00	£1.50	£1.80
247 - RETAINER BDE-868965-01.A4 868965-01	£1.50	£1.80
248 - SCREW.TEMP BDE-860094-00.A151 860094-00	£1.50	£1.80
249 - SCREW BDE-860094-02.A139 860094-02	£1.50	£1.80
250 - WASHER BDE-933652-00.A9 933652-00	£1.50	£1.80
251 - CONNECTOR BDE-946085-00.A1 946085-00	£1.82	£2.19
252 - SCREW BDE-860094-05.A86 860094-05	£1.50	£1.80
253 - SCREW BDE-860084-04.A11 860084-04	£1.50	£1.80
254 - INLET BDE-947322-01.A18 947322-01	£3.30	£3.96
256 - LABEL BDE-N032401.A3 N032401	£3.30	£3.96
257 - BUTTON START BDE-N031511.A6 N031511	£51.90	£62.28
258 - CONTACT BDE-N031510.A0 N031510	£45.14	£54.17
272 - LABEL BDE-869125-00.A11 869125-00	£3.80	£4.56
274 - TUBE EXTRACTION BDE-864095-00.A1 864095-00	£7.85	£9.42
275 - BRACKET BDE-N032220.A0 N032220	£9.41	£11.29
276 - WASHER BDE-860074-01.A3 860074-01	£1.50	£1.80
279 - SCREW BDE-943023-00.A7 943023-00	£1.50	£1.80
280 - BRACKET BDE-863707-01.A38 863707-01	£9.41	£11.29
281 - SCREW BDE-760998-00.A7 760998-00	£1.50	£1.80
282 - SCREW BDE-249412-20.A63 249412-20	£1.50	£1.80
283 - WASHER BDE-864053-00.A0 864053-00	£3.80	£4.56
284 - SCREW BDE-860301-16.A28 860301-16	£1.50	£1.80
287 - NUT BDE-860083-03.A206 860083-03	£1.50	£1.80
290 - SCREW.TEMP BDE-860085-09.A36 860085-09	£1.50	£1.80
292 - BUSH BDE-863705-00.A38 863705-00	£1.82	£2.19
293 - ROLLER BDE-864054-00.A74 864054-00	£1.82	£2.19
303 - SCREW.TEMP BDE-949891-01.A6 949891-01	£1.50	£1.80
304 - SPRING BDE-861221-00.A41 861221-00	£2.78	£3.34
306 - SPRING BDE-861239-00.A5 861239-00	£5.88	£7.06
307 - WASHER BDE-860076-04.A23 860076-04	£1.50	£1.80
309 - GUARD BDE-N032412.A4 N032412	£80.98	£97.18
310 - PROTECTOR BDE-863773-02.A0 863773-02	£14.57	£17.48
311 - GUARD BDE-862426-00.A14 862426-00	£16.03	£19.24
312 - LEVER BDE-862082-01.A20 862082-01	£10.85	£13.02
315 - BRACKET BDE-863205-02.A9 863205-02	£3.80	£4.56
316 - BRACKET BDE-863437-00.A24 863437-00	£19.90	£23.88
319 - SPANNER BOX BDE-869235-00.A14 869235-00	£17.48	£20.97
320 - WASHER BDE-860073-01.A263 860073-01	£1.50	£1.80
401 - CROSSBAR LONG BDE-860009-09.A23 860009-09	£25.70	£30.84
402 - LEG BDE-860008-00.A6 860008-00	£58.69	£70.43
403 - NUT BDE-860083-04.A279 860083-04	£1.50	£1.80
404 - WASHER M8 BDE-860073-03.A113 860073-03	£1.50	£1.80
405 - SCREW BDE-860085-04.A72 860085-04	£1.50	£1.80
846 - GUARD BDE-N045264.A0 N045264	£258.10	£309.72

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt DW722KN Type 1 Radial Arm Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Dewalt DW722KN Type 1 Radial Arm Saw Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Dewalt DW722KN Type 1 Radial Arm Saw Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
