Dewalt DW729KN Type 2 Radial Arm Saw Spare Parts

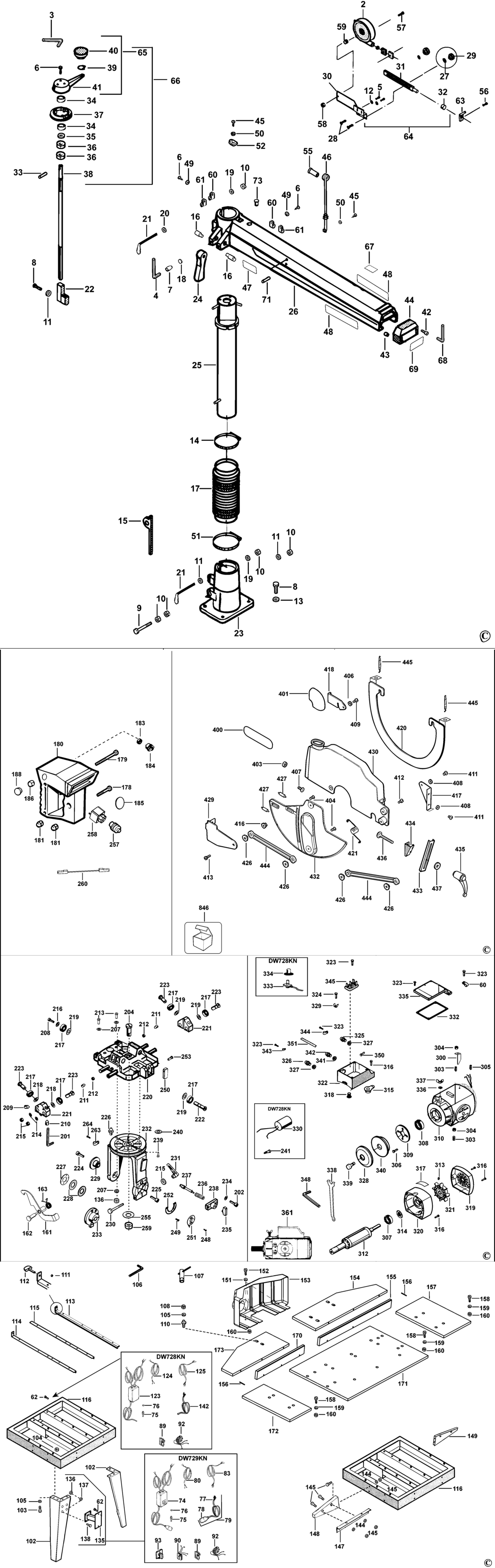

An exploded drawing and spare parts listing for the Dewalt DW729KN Type 2 Radial Arm Saw

	Ex VAT	Inc VAT
2 - AUTO SAFETY RETURN BDE-863929-00.A13 863929-00	£135.36	£162.43
3 - WRENCH 6 MM BDE-860098-04.A190 860098-04	£1.50	£1.80
4 - HEX KEY 8 MM BDE-860098-05.A1 860098-05	£3.30	£3.96
5 - SCREW BDE-860093-14.A70 860093-14	£1.50	£1.80
6 - SCREW BDE-860093-02.A24 860093-02	£1.50	£1.80
7 - SCREW BDE-860088-07.A5 860088-07	£1.50	£1.80
8 - SCREW BDE-949702-05.A14 949702-05	£1.50	£1.80
9 - BOLT BDE-949702-09.A0 949702-09	£1.50	£1.80
10 - NUT BDE-860083-06.A20 860083-06	£1.50	£1.80
11 - WASHER BDE-860073-05.A31 860073-05	£1.50	£1.80
12 - WASHER BDE-860074-03.A220 860074-03	£1.50	£1.80
13 - WASHER BDE-860074-05.A16 860074-05	£1.50	£1.80
14 - CLIP BDE-949700-06.A30 949700-06	£7.18	£8.62
15 - PROTECTOR BDE-33024.A3 33024	£2.26	£2.71
16 - SCREW BDE-863900-00.A13 863900-00	£9.41	£11.29
17 - PROTECTOR BDE-863901-00.A0 863901-00	£47.08	£56.49
18 - INSERT BDE-863909-00.A13 863909-00	£1.50	£1.80
19 - WASHER BDE-860073-05.A30 860073-05	£1.50	£1.80
20 - WASHER BDE-860074-05.A17 860074-05	£1.50	£1.80
21 - HANDLE BDE-862069-00.A10 862069-00	£24.39	£29.27
22 - NUT BDE-862047-00.A3 862047-00	£74.15	£88.98
23 - COLUMN BDE-862237-02.A0 862237-02	£131.46	£157.75
24 - LATCH BDE-862241-00.A9 862241-00	£34.00	£40.80
25 - COLUMN BDE-N045687.A2 N045687	£523.98	£628.77
26 - ARM BDE-N045686.A1 N045686	£1166.32	£1399.58
27 - WASHER BDE-720959-00.A320 720959-00	£1.50	£1.80
28 - SCREW BDE-860301-00.A152 860301-00	£1.50	£1.80
29 - KNOB BDE-946469-00.A105 946469-00	£1.50	£1.80
30 - BRACKET BDE-863724-00.A7 863724-00	£16.03	£19.24
31 - NUT BDE-860083-04.A489 860083-04	£1.50	£1.80
32 - STOP RUBBER BDE-860786-00.A75 860786-00	£1.50	£1.80
33 - PIN BDE-330036-08.A39 330036-08	£1.50	£1.80
34 - BEARING BDE-949755-03.A12 949755-03	£18.91	£22.69
35 - WASHER BDE-863928-00.A3 863928-00	£2.26	£2.71
36 - NUT BDE-863930-00.A3 863930-00	£2.78	£3.34
37 - CAP BDE-862015-00.A4 862015-00	£10.85	£13.02
38 - SCREW BDE-865647-00.A10 865647-00	£37.35	£44.82
39 - CIRCLIP BDE-860079-02.A16 860079-02	£1.50	£1.80
40 - KNOB BDE-860018-00.A5 860018-00	£17.48	£20.97
41 - HANDLE BDE-173251.A11 173251	£24.39	£29.27
42 - SCREW BDE-860093-21.A23 860093-21	£1.50	£1.80
43 - BUMPER BDE-860429-00.A63 860429-00	£1.50	£1.80
44 - END CAP BDE-861219-01.A0 861219-01	£4.69	£5.63
45 - SCREW BDE-860238-00.A26 860238-00	£1.50	£1.80
46 - SUPPORT BDE-863912-00.A0 863912-00	£7.18	£8.62
48 - WARNING LABEL BDE-861738-03.A0 861738-03	£9.41	£11.29
49 - WASHER BDE-860073-00.A89 860073-00	£1.50	£1.80
50 - WASHER BDE-860074-01.A87 860074-01	£1.50	£1.80
51 - CLAMP BDE-949700-05.A3 949700-05	£9.41	£11.29
52 - POINTER BDE-860237-00.A37 860237-00	£3.80	£4.56
55 - PROTECTOR BDE-863259-00.A31 863259-00	£3.80	£4.56
56 - SCREW.TEMP BDE-860093-05.A61 860093-05	£1.50	£1.80
57 - SCREW BDE-860085-20.A29 860085-20	£1.50	£1.80
58 - NUT BDE-860083-04.A491 860083-04	£1.50	£1.80
59 - SPACER BDE-867190-01.A2 867190-01	£3.30	£3.96
60 - CLAMP BDE-860843-01.A45 860843-01	£1.50	£1.80
61 - BRACKET BDE-860843-02.A19 860843-02	£1.50	£1.80
63 - LOCK BDE-33612.A4 33612	£7.18	£8.62
64 - STOP BDE-869356-09.A8 869356-09	£192.14	£230.57
65 - HANDLE SA BDE-864655-01.A11 864655-01	£25.70	£30.84
66 - ELEVATING SA BDE-864462-03.A13 864462-03	£135.36	£162.43
67 - WARNING LABEL BDE-N034454.A8 N034454	£5.88	£7.06
68 - WRENCH 6 MM BDE-860098-04.A191 860098-04	£1.50	£1.80
69 - LABEL BDE-862598-02.A0 862598-02	£1.50	£1.80
71 - PIN BDE-330036-08.A38 330036-08	£1.50	£1.80
73 - PLUG BDE-865856-00.A16 865856-00	£1.50	£1.80
75 - INLET BDE-947322-01.A13 947322-01	£3.30	£3.96
76 - NUT BDE-947321-01.A2 947321-01	£1.50	£1.80
102 - LEG BDE-863866-05.A4 863866-05	£45.14	£54.17
103 - SCREW BDE-942831-00.A9 942831-00	£1.50	£1.80
104 - NUT RH BDE-860083-05.A0 860083-05	£1.50	£1.80
105 - WASHER BDE-860074-04.A87 860074-04	£1.50	£1.80
106 - WRENCH 4 MM BDE-949882-01.A50 949882-01	£1.50	£1.80
107 - SPANNER BDE-949752-01.A1 949752-01	£3.80	£4.56
108 - NUT BDE-949726-07.A17 949726-07	£1.50	£1.80
110 - STUD BDE-863880-00.A13 863880-00	£17.48	£20.97
111 - SPACER BDE-863882-00.A0 863882-00	£1.50	£1.80
112 - KNOB BDE-866974-02.A4 866974-02	£1.50	£1.80
113 - BRACKET RH BDE-863682-03.A5 863682-03	£17.48	£20.97
114 - BRACKET LH BDE-863683-03.A1 863683-03	£17.48	£20.97
115 - BRACKET BDE-863684-03.A5 863684-03	£16.03	£19.24
116 - BASE BDE-N038256.A2 N038256	£437.13	£524.56
135 - BRACKET BDE-863426-04.A0 863426-04	£30.08	£36.10
136 - NUT BDE-860083-03.A0 860083-03	£1.50	£1.80
137 - WASHER BDE-860074-02.A117 860074-02	£1.50	£1.80
138 - SCREW.TEMP BDE-760992-00.A19 760992-00	£1.50	£1.80
144 - WASHER M8 BDE-860073-03.A294 860073-03	£1.50	£1.80
145 - BOLT BDE-860085-03.A29 860085-03	£1.50	£1.80
147 - BRACKET BDE-863867-03.A6 863867-03	£7.85	£9.42
148 - BRACKET LH BDE-861238-02.A11 861238-02	£16.03	£19.24
149 - BRACKET RH BDE-861237-02.A1 861237-02	£16.03	£19.24
151 - WASHER BDE-941602-00.A2 941602-00	£1.50	£1.80
152 - SCREW BDE-860085-04.A94 860085-04	£1.50	£1.80
153 - DUST COLLECTOR BDE-N034822.A2 N034822	£157.18	£188.61
154 - ELEMENT BDE-N034815.A2 N034815	£99.47	£119.36
155 - GUIDE BDE-N034816.A1 N034816	£45.14	£54.17
156 - PIN BDE-N032917.A6 N032917	£1.50	£1.80
157 - TABLE BDE-N034814.A1 N034814	£51.90	£62.28
158 - SCREW BDE-949703-09.A13 949703-09	£1.50	£1.80
159 - WASHER M8 BDE-860073-03.A295 860073-03	£1.50	£1.80
160 - NUT BDE-860083-04.A492 860083-04	£1.50	£1.80
161 - LEVER BDE-N034823.A1 N034823	£24.39	£29.27
162 - BOLT BDE-N034670.A6 N034670	£7.18	£8.62
163 - SPRING BDE-N032405.A6 N032405	£2.78	£3.34
170 - GUIDE BDE-N037575.A0 N037575	£37.35	£44.82
171 - TABLE CENTRE BDE-N034817.A2 N034817	£174.63	£209.56
172 - TABLE BDE-N034811.A2 N034811	£55.30	£66.36
173 - ELEMENT BDE-N037576.A3 N037576	£78.12	£93.74
178 - SCREW BDE-949701-12.A63 949701-12	£1.50	£1.80
179 - SCREW BDE-860089-39.A15 860089-39	£1.50	£1.80
180 - HANDLE BDE-N031178.A4 N031178	£14.57	£17.48
181 - NUT BDE-860083-02.A310 860083-02	£1.50	£1.80
183 - NUT BDE-944590-00.A50 944590-00	£1.50	£1.80
184 - GLAND BDE-949747-07.A2 949747-07	£1.50	£1.80
185 - LABEL BDE-N032401.A2 N032401	£3.30	£3.96
186 - CAP BDE-949747-18.A28 949747-18	£1.50	£1.80
188 - CAP BDE-949747-18.A29 949747-18	£1.50	£1.80
201 - KEY BDE-938539-00.A2 938539-00	£1.50	£1.80
202 - SCREW BDE-860093-02.A23 860093-02	£1.50	£1.80
204 - PIN BDE-N045688.A1 N045688	£18.91	£22.69
207 - WASHER BDE-860075-00.A51 860075-00	£1.50	£1.80
208 - SCREW BDE-760219-00.A88 760219-00	£1.50	£1.80
209 - SCREW BDE-860088-27.A19 860088-27	£1.50	£1.80
210 - SCREW BDE-949853-03.A3 949853-03	£1.82	£2.19
211 - PIN BDE-860088-10.A38 860088-10	£1.50	£1.80
212 - NUT BDE-860083-03.A1 860083-03	£1.50	£1.80
213 - BOLT BDE-941959-00.A13 941959-00	£1.50	£1.80
214 - WASHER BDE-860074-04.A86 860074-04	£1.50	£1.80
215 - NUT RH BDE-860083-05.A1 860083-05	£1.50	£1.80
216 - WASHER BDE-860073-14.A36 860073-14	£1.50	£1.80
217 - BEARING BDE-861721-07.A4 861721-07	£7.18	£8.62
218 - WASHER BDE-863971-00.A1 863971-00	£1.50	£1.80
219 - WASHER BDE-860226-02.A48 860226-02	£1.50	£1.80
220 - YOKE BDE-N402330.A0 N402330	£301.55	£361.86
221 - BRACKET BDE-862259-90.A3 862259-90	£38.80	£46.56
222 - SHAFT BDE-862380-00.A10 862380-00	£12.17	£14.60
223 - SHAFT BDE-863969-00.A12 863969-00	£5.88	£7.06
224 - SCREW BDE-949886-06.A13 949886-06	£1.82	£2.19
225 - SCREW BDE-949886-07.A0 949886-07	£2.78	£3.34
226 - NIPPLE BDE-860650-01.A4 860650-01	£1.50	£1.80
227 - WASHER BDE-863989-00.A3 863989-00	£1.50	£1.80
228 - WASHER BDE-863991-00.A10 863991-00	£1.50	£1.80
229 - TRUNNION BDE-862261-90.A3 862261-90	£17.48	£20.97
230 - SCREW BDE-949702-04.A0 949702-04	£1.50	£1.80
231 - LOCK HANDLE BDE-942518-00.A5 942518-00	£7.85	£9.42
232 - ROLLER HEAD SA BDE-N402329.A1 N402329	£258.10	£309.72
233 - TRUNNION BDE-862260-90.A9 862260-90	£44.14	£52.97
234 - WASHER M8 BDE-860073-03.A296 860073-03	£1.50	£1.80
235 - KNOB BDE-946469-00.A106 946469-00	£1.50	£1.80
236 - SPRING BDE-860112-11.A87 860112-11	£1.50	£1.80
237 - PIN BDE-863977-00.A71 863977-00	£14.57	£17.48
238 - SUPPORT BDE-860835-01.A2 860835-01	£24.39	£29.27
239 - SCREW.SPECIAL BDE-868883-00.A3 868883-00	£1.50	£1.80
240 - WASHER BDE-860074-03.A217 860074-03	£1.50	£1.80
248 - SCREW BDE-860238-04.A52 860238-04	£1.50	£1.80
249 - SCREW BDE-860205-06.A58 860205-06	£1.50	£1.80
250 - CLAMP BDE-N037691.A3 N037691	£10.85	£13.02
251 - POINTER BDE-862721-01.A60 862721-01	£5.88	£7.06
252 - POINTER BDE-860829-00.A74 860829-00	£5.88	£7.06
253 - SCREW BDE-98104-16.A5 98104-16	£1.50	£1.80
255 - WASHER BDE-N039458.A1 N039458	£1.82	£2.19
257 - BUTTON START BDE-N031511.A4 N031511	£51.90	£62.28
258 - CONTACT BDE-N395840.A0 N395840	£51.90	£62.28
259 - NUT BDE-N034810.A1 N034810	£5.88	£7.06
260 - LEAD BDE-N402336.A3 N402336	£1.50	£1.80
263 - CLAMP BDE-860843-01.A17 860843-01	£1.50	£1.80
264 - SCREW BDE-860094-03.A224 860094-03	£1.50	£1.80
300 - STOP BDE-N034825.A2 N034825	£7.18	£8.62
303 - PIN BDE-860088-10.A31 860088-10	£1.50	£1.80
304 - NUT BDE-860083-03.A340 860083-03	£1.50	£1.80
305 - SCREW BDE-941880-00.A72 941880-00	£1.50	£1.80
306 - SCREW BDE-949889-02.A16 949889-02	£1.50	£1.80
307 - BEARING BDE-868768-07.A45 868768-07	£7.85	£9.42
308 - BEARING BDE-868768-11.A0 868768-11	£34.00	£40.80
309 - FLANGE BDE-862003-00.A5 862003-00	£7.18	£8.62
313 - SCREW BDE-860088-27.A39 860088-27	£1.50	£1.80
314 - RING BDE-860080-02.A41 860080-02	£1.50	£1.80
315 - GASKET BDE-863410-01.A9 863410-01	£1.50	£1.80
316 - SCREW BDE-949870-04.A5 949870-04	£1.50	£1.80
317 - LABEL BDE-863503-00.A3 863503-00	£2.26	£2.71
318 - GROMMET BDE-944653-00.A12 944653-00	£3.30	£3.96
319 - END CAP BDE-862124-01.A10 862124-01	£17.48	£20.97
320 - COVER BDE-862165-00.A9 862165-00	£24.39	£29.27
321 - FAN BDE-862126-00.A0 862126-00	£34.00	£40.80
322 - HOUSING BDE-862217-92.A13 862217-92	£16.03	£19.24
323 - SCREW BDE-860094-03.A223 860094-03	£1.50	£1.80
324 - SCREW BDE-860094-01.A66 860094-01	£1.50	£1.80
325 - CAP BDE-949747-18.A19 949747-18	£1.50	£1.80
326 - CAP BDE-949747-18.A20 949747-18	£1.50	£1.80
327 - NUT BDE-944590-00.A81 944590-00	£1.50	£1.80
328 - OUTER FLANGE >182011 BDE-N071379.A1 N071379	£45.14	£54.17
328 - FLANGE SET SA BDE-N413359.A3 N413359	£84.42	£101.30
329 - WASHER SPRING BDE-944650-00.A18 944650-00	£1.50	£1.80
332 - GASKET BDE-863716-00.A8 863716-00	£3.80	£4.56
335 - COVER BDE-862219-00.A0 862219-00	£24.39	£29.27
336 - WASHER BDE-860074-04.A0 860074-04	£1.50	£1.80
337 - NUT BDE-949758-02.A9 949758-02	£1.50	£1.80
338 - WRENCH PIN BDE-938733.A46 938733	£7.18	£8.62
339 - BOLT BDE-N034818.A3 N034818	£51.90	£62.28
340 - FLANGE SET SA BDE-N413359.A4 N413359	£84.42	£101.30
340 - INNER FLANGE BDE-N071378.A1 N071378	£41.24	£49.49
341 - NUT BDE-944590-00.A80 944590-00	£1.50	£1.80
342 - RETAINER BDE-944654-00.A48 944654-00	£1.50	£1.80
343 - STRAP BDE-123106-00.A0 123106-00	£1.50	£1.80
344 - STRAP BDE-860843-03.A5 860843-03	£1.50	£1.80
345 - CONNECTOR BDE-946085-00.A38 946085-00	£1.82	£2.19
348 - HEX. KEY 10 MM BDE-N039459.A1 N039459	£19.90	£23.88
350 - PROTECTOR BDE-863259-00.A21 863259-00	£3.80	£4.56
351 - CABLE BDE-949863-57.A5 949863-57	£14.57	£17.48
400 - LABEL BDE-869125-00.A6 869125-00	£3.80	£4.56
401 - TUBE EXTRACTION BDE-864095-00.A57 864095-00	£7.85	£9.42
403 - NUT BDE-860083-04.A128 860083-04	£1.50	£1.80
404 - SCREW BDE-249412-20.A94 249412-20	£1.50	£1.80
406 - WASHER BDE-860074-01.A172 860074-01	£1.50	£1.80
407 - WASHER BDE-860074-02.A0 860074-02	£1.50	£1.80
408 - WASHER BDE-860074-03.A459 860074-03	£1.50	£1.80
409 - SCREW BDE-943023-00.A24 943023-00	£1.50	£1.80
411 - SCREW BDE-760273-00.A19 760273-00	£1.50	£1.80
412 - SCREW BDE-760998-00.A96 760998-00	£1.50	£1.80
413 - SCREW BDE-860094-12.A15 860094-12	£1.50	£1.80
416 - BUSH BDE-863705-00.A17 863705-00	£1.82	£2.19
417 - BRACKET BDE-863707-01.A19 863707-01	£9.41	£11.29
418 - SQUARE BDE-863708-00.A52 863708-00	£10.85	£13.02
420 - PROTECTOR BDE-863711-02.A3 863711-02	£16.03	£19.24
421 - SPRING BDE-861222-00.A3 861222-00	£2.78	£3.34
426 - WASHER BDE-864053-00.A54 864053-00	£3.80	£4.56
427 - ROLLER BDE-864054-00.A20 864054-00	£1.82	£2.19
429 - SQUARE BDE-863793-01.A10 863793-01	£3.80	£4.56
430 - GUARD BDE-N036977.A0 N036977	£65.52	£78.62
432 - GUARD LOWER BDE-N408881.A0 N408881	£80.98	£97.18
433 - GUARD BDE-863621-00.A4 863621-00	£5.88	£7.06
434 - BRACKET BDE-863620-00.A9 863620-00	£5.88	£7.06
435 - HANDLE BDE-861840-00.A5 861840-00	£7.85	£9.42
436 - SCREW BDE-860301-16.A49 860301-16	£1.50	£1.80
437 - WASHER BDE-941602-00.A82 941602-00	£1.50	£1.80
444 - LEVER BDE-862089-01.A3 862089-01	£17.48	£20.97
445 - SPRING BDE-861221-00.A24 861221-00	£2.78	£3.34
846 - GUARD BDE-N396077.A1 N396077	£523.98	£628.77

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt DW729KN Type 2 Radial Arm Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Dewalt DW729KN Type 2 Radial Arm Saw Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Dewalt DW729KN Type 2 Radial Arm Saw Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
