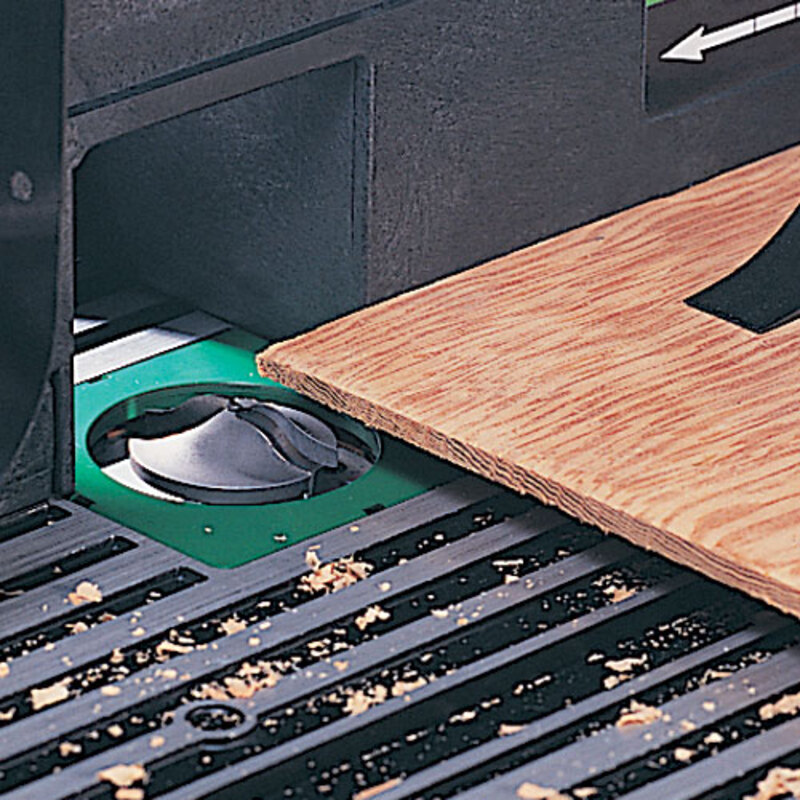

Machining of traditional panels and frame doors formerly done on spindle moulders can now be performed with heavy duty routers mounted in fixed positions either overhead or inverted. These Raised Panel cutters run best at lower speeds and match our range of profile scribers. All are suitable for use on natural timber and MDF.
8mm hank tools are for use with medium and heavy duty routers only.

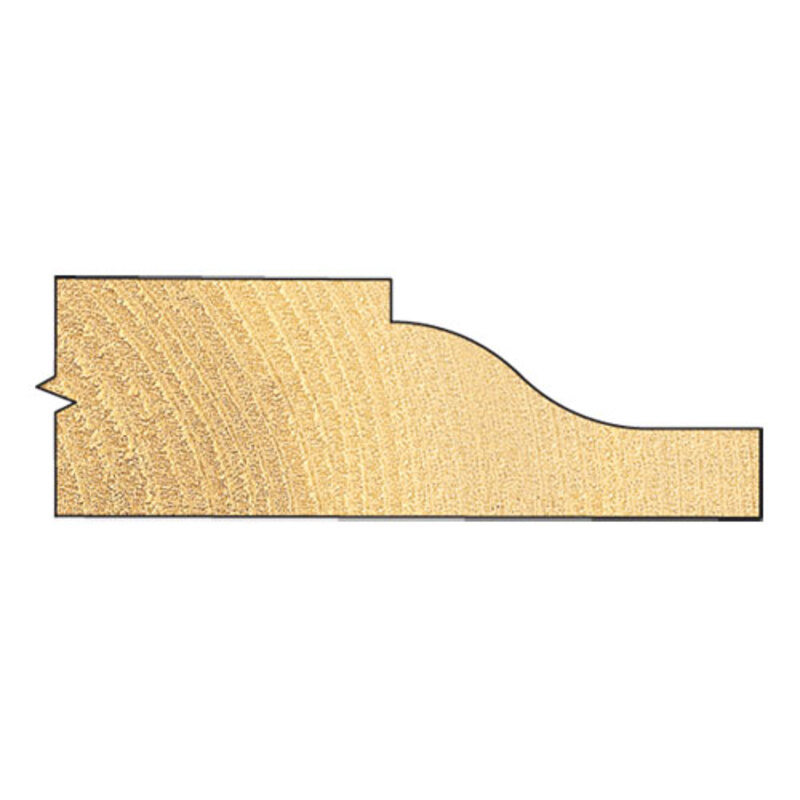

Suitable panel mould for use with Refs. PSC/1 PSC/10 PSC/2 & PSC/20.

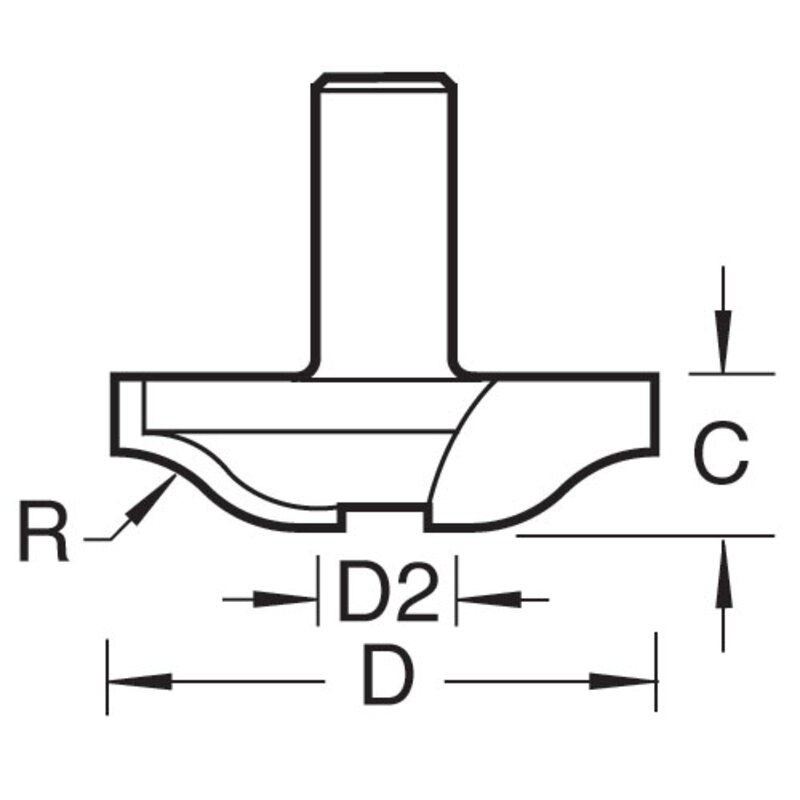

Specification:
D=50 mm
D2=16 mm
C=14 mm
R=12 mm
OL=52 mm
Shank Diameter=1/2 inch
For stationary machines at max. recommended speed 18 000 RPM
