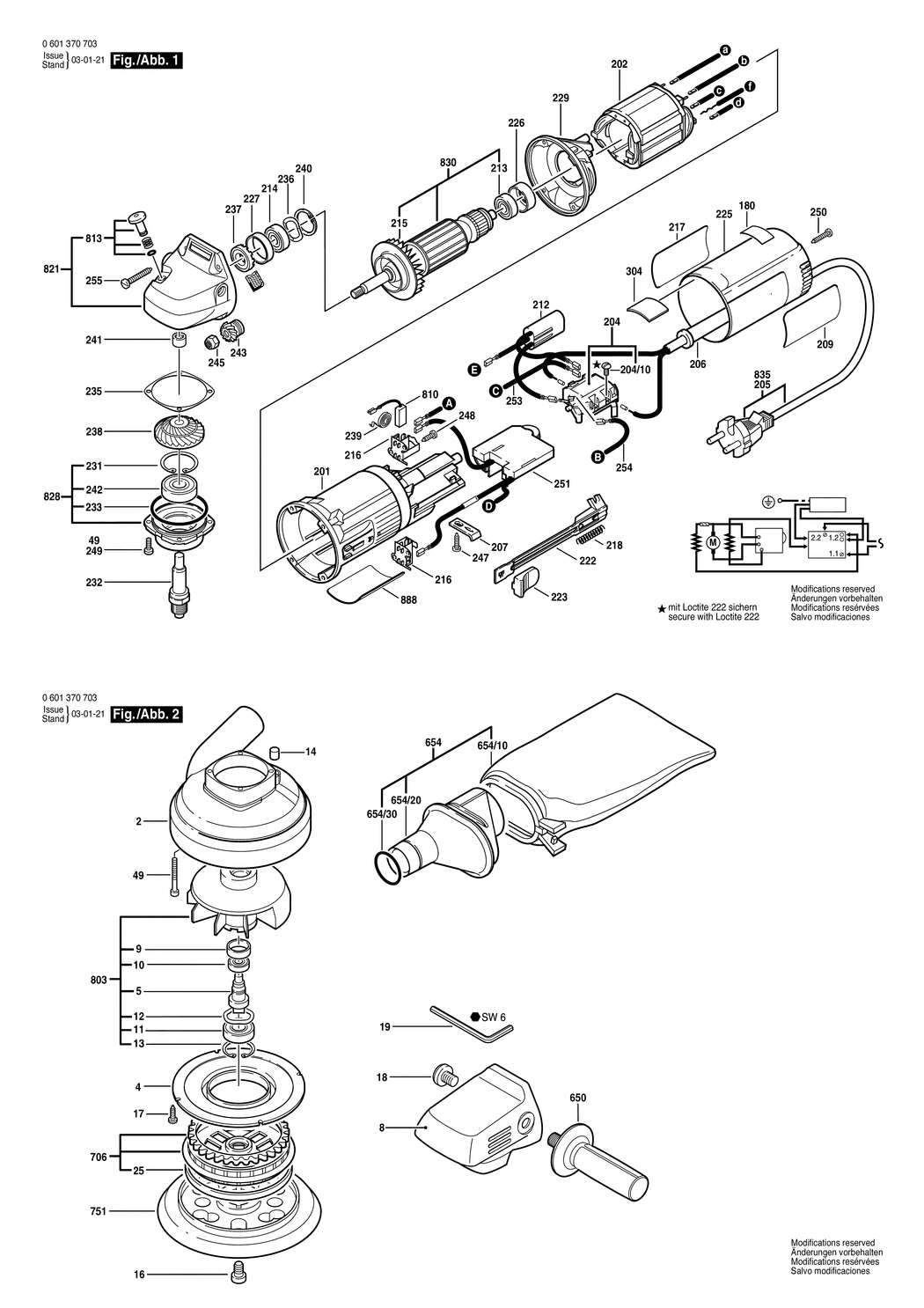

2 - FAN HOUSING
BSD-3605500076.A7
3605500076
|
£41.62
|
£49.95
|
|
4 - WASHER
BSD-3608601004.A12
3608601004
|
-
|
|
|
5 - ECCENTRIC SHAFT
BSD-3606110006.A2
3606110006
|
£57.02
|
£68.42
|
|
8 - HANDLE COVER
BSD-3605132047.A2
3605132047
|
£9.49
|
£11.39
|
|
9 - TOLERANCE RING
BSD-3600290033.A2
3600290033
|
£3.34
|
£4.01
|
|
10 - BALL BEARING 7x19x6
BSD-2600905032.A1442
2600905032
|
£5.30
|
£6.36
|
|
11 - GROOVE BALL BEARING 12x28x8
BSD-1600905031.A79
1600905031
|
£6.52
|
£7.83
|
|
12 - RETAINING RING 12 DIN 9045
BSD-2916600007.A74
2916600007
|
£2.80
|
£3.36
|
|
13 - SPRING RETAINING RING DIN 472-28x1.2 MM
BSD-2916660011.A181
2916660011
|
£1.75
|
£2.10
|
|
14 - PLUG 8.0x9 MM
BSD-3603100019.A4
3603100019
|
-
|
|
|
16 - HEX SOCKET HEAD CAP SCREW
BSD-3603414017.A7
3603414017
|
£2.16
|
£2.59
|
|
17 - TAPPING SCREW DIN 7971-BZ3.5x13
BSD-2910211011.A522
2910211011
|
£1.75
|
£2.10
|
|
18 - PAN HEAD SCREW M 10x12 MM
BSD-3603490015.A22
3603490015
|
£4.26
|
£5.11
|
|
19 - OFFSET SCREWDRIVER DIN 911;SW6
BSD-1907950007.A267
1907950007
|
£5.30
|
£6.36
|
|
25 - RING dia 88x5.7 MM
BSD-3600290034.A6
3600290034
|
£5.30
|
£6.36
|
|
49 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x35-8.8
BSD-2910141136.A171
2910141136
|
£2.80
|
£3.36
|
|
201 - RANDOM ORBITAL SANDER
BSD-0601370703.A4
0601370703
|
-
|
|
|
202 - FIELD 230-240V
BSD-1604220224.A9
1604220224
|
-
|
|
|
204 - ON-OFF SWITCH
BSD-1607200086.A92
1607200086
|
£11.30
|
£13.56
|
|
204/10 - PAN HEAD SCREW DIN 85-AM3x6-CUZN
BSD-2910110048.A123
2910110048
|
£1.75
|
£2.10
|
|
205 - POWER SUPPLY CORD I 2.65m 2 x 1.0mm H05VV-F
BSD-1604460152.A9
1604460152
|
-
|
|
|
206 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A533
2600703013
|
£2.61
|
£3.13
|
|
207 - FASTENING CLAMP
BSD-1601302017.A172
1601302017
|
£1.75
|
£2.10
|
|
209 - MANUFACTURER'S NAMEPLATE
BSD-1601118309.A2
1601118309
|
£3.72
|
£4.47
|
|
212 - SUPPRESSION FILTER
BSD-2607329124.A44
2607329124
|
£10.10
|
£12.12
|
|
213 - BALL BEARING 7x19x6
BSD-2600905032.A1443
2600905032
|
£5.30
|
£6.36
|
|
214 - GROOVE BALL BEARING 8x22x7
BSD-1600905011.A589
1600905011
|
£5.58
|
£6.70
|
|
215 - FAN
BSD-1606610121.A2
1606610121
|
£1.75
|
£2.10
|
|
216 - BRUSH HOLDER
BSD-1600A003G4.A157
1600A003G4
|
£3.72
|
£4.47
|
|
217 - MANUFACTURER'S NAMEPLATE
BSD-1601118310.A2
1601118310
|
£3.72
|
£4.47
|
|
218 - COMPRESSION SPRING
BSD-1604611026.A132
1604611026
|
£1.75
|
£2.10
|
|
222 - ADJUSTING SLIDE
BSD-1602319002.A231
1602319002
|
£2.61
|
£3.13
|
|
223 - SWITCH HANDLE
BSD-1602026057.A210
1602026057
|
£1.97
|
£2.36
|
|
225 - HOUSING COVER
BSD-1600508011.A34
1600508011
|
£8.67
|
£10.41
|
|
226 - RUBBER BUSHING
BSD-1600502020.A423
1600502020
|
£2.61
|
£3.13
|
|
227 - RUBBER RING
BSD-1600206025.A221
1600206025
|
£2.16
|
£2.59
|
|
229 - AIR-DEFLECTOR RING
BSD-1601328005.A10
1601328005
|
£2.61
|
£3.13
|
|
231 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A657
2916660013
|
£2.16
|
£2.59
|
|
232 - GRINDING SPINDLE M14. SW17
BSD-3603523014.A1
3603523014
|
£27.31
|
£32.77
|
|
233 - O-RING 46.0x1.1 MM
BSD-3600210124.A103
3600210124
|
£2.80
|
£3.36
|
|
235 - SHIM 0.1 MM
BSD-1600136012.A239
1600136012
|
£1.75
|
£2.10
|
|
235 - SHIM 0.2 MM
BSD-1600136010.A245
1600136010
|
£2.61
|
£3.13
|
|
235 - SHIM 0.3 MM
BSD-1600136011.A84
1600136011
|
£2.16
|
£2.59
|
|
236 - SPRING WASHER
BSD-1600150011.A11
1600150011
|
£1.75
|
£2.10
|
|
237 - ROTARY SHAFT LIP SEAL
BSD-1600290016.A491
1600290016
|
£2.61
|
£3.13
|
|
238 - CROWN GEAR Z=36
BSD-1606333601.A57
1606333601
|
£8.49
|
£10.19
|
|
239 - SPIRAL SPRING
BSD-1604652013.A244
1604652013
|
£1.75
|
£2.10
|
|
240 - SPRING RETAINING RING DIN 472-25x1.2MM
BSD-2916660009.A278
2916660009
|
£2.16
|
£2.59
|
|
241 - NEEDLE BEARING dia8xdia12x8 MM
BSD-1600910018.A44
1600910018
|
£5.30
|
£6.36
|
|
242 - GROOVE BALL BEARING
BSD-3600905069.A79
3600905069
|
£16.41
|
£19.69
|
|
243 - BEVEL GEAR Z=11
BSD-1606333242.A57
1606333242
|
£48.38
|
£58.06
|
|
245 - HEX NUT M7. SW10
BSD-1603300016.A678
1603300016
|
£1.75
|
£2.10
|
|
247 - TAPPING SCREW DIN 7971-ST3.9x13-F
BSD-2910211018.A537
2910211018
|
£1.75
|
£2.10
|
|
248 - LENS HEAD SCREW 3x10 ST
BSD-1613435034.A485
1613435034
|
£1.75
|
£2.10
|
|
249 - THREAD-FORMING TAP. SCREW
BSD-1603435026.A309
1603435026
|
£2.16
|
£2.59
|
|
250 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A114
2910211021
|
£1.75
|
£2.10
|
|
251 - SPEED GOVERNOR 220-240V
BSD-1607233033.A1
1607233033
|
-
|
|
|
253 - CONNECTING CABLE L=95 MM
BSD-1604448005.A21
1604448005
|
£2.80
|
£3.36
|
|
254 - CONNECTING CABLE L=40 MM
BSD-1604448006.A95
1604448006
|
£2.61
|
£3.13
|
|
255 - TORX OVAL-HEAD SCREW
BSD-2914201508.A58
2914201508
|
£1.75
|
£2.10
|
|
650 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A1
160202509T
|
£3.72
|
£4.47
|
|
654/10 - DUST BAG
BSD-2605411046.A0
2605411046
|
£16.41
|
£19.69
|
|
654/20 - FITTING
BSD-2605702009.A15
2605702009
|
£2.80
|
£3.36
|
|
654/30 - O-RING 20.0x1.5 MM
BSD-1610210075.A72
1610210075
|
£2.61
|
£3.13
|
|
706 - DRIVER DISC
BSD-3607031211.A2
3607031211
|
-
|
|
|
751 - BACKING PAD
BSD-2608601026.A6
2608601026
|
£33.74
|
£40.49
|
|
803 - ASSEMBLY OF SERVICE PARTS
BSD-3607031209.A7
3607031209
|
£134.16
|
£160.99
|
|
810 - CARBON-BRUSH SET
BSD-1607014116.A8
1607014116
|
£11.30
|
£13.56
|
|
813 - PUSH-BUTTON
BSD-1607000253.A295
1607000253
|
£2.49
|
£2.99
|
|
821 - GEAR HOUSING
BSD-1605806480.A61
1605806480
|
£48.38
|
£58.06
|
|
828 - ASSEMBLY OF SERVICE PARTS
BSD-1607000938.A3
1607000938
|
-
|
|
|
830 - ARMATURE WITH FAN 230-240V
BSD-1604010259.A4
1604010259
|
-
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A3683
160111A3H3
|
£2.61
|
£3.13
|
|
