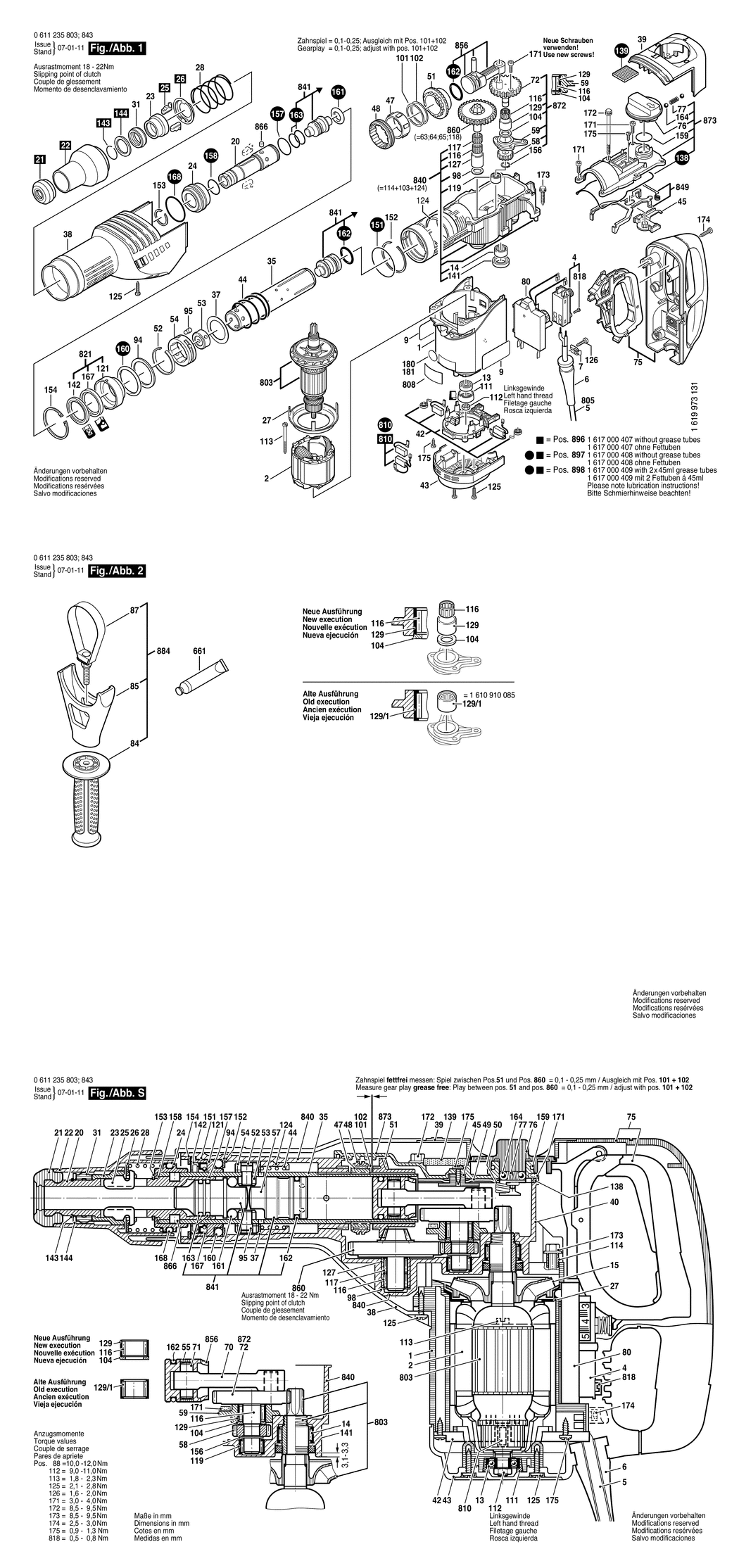

An exploded drawing and listing for the Bosch GBH 7-45 DE / 0611235841 / GB 110 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1615108078.A0 1615108078 -
2 - FIELD 110-120V BSD-1614220141.A2 1614220141 £33.74 £40.49
4 - SWITCH BSD-1617200048.A24 1617200048 £18.96 £22.75
5 - POWER SUPPLY CORD GB 110V 4.15m 2 x 1.5mm H07 RN-F BSD-1604460201.A50 1604460201 £37.27 £44.72
6 - GROMMET dia9.7-dia12x89 MM BSD-1610703053.A69 1610703053 £2.61 £3.13
7 - FASTENING CLAMP BSD-1601302018.A698 1601302018 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1611110F01.A3 1611110F01 £5.30 £6.36
13 - GROOVE BALL BEARING 8x24x8 BSD-1610900026.A43 1610900026 £12.04 £14.45
14 - NEEDLE-ROLLER BEARING BSD-1610910089.A52 1610910089 -
20 - TOOLHOLDER BSD-1618597072.A13 1618597072 £103.14 £123.77
21 - PROTECTIVE CAP BSD-1610508035.A3 1610508035 £5.30 £6.36
22 - PROTECTION SLEEVE BSD-1610591021.A3 1610591021 -
23 - STOP SLEEVE BSD-1610520001.A38 1610520001 £12.04 £14.45
24 - HEADED BUSH BSD-1610500021.A2 1610500021 £10.10 £12.12
25 - STOPPING DEVICE BSD-1612300027.A73 1612300027 £11.30 £13.56
26 - INDEXING DISK BSD-1610290025.A23 1610290025 £6.52 £7.83
27 - AIR-DEFLECTOR RING BSD-1610591023.A3 1610591023 £1.75 £2.10
28 - COMPRESSION SPRING BSD-1614621004.A15 1614621004 £2.61 £3.13
31 - DAMPING RING BSD-1610290049.A11 1610290049 £2.80 £3.36
35 - HAMMER PIPE BSD-1615806156.A12 1615806156 £88.07 £105.68
37 - SUPPORT DISC BSD-1610102047.A4 1610102047 £2.80 £3.36
38 - COVERING HOOD BSD-1615190079.A1 1615190079 £14.91 £17.89
39 - COVERING HOOD BSD-1615190108.A8 1615190108 -
42 - BRUSH HOLDER BSD-1614336026.A0 1614336026 £33.74 £40.49
43 - FAN COVER BSD-1615500305.A11 1615500305 £11.30 £13.56
44 - COMPRESSION SPRING BSD-1614621005.A4 1614621005 £2.61 £3.13
45 - SEALING PLATE BSD-1610591022.A8 1610591022 -
47 - SPACER RING BSD-1619990149.A0 1619990149 £33.74 £40.49
48 - CLUTCH SLEEVE BSD-1619990151.A20 1619990151 £27.23 £32.68
51 - CROWN GEAR Z=45 BSD-1616333035.A1 1616333035 £51.22 £61.47
52 - RETAINING RING BSD-1614601056.A8 1614601056 £1.66 £1.99
53 - GUIDE BUSHING BSD-1610231000.A4 1610231000 £11.30 £13.56
54 - SPACER TUBE BSD-1610190033.A11 1610190033 £6.52 £7.83
58 - CYLINDRICAL GEAR Z=17 BSD-1616317056.A8 1616317056 £11.30 £13.56
59 - BEARING PEDESTAL BSD-1615805067.A8 1615805067 £8.49 £10.19
72 - ECCENTRIC COG WHEEL BSD-1616317067.A12 1616317067 £68.42 £82.10
75 - HANDLE BSD-1615132102.A3 1615132102 £41.62 £49.95
76 - SHIFT-LEVER KNOB BSD-1612026083.A11 1612026083 £10.82 £12.99
77 - COMPRESSION SPRING BSD-1614610010.A12 1614610010 £1.75 £2.10
80 - SPEED GOVERNOR 100-120V BSD-1617233043.A2 1617233043 £63.50 £76.20
84 - AUXILIARY HANDLE BSD-160202507H.A154 160202507H £11.30 £13.56
85 - SUPPORT CLAMP BSD-1618040071.A7 1618040071 £5.58 £6.70
87 - CLAMPING BAND dia77 MM. M8 BSD-1617000834.A3 1617000834 £16.41 £19.69
94 - SUPPORT DISC BSD-1610290052.A9 1610290052 £2.61 £3.13
95 - DRIVING PIN BSD-1613120018.A9 1613120018 £2.61 £3.13
98 - SHIM RING 1.0 MM BSD-1610101015.A7 1610101015 £1.75 £2.10
101 - SHIM 0.45 MM BSD-1610102049.A4 1610102049 £2.61 £3.13
102 - SHIM 0.3 MM BSD-1610102048.A16 1610102048 £2.61 £3.13
104 - STOP DISC BSD-1610190027.A3 1610190027 £5.58 £6.70
111 - BUSHING BSD-1610290046.A27 1610290046 £2.80 £3.36
112 - HEX NUT BSD-1613300007.A21 1613300007 £1.75 £2.10
113 - TAPPING SCREW B 4.8x68 MM BSD-1613412001.A29 1613412001 £1.75 £2.10
116 - NEEDLE-ROLLER ASSEMBLY BSD-1610913029.A87 1610913029 £4.26 £5.11
117 - NEEDLE-ROLLER ASSEMBLY dia10 MM BSD-1610913011.A32 1610913011 £6.52 £7.83
119 - NEEDLE-ROLLER BEARING BSD-1610910081.A24 1610910081 £14.91 £17.89
121 - BUSHING BSD-1610328016.A9 1610328016 £3.72 £4.47
125 - TORX OVAL-HEAD SCREW 4.8x19 BSD-1613435011.A3 1613435011 £1.75 £2.10
126 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A560 2910211019 £1.75 £2.10
127 - BUSHING BSD-1610300060.A10 1610300060 £7.36 £8.83
129 - BUSHING BSD-1610300067.A10 1610300067 £12.04 £14.45
129/1 - NEEDLE-ROLLER BEARING BSD-1610910085.A20 1610910085 £14.91 £17.89
138 - SEALING FRAME BSD-1611015047.A18 1611015047 £6.52 £7.83
139 - SEALING PLATE BSD-1612380010.A3 1612380010 -
141 - ROTARY SHAFT LIP SEAL BSD-1610290028.A51 1610290028 £3.72 £4.47
142 - ROTARY SHAFT LIP SEAL BSD-1610290050.A9 1610290050 £5.30 £6.36
143 - RETAINING RING DIN 7993-28x2 BSD-1614601021.A27 1614601021 £7.36 £8.83
144 - SUPPORTING DISC BSD-1610103021.A11 1610103021 £2.80 £3.36
151 - O-RING 60.0x2.0 MM BSD-1610210148.A9 1610210148 £2.61 £3.13
152 - RETAINING RING BSD-1614601029.A9 1614601029 £1.75 £2.10
153 - RETAINING RING BSD-1614601028.A11 1614601028 £1.75 £2.10
154 - SPRING RETAINING RING BSD-1610119011.A9 1610119011 £2.80 £3.36
156 - SPRING RETAINING RING DIN 471-12x1-FSt BSD-2916650003.A96 2916650003 £1.75 £2.10
157 - O-RING 31.0x1.5 MM BSD-1610210142.A18 1610210142 £2.61 £3.13
158 - O-RING 30.0x2.5 MM BSD-1610210139.A11 1610210139 £2.61 £3.13
159 - O-RING 27.0x2.5 MM BSD-1610210141.A2 1610210141 £1.75 £2.10
160 - O-RING 46.0x7.0 MM BSD-1610210140.A18 1610210140 £2.16 £2.59
161 - O-RING 18.0x8.0 MM BSD-1610210145.A18 1610210145 £7.36 £8.83
162 - O-RING 26.0x4.0 MM BSD-1610210109.A20 1610210109 £4.26 £5.11
163 - O-RING 22.0x3.0 MM BSD-1610210144.A2 1610210144 £5.30 £6.36
164 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A522 1903230013 £2.16 £2.59
167 - ROTARY SHAFT LIP SEAL BSD-1610290051.A10 1610290051 £4.26 £5.11
168 - O-RING 46.0x5.0 MM BSD-1610210149.A11 1610210149 £2.61 £3.13
171 - MICROENCAPSULATED SCREW BSD-1613414021.A20 1613414021 £2.16 £2.59
172 - SCREW AND WASHER ASSEMBLY BSD-1613435008.A10 1613435008 -
173 - SCREW AND WASHER ASSEMBLY 6.3x32 BSD-1613433001.A15 1613433001 £1.75 £2.10
174 - TORX OVAL-HEAD SCREW 5.5x25 BSD-1613435010.A87 1613435010 £2.16 £2.59
175 - TAPPING SCREW DIN7981-ST3.9x13-C-Z BSD-2912401018.A54 2912401018 £1.75 £2.10
661 - GREASE TUBE 30 ML BSD-1615430010.A30 1615430010 £6.52 £7.83
803 - ARMATURE 110-120V BSD-1614010218.A3 1614010218 £195.26 £234.31
808 - NAMEPLATE BSD-160111A3H3.A3241 160111A3H3 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-1617014135.A6 1617014135 £18.96 £22.75
818 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x12-5.8 BSD-2910011088.A44 2910011088 £1.75 £2.10
821 - BUSHING BSD-1617000824.A5 1617000824 £27.23 £32.68
840 - IMPACT MECHANISM HOUSING BSD-1617000825.A7 1617000825 -
841 - STRIKER PIN BSD-1617000474.A8 1617000474 £37.27 £44.72
849 - CONTROL FORK BSD-1617000826.A5 1617000826 £48.38 £58.06
856 - HAMMER PISTON BSD-1617000873.A19 1617000873 £33.74 £40.49
860 - SPUR WHEEL CLUTCH Z=13/47 BSD-1617000828.A15 1617000828 £179.37 £215.24
866 - ROLLER SET BSD-1617000406.A8 1617000406 £5.30 £6.36
872 - ECCENTRIC COG WHEEL BSD-1617000874.A1 1617000874 £102.57 £123.08
873 - HOUSING COVER BSD-1617000830.A5 1617000830 -
884 - AUXILIARY HANDLE dia77 MM. M8 BSD-1612025051.A9 1612025051 £40.80 £48.96
896 - WEAR AND TEAR PART SET BSD-1617000407.A5 1617000407 -
897 - WEAR AND TEAR PART SET BSD-1617000408.A7 1617000408 -
898 - WEAR AND TEAR PART SET BSD-1617000409.A5 1617000409 -
