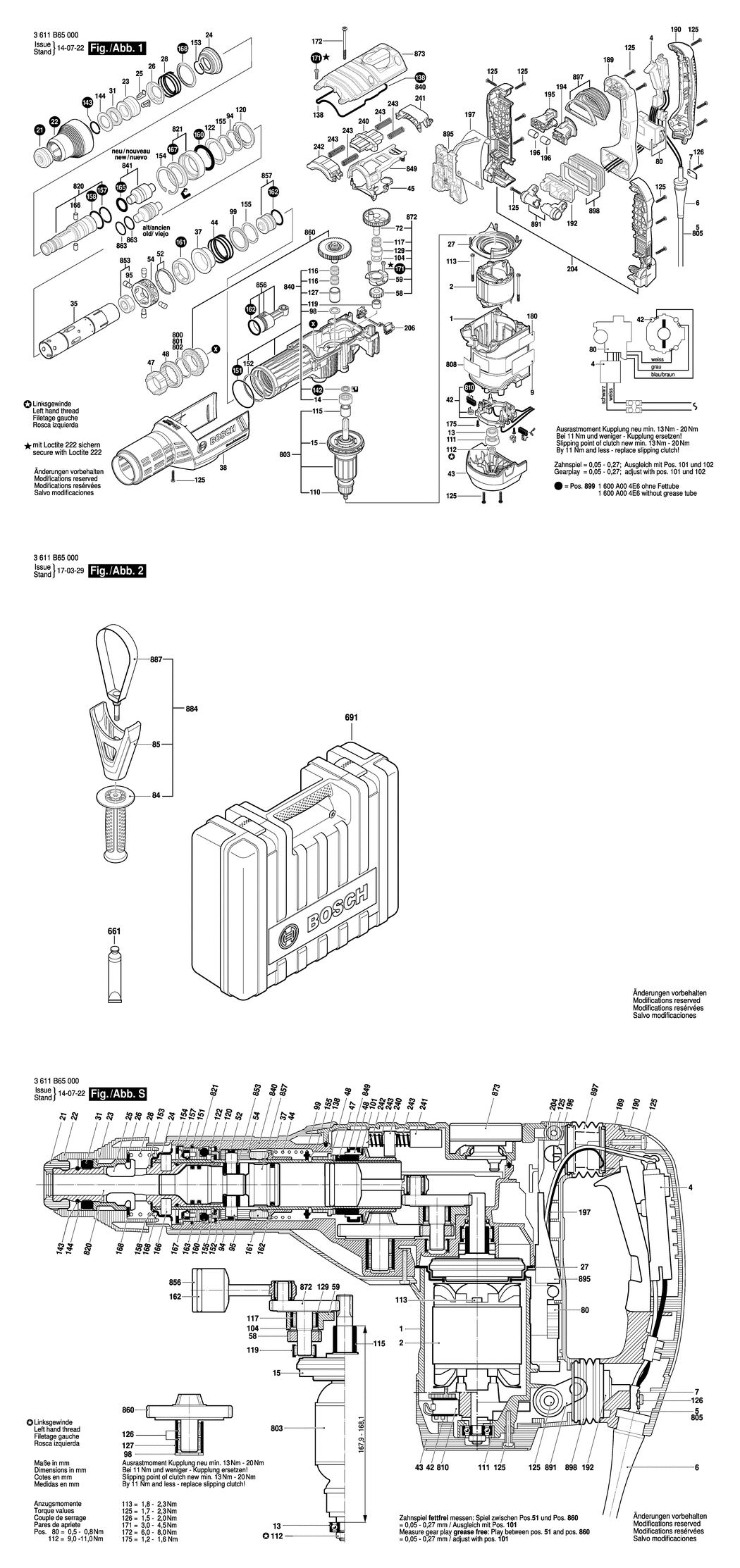

An exploded drawing and listing for the Bosch GBH 8-45 DV / 3611B65000 / EU 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1615108165.A15 1615108165 £31.64 £37.97
2 - FIELD 220-240V BSD-1614220124.A0 1614220124 £31.64 £37.97
4 - SWITCH BSD-1617200130.A0 1617200130 £39.17 £47.00
6 - GROMMET dia9.7-dia12x89 MM BSD-1610703053.A46 1610703053 £2.61 £3.13
7 - FASTENING CLAMP BSD-1601302018.A147 1601302018 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-160111C0U7.A0 160111C0U7 £3.72 £4.47
13 - GROOVE BALL BEARING 8x24x8 BSD-1610900026.A64 1610900026 £12.04 £14.45
14 - NEEDLE-ROLLER BEARING BSD-1610910089.A8 1610910089 -
15 - FAN BSD-1616610109.A8 1616610109 £16.41 £19.69
21 - PROTECTIVE CAP BSD-1610508038.A55 1610508038 £8.13 £9.76
22 - PROTECTION SLEEVE BSD-1610591051.A8 1610591051 £12.04 £14.45
23 - STOP SLEEVE BSD-1610520006.A8 1610520006 £18.96 £22.75
24 - HEADED BUSH BSD-1610500025.A8 1610500025 £10.10 £12.12
25 - STOPPING DEVICE BSD-1612300027.A8 1612300027 £11.30 £13.56
26 - INDEXING DISK BSD-1600A019WL.A0 1600A019WL £5.01 £6.01
27 - AIR-DEFLECTOR RING BSD-160059105C.A8 160059105C £2.61 £3.13
28 - COMPRESSION SPRING BSD-1614621010.A8 1614621010 £4.26 £5.11
31 - DAMPING RING BSD-1610290129.A8 1610290129 £6.52 £7.83
35 - HAMMER PIPE BSD-1615806249.A8 1615806249 £98.11 £117.73
37 - CONTROL BUSHING BSD-1610322018.A8 1610322018 £7.36 £8.83
38 - COVERING HOOD BSD-1615190177.A8 1615190177 £31.64 £37.97
42 - BRUSH HOLDER BSD-1614336090.A0 1614336090 £45.67 £54.80
43 - BRUSH-COVER BSD-1615500435.A8 1615500435 £11.30 £13.56
44 - COMPRESSION SPRING BSD-1614621020.A8 1614621020 £2.61 £3.13
45 - HOLDING-DOWN-APPLIANCE BSD-1610591052.A8 1610591052 £2.16 £2.59
47 - GEAR SLEEVE BSD-1610300076.A0 1610300076 £8.67 £10.41
48 - CLUTCH SLEEVE BSD-1619990177.A0 1619990177 £10.10 £12.12
52 - RETAINING SNAP RING BSD-1610224015.A8 1610224015 £1.75 £2.10
54 - SPACER TUBE BSD-1610190071.A16 1610190071 £5.87 £7.04
58 - CYLINDRICAL GEAR BSD-1616317620.A8 1616317620 £13.12 £15.75
59 - BEARING PEDESTAL BSD-1615805074.A16 1615805074 £10.10 £12.12
72 - ECCENTRIC COG WHEEL BSD-1616317090.A8 1616317090 £68.42 £82.10
80 - SPEED GOVERNOR BSD-1607233459.A3 1607233459 £57.02 £68.42
84 - AUXILIARY HANDLE BSD-160202507H.A407 160202507H £11.30 £13.56
85 - SUPPORT CLAMP BSD-1618040095.A0 1618040095 £5.58 £6.70
94 - SUPPORTING DISC BSD-1610290111.A16 1610290111 £2.16 £2.59
95 - DRIVING PIN BSD-1613120023.A8 1613120023 £4.26 £5.11
98 - SHIM RING 1.0 MM BSD-1610101015.A33 1610101015 £1.75 £2.10
99 - BACKUP RING BSD-1600220029.A8 1600220029 £2.80 £3.36
104 - STOP DISC BSD-1610190027.A21 1610190027 £5.58 £6.70
110 - SEAL RING BSD-1610190073.A0 1610190073 £1.75 £2.10
111 - BUSHING BSD-1610290046.A16 1610290046 £2.80 £3.36
112 - HEX NUT BSD-1613300007.A0 1613300007 £1.75 £2.10
113 - TAPPING SCREW B 4.8x68 MM BSD-1613412001.A113 1613412001 £1.75 £2.10
115 - BUSHING BSD-1610300086.A8 1610300086 £5.58 £6.70
116 - NEEDLE-ROLLER ASSEMBLY BSD-1610913029.A16 1610913029 £4.26 £5.11
117 - NEEDLE-ROLLER ASSEMBLY BSD-1610913023.A8 1610913023 £18.96 £22.75
119 - NEEDLE-ROLLER BEARING BSD-1610910081.A0 1610910081 £14.91 £17.89
120 - SPACER TUBE BSD-1610190080.A8 1610190080 £12.04 £14.45
122 - SPACER RING BSD-1610290128.A8 1610290128 £7.36 £8.83
125 - TORX OVAL-HEAD SCREW BSD-1613435040.A0 1613435040 £2.16 £2.59
126 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A998 2603490023 £1.75 £2.10
127 - BUSHING BSD-1610300079.A8 1610300079 £4.26 £5.11
129 - BUSHING BSD-1610300080.A0 1610300080 £4.26 £5.11
138 - SEALING FRAME BSD-1611015064.A8 1611015064 £6.52 £7.83
142 - ROTARY SHAFT LIP SEAL BSD-1610290112.A0 1610290112 £4.26 £5.11
143 - RETAINING RING BSD-1614601072.A16 1614601072 £2.61 £3.13
144 - SUPPORTING DISC BSD-1610103025.A8 1610103025 £3.72 £4.47
151 - O-RING BSD-1610210222.A8 1610210222 £1.75 £2.10
152 - RETAINING RING BSD-1614601073.A0 1614601073 £1.75 £2.10
153 - RETAINING RING DIN 7993 A 30 BSD-2916540017.A8 2916540017 £2.16 £2.59
154 - SPRING RETAINING RING DIN 472 62x2 MM BSD-2916660027.A8 2916660027 £4.26 £5.11
155 - RETAINING RING BSD-1614601074.A16 1614601074 £1.75 £2.10
157 - O-RING 33.0x2.0 MM BSD-1610210103.A40 1610210103 £2.61 £3.13
158 - O-RING BSD-1610210224.A8 1610210224 £1.75 £2.10
160 - O-RING BSD-1610210246.A8 1610210246 £1.75 £2.10
161 - DAMPING RING BSD-1610210227.A8 1610210227 £8.67 £10.41
162 - O-RING BSD-1600210080.A16 1600210080 £2.61 £3.13
165 - SEAL RING BSD-1610290125.A8 1610290125 £11.30 £13.56
166 - CYLINDRICAL ROLLER BSD-1613200020.A0 1613200020 £2.80 £3.36
167 - ROTARY SHAFT LIP SEAL BSD-161029012A.A9 161029012A £4.26 £5.11
168 - PACKING WASHER BSD-1610206027.A8 1610206027 £2.61 £3.13
171 - TORX SOCKET BUTTON SCREW BSD-1613414026.A14 1613414026 £2.61 £3.13
172 - TORX OVAL-HEAD SCREW BSD-1613435041.A29 1613435041 £1.75 £2.10
175 - TORX OVAL-HEAD SCREW 4x12 BSD-2603490021.A351 2603490021 £1.75 £2.10
189 - HANDLE BSD-1615133038.A9 1615133038 £14.91 £17.89
190 - HANDLE COVER BSD-1615500438.A0 1615500438 £16.41 £19.69
192 - ROCKER FOOT BSD-1614611028.A19 1614611028 £5.58 £6.70
194 - SCREW PLATE BSD-1610099018.A2 1610099018 £2.16 £2.59
195 - SCREW PLATE BSD-1610099019.A10 1610099019 £2.16 £2.59
196 - DAMPING RUBBER BSD-1610026004.A2 1610026004 £1.75 £2.10
197 - LEAF SPRING BSD-1616232000.A10 1616232000 £11.30 £13.56
204 - REAR HOUSING SECTION BSD-1615102162.A1 1615102162 £21.52 £25.83
206 - HOLDING STRIP BSD-1612386006.A1 1612386006 £1.75 £2.10
240 - COUNTERWEIGHT BSD-1600A000K3.A3 1600A000K3 £10.10 £12.12
241 - GUIDE PIECE BSD-1615190181.A3 1615190181 £2.61 £3.13
242 - GUIDE PIECE BSD-1615190182.A1 1615190182 £2.61 £3.13
243 - COMPRESSION SPRING BSD-1614621013.A2 1614621013 £2.61 £3.13
661 - GREASE TUBE 30 ML BSD-1615430010.A251 1615430010 £6.52 £7.83
691 - CARRYING CASE BSD-161543851A.A9 161543851A £45.67 £54.80
800 - SHIM 0.2 MM BSD-1600A0037C.A7 1600A0037C -
801 - SHIM 0.45 MM BSD-1610102096.A1 1610102096 £1.75 £2.10
802 - SHIM 0.30 MM BSD-1610102095.A7 1610102095 £1.75 £2.10
803 - ARMATURE 230V BSD-1614010267.A6 1614010267 £179.37 £215.24
805 - POWER SUPPLY CORD BSD-1617000723.A18 1617000723 £27.23 £32.68
808 - NAMEPLATE BSD-160111A3H5.A408 160111A3H5 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-1617014145.A3 1617014145 £18.96 £22.75
820 - TOOLHOLDER BSD-1618597102.A6 1618597102 £120.11 £144.13
821 - PLAIN BEARING BSD-1610508058.A1 1610508058 £27.23 £32.68
840 - IMPACT MECHANISM HOUSING BSD-1617000A29.A5 1617000A29 £179.37 £215.24
841 - STRIKER PIN BSD-1617000A4R.A5 1617000A4R £54.42 £65.30
849 - CONTROL FORK BSD-1617000A31.A3 1617000A31 £7.36 £8.83
853 - GUIDE BUSHING BSD-1610231004.A6 1610231004 £27.23 £32.68
856 - HAMMER PISTON BSD-1617000A32.A14 1617000A32 £48.38 £58.06
857 - STRIKER BSD-1617000A33.A2 1617000A33 £27.23 £32.68
860 - SPUR WHEEL CLUTCH BSD-1607000C3S.A1 1607000C3S £171.57 £205.88
863 - O-RING BSD-1610210229.A2 1610210229 £2.16 £2.59
872 - ECCENTRIC BSD-1617000A35.A14 1617000A35 £103.14 £123.77
873 - HOUSING COVER BSD-1617000A36.A2 1617000A36 £48.38 £58.06
884 - AUXILIARY HANDLE BSD-1612025004.A6 1612025004 £45.67 £54.80
887 - CLAMPING BAND dia87 MM BSD-1617000807.A16 1617000807 £18.96 £22.75
891 - ROCKER ARM BSD-1612099005.A2 1612099005 £11.30 £13.56
895 - DIAPHRAGM BSD-1613120024.A6 1613120024 £31.64 £37.97
897 - BELLOWS BSD-1610415005.A1 1610415005 £10.10 £12.12
898 - BELLOWS BSD-1610415004.A11 1610415004 £10.10 £12.12
899 - SERVICE PACKAGE BSD-1600A004E6.A2 1600A004E6 £59.53 £71.44
