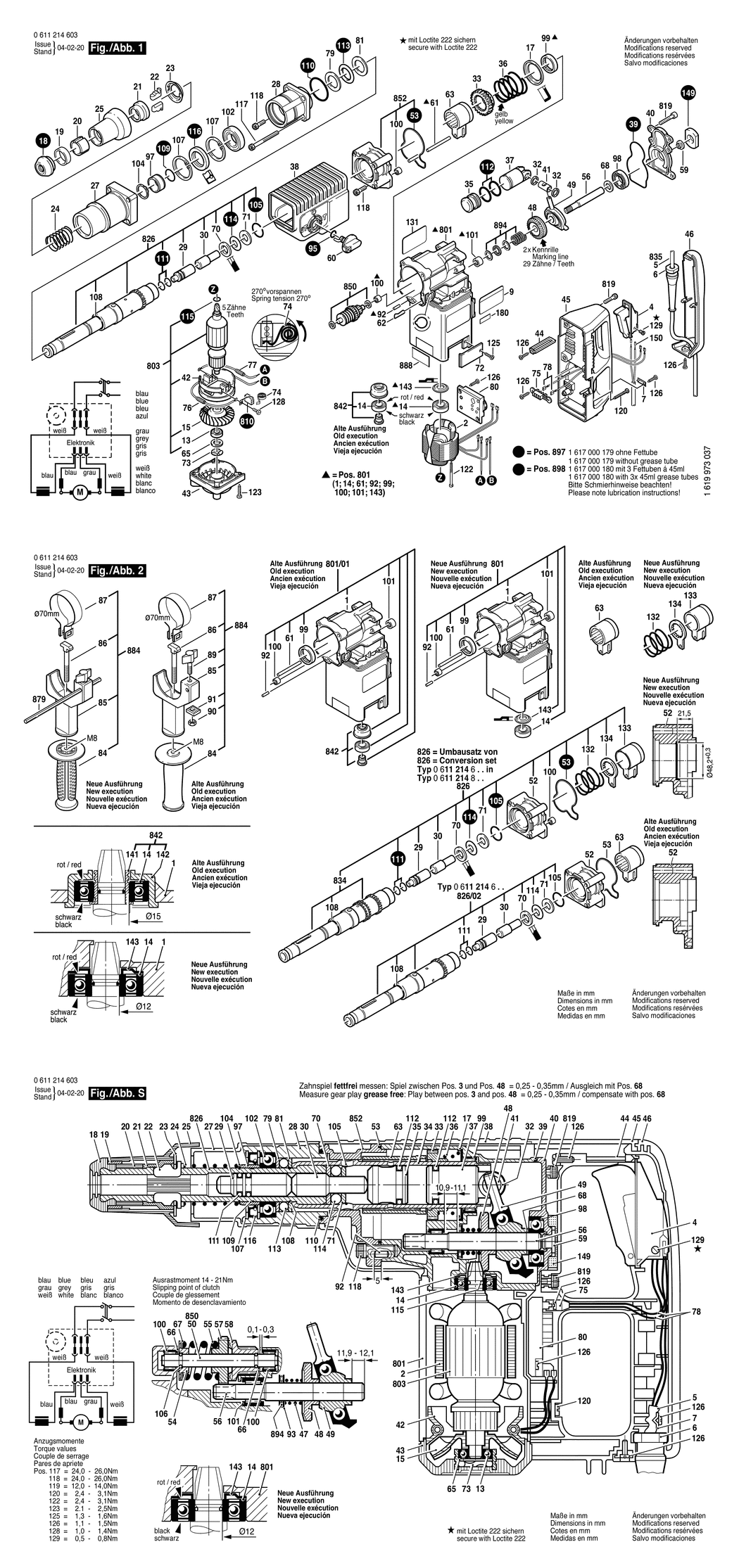

An exploded drawing and listing for the Bosch GBH 8/65 DCE / 0611214642 / GB 230 Volt
Ex VAT Inc VAT
2 - FIELD 230-240V BSD-1614220101.A14 1614220101 -
4 - ON-OFF SWITCH BSD-1617200040.A11 1617200040 -
5 - POWER SUPPLY CORD GB 230V 4.15m 2 x 1.0mm H07 RN-F BSD-1604460144.A28 1604460144 £37.27 £44.72
6 - GROMMET dia9.7-dia12x89 MM BSD-1610703053.A55 1610703053 £2.61 £3.13
6 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A630 3600703011 £2.80 £3.36
7 - FASTENING CLAMP BSD-1611034020.A22 1611034020 -
9 - MANUFACTURER'S NAMEPLATE BSD-1611110706.A9 1611110706 -
13 - GROOVE BALL BEARING 9x26x8 BSD-1610905009.A3 1610905009 £14.72 £17.67
14 - GROOVE BALL BEARING 15x32x9 BSD-1610905015.A11 1610905015 £14.75 £17.70
15 - FAN BSD-1616610067.A3 1616610067 -
17 - FRICTION WASHER BSD-1610500013.A4 1610500013 -
18 - PROTECTIVE CAP BSD-1610508017.A57 1610508017 £3.72 £4.47
19 - CYLINDER SLEEVE BSD-1610202016.A56 1610202016 -
20 - SPACER TUBE BSD-1610390015.A88 1610390015 -
21 - STOP SLEEVE BSD-1610520001.A101 1610520001 £12.04 £14.45
22 - STOPPING DEVICE BSD-1612300027.A139 1612300027 £11.30 £13.56
23 - INDEXING DISK BSD-1610290025.A82 1610290025 £6.52 £7.83
24 - COMPRESSION SPRING BSD-1614616009.A18 1614616009 -
25 - PROTECTION SLEEVE BSD-1610591009.A55 1610591009 -
27 - PROTECTIVE CAP BSD-1615190028.A3 1615190028 -
28 - BEARING FLANGE BSD-1615805062.A3 1615805062 -
29 - STRIKER PIN BSD-1613124037.A19 1613124037 -
30 - STRIKER PIN BSD-1613124038.A1 1613124038 -
32 - SUPPORTING DISC 1.5 MM BSD-1610101616.A28 1610101616 £1.75 £2.10
33 - CYLINDRICAL GEAR Z=32/57 BSD-1616317041.A17 1616317041 -
35 - STRIKER BSD-1618710055.A16 1618710055 -
36 - COMPRESSION SPRING BSD-1614621001.A17 1614621001 -
37 - HAMMER PISTON BSD-1618700060.A2 1618700060 -
38 - COVERING HOOD BSD-1615190027.A11 1615190027 -
39 - SEALING FRAME BSD-1611015030.A10 1611015030 -
40 - BEARING COVER BSD-1615808059.A10 1615808059 -
41 - PISTON PIN BSD-1613219001.A23 1613219001 -
42 - BRUSH HOLDER BSD-1614336005.A1 1614336005 £12.04 £14.45
43 - BEARING COVER BSD-1615808068.A6 1615808068 -
44 - FRAME BSD-1611015032.A10 1611015032 -
45 - HANDLE BSD-1615133027.A4 1615133027 -
46 - HANDLE COVER BSD-1615500269.A11 1615500269 -
48 - CROWN GEAR Z=29 BSD-1616333025.A9 1616333025 -
49 - DRIVE BEARING BSD-1615819011.A24 1615819011 -
53 - SEALING FRAME BSD-1611015031.A20 1611015031 -
56 - TOOTHED SHAFT Z=10 BSD-1613060012.A29 1613060012 -
59 - PLUG BSD-1610591010.A4 1610591010 -
60 - CLAMP HANDLE BSD-1612026033.A14 1612026033 £10.10 £12.12
61 - STRAIGHT PIN 5M6x70 RIKO DIN 6325 BSD-2917550138.A21 2917550138 -
62 - HOLDING SPRING BSD-1614680003.A7 1614680003 -
63 - TOOLHOLDER BSD-1617000957.A13 1617000957 -
65 - SUPPORTING DISC 2.5 MM BSD-1610101617.A4 1610101617 -
68 - SHIM 0.3 MM BSD-1610101618.A26 1610101618 £1.75 £2.10
68 - SHIM 0.1 MM BSD-1610101621.A4 1610101621 -
70 - STOP DISC BSD-1610103019.A0 1610103019 £6.61 £7.93
71 - STOP DISC BSD-1610101014.A57 1610101014 -
72 - SEALING CAP BSD-1615500284.A4 1615500284 -
73 - CLAMPING RING BSD-1610210082.A3 1610210082 £1.95 £2.34
74 - SPIRAL SPRING BSD-1614652000.A56 1614652000 -
75 - SOCKET HOUSING BSD-1615190011.A3 1615190011 -
76 - SUPPRESSION FILTER BSD-1617328016.A28 1617328016 -
77 - SUPPRESSION FILTER BSD-1617328017.A2 1617328017 £3.72 £4.47
78 - CONNECTING CABLE L=35 MM BSD-1614431022.A10 1614431022 -
79 - SUPPORTING DISC 3.0 MM BSD-1610102623.A17 1610102623 £2.52 £3.02
80 - CONTROL DEVICE 230-240V BSD-1617233016.A1 1617233016 -
81 - SUPPORTING DISC 3.0 MM BSD-1610102630.A19 1610102630 -
84 - AUXILIARY HANDLE BSD-160202507H.A67 160202507H £11.30 £13.56
84 - AUXILIARY HANDLE M8 BSD-1612025019.A400 1612025019 £6.52 £7.83
85 - SUPPORT CLAMP dia70 MM BSD-1618040055.A56 1618040055 -
85 - SUPPORT CLAMP dia70 MM BSD-1618040055.A57 1618040055 -
86 - T-HEAD BOLT M8x80 MM BSD-1613490001.A2 1613490001 £8.67 £10.41
87 - CLAMPING BAND dia70 MM BSD-1611316008.A3 1611316008 -
89 - WING SCREW M6x30 MM BSD-1613480010.A23 1613480010 £2.80 £3.36
90 - HEX NUT M6 BSD-1613300006.A61 1613300006 £1.32 £1.58
91 - CLAMPING PLATE BSD-1611030010.A15 1611030010 £2.16 £2.59
92 - STRAIGHT PIN 5M6x12 RIKO DIN 6325 BSD-2917550118.A8 2917550118 -
95 - O-RING 15x3 MM BSD-1900210114.A13 1900210114 £2.61 £3.13
97 - INNER RING BSD-1610202014.A1 1610202014 -
98 - GROOVE BALL BEARING BSD-1610900023.A23 1610900023 £12.04 £14.45
99 - NEEDLE BEARING BSD-1610910068.A2 1610910068 -
100 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A4 2600910001 £4.26 £5.11
101 - NEEDLE BEARING BSD-2600910000.A58 2600910000 -
102 - GROOVE BALL BEARING 30x55x13 BSD-1900900276.A2 1900900276 £14.91 £17.89
104 - SPRING RETAINING RING DIN 471 30x1.5 MM BSD-2916650017.A2 2916650017 £1.75 £2.10
105 - SPRING RETAINING RING BSD-1610116004.A55 1610116004 £1.75 £2.10
107 - SPRING RETAINING RING 55x2MM. DIN 472 BSD-2916660024.A82 2916660024 £5.30 £6.36
108 - RETAINING RING 30x2 DIN7993-B30 BSD-2916550014.A7 2916550014 -
109 - O-RING 27.0x1.5 MM BSD-1610210100.A54 1610210100 £3.72 £4.47
110 - O-RING 54.0x3.0 MM BSD-1600210004.A252 1600210004 £2.80 £3.36
111 - O-RING 16.0x2.5 MM BSD-1610210098.A17 1610210098 -
112 - O-RING 26.0x4.0 MM BSD-1610210109.A41 1610210109 £4.26 £5.11
113 - O-RING 30.0x8.0 MM BSD-1610210099.A3 1610210099 -
114 - O-RING 17.0x8.0 MM BSD-1610210093.A89 1610210093 £1.75 £2.10
115 - O-RING 10.0x1.0 MM BSD-1610210118.A9 1610210118 -
116 - ROTARY SHAFT LIP SEAL BSD-1610283020.A19 1610283020 £6.52 £7.83
117 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x80-8.8 BSD-2910141262.A6 2910141262 £1.75 £2.10
118 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x25-8.8 BSD-2910141244.A110 2910141244 £1.75 £2.10
120 - TAPPING SCREW DIN 7971-ST4.8x38-F BSD-2910211038.A6 2910211038 £1.75 £2.10
122 - TAPPING SCREW BZ4.8x63 MM BSD-1603435008.A188 1603435008 £1.32 £1.58
123 - TAPPING SCREW DIN 7971-ST4.8x25-C BSD-2910211236.A52 2910211236 £1.75 £2.10
125 - TAPPING SCREW DIN 7972-B3.9x13 BSD-2910601118.A35 2910601118 £1.75 £2.10
126 - TAPPING SCREW DIN 7971-BZ3.5x13 BSD-2910211011.A591 2910211011 £1.75 £2.10
128 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A58 2910021118 £1.75 £2.10
129 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2714 2603410001 £1.75 £2.10
131 - MANUFACTURER'S NAMEPLATE BSD-1611110707.A1 1611110707 -
132 - COMPRESSION SPRING BSD-1614619009.A3 1614619009 -
133 - GUIDE BUSHING BSD-1610390028.A16 1610390028 -
134 - RETAINING SNAP RING BSD-1610200018.A19 1610200018 £5.87 £7.04
143 - SEALING DISK 14.4-6201 ZJV NILOS BSD-2916120023.A43 2916120023 £3.34 £4.01
149 - FELT DISC BSD-1610108014.A3 1610108014 £2.80 £3.36
150 - END SPLICE DIN 46 228-A1-6 BSD-1900452012.A156 1900452012 £1.75 £2.10
801 - ASSEMBLY OF SERVICE PARTS BSD-1617000967.A1 1617000967 -
803 - ARMATURE 230-240V BSD-1614011054.A1 1614011054 -
810 - CARBON-BRUSH SET BSD-1617014110.A75 1617014110 £18.96 £22.75
819 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x25-10.9 BSD-1617000123.A2 1617000123 -
826 - TOOLHOLDER BSD-1617000957.A11 1617000957 -
842 - ASSEMBLY OF SERVICE PARTS BSD-1617000966.A11 1617000966 -
850 - SPUR WHEEL CLUTCH BSD-1617000934.A4 1617000934 -
852 - BEARING FLANGE BSD-1617000803.A24 1617000803 -
879 - DEPTH-GAUGE SW 6x330 MM BSD-1613001008.A94 1613001008 £8.67 £10.41
888 - NAMEPLATE BSD-160111A3H3.A3170 160111A3H3 £2.61 £3.13
884 - AUXILIARY HANDLE dia70 MM BSD-1612025035.A26 1612025035 -
894 - NEEDLE-ROLLER ASSEMBLY BSD-1617000169.A10 1617000169 -
897 - WEAR AND TEAR PART SET BSD-1617000179.A7 1617000179 -
898 - WEAR AND TEAR PART SET BSD-1617000180.A2 1617000180 -
