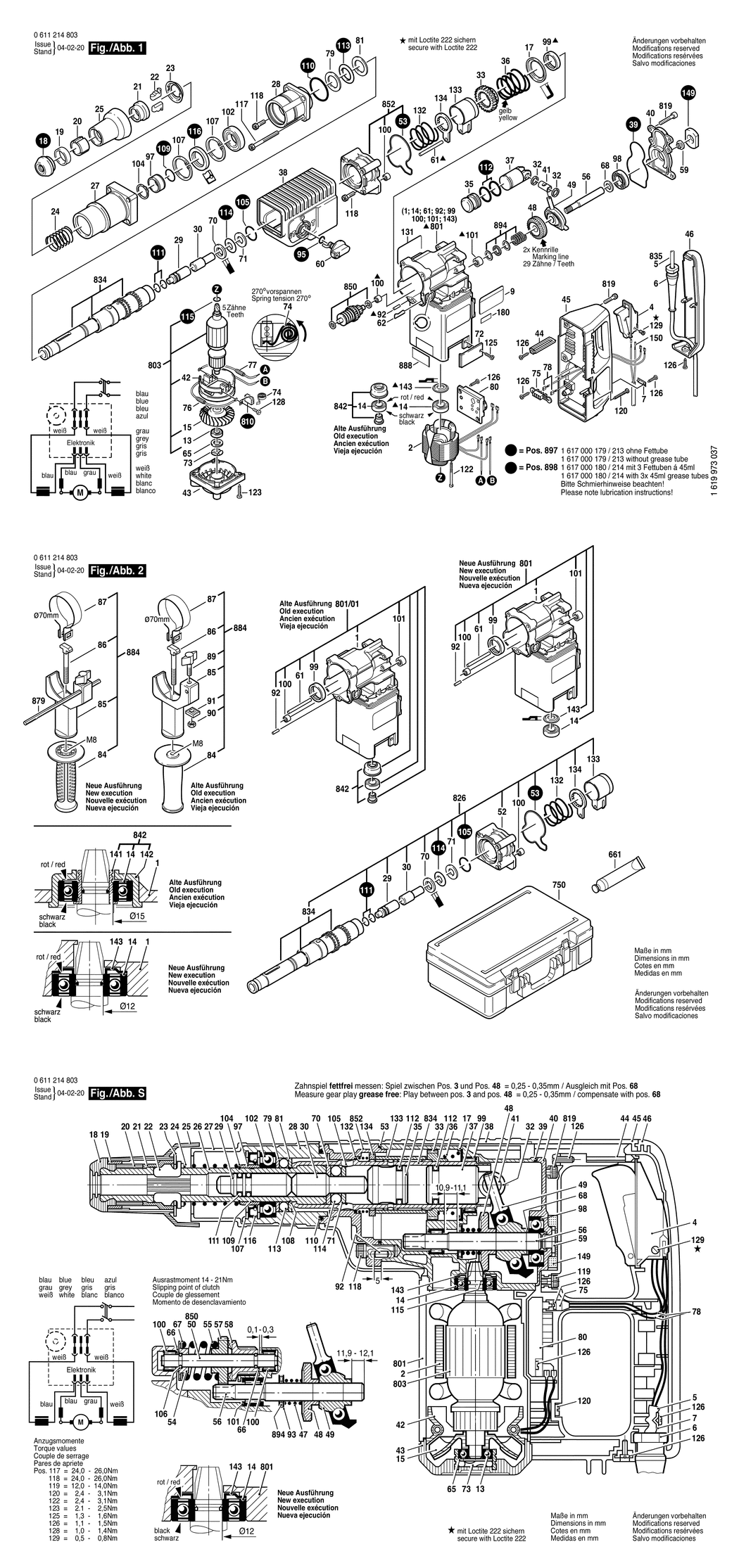

1 - MOTOR HOUSING
BSD-1615102144.A4
1615102144
|
-
|
|
|
|
2 - FIELD 230-240V
BSD-1614220101.A10
1614220101
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-1617200040.A26
1617200040
|
-
|
|
|
|
5 - POWER SUPPLY CORD CH 4.15m 2 x 1.0mm H07 RN-F
BSD-1614460006.A16
1614460006
|
£19.45
|
£23.34
|
|
|
6 - GROMMET dia9.7-dia12x89 MM
BSD-1610703053.A153
1610703053
|
£2.61
|
£3.13
|
|
|
6 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A669
3600703011
|
£2.80
|
£3.36
|
|
|
7 - FASTENING CLAMP
BSD-1611034020.A6
1611034020
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1611110706.A1
1611110706
|
-
|
|
|
|
13 - GROOVE BALL BEARING 9x26x8
BSD-1610905009.A16
1610905009
|
£14.72
|
£17.67
|
|
|
14 - GROOVE BALL BEARING 12x32x10
BSD-1610905007.A16
1610905007
|
-
|
|
|
|
14 - GROOVE BALL BEARING 15x32x9
BSD-1610905015.A6
1610905015
|
£14.75
|
£17.70
|
|
|
15 - FAN
BSD-1616610067.A26
1616610067
|
-
|
|
|
|
17 - FRICTION WASHER
BSD-1610500013.A22
1610500013
|
-
|
|
|
|
18 - PROTECTIVE CAP
BSD-1610508017.A4
1610508017
|
£3.72
|
£4.47
|
|
|
19 - CYLINDER SLEEVE
BSD-1610202016.A18
1610202016
|
-
|
|
|
|
20 - SPACER TUBE
BSD-1610390015.A36
1610390015
|
-
|
|
|
|
21 - STOP SLEEVE
BSD-1610520001.A80
1610520001
|
£12.04
|
£14.45
|
|
|
22 - STOPPING DEVICE
BSD-1612300027.A135
1612300027
|
£11.30
|
£13.56
|
|
|
23 - INDEXING DISK
BSD-1610290025.A63
1610290025
|
£6.52
|
£7.83
|
|
|
24 - COMPRESSION SPRING
BSD-1614616009.A11
1614616009
|
-
|
|
|
|
25 - PROTECTION SLEEVE
BSD-1610591009.A4
1610591009
|
-
|
|
|
|
27 - PROTECTIVE CAP
BSD-1615190028.A17
1615190028
|
-
|
|
|
|
28 - BEARING FLANGE
BSD-1615805062.A7
1615805062
|
-
|
|
|
|
29 - STRIKER PIN
BSD-1613124037.A3
1613124037
|
-
|
|
|
|
30 - STRIKER PIN
BSD-1613124038.A17
1613124038
|
-
|
|
|
|
32 - SUPPORTING DISC 1.5 MM
BSD-1610101616.A4
1610101616
|
£1.75
|
£2.10
|
|
|
33 - CYLINDRICAL GEAR Z=32/57
BSD-1616317041.A1
1616317041
|
-
|
|
|
|
35 - STRIKER
BSD-1618710055.A11
1618710055
|
-
|
|
|
|
36 - COMPRESSION SPRING
BSD-1614621001.A10
1614621001
|
-
|
|
|
|
37 - HAMMER PISTON
BSD-1618700060.A6
1618700060
|
-
|
|
|
|
38 - COVERING HOOD
BSD-1615190027.A1
1615190027
|
-
|
|
|
|
39 - SEALING FRAME
BSD-1611015030.A29
1611015030
|
-
|
|
|
|
40 - BEARING COVER
BSD-1615808059.A25
1615808059
|
-
|
|
|
|
41 - PISTON PIN
BSD-1613219001.A3
1613219001
|
-
|
|
|
|
42 - BRUSH HOLDER
BSD-1614336005.A21
1614336005
|
£12.04
|
£14.45
|
|
|
43 - BEARING COVER
BSD-1615808068.A17
1615808068
|
-
|
|
|
|
44 - FRAME
BSD-1611015032.A29
1611015032
|
-
|
|
|
|
45 - HANDLE
BSD-1615133027.A14
1615133027
|
-
|
|
|
|
46 - HANDLE COVER
BSD-1615500269.A19
1615500269
|
-
|
|
|
|
48 - CROWN GEAR Z=29
BSD-1616333025.A2
1616333025
|
-
|
|
|
|
49 - DRIVE BEARING
BSD-1615819011.A6
1615819011
|
-
|
|
|
|
52 - BEARING FLANGE
BSD-1617000803.A4
1617000803
|
-
|
|
|
|
53 - SEALING FRAME
BSD-1611015031.A1
1611015031
|
-
|
|
|
|
56 - TOOTHED SHAFT Z=10
BSD-1613060012.A16
1613060012
|
-
|
|
|
|
59 - PLUG
BSD-1610591010.A21
1610591010
|
-
|
|
|
|
60 - CLAMP HANDLE
BSD-1612026033.A3
1612026033
|
£10.10
|
£12.12
|
|
|
61 - STRAIGHT PIN 5M6x70 RIKO DIN 6325
BSD-2917550138.A3
2917550138
|
-
|
|
|
|
62 - HOLDING SPRING
BSD-1614680003.A19
1614680003
|
-
|
|
|
|
65 - SUPPORTING DISC 2.5 MM
BSD-1610101617.A22
1610101617
|
-
|
|
|
|
68 - SHIM 0.3 MM
BSD-1610101618.A7
1610101618
|
£1.75
|
£2.10
|
|
|
68 - SHIM 0.1 MM
BSD-1610101621.A23
1610101621
|
-
|
|
|
|
70 - STOP DISC
BSD-1610103019.A9
1610103019
|
£6.61
|
£7.93
|
|
|
71 - STOP DISC
BSD-1610101014.A27
1610101014
|
-
|
|
|
|
72 - SEALING CAP
BSD-1615500284.A19
1615500284
|
-
|
|
|
|
73 - CLAMPING RING
BSD-1610210082.A28
1610210082
|
£1.95
|
£2.34
|
|
|
74 - SPIRAL SPRING
BSD-1614652000.A37
1614652000
|
-
|
|
|
|
75 - SOCKET HOUSING
BSD-1615190011.A21
1615190011
|
-
|
|
|
|
76 - SUPPRESSION FILTER
BSD-1617328016.A5
1617328016
|
-
|
|
|
|
77 - SUPPRESSION FILTER
BSD-1617328017.A25
1617328017
|
£3.72
|
£4.47
|
|
|
78 - CONNECTING CABLE L=35 MM
BSD-1614431022.A14
1614431022
|
-
|
|
|
|
79 - SUPPORTING DISC 3.0 MM
BSD-1610102623.A15
1610102623
|
£2.52
|
£3.02
|
|
|
80 - CONTROL DEVICE 230-240V
BSD-1617233016.A8
1617233016
|
-
|
|
|
|
81 - SUPPORTING DISC 3.0 MM
BSD-1610102630.A8
1610102630
|
-
|
|
|
|
84 - AUXILIARY HANDLE
BSD-160202507H.A215
160202507H
|
£11.30
|
£13.56
|
|
|
84 - AUXILIARY HANDLE M8
BSD-1612025019.A268
1612025019
|
£6.52
|
£7.83
|
|
|
85 - SUPPORT CLAMP dia70 MM
BSD-1618040055.A23
1618040055
|
-
|
|
|
|
86 - T-HEAD BOLT M8x80 MM
BSD-1613490001.A22
1613490001
|
£8.67
|
£10.41
|
|
|
87 - CLAMPING BAND dia70 MM
BSD-1611316008.A34
1611316008
|
-
|
|
|
|
89 - WING SCREW M6x30 MM
BSD-1613480010.A3
1613480010
|
£2.80
|
£3.36
|
|
|
90 - HEX NUT M6
BSD-1613300006.A15
1613300006
|
£1.32
|
£1.58
|
|
|
91 - CLAMPING PLATE
BSD-1611030010.A20
1611030010
|
£2.16
|
£2.59
|
|
|
92 - STRAIGHT PIN 5M6x12 RIKO DIN 6325
BSD-2917550118.A18
2917550118
|
-
|
|
|
|
95 - O-RING 15x3 MM
BSD-1900210114.A21
1900210114
|
£2.61
|
£3.13
|
|
|
97 - INNER RING
BSD-1610202014.A10
1610202014
|
-
|
|
|
|
98 - GROOVE BALL BEARING
BSD-1610900023.A2
1610900023
|
£12.04
|
£14.45
|
|
|
99 - NEEDLE BEARING
BSD-1610910068.A28
1610910068
|
-
|
|
|
|
100 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A31
2600910001
|
£4.26
|
£5.11
|
|
|
101 - NEEDLE BEARING
BSD-2600910000.A35
2600910000
|
-
|
|
|
|
102 - GROOVE BALL BEARING 30x55x13
BSD-1900900276.A11
1900900276
|
£14.91
|
£17.89
|
|
|
104 - SPRING RETAINING RING DIN 471 30x1.5 MM
BSD-2916650017.A9
2916650017
|
£1.75
|
£2.10
|
|
|
105 - SPRING RETAINING RING
BSD-1610116004.A18
1610116004
|
£1.75
|
£2.10
|
|
|
107 - SPRING RETAINING RING 55x2MM. DIN 472
BSD-2916660024.A62
2916660024
|
£5.30
|
£6.36
|
|
|
108 - RETAINING RING 30x2 DIN7993-B30
BSD-2916550014.A1
2916550014
|
-
|
|
|
|
109 - O-RING 27.0x1.5 MM
BSD-1610210100.A5
1610210100
|
£3.72
|
£4.47
|
|
|
110 - O-RING 54.0x3.0 MM
BSD-1600210004.A265
1600210004
|
£2.80
|
£3.36
|
|
|
111 - O-RING 16.0x2.5 MM
BSD-1610210098.A5
1610210098
|
-
|
|
|
|
112 - O-RING 26.0x4.0 MM
BSD-1610210109.A9
1610210109
|
£4.26
|
£5.11
|
|
|
113 - O-RING 30.0x8.0 MM
BSD-1610210099.A15
1610210099
|
-
|
|
|
|
114 - O-RING 17.0x8.0 MM
BSD-1610210093.A58
1610210093
|
£1.75
|
£2.10
|
|
|
115 - O-RING 10.0x1.0 MM
BSD-1610210118.A5
1610210118
|
-
|
|
|
|
116 - ROTARY SHAFT LIP SEAL
BSD-1610283020.A2
1610283020
|
£6.52
|
£7.83
|
|
|
117 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x80-8.8
BSD-2910141262.A22
2910141262
|
£1.75
|
£2.10
|
|
|
118 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x25-8.8
BSD-2910141244.A125
2910141244
|
£1.75
|
£2.10
|
|
|
120 - TAPPING SCREW DIN 7971-ST4.8x38-F
BSD-2910211038.A31
2910211038
|
£1.75
|
£2.10
|
|
|
122 - TAPPING SCREW BZ4.8x63 MM
BSD-1603435008.A164
1603435008
|
£1.32
|
£1.58
|
|
|
123 - TAPPING SCREW DIN 7971-ST4.8x25-C
BSD-2910211236.A67
2910211236
|
£1.75
|
£2.10
|
|
|
125 - TAPPING SCREW DIN 7972-B3.9x13
BSD-2910601118.A51
2910601118
|
£1.75
|
£2.10
|
|
|
126 - TAPPING SCREW DIN 7971-BZ3.5x13
BSD-2910211011.A617
2910211011
|
£1.75
|
£2.10
|
|
|
128 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A67
2910021118
|
£1.75
|
£2.10
|
|
|
129 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2788
2603410001
|
£1.75
|
£2.10
|
|
|
131 - MANUFACTURER'S NAMEPLATE
BSD-1611110707.A8
1611110707
|
-
|
|
|
|
132 - COMPRESSION SPRING
BSD-1614619009.A13
1614619009
|
-
|
|
|
|
133 - GUIDE BUSHING
BSD-1610390028.A11
1610390028
|
-
|
|
|
|
134 - RETAINING SNAP RING
BSD-1610200018.A3
1610200018
|
£5.87
|
£7.04
|
|
|
143 - SEALING DISK 14.4-6201 ZJV NILOS
BSD-2916120023.A37
2916120023
|
£3.34
|
£4.01
|
|
|
149 - FELT DISC
BSD-1610108014.A21
1610108014
|
£2.80
|
£3.36
|
|
|
150 - END SPLICE DIN 46 228-A1-6
BSD-1900452012.A175
1900452012
|
£1.75
|
£2.10
|
|
|
661 - GREASE TUBE 45 ML
BSD-1615430005.A25
1615430005
|
£7.78
|
£9.33
|
|
|
750 - CARRYING CASE
BSD-2605438262.A8
2605438262
|
-
|
|
|
|
801 - ASSEMBLY OF SERVICE PARTS
BSD-1617000967.A7
1617000967
|
-
|
|
|
|
803 - ARMATURE 230-240V
BSD-1614011054.A5
1614011054
|
-
|
|
|
|
810 - CARBON-BRUSH SET
BSD-1617014110.A95
1617014110
|
£18.96
|
£22.75
|
|
|
819 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x25-10.9
BSD-1617000123.A17
1617000123
|
-
|
|
|
|
826 - TOOLHOLDER
BSD-1617000957.A2
1617000957
|
-
|
|
|
|
834 - HAMMER PIPE
BSD-1617000960.A5
1617000960
|
-
|
|
|
|
842 - ASSEMBLY OF SERVICE PARTS
BSD-1617000966.A2
1617000966
|
-
|
|
|
|
850 - SPUR WHEEL CLUTCH
BSD-1617000934.A11
1617000934
|
-
|
|
|
|
852 - BEARING FLANGE
BSD-1617000803.A8
1617000803
|
-
|
|
|
|
879 - DEPTH-GAUGE SW 6x330 MM
BSD-1613001008.A118
1613001008
|
£8.67
|
£10.41
|
|
|
884 - AUXILIARY HANDLE dia70 MM
BSD-1612025035.A18
1612025035
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A3192
160111A3H3
|
£2.61
|
£3.13
|
|
|
894 - NEEDLE-ROLLER ASSEMBLY
BSD-1617000169.A29
1617000169
|
-
|
|
|
|
897 - WEAR AND TEAR PART SET
BSD-1617000179.A1
1617000179
|
-
|
|
|
|
898 - WEAR AND TEAR PART SET
BSD-1617000180.A8
1617000180
|
-
|
|
|
