Bosch 321 / 0611210576 / EU 230 Volt Spare Parts

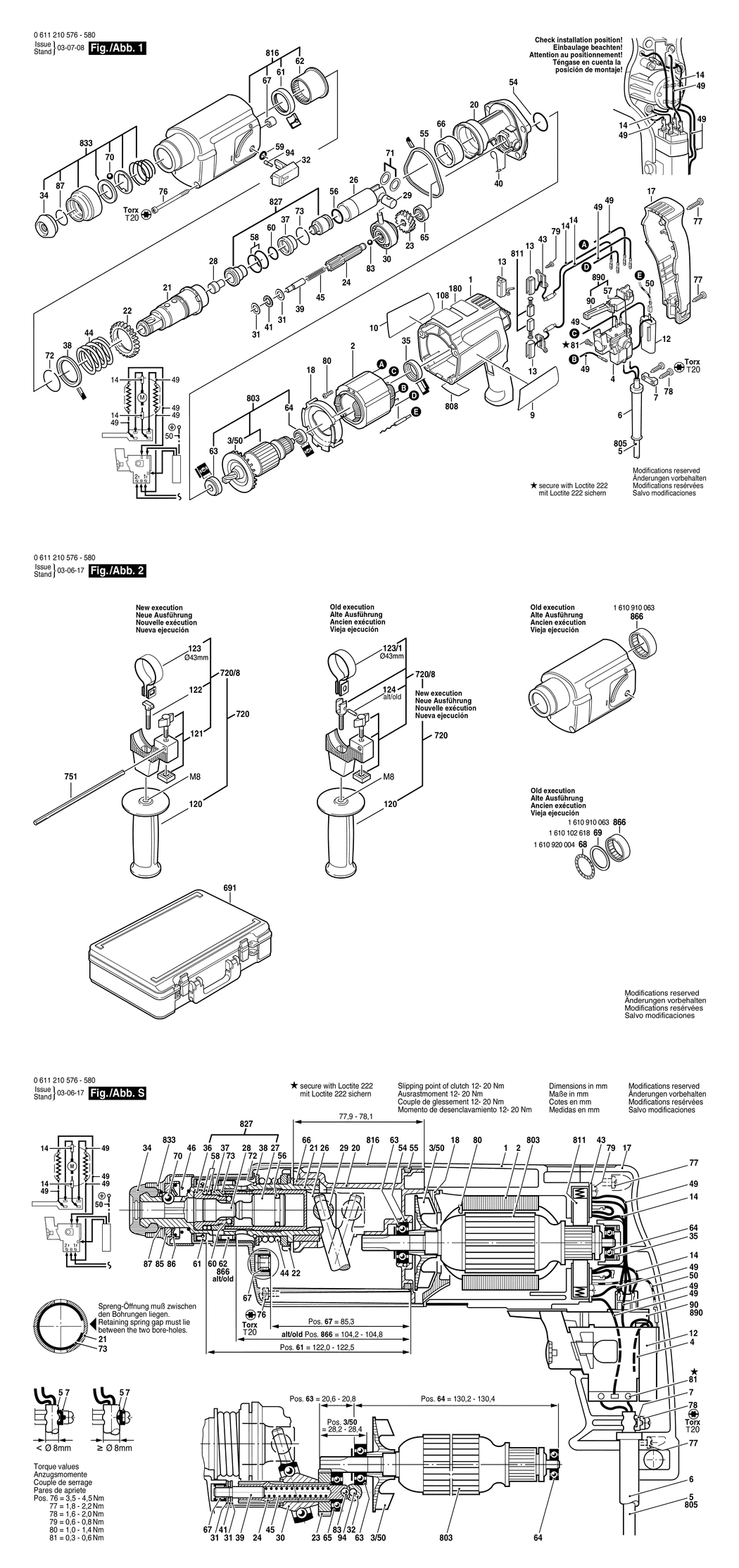

An exploded drawing and listing for the Bosch 321 / 0611210576 / EU 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615108026.A17 1615108026	-
2 - FIELD 220-230V BSD-2604220429.A79 2604220429	£23.86	£28.63
3/50 - FAN BSD-1616610072.A94 1616610072	£2.16	£2.59
4 - SWITCH BSD-2607200179.A5 2607200179	-
6 - GROMMET dia8.3-dia9.4x95 MM BSD-2600703011.A637 2600703011	£2.80	£3.36
7 - CABLE CLIP BSD-1611035005.A9 1611035005	£2.16	£2.59
9 - MANUFACTURER'S NAMEPLATE BSD-1611110243.A0 1611110243	-
10 - MANUFACTURER'S NAMEPLATE BSD-1611110244.A0 1611110244	-
12 - SUPPRESSION FILTER BSD-2607329096.A203 2607329096	£7.36	£8.83
13 - CARB BRUSH HOLD W-SUPR BSD-1614465003.A6 1614465003	-
17 - HOUSING COVER BSD-1615132031.A21 1615132031	-
18 - AIR-DEFLECTOR RING BSD-1610522008.A28 1610522008	£1.75	£2.10
20 - INTERMEDIATE FLANGE BSD-1615700037.A118 1615700037	£40.80	£48.96
21 - RATCHET SLEEVE S2S BSD-1616490035.A2 1616490035	£58.76	£70.51
22 - CYLINDRICAL GEAR Z=46 BSD-1616320007.A52 1616320007	£7.36	£8.83
23 - CYLINDRICAL GEAR Z=6/21 BSD-1616320002.A109 1616320002	£24.45	£29.34
24 - TOOTHED SHAFT Z=6/10 BSD-1613060010.A14 1613060010	£54.42	£65.30
26 - HAMMER PISTON BSD-1618700052.A103 1618700052	£13.12	£15.75
28 - STRIKER PIN BSD-1613124026.A99 1613124026	£2.80	£3.36
29 - PISTON PIN BSD-1613105012.A208 1613105012	£3.72	£4.47
30 - DRIVE BEARING BSD-1615819005.A12 1615819005	£31.64	£37.97
31 - SUPPORT DISC 0.8 MM BSD-1610100003.A45 1610100003	£1.75	£2.10
32 - CLAMP HANDLE BSD-1612026023.A104 1612026023	£2.61	£3.13
34 - PROTECTIVE CAP L=24 MM BSD-1610508016.A5 1610508016	-
35 - RUBBER RING BSD-1610206021.A105 1610206021	£1.75	£2.10
37 - DAMPING BUSHING BSD-1610390011.A17 1610390011	£3.72	£4.47
38 - SUPPORTING DISC BSD-1610102022.A34 1610102022	£2.16	£2.59
39 - STRAIGHT PIN BSD-1613100013.A143 1613100013	£2.16	£2.59
40 - HOLDING SPRING BSD-1614690001.A128 1614690001	£1.75	£2.10
41 - ROLLER-CAGE ASSEMBLY BSD-1610920003.A90 1610920003	£4.26	£5.11
43 - BRUSH PLATE BSD-2601015047.A127 2601015047	-
44 - COMPRESSION SPRING BSD-1614633001.A35 1614633001	£2.52	£3.02
45 - COMPRESSION SPRING BSD-1614614001.A51 1614614001	£1.75	£2.10
49 - CABLE L=130 MM BSD-2604448005.A241 2604448005	£1.75	£2.10
50 - CABLE BSD-2604448003.A126 2604448003	-
54 - O-RING 24.0x2.5 MM BSD-1610210068.A93 1610210068	£1.75	£2.10
55 - SEAL RING BSD-1610206023.A66 1610206023	£2.80	£3.36
56 - O-RING 14.0x3.0 MM BSD-1610210070.A77 1610210070	£2.61	£3.13
57 - O-RING 34.0x2.0 MM BSD-1610210084.A24 1610210084	£1.75	£2.10
58 - O-RING 18.0x3.0 MM BSD-1610210058.A36 1610210058	£2.61	£3.13
59 - O-RING 6.0x2.5 MM BSD-1610210069.A95 1610210069	£1.75	£2.10
60 - O-RING 10.0x3.5 MM BSD-1610210073.A70 1610210073	£2.16	£2.59
61 - ROTARY SHAFT LIP SEAL BSD-1610283017.A32 1610283017	£7.36	£8.83
62 - PLAIN BEARING BSD-1610202026.A191 1610202026	£5.30	£6.36
63 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A390 1610905048	£8.67	£10.41
65 - GROOVE BALL BEARING 8x22x7 BSD-1900900228.A123 1900900228	£6.61	£7.93
66 - BUSHING dia30xdia37x15.7 MM BSD-1610301000.A42 1610301000	£3.34	£4.01
67 - NEEDLE BEARING BSD-1610910064.A332 1610910064	£2.52	£3.02
70 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A376 1903230013	£2.16	£2.59
71 - SHIM WASHER 1.2 MM BSD-1610101011.A9 1610101011	£1.75	£2.10
72 - RETAINING RING DIN 7993-A32 BSD-2916540018.A32 2916540018	£3.72	£4.47
73 - RETAINING RING DIN 9045-24 BSD-1614601009.A173 1614601009	£1.95	£2.34
76 - TAPPING SCREW ST-4.8x57.5-TORX.T20 BSD-1613435009.A121 1613435009	£1.75	£2.10
77 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A312 2910211021	£1.75	£2.10
78 - TAPPING SCREW ST3.9x19-TORX.T20 BSD-1603435050.A90 1603435050	£2.33	£2.80
79 - TAPPING SCREW DIN 7971-B 2.9x13 BSD-2910211206.A3 2910211206	£1.32	£1.58
80 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A324 2603435015	£2.16	£2.59
81 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2620 2603410001	£1.75	£2.10
83 - BALL 5 MM V DIN 5401 BSD-1903230309.A50 1903230309	£1.75	£2.10
87 - RETAINING RING DIN 7993-A22 BSD-2916540012.A424 2916540012	-
90 - SWITCH HANDLE BSD-2607200042.A28 2607200042	-
94 - DETENT PIN BSD-1613120017.A47 1613120017	£1.75	£2.10
120 - AUXILIARY HANDLE M8 BSD-1612025019.A439 1612025019	£6.52	£7.83
121 - SUPPORT CLAMP dia43 MM BSD-1618040048.A72 1618040048	£8.67	£10.41
122 - T-HEAD BOLT M8x40 MM BSD-1613490002.A547 1613490002	£4.26	£5.11
123 - CLAMPING BAND dia43 MM BSD-1611316006.A333 1611316006	£2.61	£3.13
123/1 - CLAMPING BAND dia43 MM BSD-1611316003.A39 1611316003	£2.61	£3.13
124 - STRAIGHT PIN BSD-1613100012.A48 1613100012	£2.61	£3.13
691 - CARRYING CASE BSD-1615438118.A0 1615438118	-
720 - AUXILIARY HANDLE dia43 MM BSD-2602025070.A84 2602025070	£14.91	£17.89
720/8 - PARTS SET BSD-1617000925.A14 1617000925	£16.41	£19.69
751 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A247 1613001009	£3.72	£4.47
803 - ARMATURE WITH FAN 220-230V BSD-1614010039.A12 1614010039	-
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000227.A604 1607000227	£23.86	£28.63
808 - NAMEPLATE BSD-160111A3HD.A54 160111A3HD	£2.61	£3.13
811 - CARBON BRUSH BSD-1617014114.A10 1617014114	£10.10	£12.12
816 - GEAR HOUSING BSD-1615806081.A16 1615806081	£33.45	£40.14
827 - STRIKER BSD-1617000338.A139 1617000338	£27.23	£32.68
833 - PROTECTION SLEEVE S2S BSD-1617000168.A22 1617000168	£5.58	£6.70
864 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A221 1610905025	£6.52	£7.83
890 - MODIFICATION SET 110-240V BSD-1617000134.A26 1617000134	£80.61	£96.73
