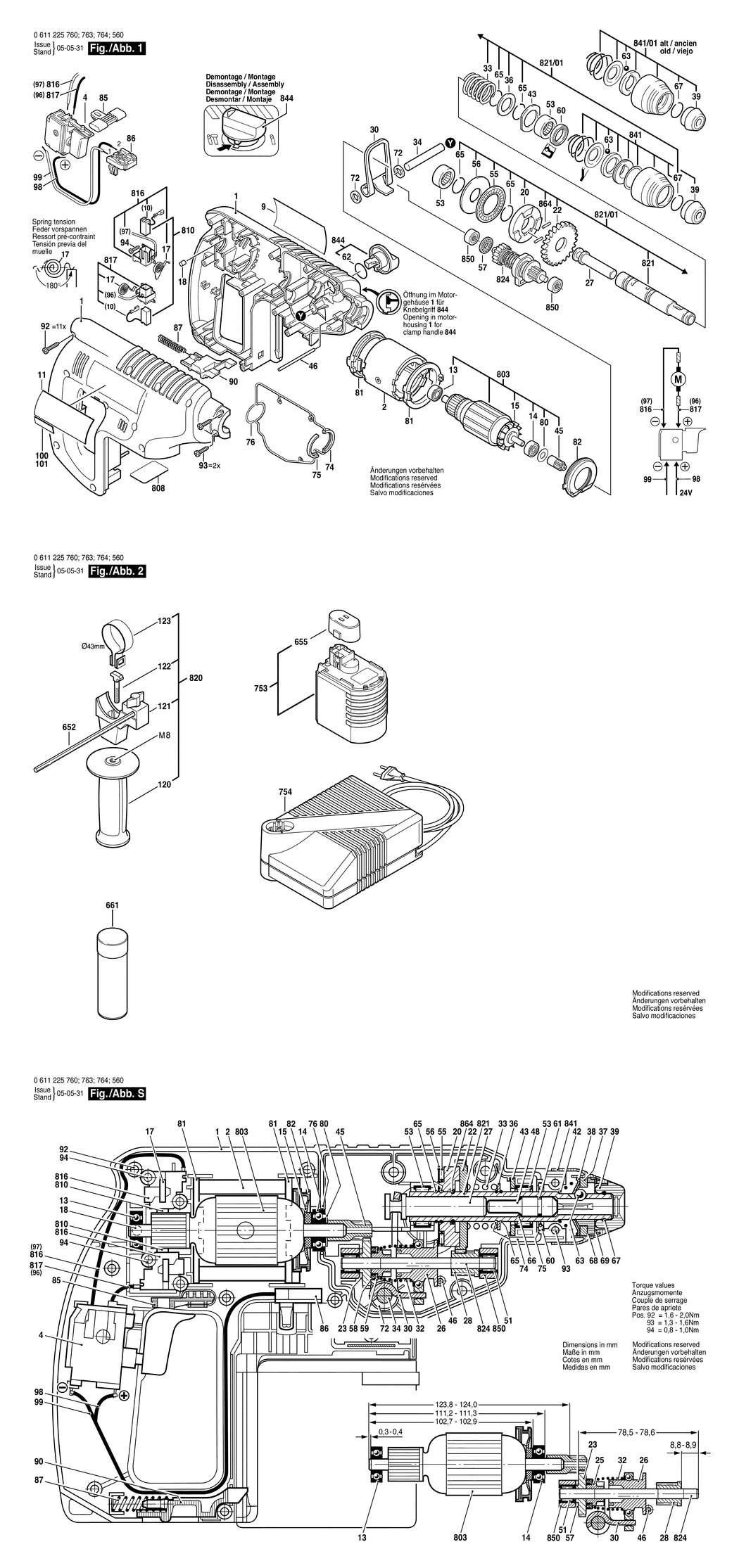

An exploded drawing and listing for the Bosch ABH 20-SLE / 0611225764 / EU 24 Volt
Ex VAT Inc VAT
1 - HOUSING SECTION BSD-1615104015.A3 1615104015 -
2 - POLE HOUSING 14;4-24V BSD-2610942109.A44 2610942109 £21.68 £26.01
4 - ON-OFF SWITCH BSD-1617200067.A9 1617200067 £68.42 £82.10
9 - MANUFACTURER'S NAMEPLATE BSD-1611110A01.A2 1611110A01 £4.26 £5.11
11 - REFERENCE PLATE BSD-1611110A02.A1 1611110A02 £3.80 £4.56
13 - GROOVE BALL BEARING 8x22x7 BSD-1600905033.A30 1600905033 £7.36 £8.83
14 - GROOVE BALL BEARING 8x22x7 BSD-2600905052.A368 2600905052 £7.36 £8.83
15 - FAN BSD-1616610080.A10 1616610080 £7.78 £9.33
17 - SPIRAL SPRING BSD-1614652008.A16 1614652008 £2.16 £2.59
18 - DAMPING RUBBER BSD-2603100056.A104 2603100056 £1.75 £2.10
20 - CATCH DISK BSD-1616409012.A45 1616409012 £5.87 £7.04
22 - CYLINDRICAL GEAR Z=53 BSD-1616317613.A2 1616317613 -
27 - STRIKER BSD-1618710068.A8 1618710068 £7.78 £9.33
30 - DRIVE LEVER BSD-1611911000.A80 1611911000 -
33 - COMPRESSION SPRING BSD-1614634008.A28 1614634008 £1.95 £2.34
34 - BEARING PIN BSD-1613100021.A16 1613100021 £2.33 £2.80
36 - SUPPORTING DISC BSD-1610190021.A40 1610190021 £2.16 £2.59
39 - PROTECTIVE CAP BSD-1610508021.A35 1610508021 £1.95 £2.34
43 - SUPPORTING DISC BSD-1610190020.A37 1610190020 £1.95 £2.34
45 - DRIVE PINION Z=9 BSD-1616316602.A11 1616316602 £14.75 £17.70
46 - STRAIGHT PIN BSD-1613160022.A40 1613160022 £1.75 £2.10
53 - NEEDLE BEARING BSD-1610910077.A40 1610910077 £4.26 £5.11
55 - ROLLER THRUST BEARING BSD-1610920012.A77 1610920012 £3.34 £4.01
56 - SUPPORT DISC 1.0 MM BSD-1610102030.A18 1610102030 £2.61 £3.13
57 - ROLLER THRUST BEARING BSD-1610920009.A8 1610920009 £3.34 £4.01
60 - SEAL RING BSD-1610280006.A2 1610280006 £3.34 £4.01
62 - O-RING 18.0x2.5 MM BSD-1610210125.A66 1610210125 £1.95 £2.34
63 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A659 1903230013 £2.16 £2.59
65 - RETAINING RING BSD-1614601018.A14 1614601018 £1.66 £1.99
67 - SPRING RETAINING RING BSD-3600224038.A10 3600224038 £1.32 £1.58
72 - SHIM WASHER 1.0 MM BSD-1610100007.A41 1610100007 £1.75 £2.10
74 - SEALING FRAME BSD-1611015045.A24 1611015045 £5.30 £6.36
75 - SEALING FRAME BSD-1611015041.A55 1611015041 £1.95 £2.34
76 - SEAL RING BSD-1610210138.A50 1610210138 £1.75 £2.10
80 - SEALING DISK BSD-1610100008.A44 1610100008 £1.75 £2.10
81 - LOCATING RING BSD-1610290043.A18 1610290043 £2.16 £2.59
82 - AIR-DEFLECTOR RING BSD-1610591017.A9 1610591017 -
85 - SWITCH SLIDE BSD-1613231006.A0 1613231006 £1.95 £2.34
86 - CONTACT RETAINER BSD-1609280157.A51 1609280157 -
87 - COMPRESSION SPRING BSD-1614611012.A10 1614611012 £8.49 £10.19
90 - CATCH SLIDE BSD-1613231007.A47 1613231007 £1.32 £1.58
92 - TAPPING SCREW DIN7981-ST3.9x22-C-Z BSD-2912401021.A206 2912401021 £1.75 £2.10
93 - TAPPING SCREW DIN7981-ST3.9x16-C-Z BSD-2912401019.A285 2912401019 £1.75 £2.10
94 - TAPPING SCREW DIN7981-ST2.9x9.5C-Z BSD-2912401005.A241 2912401005 £1.75 £2.10
98 - CONNECTING CABLE L=260 MM BSD-1614416012.A14 1614416012 £1.75 £2.10
99 - CONNECTING CABLE L=270 MM BSD-1614416011.A39 1614416011 £1.75 £2.10
100 - REFERENCE PLATE BSD-1611110A03.A2 1611110A03 £3.80 £4.56
101 - REFERENCE PLATE BSD-1611110A05.A3 1611110A05 £3.72 £4.47
120 - AUXILIARY HANDLE M8 BSD-1612025019.A170 1612025019 £6.52 £7.83
121 - SUPPORT CLAMP dia43 MM BSD-1618040067.A16 1618040067 £6.61 £7.93
122 - T-HEAD BOLT M8x40 MM BSD-1613490002.A392 1613490002 £4.26 £5.11
123 - CLAMPING BAND dia43 MM BSD-1611316006.A209 1611316006 £2.61 £3.13
652 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A122 1613001009 £3.72 £4.47
655 - PROTECTIVE CAP BSD-1610508032.A22 1610508032 £2.16 £2.59
661 - OIL SPRAY TIN BSD-1615439012.A10 1615439012 £11.30 £13.56
753 - ACCUMULATOR BATTERY 24V.1.7Ah.NiCd BSD-2607335240.A0 2607335240 -
753 - ACCUMULATOR BATTERY 24V.3.0Ah.NiCd BSD-2607335238.A3 2607335238 -
754 - FAST CHARGER EU 230/7.2-24V. 15 MIN.. BSD-2607224418.A1 2607224418 -
803 - ARMATURE WITH FAN 24V BSD-1617000319.A9 1617000319 £72.18 £86.62
808 - NAMEPLATE BSD-160111A3HD.A104 160111A3HD £2.61 £3.13
810 - CARBON-BRUSH SET BSD-1617014131.A18 1617014131 -
816 - BRUSH HOLDER L=145 MM BSD-1617000379.A37 1617000379 -
817 - BRUSH HOLDER L=45 MM BSD-1617000380.A16 1617000380 -
820 - AUXILIARY HANDLE dia43 MM BSD-1612025049.A9 1612025049 £10.82 £12.99
821 - HAMMER PIPE BSD-1617000320.A16 1617000320 -
821/01 - HAMMER PIPE BSD-1617000375.A8 1617000375 -
824 - JACK SHAFT Z=31/12 BSD-1617000314.A16 1617000314 £46.82 £56.18
841 - PROTECTION SLEEVE BSD-1617000303.A60 1617000303 £14.91 £17.89
844 - CLAMP HANDLE BSD-1617000322.A50 1617000322 £3.72 £4.47
850 - BUSHING BSD-1617000975.A27 1617000975 £6.61 £7.93
864 - STRAIGHT PIN DIN6325-2.5x12-RIKO BSD-1613100019.A37 1613100019 £1.75 £2.10
