Bosch BACHD-1 36 V / 3611J07B00 / --- Spare Parts

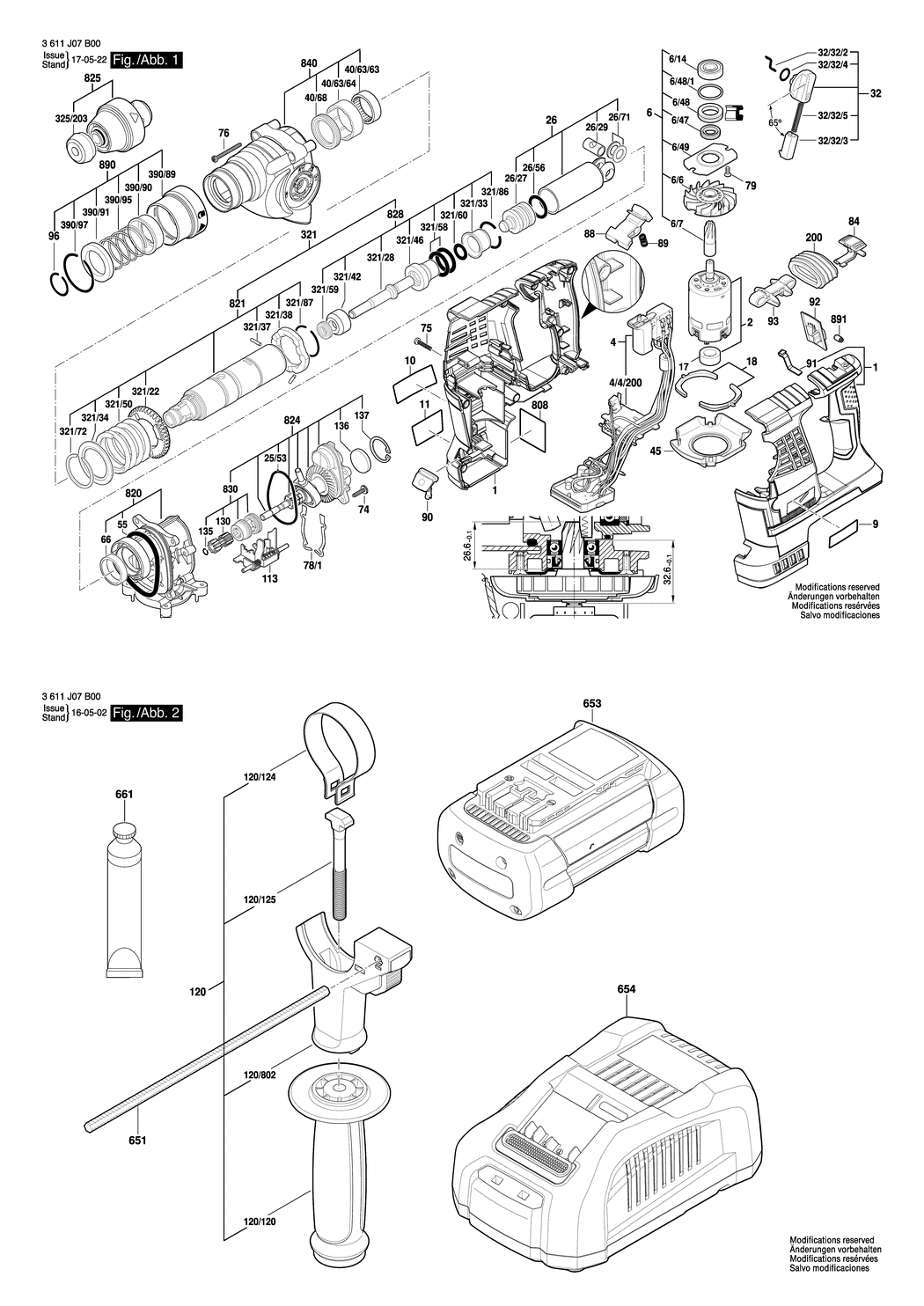

An exploded drawing and listing for the Bosch BACHD-1 36 V / 3611J07B00 / ---

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-16051082GU.A0 16051082GU	£27.23	£32.68
2 - DC MOTOR BSD-1607022662.A1 1607022662	£120.11	£144.13
4 - ELECTRONICS MODULE BSD-1600A00L1F.A1 1600A00L1F	£102.57	£123.08
4/4/200 - CONTACT RETAINER BSD-1609280A56.A7 1609280A56	£16.41	£19.69
6 - DRIVE PINION BSD-1617000A5F.A3 1617000A5F	£33.74	£40.49
6/6 - FAN BSD-1616610157.A8 1616610157	£5.30	£6.36
6/7 - DRIVE PINION BSD-1600A001EF.A6 1600A001EF	£9.49	£11.39
6/14 - GROOVE BALL BEARING BSD-1610905044.A40 1610905044	£8.67	£10.41
6/47 - ROTARY SHAFT LIP SEAL BSD-1610283047.A43 1610283047	£12.04	£14.45
6/48 - BEARING RING BSD-1610290102.A7 1610290102	£6.52	£7.83
6/48/1 - O-RING 24.0x2.0 MM BSD-1610210208.A6 1610210208	£1.75	£2.10
6/49 - END SHIELD BSD-1615700044.A192 1615700044	£2.16	£2.59
9 - MANUFACTURER'S NAMEPLATE BSD-160111C0S2.A0 160111C0S2	£2.61	£3.13
10 - MANUFACTURER'S NAMEPLATE BSD-160111C0S1.A1 160111C0S1	£2.61	£3.13
11 - REFERENCE PLATE BSD-160111C0TY.A3 160111C0TY	£2.61	£3.13
17 - BEARING RING BSD-1600A001HK.A6 1600A001HK	£2.16	£2.59
18 - MOTOR BEARING BSD-1600A001FP.A2 1600A001FP	£10.10	£12.12
25/53 - O-RING BSD-1610210245.A43 1610210245	£2.80	£3.36
26 - HAMMER PISTON BSD-16170006A5.A4 16170006A5	£41.62	£49.95
26/27 - STRIKER BSD-1610311019.A77 1610311019	£21.52	£25.83
26/29 - PISTON PIN BSD-1613105020.A84 1613105020	£5.30	£6.36
26/56 - O-RING 17.0x3.0 MM BSD-1610210121.A156 1610210121	£2.61	£3.13
26/71 - GUIDE DISC BSD-1610100016.A130 1610100016	£1.75	£2.10
32 - CLAMP HANDLE BSD-1602026104.A0 1602026104	£10.10	£12.12
32/32/2 - DRIVER PIN BSD-1614690009.A58 1614690009	£3.72	£4.47
32/32/3 - SWITCH BUTTON BSD-1612026035.A190 1612026035	£1.75	£2.10
32/32/4 - O-RING 10.5x2.7 MM BSD-1610210046.A449 1610210046	£2.16	£2.59
32/32/5 - COMPRESSION SPRING BSD-1614611006.A186 1614611006	£3.72	£4.47
40/63/63 - NEEDLE BEARING BSD-1600A001CN.A5 1600A001CN	£2.61	£3.13
40/63/64 - BUSHING BSD-1610390069.A6 1610390069	£2.16	£2.59
40/68 - ROTARY SHAFT LIP SEAL BSD-1610283036.A54 1610283036	£7.36	£8.83
45 - AIR-DEFLECTOR RING BSD-1610591055.A3 1610591055	£2.61	£3.13
55 - SEAL RING 63.0x5.0 MM BSD-1610210206.A43 1610210206	£5.58	£6.70
66 - PLAIN BEARING BSD-1610202021.A49 1610202021	£2.61	£3.13
74 - TORX OVAL-HEAD SCREW BSD-160343000V.A4 160343000V	£1.75	£2.10
75 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A1493 2603490023	£1.75	£2.10
76 - TORX OVAL-HEAD SCREW 4x40 BSD-2603490027.A157 2603490027	£1.75	£2.10
78/1 - SHIM 0.3 MM BSD-1600A003TA.A32 1600A003TA	£1.75	£2.10
78/1 - SHIM 0.15 MM BSD-1600A004FU.A2 1600A004FU	£1.75	£2.10
78/1 - SHIM 0.45 MM BSD-1600A004FV.A32 1600A004FV	£1.75	£2.10
79 - THREAD-FORMING TAP. SCREW BSD-1613435023.A98 1613435023	£1.75	£2.10
84 - SWITCH SLIDE BSD-1600A00M8T.A0 1600A00M8T	£2.16	£2.59
88 - PUSH-BUTTON BSD-1600A00M8W.A1 1600A00M8W	£2.16	£2.59
89 - COMPRESSION SPRING BSD-1604612007.A3 1604612007	£2.16	£2.59
90 - LENS BSD-1600A001E3.A3 1600A001E3	£2.16	£2.59
91 - LEAF SPRING BSD-1601200006.A6 1601200006	£1.75	£2.10
92 - CONTROL ELEMENT BSD-1600A001ED.A5 1600A001ED	£2.61	£3.13
93 - GUIDE PIECE BSD-1600A0022Y.A2 1600A0022Y	£2.61	£3.13
96 - RETAINING RING BSD-1614601046.A36 1614601046	£1.75	£2.10
113 - SWITCHING PANEL BSD-1616325002.A45 1616325002	£12.04	£14.45
120 - AUXILIARY HANDLE BSD-1602025091.A0 1602025091	£16.41	£19.69
120/120 - AUXILIARY HANDLE BSD-1602025096.A3 1602025096	£5.58	£6.70
120/124 - CLAMPING BAND dia50 MM BSD-1611316021.A36 1611316021	£2.80	£3.36
120/125 - T-HEAD BOLT M8x80 MM BSD-1613490001.A100 1613490001	£8.67	£10.41
120/802 - SUPPORT CLAMP BSD-1607000C9X.A0 1607000C9X	£2.80	£3.36
130 - GEAR SLEEVE BSD-1616333049.A2 1616333049	£18.96	£22.75
135 - RETAINING RING BSD-1614601067.A41 1614601067	£1.75	£2.10
136 - FELT DISC BSD-1610205017.A31 1610205017	£1.75	£2.10
137 - SPRING RETAINING RING 30x1.2MM. DIN 472 BSD-2916660012.A138 2916660012	£1.75	£2.10
200 - BELLOWS BSD-1600A001CL.A5 1600A001CL	£5.30	£6.36
321 - TOOLHOLDER BSD-16170006BV.A2 16170006BV	£88.07	£105.68
321/22 - CYLINDRICAL GEAR BSD-1616312004.A131 1616312004	£12.04	£14.45
321/28 - STRIKER PIN BSD-1613124097.A45 1613124097	£21.68	£26.01
321/33 - HOLDING JACKET BSD-1610590020.A5 1610590020	£6.52	£7.83
321/34 - SUPPORTING DISC BSD-1610190067.A40 1610190067	£2.16	£2.59
321/37 - STRAIGHT PIN DIN6325-2.5x12-RIKO BSD-1613100019.A262 1613100019	£1.75	£2.10
321/38 - CATCH DISK BSD-1600A008AG.A121 1600A008AG	£3.72	£4.47
321/42 - THRUST RING BSD-1610102084.A3 1610102084	£8.67	£10.41
321/46 - GUIDE BUSHING BSD-1610390068.A79 1610390068	£16.41	£19.69
321/50 - COMPRESSION SPRING BSD-1614615008.A3 1614615008	£5.58	£6.70
321/58 - O-RING 18.0x3.5 MM BSD-1610210105.A203 1610210105	£4.26	£5.11
321/59 - SHAFT SEAL BSD-1600A009VC.A92 1600A009VC	£2.80	£3.36
321/60 - O-RING 9.5x3.5 MM BSD-1610210209.A79 1610210209	£1.75	£2.10
321/72 - RETAINING RING BSD-1604601027.A159 1604601027	£1.75	£2.10
321/86 - RETAINING RING BSD-1614601034.A78 1614601034	£2.16	£2.59
321/87 - RETAINING RING A22 DIN 7993 BSD-1604601028.A107 1604601028	£1.75	£2.10
325/203 - PROTECTIVE CAP BSD-1610508047.A258 1610508047	£2.29	£2.75
390/89 - GUIDE SLEEVE BSD-1600A00NC8.A47 1600A00NC8	£2.61	£3.13
390/90 - COLLAR SLEEVE BSD-1610590016.A61 1610590016	£4.26	£5.11
390/91 - BACKUP RING BSD-1610200033.A16 1610200033	£2.80	£3.36
390/95 - COMPRESSION SPRING BSD-1614643016.A63 1614643016	£2.16	£2.59
390/97 - RETAINING RING BSD-1614601047.A48 1614601047	£1.75	£2.10
651 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A528 1613001009	£3.72	£4.47
653 - BATTERY PACK BACP 36V X-C 215543 BSD-2607337235.A2 2607337235	-
654 - FAST CHARGER EU 230/18-36V. 1h BSD-2607225313.A4 2607225313	£103.14	£123.77
661 - GREASE TUBE 30 ML BSD-1615430010.A241 1615430010	£6.52	£7.83
808 - NAMEPLATE BSD-160111A3HD.A143 160111A3HD	£2.61	£3.13
820 - INTERMEDIATE FLANGE BSD-1617000A5J.A5 1617000A5J	£31.64	£37.97
821 - TOOL HOLDING FIXTURE BSD-16170006BU.A46 16170006BU	£63.50	£76.20
824 - JACK SHAFT BSD-1617000A5K.A29 1617000A5K	£59.53	£71.44
825 - TOOL HOLDING FIXTURE BSD-1617000895.A73 1617000895	£46.82	£56.18
828 - STRIKER PIN BSD-16170006A7.A46 16170006A7	£48.38	£58.06
830 - GEAR SLEEVE BSD-1617000698.A5 1617000698	£31.64	£37.97
840 - IMPACT MECHANISM HOUSING BSD-1617000699.A36 1617000699	£54.42	£65.30
890 - GUIDE SLEEVE BSD-1617000V41.A47 1617000V41	£11.30	£13.56
891 - THRUST MEMBER BSD-1600A007JV.A3 1600A007JV	£2.61	£3.13
