Bosch BH 2-26 / 3611BA3E00 / --- 230 Volt Spare Parts

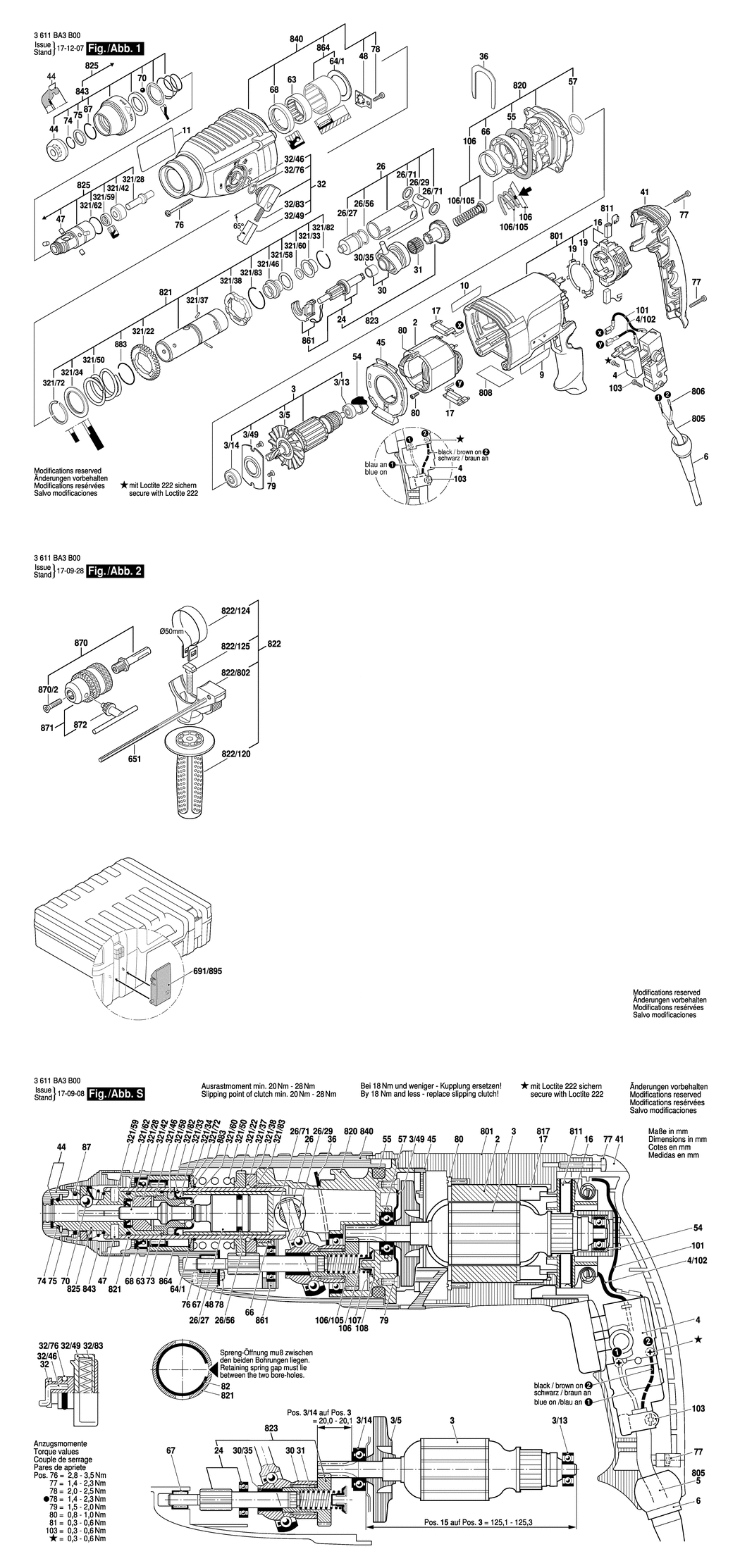

An exploded drawing and listing for the Bosch BH 2-26 / 3611BA3E00 / --- 230 Volt

	Ex VAT	Inc VAT
2 - FIELD 230V BSD-1614220117.A36 1614220117	£16.41	£19.69
3 - ARMATURE 230V BSD-1614010709.A56 1614010709	£46.82	£56.18
3/5 - FAN BSD-1616610094.A25 1616610094	£2.16	£2.59
3/13 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A363 1610905025	£6.52	£7.83
3/14 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A137 1610905048	£8.67	£10.41
3/49 - END SHIELD BSD-1615700044.A178 1615700044	£2.16	£2.59
4 - SWITCH BSD-1617200547.A9 1617200547	£23.86	£28.63
4/102 - CONNECTING CABLE BSD-1614449015.A93 1614449015	£1.75	£2.10
6 - GROMMET dia7.3-dia8.6x66 MM BSD-1600703034.A159 1600703034	£2.61	£3.13
9 - MANUFACTURER'S NAMEPLATE BSD-160111C2D4.A1 160111C2D4	£2.61	£3.13
10 - MANUFACTURER'S NAMEPLATE BSD-160111C2D5.A0 160111C2D5	£2.61	£3.13
11 - REFERENCE PLATE BSD-1611110X17.A36 1611110X17	£3.72	£4.47
16 - BRUSH PLATE BSD-1614336071.A3 1614336071	£16.41	£19.69
17 - SUPPRESSION FILTER BSD-1614465011.A151 1614465011	£6.52	£7.83
19 - SWITCH CONTACT BSD-1611329024.A155 1611329024	£1.75	£2.10
24 - TOOTHED SHAFT BSD-1617000556.A70 1617000556	£40.80	£48.96
26 - HAMMER PISTON BSD-1617000557.A6 1617000557	£36.63	£43.96
26/27 - STRIKER BSD-1610311018.A71 1610311018	£18.96	£22.75
26/29 - PISTON PIN BSD-1613105012.A24 1613105012	£3.72	£4.47
26/56 - O-RING BSD-1610210187.A51 1610210187	£2.16	£2.59
26/71 - SHIM WASHER 1.2 MM BSD-1610101011.A426 1610101011	£1.75	£2.10
30 - DRIVE BEARING BSD-1615819028.A83 1615819028	£33.45	£40.14
30/35 - PLAIN BEARING BSD-1610202024.A69 1610202024	£5.30	£6.36
31 - NEEDLE-ROLLER ASSEMBLY BSD-1610913016.A56 1610913016	£3.72	£4.47
32 - CLAMP HANDLE BSD-1612026068.A9 1612026068	£3.72	£4.47
32/46 - DRIVER PIN BSD-1614690002.A265 1614690002	£1.75	£2.10
32/49 - SWITCH BUTTON BSD-1612026069.A10 1612026069	£1.75	£2.10
32/76 - O-RING 10.5x2.7 MM BSD-1610210046.A415 1610210046	£2.16	£2.59
32/83 - COMPRESSION SPRING BSD-1614611006.A166 1614611006	£3.72	£4.47
36 - HOLDING PLATE BSD-1611016003.A53 1611016003	£2.16	£2.59
41 - HOUSING COVER BSD-1615500371.A0 1615500371	£10.10	£12.12
44 - PROTECTIVE CAP BSD-1610508047.A228 1610508047	£2.29	£2.75
45 - AIR-DEFLECTOR RING BSD-1610522013.A10 1610522013	£2.16	£2.59
47 - NEEDLE ROLLER BSD-1613100030.A21 1613100030	£2.80	£3.36
48 - TAB WASHER BSD-1611098008.A51 1611098008	£2.16	£2.59
54 - RUBBER BUSHING BSD-1610502012.A39 1610502012	£1.75	£2.10
55 - SEAL RING 53.0x7.0 MM BSD-1610290226.A111 1610290226	£3.72	£4.47
57 - O-RING 24.0x2.5 MM BSD-1610210068.A393 1610210068	£1.75	£2.10
63 - NEEDLE BEARING dia30xdia37x12 MM BSD-1610910063.A240 1610910063	£5.58	£6.70
64/1 - SUPPORTING DISC BSD-1610190060.A7 1610190060	£2.16	£2.59
66 - PLAIN BEARING BSD-1610202021.A67 1610202021	£2.61	£3.13
68 - ROTARY SHAFT LIP SEAL BSD-1610283036.A66 1610283036	£7.36	£8.83
70 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A231 1903230013	£2.16	£2.59
74 - RETAINING RING BSD-1614601027.A82 1614601027	£1.75	£2.10
75 - RETAINING WASHER BSD-1610101629.A126 1610101629	£1.75	£2.10
76 - THREAD-FORMING TAP. SCREW BSD-160343000A.A148 160343000A	£1.75	£2.10
77 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A201 2603490024	£1.75	£2.10
78 - SCREW 4x16 BSD-2603490022.A458 2603490022	£1.75	£2.10
79 - THREAD-FORMING TAP. SCREW BSD-1613435023.A140 1613435023	£1.75	£2.10
80 - SCREW BSD-1613435043.A56 1613435043	£1.75	£2.10
87 - RETAINING RING DIN 7993-A22 BSD-2916540012.A96 2916540012	-
101 - CONNECTING CABLE BSD-1614449014.A57 1614449014	£2.16	£2.59
103 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A1292 2603490017	£2.16	£2.59
106 - PLAIN BEARING BSD-1614611022.A57 1614611022	£2.61	£3.13
106/105 - COMPRESSION SPRING BSD-1614611021.A36 1614611021	£1.75	£2.10
321/22 - CYLINDRICAL GEAR BSD-1616312004.A96 1616312004	£12.04	£14.45
321/28 - STRIKER PIN BSD-1613124081.A51 1613124081	£10.10	£12.12
321/33 - HOLDING JACKET BSD-1610590014.A57 1610590014	£2.16	£2.59
321/34 - SUPPORTING DISC BSD-1610190067.A25 1610190067	£2.16	£2.59
321/37 - STRAIGHT PIN DIN6325-2.5x12-RIKO BSD-1613100019.A216 1613100019	£1.75	£2.10
321/38 - CATCH DISK BSD-1600A008AG.A88 1600A008AG	£3.72	£4.47
321/42 - THRUST RING BSD-1610102073.A46 1610102073	£5.30	£6.36
321/46 - GUIDE BUSHING BSD-1610390051.A47 1610390051	£6.52	£7.83
321/50 - COMPRESSION SPRING BSD-1614611020.A57 1614611020	£2.80	£3.36
321/58 - O-RING BSD-1610210178.A84 1610210178	£1.75	£2.10
321/59 - ROTARY SHAFT LIP SEAL BSD-1610283035.A34 1610283035	£5.58	£6.70
321/60 - O-RING 9.0x3.5 MM BSD-1610210176.A96 1610210176	£1.75	£2.10
321/62 - O-RING BSD-1610210179.A13 1610210179	£2.61	£3.13
321/72 - RETAINING RING BSD-1604601027.A144 1604601027	£1.75	£2.10
321/82 - RETAINING RING BSD-1614601034.A48 1614601034	£2.16	£2.59
321/83 - RETAINING RING A22 DIN 7993 BSD-1604601028.A129 1604601028	£1.75	£2.10
651 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A496 1613001009	£3.72	£4.47
691/895 - LOCK BSD-1615438426.A15 1615438426	£5.87	£7.04
801 - MOTOR HOUSING BSD-1617000886.A4 1617000886	£45.67	£54.80
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000392.A167 1607000392	£21.52	£25.83
806 - END SPLICE DIN 46 228-A1-6 BSD-1900452012.A511 1900452012	£1.75	£2.10
808 - NAMEPLATE BSD-160111A3HD.A140 160111A3HD	£2.61	£3.13
811 - CARBON-BRUSH SET BSD-1617000525.A238 1617000525	£11.30	£13.56
820 - INTERMEDIATE FLANGE BSD-16170006DX.A64 16170006DX	£30.28	£36.33
821 - PIPE BSD-1617000564.A0 1617000564	£63.50	£76.20
822 - AUXILIARY HANDLE BSD-1612025068.A4 1612025068	£18.96	£22.75
822/120 - AUXILIARY HANDLE BSD-160202507H.A312 160202507H	£11.30	£13.56
822/124 - CLAMPING BAND dia50 MM BSD-1611316021.A4 1611316021	£2.80	£3.36
822/125 - T-HEAD BOLT M8x40 MM BSD-1613490002.A18 1613490002	£4.26	£5.11
822/802 - SUPPORT CLAMP BSD-1617000476.A5 1617000476	£2.80	£3.36
823 - TOOTHED SHAFT BSD-1617000579.A56 1617000579	£37.72	£45.27
825 - TOOL HOLDING FIXTURE BSD-1617000598.A49 1617000598	£57.02	£68.42
840 - GEAR HOUSING BSD-1607000CW8.A0 1607000CW8	£45.67	£54.80
843 - PROTECTION SLEEVE BSD-1617000582.A38 1617000582	£11.30	£13.56
861 - SWITCHING ELEMENT BSD-1615820097.A139 1615820097	£5.30	£6.36
864 - SUPPORTING DISC BSD-1617000A07.A15 1617000A07	£11.30	£13.56
870 - DRILL CHUCK SHANK 1/2. SDS-Plus BSD-1613523011.A64 1613523011	-
870/2 - COUNTERSUNK-HEAD SCREW M6x27-Kdia11 BSD-2603421207.A118 2603421207	£1.75	£2.10
871 - CHUCK BSD-1608571088.A56 1608571088	£27.23	£32.68
872 - CHUCK WRENCH SG2 BSD-2607950007.A1780 2607950007	£6.52	£7.83
883 - RETAINING RING A22 DIN 7993 BSD-1604601028.A128 1604601028	£1.75	£2.10
