Bosch BMH 30-E / 0611222789 / EU 230 Volt Spare Parts

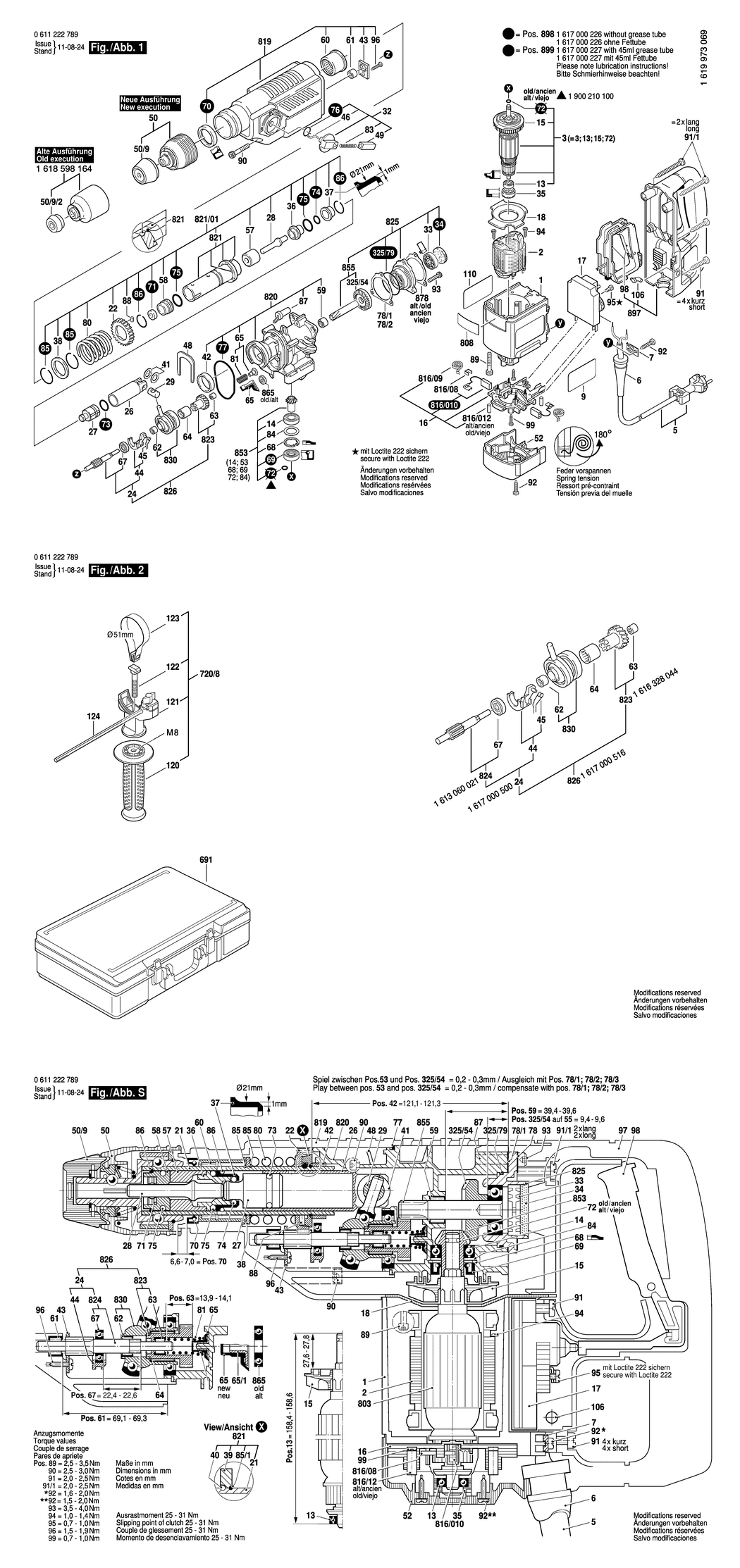

An exploded drawing and listing for the Bosch BMH 30-E / 0611222789 / EU 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615108067.A0 1615108067	-
2 - FIELD 230-240V BSD-2604220549.A4 2604220549	£33.74	£40.49
3 - ARMATURE WITH FAN 220-230V BSD-1614010128.A15 1614010128	£102.57	£123.08
5 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000227.A587 1607000227	£23.86	£28.63
6 - GROMMET dia9.7-dia12x89 MM BSD-1610703053.A121 1610703053	£2.61	£3.13
7 - FASTENING CLAMP BSD-1601302018.A649 1601302018	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1611110693.A0 1611110693	-
13 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A122 1610905025	£6.52	£7.83
14 - GROOVE BALL BEARING 12x28x8 BSD-1900900289.A27 1900900289	£11.30	£13.56
15 - FAN BSD-1606610132.A302 1606610132	£2.16	£2.59
16 - BRUSH HOLDER BSD-1614336019.A0 1614336019	£33.74	£40.49
17 - SPEED GOVERNOR 230V BSD-1617233018.A2 1617233018	£61.98	£74.38
18 - AIR-DEFLECTOR RING BSD-1610591011.A4 1610591011	£1.95	£2.34
22 - CYLINDRICAL GEAR Z=50 BSD-1616317602.A45 1616317602	£12.04	£14.45
24 - TOOTHED SHAFT Z=3/9 BSD-1617000500.A19 1617000500	£45.67	£54.80
26 - HAMMER PISTON BSD-1618700063.A6 1618700063	£16.41	£19.69
27 - STRIKER BSD-1618710060.A17 1618710060	£16.41	£19.69
28 - STRIKER PIN BSD-1613124043.A31 1613124043	£8.67	£10.41
29 - PISTON PIN BSD-1613105012.A296 1613105012	£3.72	£4.47
32 - CLAMP HANDLE BSD-1612026037.A173 1612026037	£10.82	£12.99
33 - PERFORATED DISK BSD-1610190016.A22 1610190016	-
34 - FELT DISC BSD-1610005000.A1 1610005000	£1.75	£2.10
35 - RUBBER RING BSD-1610206021.A276 1610206021	£1.75	£2.10
36 - GUIDE BUSHING BSD-1610390016.A17 1610390016	£9.49	£11.39
37 - DAMPING BUSHING dia21 MM BSD-1610390032.A3 1610390032	£5.58	£6.70
38 - SUPPORTING DISC BSD-1610102026.A100 1610102026	£2.61	£3.13
41 - SHIM WASHER 1.2 MM BSD-1610101011.A159 1610101011	£1.75	£2.10
42 - PLAIN BEARING BSD-1610202015.A92 1610202015	£2.80	£3.36
43 - TAB WASHER BSD-1611098005.A49 1611098005	£2.80	£3.36
44 - SWITCHING ELEMENT BSD-1615820092.A58 1615820092	£2.61	£3.13
45 - SWITCH SPRING BSD-1614651014.A61 1614651014	£1.75	£2.10
46 - DRIVER PIN BSD-1614690002.A61 1614690002	£1.75	£2.10
48 - HOLDING PLATE BSD-1611016003.A197 1611016003	£2.16	£2.59
49 - SWITCH BUTTON BSD-1612026035.A48 1612026035	£1.75	£2.10
50 - QUICK-CHANGE COLLET CHUCK L=70 MM BSD-1618598175.A3 1618598175	£68.42	£82.10
50/9 - PROTECTIVE CAP L=21.5 MM. SDS-PLUS BSD-1610508026.A22 1610508026	£4.26	£5.11
50/9/2 - PROTECTIVE CAP L=17 MM. SDS-PLUS BSD-1610508008.A227 1610508008	£2.16	£2.59
52 - COVER BSD-1615500293.A0 1615500293	-
57 - STOP BUSHING BSD-1610390025.A12 1610390025	£11.30	£13.56
58 - GUIDE RING BSD-1610390026.A22 1610390026	£13.12	£15.75
59 - NEEDLE BEARING BSD-1610910080.A22 1610910080	£3.34	£4.01
60 - NEEDLE-ROLLER BEARING BSD-1610910073.A83 1610910073	£11.30	£13.56
61 - NEEDLE BEARING BSD-1610910098.A74 1610910098	£3.72	£4.47
62 - PLAIN BEARING BSD-1610200020.A20 1610200020	£1.75	£2.10
62 - NEEDLE BEARING BSD-1610910074.A42 1610910074	£3.72	£4.47
63 - NEEDLE BEARING BSD-1610910064.A135 1610910064	£2.52	£3.02
64 - NEEDLE-ROLLER ASSEMBLY BSD-1610913010.A96 1610913010	£4.26	£5.11
65 - PLAIN BEARING BSD-1610591016.A1 1610591016	£2.80	£3.36
67 - GROOVE BALL BEARING BSD-1610905016.A75 1610905016	£10.10	£12.12
68 - RETAINING RING BSD-1610119009.A17 1610119009	£1.75	£2.10
69 - ROTARY SHAFT LIP SEAL BSD-1610283041.A34 1610283041	£6.52	£7.83
70 - ROTARY SHAFT LIP SEAL BSD-1610283023.A20 1610283023	£6.52	£7.83
71 - SCRAPER BSD-1610290029.A44 1610290029	£3.72	£4.47
73 - O-RING 17.0x3.0 MM BSD-1610210121.A3 1610210121	£2.61	£3.13
74 - O-RING 11.0x3.5 MM BSD-1610210104.A88 1610210104	£2.61	£3.13
75 - O-RING 18.0x3.5 MM BSD-1610210159.A26 1610210159	£2.80	£3.36
76 - O-RING 10.5x2.7 MM BSD-1610210046.A60 1610210046	£2.16	£2.59
77 - O-RING 60.0x3.0 MM BSD-1610210106.A97 1610210106	£2.61	£3.13
78/1 - SHIM 0.1 MM BSD-1610134005.A12 1610134005	£1.75	£2.10
78/2 - SHIM 0.2 MM BSD-1610134006.A22 1610134006	£1.75	£2.10
80 - COMPRESSION SPRING BSD-1614634006.A17 1614634006	£5.87	£7.04
81 - COMPRESSION SPRING BSD-1614611009.A12 1614611009	£1.75	£2.10
83 - COMPRESSION SPRING BSD-1614611006.A368 1614611006	£3.72	£4.47
84 - SUPPORTING DISC 1.2 MM BSD-1610101627.A32 1610101627	£1.75	£2.10
85 - RETAINING RING BSD-1614601011.A95 1614601011	£1.75	£2.10
86 - RETAINING RING BSD-1614601024.A18 1614601024	£1.75	£2.10
87 - SCREW BUSHING BSD-1610390027.A12 1610390027	£1.75	£2.10
88 - ROLLER BSD-1613200007.A62 1613200007	£1.75	£2.10
89 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x35-8.8 BSD-2910141168.A134 2910141168	£3.80	£4.56
90 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x35-8.8 BSD-2910141168.A135 2910141168	£3.80	£4.56
91 - TAPPING SCREW DIN 7971-ST4.8x25-F BSD-2910211036.A52 2910211036	£1.75	£2.10
91/1 - TAPPING SCREW DIN 7971-ST4.8x38-F BSD-2910211038.A51 2910211038	£1.75	£2.10
92 - TAPPING SCREW DIN7981-ST3.9x16-C-Z BSD-2912401019.A273 2912401019	£1.75	£2.10
93 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x20-8.8 BSD-2910141162.A99 2910141162	£2.16	£2.59
94 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A597 2603435015	£2.16	£2.59
95 - PAN HEAD SCREW DIN 85-M3.5x6-4.8 BSD-2910091082.A27 2910091082	£1.75	£2.10
96 - PLASTIC-CUTTING SCREW BSD-1603435037.A66 1603435037	£1.75	£2.10
96 - TAPPING SCREW DIN7981-ST3.9x13-C-Z BSD-2912401018.A85 2912401018	£1.75	£2.10
98 - SWITCH-PAWL BSD-1612026050.A4 1612026050	£2.61	£3.13
99 - TAPPING SCREW DIN 7971-ST2.9x9.5-F BSD-2910211005.A491 2910211005	£1.75	£2.10
106 - LIGHT CONDUCTOR BSD-1615510000.A68 1615510000	£2.16	£2.59
110 - REFERENCE PLATE BSD-1611110694.A0 1611110694	-
120 - AUXILIARY HANDLE BSD-160202507H.A229 160202507H	£11.30	£13.56
121 - SUPPORT CLAMP dia51x110 MM BSD-1618040054.A17 1618040054	£5.87	£7.04
122 - T-HEAD BOLT M8x40 MM BSD-1613490002.A368 1613490002	£4.26	£5.11
123 - CLAMPING BAND dia51 MM BSD-1611316009.A21 1611316009	£5.58	£6.70
124 - DEPTH-GAUGE SW 6x330 MM BSD-1613001008.A137 1613001008	£8.67	£10.41
325/54 - CROWN GEAR Z=32 BSD-1616333029.A20 1616333029	£13.12	£15.75
325/79 - O-RING 40.0x1.5 MM BSD-2600210003.A12 2600210003	£2.61	£3.13
691 - CARRYING CASE BSD-1615438243.A0 1615438243	-
720/8 - AUXILIARY HANDLE dia51 MM BSD-1617000358.A4 1617000358	£19.45	£23.34
808 - NAMEPLATE BSD-160111A3HC.A98 160111A3HC	£2.61	£3.13
816/08 - CONTACT STRAP BSD-1611323002.A4 1611323002	£1.95	£2.34
816/09 - SPIRAL SPRING BSD-1614652002.A25 1614652002	£1.75	£2.10
816/010 - CARBON-BRUSH SET BSD-1617014124.A1 1617014124	£14.91	£17.89
816/012 - RUBBER BUFFER BSD-1613212004.A50 1613212004	£3.72	£4.47
819 - IMPACT MECHANISM HOUSING BSD-1617000987.A0 1617000987	-
820 - GEAR HOUSING BSD-1617000315.A19 1617000315	£59.53	£71.44
821 - RATCHET SLEEVE BSD-1617000978.A10 1617000978	-
821/01 - RATCHET SLEEVE BSD-1617000979.A24 1617000979	£80.61	£96.73
823 - GEAR SLEEVE Z=25 BSD-1616328044.A32 1616328044	£27.31	£32.77
825 - BEARING FLANGE BSD-1615805064.A27 1615805064	-
826 - TOOTHED SHAFT Z=3/9 BSD-1617000516.A25 1617000516	£68.42	£82.10
830 - DRIVE BEARING BSD-1615819022.A22 1615819022	£63.50	£76.20
853 - PINION Z=15 BSD-1617000196.A7 1617000196	£45.67	£54.80
855 - JACK SHAFT Z=9 BSD-1617000982.A24 1617000982	-
865 - D-GROOVE BALL THR BEARING BSD-1610920007.A18 1610920007	£3.80	£4.56
878 - PLAIN WASHER 0.5 MM BSD-1610134008.A12 1610134008	£2.33	£2.80
897 - HANDLE BSD-1617000980.A6 1617000980	£31.64	£37.97
898 - WEAR AND TEAR PART SET BSD-1617000226.A0 1617000226	-
899 - WEAR AND TEAR PART SET BSD-1617000227.A0 1617000227	-
