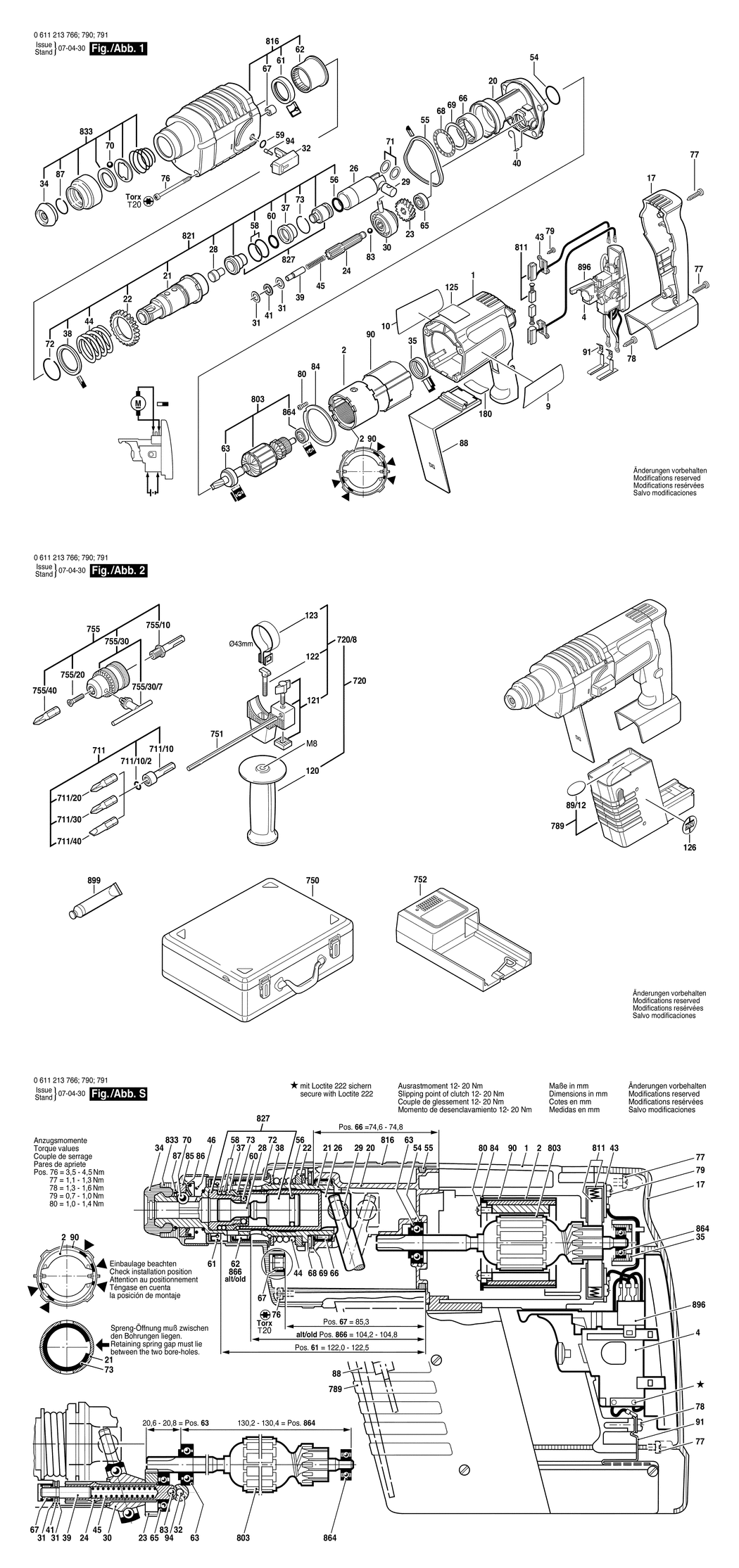

An exploded drawing and listing for the Bosch BRL 524 VE / 0611213766 / --- 24 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1615108056.A1 1615108056 -
2 - POLE HOUSING 24V BSD-1615100007.A39 1615100007 -
4 - ON-OFF SWITCH BSD-1617200041.A5 1617200041 -
9 - MANUFACTURER'S NAMEPLATE BSD-1611110663.A0 1611110663 -
10 - REFERENCE PLATE BSD-1611110732.A6 1611110732 -
17 - HOUSING COVER BSD-1615132040.A0 1615132040 -
20 - INTERMEDIATE FLANGE BSD-1615700037.A71 1615700037 £40.80 £48.96
21 - RATCHET SLEEVE SDS-PLUS BSD-1616490058.A57 1616490058 £218.41 £262.09
22 - CYLINDRICAL GEAR Z=46 BSD-1616320007.A138 1616320007 £7.36 £8.83
23 - CYLINDRICAL GEAR Z=6/21 BSD-1616320002.A39 1616320002 £24.45 £29.34
24 - TOOTHED SHAFT Z=6/10 BSD-1613060010.A108 1613060010 £54.42 £65.30
26 - HAMMER PISTON BSD-1618700052.A44 1618700052 £13.12 £15.75
28 - STRIKER PIN BSD-1613124026.A36 1613124026 £2.80 £3.36
29 - PISTON PIN BSD-1613105012.A172 1613105012 £3.72 £4.47
30 - DRIVE BEARING BSD-1615819005.A48 1615819005 £31.64 £37.97
31 - SUPPORT DISC 0.8 MM BSD-1610100003.A109 1610100003 £1.75 £2.10
32 - CLAMP HANDLE BSD-1612026023.A42 1612026023 £2.61 £3.13
34 - PROTECTIVE CAP L=17 MM. SDS-PLUS BSD-1610508008.A107 1610508008 £2.16 £2.59
35 - RUBBER RING BSD-1610206021.A60 1610206021 £1.75 £2.10
37 - DAMPING BUSHING BSD-1610390011.A71 1610390011 £3.72 £4.47
38 - SUPPORTING DISC BSD-1610102022.A75 1610102022 £2.16 £2.59
39 - STRAIGHT PIN BSD-1613100013.A98 1613100013 £2.16 £2.59
40 - HOLDING SPRING BSD-1614690001.A45 1614690001 £1.75 £2.10
41 - ROLLER-CAGE ASSEMBLY BSD-1610920003.A142 1610920003 £4.26 £5.11
43 - BRUSH PLATE BSD-2601015047.A86 2601015047 -
44 - COMPRESSION SPRING BSD-1614633001.A89 1614633001 £2.52 £3.02
45 - COMPRESSION SPRING BSD-1614614001.A145 1614614001 £1.75 £2.10
54 - O-RING 24.0x2.5 MM BSD-1610210068.A83 1610210068 £1.75 £2.10
55 - SEAL RING BSD-1610206023.A112 1610206023 £2.80 £3.36
56 - O-RING 14.0x3.0 MM BSD-1610210070.A68 1610210070 £2.61 £3.13
58 - O-RING 18.0x3.0 MM BSD-1610210058.A46 1610210058 £2.61 £3.13
59 - O-RING 6.0x2.5 MM BSD-1610210069.A105 1610210069 £1.75 £2.10
60 - O-RING 10.0x3.5 MM BSD-1610210073.A80 1610210073 £2.16 £2.59
61 - ROTARY SHAFT LIP SEAL BSD-1610283017.A109 1610283017 £7.36 £8.83
62 - PLAIN BEARING BSD-1610202026.A90 1610202026 £5.30 £6.36
63 - GROOVE BALL BEARING BSD-1610905012.A8 1610905012 -
65 - GROOVE BALL BEARING 8x22x7 BSD-1900900228.A45 1900900228 £6.61 £7.93
66 - NEEDLE BEARING dia30xdia37x12 MM BSD-1610910063.A69 1610910063 £5.58 £6.70
67 - NEEDLE BEARING BSD-1610910064.A257 1610910064 £2.52 £3.02
68 - ROLLER-CAGE ASSEMBLY BSD-1610920004.A31 1610920004 £3.80 £4.56
69 - SUPPORT DISC 1.0 MM BSD-1610102618.A52 1610102618 -
70 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A466 1903230013 £2.16 £2.59
71 - SHIM WASHER 1.2 MM BSD-1610101011.A49 1610101011 £1.75 £2.10
72 - RETAINING RING DIN 7993-A32 BSD-2916540018.A105 2916540018 £3.72 £4.47
73 - RETAINING RING DIN 9045-24 BSD-1614601009.A78 1614601009 £1.95 £2.34
76 - TAPPING SCREW ST-4.8x57.5-TORX.T20 BSD-1613435009.A84 1613435009 £1.75 £2.10
77 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A225 2910211021 £1.75 £2.10
78 - TAPPING SCREW DIN 7971-B3.9x9.5 BSD-2910211217.A35 2910211217 -
79 - TAPPING SCREW DIN 7971-B 2.9x13 BSD-2910211206.A27 2910211206 £1.32 £1.58
80 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A342 2603435015 £2.16 £2.59
83 - BALL 5 MM V DIN 5401 BSD-1903230309.A90 1903230309 £1.75 £2.10
84 - FASTENING FLANGE BSD-1610120024.A13 1610120024 -
87 - RETAINING RING DIN 7993-A22 BSD-2916540012.A318 2916540012 -
88 - CONSOLE BSD-1615719016.A31 1615719016 -
89/12 - STICKER BSD-2601110999.A62 2601110999 £1.75 £2.10
90 - INSULATING SLEEVE BSD-1610499010.A17 1610499010 -
91 - CONTACT SPRING BSD-1611329006.A9 1611329006 -
94 - DETENT PIN BSD-1613120017.A84 1613120017 £1.75 £2.10
120 - AUXILIARY HANDLE M8 BSD-1612025019.A402 1612025019 £6.52 £7.83
121 - SUPPORT CLAMP dia43 MM BSD-1618040048.A25 1618040048 £8.67 £10.41
122 - T-HEAD BOLT M8x40 MM BSD-1613490002.A473 1613490002 £4.26 £5.11
123 - CLAMPING BAND dia43 MM BSD-1611316006.A267 1611316006 £2.61 £3.13
125 - MANUFACTURER'S NAMEPLATE BSD-1611110631.A7 1611110631 -
126 - STICKER BSD-1611110274.A10 1611110274 -
711 - PARTS SET BSD-1617000133.A124 1617000133 -
711/10/2 - RETAINING RING BSD-2604601004.A156 2604601004 £1.75 £2.10
720 - AUXILIARY HANDLE dia43 MM BSD-2602025070.A18 2602025070 £14.91 £17.89
720/8 - PARTS SET BSD-1617000925.A43 1617000925 £16.41 £19.69
750 - CARRYING CASE BSD-1615438233.A0 1615438233 -
751 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A277 1613001009 £3.72 £4.47
755 - PARTS SET BSD-1617000176.A7 1617000176 -
755/10 - DRILL CHUCK SHANK 1/2. SDS-Plus BSD-1613523011.A111 1613523011 -
755/20 - COUNTERSUNK-HEAD SCREW M6x23 BSD-2603421229.A284 2603421229 £1.75 £2.10
755/30 - CHUCK BSD-1608571088.A87 1608571088 £27.23 £32.68
755/30/7 - CHUCK WRENCH SG2 BSD-2607950007.A505 2607950007 £6.52 £7.83
755/40 - SCREWDRIVER BIT GR.2 BSD-1608521029.A7 1608521029 -
789 - CADMIUM-NICKEL BATTERY 24V. 1.4AH. NiCd BSD-1617334003.A1 1617334003 -
803 - ARMATURE 24V BSD-1614010114.A12 1614010114 -
811 - CARBON-BRUSH SET BSD-1617014119.A21 1617014119 -
816 - GEAR HOUSING BSD-1615806077.A10 1615806077 £45.67 £54.80
821 - RATCHET SLEEVE BSD-1617000931.A27 1617000931 £283.50 £340.20
827 - STRIKER BSD-1617000338.A38 1617000338 £27.23 £32.68
833 - PROTECTION SLEEVE BSD-1617000163.A55 1617000163 £7.36 £8.83
864 - GROOVE BALL BEARING 7x19x6 BSD-1610905032.A168 1610905032 £5.30 £6.36
896 - SWITCH BSD-1617200042.A22 1617200042 £16.41 £19.69
899 - GREASE TUBE 225 ML BSD-3605430009.A43 3605430009 £45.67 £54.80
