Bosch GAH 500 DSR / 0611221703 / EU 230 Volt Spare Parts

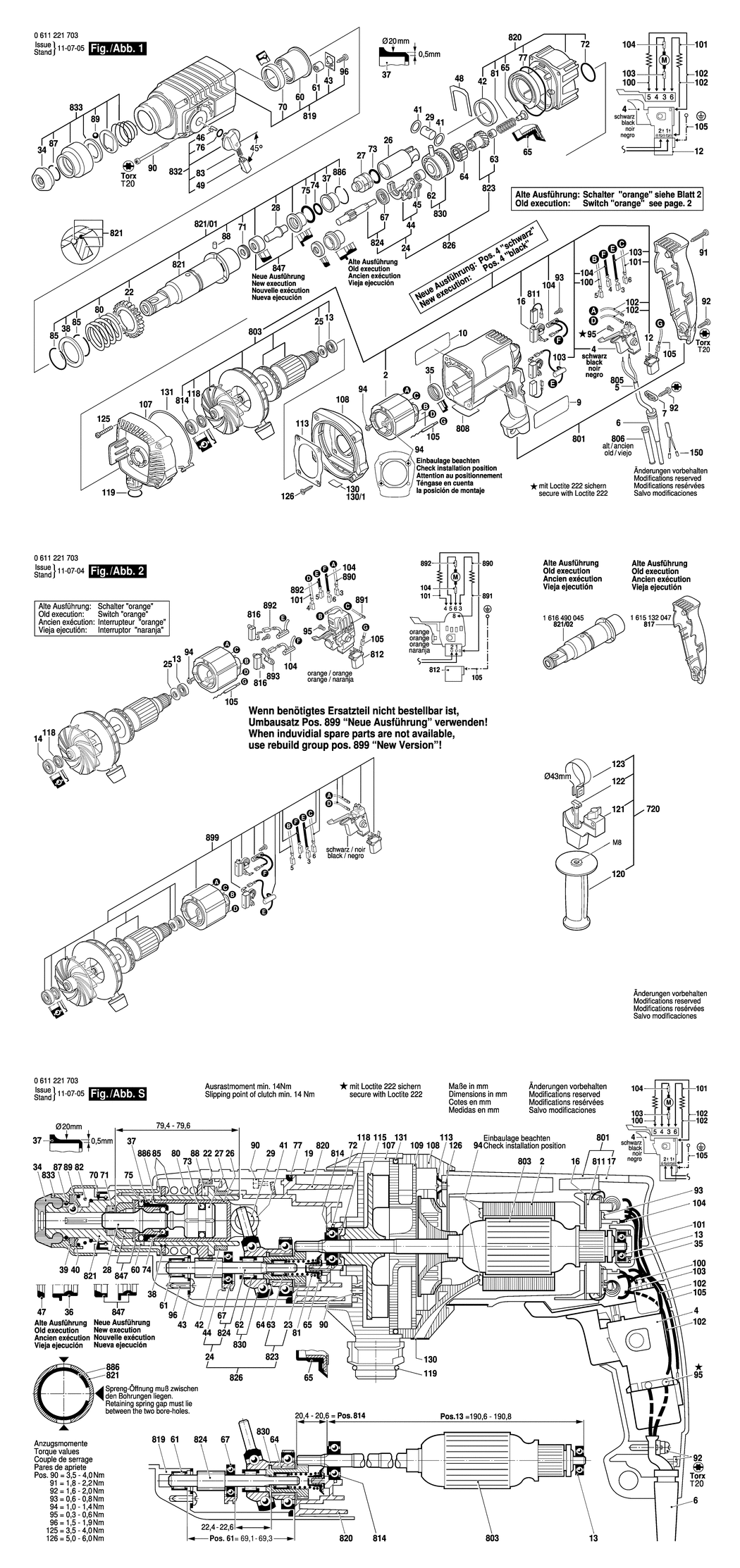

An exploded drawing and listing for the Bosch GAH 500 DSR / 0611221703 / EU 230 Volt

	Ex VAT	Inc VAT
2 - FIELD BSD-2604220722.A1 2604220722	£23.86	£28.63
4 - SWITCH BSD-1617200077.A25 1617200077	£33.74	£40.49
6 - GROMMET dia7.3-dia8.6x76 MM BSD-2600703018.A305 2600703018	£2.61	£3.13
7 - CABLE CLIP BSD-1611035005.A157 1611035005	£2.16	£2.59
9 - MANUFACTURER'S NAMEPLATE BSD-1611110628.A2 1611110628	£2.33	£2.80
10 - REFERENCE PLATE BSD-1611110632.A1 1611110632	-
12 - SUPPRESSION FILTER BSD-1617328026.A39 1617328026	£7.36	£8.83
13 - BALL BEARING BSD-1610900037.A5 1610900037	£2.61	£3.13
16 - BRUSH HOLDER BSD-1617000343.A57 1617000343	£11.30	£13.56
22 - CYLINDRICAL GEAR Z=50 BSD-1616317602.A35 1616317602	£12.04	£14.45
24 - TOOTHED SHAFT Z=3/9 BSD-1617000518.A74 1617000518	£40.80	£48.96
25 - SHIM WASHER BSD-1610121002.A2 1610121002	£1.75	£2.10
26 - HAMMER PISTON BSD-1618700062.A30 1618700062	£14.91	£17.89
27 - STRIKER BSD-1618710057.A4 1618710057	£16.41	£19.69
28 - STRIKER PIN BSD-1613124040.A1 1613124040	£5.30	£6.36
29 - PISTON PIN BSD-1613105012.A278 1613105012	£3.72	£4.47
34 - PROTECTIVE CAP L=17 MM. SDS-PLUS BSD-1610508008.A149 1610508008	£2.16	£2.59
35 - RUBBER RING BSD-1610206021.A226 1610206021	£1.75	£2.10
37 - DAMPING BUSHING BSD-1610390017.A10 1610390017	£5.30	£6.36
38 - SUPPORTING DISC BSD-1610102026.A77 1610102026	£2.61	£3.13
41 - SHIM WASHER 1.2 MM BSD-1610101011.A205 1610101011	£1.75	£2.10
42 - PLAIN BEARING BSD-1610202015.A48 1610202015	£2.80	£3.36
43 - TAB WASHER BSD-1611098005.A38 1611098005	£2.80	£3.36
44 - SWITCHING ELEMENT BSD-1615820092.A16 1615820092	£2.61	£3.13
45 - SWITCH SPRING BSD-1614651014.A103 1614651014	£1.75	£2.10
46 - DRIVER PIN BSD-1614690002.A11 1614690002	£1.75	£2.10
48 - HOLDING PLATE BSD-1611016003.A234 1611016003	£2.16	£2.59
49 - SWITCH BUTTON BSD-1612026035.A26 1612026035	£1.75	£2.10
60 - NEEDLE-ROLLER BEARING BSD-1610910073.A33 1610910073	£11.30	£13.56
61 - NEEDLE BEARING BSD-1610910098.A136 1610910098	£3.72	£4.47
62 - NEEDLE BEARING BSD-1610910074.A88 1610910074	£3.72	£4.47
63 - NEEDLE BEARING BSD-1610910064.A212 1610910064	£2.52	£3.02
64 - NEEDLE-ROLLER ASSEMBLY BSD-1610913010.A128 1610913010	£4.26	£5.11
65 - PLAIN BEARING BSD-1610591016.A60 1610591016	£2.80	£3.36
67 - GROOVE BALL BEARING BSD-1610905016.A6 1610905016	£10.10	£12.12
70 - SHAFT SEAL BSD-1610283019.A60 1610283019	£7.36	£8.83
71 - SCRAPER BSD-1610290029.A122 1610290029	£3.72	£4.47
72 - O-RING 24.0x2.5 MM BSD-1610210068.A159 1610210068	£1.75	£2.10
73 - O-RING BSD-1610210187.A164 1610210187	£2.16	£2.59
74 - O-RING 11.0x3.5 MM BSD-1610210104.A140 1610210104	£2.61	£3.13
75 - O-RING 18.0x3.5 MM BSD-1610210105.A5 1610210105	£4.26	£5.11
76 - O-RING 10.5x2.7 MM BSD-1610210046.A14 1610210046	£2.16	£2.59
77 - O-RING 60.0x3.0 MM BSD-1610210106.A140 1610210106	£2.61	£3.13
80 - COMPRESSION SPRING BSD-1614634005.A28 1614634005	£1.75	£2.10
81 - COMPRESSION SPRING BSD-1614611009.A64 1614611009	£1.75	£2.10
83 - COMPRESSION SPRING BSD-1614611006.A321 1614611006	£3.72	£4.47
85 - RETAINING RING BSD-1614601011.A85 1614601011	£1.75	£2.10
87 - RETAINING RING DIN 7993-A22 BSD-2916540012.A212 2916540012	-
88 - ROLLER BSD-1613200007.A133 1613200007	£1.75	£2.10
89 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A714 1903230013	£2.16	£2.59
90 - SOCKET HEAD CAP SCREW DIN 84-M5x65-4.8 BSD-1613410004.A4 1613410004	-
91 - LENS HEAD SCREW 4x32 BSD-2603490026.A158 2603490026	£1.75	£2.10
92 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A124 2603490023	£1.75	£2.10
93 - TAPPING SCREW DIN 7971-ST2.9x9.5-F BSD-2910211005.A447 2910211005	£1.75	£2.10
94 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A519 2603435015	£2.16	£2.59
95 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2807 2603410001	£1.75	£2.10
96 - TAPPING SCREW DIN7981-ST3.9x13-C-Z BSD-2912401018.A156 2912401018	£1.75	£2.10
100 - CONNECTING CABLE L=55 MM BSD-1614448017.A78 1614448017	£2.16	£2.59
101 - CONNECTING CABLE L=78 MM BSD-2604448137.A44 2604448137	-
102 - CABLE L=130 MM BSD-2604448005.A73 2604448005	£1.75	£2.10
103 - SUPPRESSION FILTER L=126 MM BSD-2604465097.A16 2604465097	£5.58	£6.70
104 - SUPPRESSION FILTER L=148 MM BSD-2604465086.A145 2604465086	£5.58	£6.70
105 - EARTH CONDUCTOR BSD-1614449011.A3 1614449011	-
107 - BLOWER CASING BSD-1615190042.A2 1615190042	-
108 - FAN HOUSING BSD-1615190044.A12 1615190044	£27.31	£32.77
113 - PROFILE PLATE BSD-1611038017.A0 1611038017	-
118 - SEALING DISK 609 AV NILOS-RING BSD-2916130027.A9 2916130027	£5.01	£6.01
119 - O-RING 23.0x3.0 MM BSD-1610210045.A19 1610210045	£2.61	£3.13
120 - AUXILIARY HANDLE dia43 MM BSD-2602025070.A122 2602025070	£14.91	£17.89
121 - SUPPORT CLAMP dia43 MM BSD-1618040048.A99 1618040048	£8.67	£10.41
122 - T-HEAD BOLT M8x40 MM BSD-1613490002.A427 1613490002	£4.26	£5.11
123 - CLAMPING BAND dia43 MM BSD-1611316006.A162 1611316006	£2.61	£3.13
125 - SOCKET HEAD CAP SCREW DIN 84-AM5x35-8.8 BSD-2910021168.A9 2910021168	-
126 - REC CT-SUNK TAPPING SCREW BSD-1613435005.A10 1613435005	£2.33	£2.80
130 - STICKER BSD-1611110640.A3 1611110640	-
131 - SEALING FRAME BSD-1611015039.A14 1611015039	£3.80	£4.56
653 - PLUG BSD-1610591008.A21 1610591008	£5.87	£7.04
801 - MOTOR HOUSING BSD-1617000477.A18 1617000477	£18.96	£22.75
802 - FIELD 220-230V BSD-2604220514.A1 2604220514	-
803 - ARMATURE WITH FAN 230V BSD-1614010796.A0 1614010796	-
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1614460026.A10 1614460026	£18.96	£22.75
806 - GROMMET dia7.6-dia8.2x95 MM BSD-2600703013.A645 2600703013	£2.61	£3.13
808 - NAMEPLATE BSD-160111A3H5.A160 160111A3H5	£2.61	£3.13
811 - CARBON BRUSH BSD-1607014117.A142 1607014117	£10.10	£12.12
812 - SUPPRESSION FILTER BSD-1607328040.A128 1607328040	£6.52	£7.83
814 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A265 1610905048	£8.67	£10.41
816 - BRUSH HOLDER BSD-2604337016.A75 2604337016	£1.75	£2.10
817 - HOUSING COVER BSD-1615132047.A11 1615132047	-
819 - GEAR HOUSING BSD-1615806093.A5 1615806093	£48.38	£58.06
820 - INTERMEDIATE FLANGE BSD-1617000981.A46 1617000981	£27.23	£32.68
821 - RATCHET SLEEVE SDS-PLUS BSD-1616490061.A89 1616490061	£59.53	£71.44
821/01 - RATCHET SLEEVE SDS-PLUS BSD-1616490060.A8 1616490060	£72.18	£86.62
823 - GEAR SLEEVE Z=26/6 BSD-1616328042.A6 1616328042	£40.80	£48.96
826 - TOOTHED SHAFT Z=3/9 BSD-1617000517.A51 1617000517	£72.18	£86.62
830 - DRIVE BEARING BSD-1615819018.A30 1615819018	£51.22	£61.47
832 - CLAMP HANDLE BSD-1612026037.A193 1612026037	£10.82	£12.99
833 - PROTECTION SLEEVE BSD-1617000163.A130 1617000163	£7.36	£8.83
847 - GUIDE RING BSD-1617000348.A74 1617000348	£14.91	£17.89
886 - RETAINING RING BSD-1614601024.A69 1614601024	£1.75	£2.10
890 - CONNECTING CABLE L = 123 MM BSD-2604448145.A35 2604448145	-
891 - CONNECTING CABLE L=176 MM BSD-2604448004.A34 2604448004	£1.32	£1.58
892 - SUPPRESSION FILTER L= 156 MM BSD-2604465087.A1 2604465087	£5.01	£6.01
893 - PLATE BSD-2600034003.A35 2600034003	-
899 - MODIFICATION SET BSD-1617000682.A3 1617000682	-
