Bosch GBH 2-26 E / 0611251603 / EU 230 Volt Spare Parts

Home Details Reviews Delivery

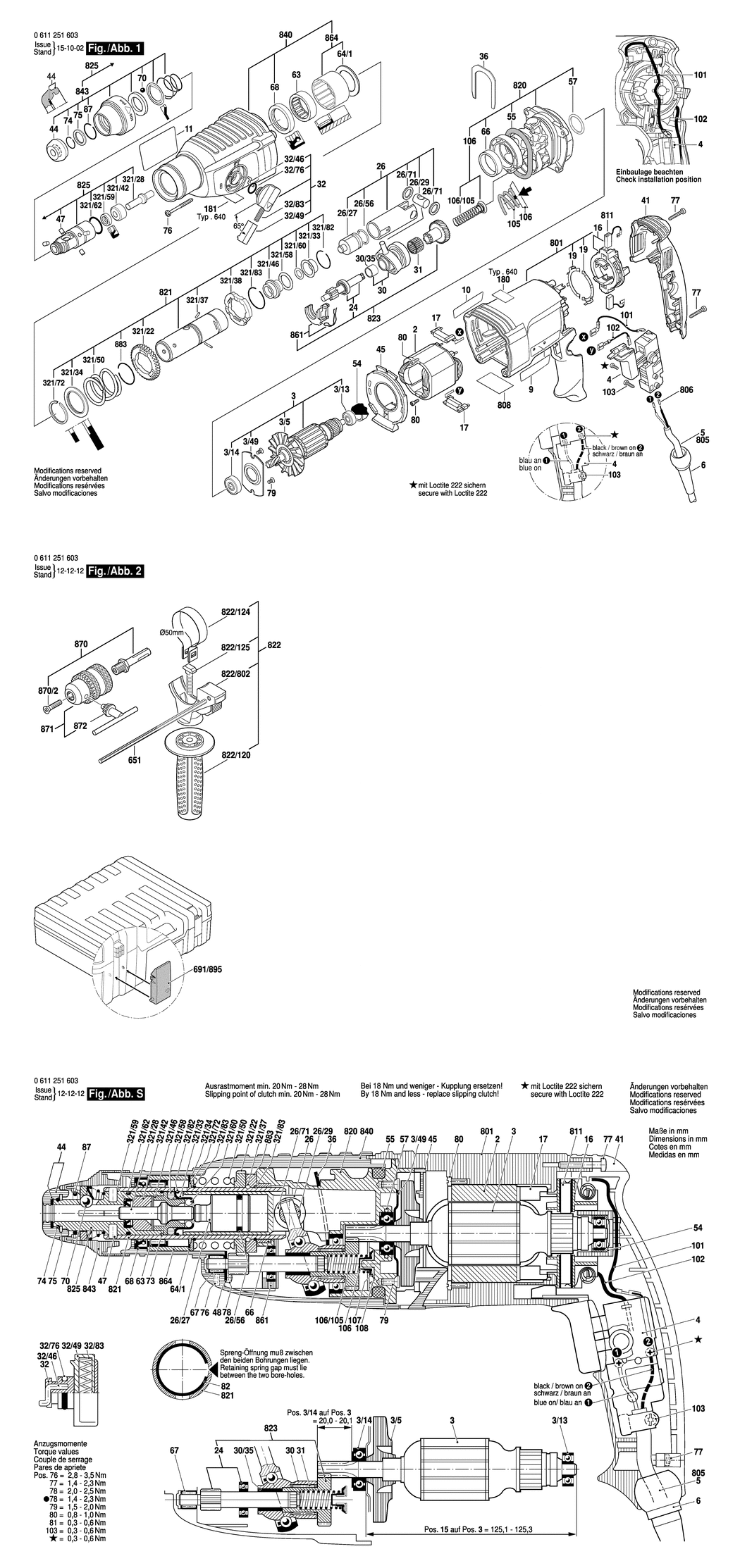

An exploded drawing and listing for the Bosch GBH 2-26 E / 0611251603 / EU 230 Volt

	Ex VAT	Inc VAT
2 - FIELD 230V BSD-1614220117.A67 1614220117	£16.41	£19.69
3 - ARMATURE 230V BSD-1614010709.A9 1614010709	£46.82	£56.18
3/5 - FAN BSD-1616610094.A43 1616610094	£2.16	£2.59
3/13 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A82 1610905025	£6.52	£7.83
3/14 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A196 1610905048	£8.67	£10.41
3/49 - END SHIELD BSD-1615700044.A50 1615700044	£2.16	£2.59
4 - SWITCH BSD-1617200532.A21 1617200532	£21.68	£26.01
6 - GROMMET dia7.3-dia8.6x66 MM BSD-1600703034.A31 1600703034	£2.61	£3.13
9 - MANUFACTURER'S NAMEPLATE GBH 2-26 E BSD-1611110X52.A0 1611110X52	£3.34	£4.01
10 - MANUFACTURER'S NAMEPLATE GBH 2-26 E BSD-1611110X53.A0 1611110X53	£3.34	£4.01
11 - REFERENCE PLATE BSD-1611110X42.A3 1611110X42	£3.72	£4.47
16 - BRUSH PLATE BSD-1614336058.A5 1614336058	£18.96	£22.75
17 - SUPPRESSION FILTER BSD-1614465011.A23 1614465011	£6.52	£7.83
19 - SWITCH CONTACT BSD-1611329024.A43 1611329024	£1.75	£2.10
24 - TOOTHED SHAFT BSD-1617000589.A1 1617000589	£40.80	£48.96
26 - HAMMER PISTON BSD-1617000557.A92 1617000557	£36.63	£43.96
26/27 - STRIKER BSD-1610311018.A42 1610311018	£18.96	£22.75
26/29 - PISTON PIN BSD-1613105012.A342 1613105012	£3.72	£4.47
26/56 - O-RING BSD-1610210187.A109 1610210187	£2.16	£2.59
26/71 - SHIM WASHER 1.2 MM BSD-1610101011.A303 1610101011	£1.75	£2.10
30 - DRIVE BEARING BSD-1615819028.A1 1615819028	£33.45	£40.14
30/35 - PLAIN BEARING BSD-1610202024.A43 1610202024	£5.30	£6.36
31 - NEEDLE-ROLLER ASSEMBLY BSD-1610913016.A0 1610913016	£3.72	£4.47
32 - CLAMP HANDLE BSD-1612026037.A106 1612026037	£10.82	£12.99
32/46 - DRIVER PIN BSD-1614690002.A128 1614690002	£1.75	£2.10
32/49 - SWITCH BUTTON BSD-1612026035.A132 1612026035	£1.75	£2.10
32/76 - O-RING 10.5x2.7 MM BSD-1610210046.A119 1610210046	£2.16	£2.59
32/83 - COMPRESSION SPRING BSD-1614611006.A263 1614611006	£3.72	£4.47
36 - HOLDING PLATE BSD-1611016003.A147 1611016003	£2.16	£2.59
41 - HOUSING COVER BSD-1615500344.A2 1615500344	£8.67	£10.41
44 - PROTECTIVE CAP BSD-1610508047.A31 1610508047	£2.29	£2.75
45 - AIR-DEFLECTOR RING BSD-1610522013.A27 1610522013	£2.16	£2.59
47 - NEEDLE ROLLER BSD-1613100030.A56 1613100030	£2.80	£3.36
54 - RUBBER BUSHING BSD-1610502016.A77 1610502016	£1.75	£2.10
55 - SEAL RING 53.0x7.0 MM BSD-1610290226.A35 1610290226	£3.72	£4.47
57 - O-RING 24.0x2.5 MM BSD-1610210068.A289 1610210068	£1.75	£2.10
63 - NEEDLE BEARING dia30xdia37x12 MM BSD-1610910063.A118 1610910063	£5.58	£6.70
64/1 - SUPPORTING DISC BSD-1610190060.A94 1610190060	£2.16	£2.59
66 - PLAIN BEARING BSD-1610202021.A97 1610202021	£2.61	£3.13
68 - ROTARY SHAFT LIP SEAL BSD-1610283036.A42 1610283036	£7.36	£8.83
70 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A619 1903230013	£2.16	£2.59
74 - RETAINING RING BSD-1614601027.A102 1614601027	£1.75	£2.10
75 - RETAINING WASHER BSD-1610101629.A10 1610101629	£1.75	£2.10
76 - THREAD-FORMING TAP. SCREW BSD-160343000A.A32 160343000A	£1.75	£2.10
77 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A1090 2603490024	£1.75	£2.10
79 - THREAD-FORMING TAP. SCREW BSD-1613435023.A192 1613435023	£1.75	£2.10
80 - SCREW BSD-1613435043.A89 1613435043	£1.75	£2.10
87 - RETAINING RING DIN 7993-A22 BSD-2916540012.A254 2916540012	-
101 - CONNECTING CABLE BSD-1614449014.A20 1614449014	£2.16	£2.59
102 - CONNECTING CABLE BSD-1614449015.A130 1614449015	£1.75	£2.10
103 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A492 2603490017	£2.16	£2.59
106 - PLAIN BEARING BSD-1614611022.A12 1614611022	£2.61	£3.13
106/105 - COMPRESSION SPRING BSD-1614611021.A81 1614611021	£1.75	£2.10
321/22 - CYLINDRICAL GEAR BSD-1616312004.A136 1616312004	£12.04	£14.45
321/28 - STRIKER PIN BSD-1613124081.A15 1613124081	£10.10	£12.12
321/33 - HOLDING JACKET BSD-1610590014.A12 1610590014	£2.16	£2.59
321/34 - SUPPORTING DISC BSD-1610190067.A153 1610190067	£2.16	£2.59
321/37 - STRAIGHT PIN DIN6325-2.5x12-RIKO BSD-1613100019.A3 1613100019	£1.75	£2.10
321/38 - CATCH DISK BSD-1600A008AG.A168 1600A008AG	£3.72	£4.47
321/42 - THRUST RING BSD-1610102073.A61 1610102073	£5.30	£6.36
321/46 - GUIDE BUSHING BSD-1610390051.A15 1610390051	£6.52	£7.83
321/50 - COMPRESSION SPRING BSD-1614611020.A12 1614611020	£2.80	£3.36
321/58 - O-RING BSD-1610210178.A0 1610210178	£1.75	£2.10
321/59 - ROTARY SHAFT LIP SEAL BSD-1610283035.A49 1610283035	£5.58	£6.70
321/60 - O-RING 9.0x3.5 MM BSD-1610210176.A0 1610210176	£1.75	£2.10
321/62 - O-RING BSD-1610210179.A56 1610210179	£2.61	£3.13
321/72 - RETAINING RING BSD-1604601027.A226 1604601027	£1.75	£2.10
321/82 - RETAINING RING BSD-1614601034.A12 1614601034	£2.16	£2.59
321/83 - RETAINING RING A22 DIN 7993 BSD-1604601028.A0 1604601028	£1.75	£2.10
651 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A63 1613001009	£3.72	£4.47
691/895 - LOCK BSD-1615438409.A77 1615438409	£6.52	£7.83
691/895 - LOCK BSD-1615438431.A60 1615438431	£6.52	£7.83
801 - MOTOR HOUSING BSD-1617000V67.A2 1617000V67	£33.74	£40.49
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1614460026.A65 1614460026	£18.96	£22.75
806 - END SPLICE DIN 46 228-A1-6 BSD-1900452012.A193 1900452012	£1.75	£2.10
808 - NAMEPLATE BSD-160111A3H5.A79 160111A3H5	£2.61	£3.13
811 - CARBON-BRUSH SET BSD-1617000525.A5 1617000525	£11.30	£13.56
811 - CARBON-BRUSH SET 10 x 1 617 000 525 BSD-1607000485.A100 1607000485	£72.18	£86.62
820 - INTERMEDIATE FLANGE BSD-16170006DX.A43 16170006DX	£30.28	£36.33
821 - PIPE BSD-1617000564.A47 1617000564	£63.50	£76.20
822 - AUXILIARY HANDLE BSD-160202508X.A114 160202508X	£18.96	£22.75
822/120 - AUXILIARY HANDLE BSD-160202507H.A77 160202507H	£11.30	£13.56
822/124 - CLAMPING BAND dia50 MM BSD-1611316021.A165 1611316021	£2.80	£3.36
822/125 - T-HEAD BOLT M8x40 MM BSD-1613490002.A300 1613490002	£4.26	£5.11
822/802 - SUPPORT CLAMP BSD-1617000475.A0 1617000475	£10.10	£12.12
823 - TOOTHED SHAFT BSD-1617000597.A4 1617000597	£48.38	£58.06
825 - TOOL HOLDING FIXTURE BSD-1617000598.A0 1617000598	£57.02	£68.42
840 - GEAR HOUSING BSD-1617000599.A5 1617000599	£48.38	£58.06
843 - PROTECTION SLEEVE BSD-1617000582.A11 1617000582	£11.30	£13.56
861 - SWITCHING ELEMENT BSD-1615820097.A11 1615820097	£5.30	£6.36
864 - SUPPORTING DISC BSD-1617000A07.A52 1617000A07	£11.30	£13.56
870 - DRILL CHUCK SHANK 1/2. SDS-Plus BSD-1613523011.A110 1613523011	-
870/2 - COUNTERSUNK-HEAD SCREW M6x27-Kdia11 BSD-2603421207.A15 2603421207	£1.75	£2.10
871 - CHUCK BSD-1608571088.A163 1608571088	£27.23	£32.68
872 - CHUCK WRENCH SG2 BSD-2607950007.A640 2607950007	£6.52	£7.83
883 - RETAINING RING A22 DIN 7993 BSD-1604601028.A1 1604601028	£1.75	£2.10

Attribute Name	Value
Brand	Bosch
