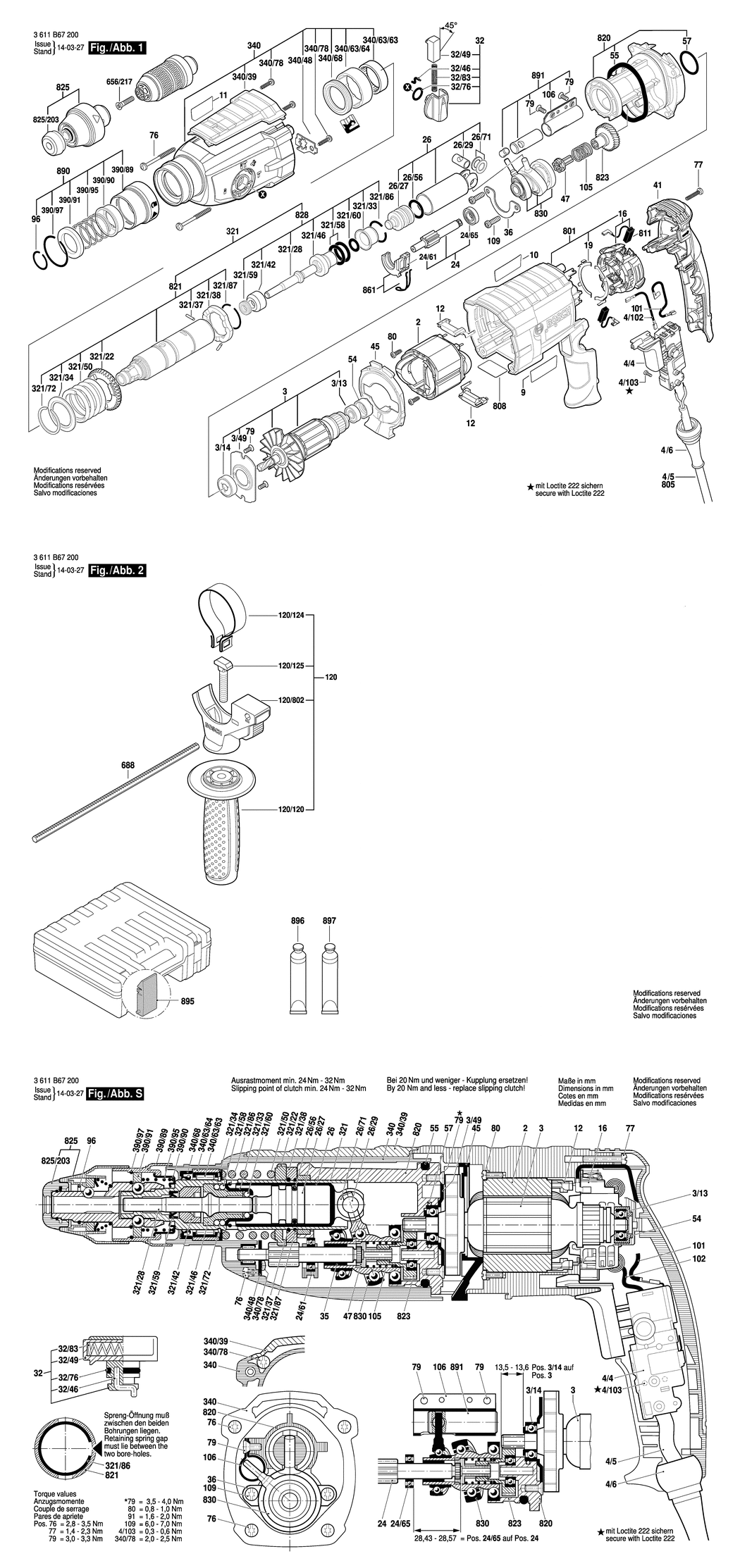

An exploded drawing and listing for the Bosch GBH 2-28 DFV / 3611B67260 / --- 110 Volt
Ex VAT Inc VAT
2 - FIELD 115V BSD-1614220210.A1 1614220210 £21.52 £25.83
3 - ARMATURE 100V BSD-1614010264.A0 1614010264 £63.50 £76.20
3/13 - GROOVE BALL BEARING 7x19x6 BSD-1610905032.A54 1610905032 £5.30 £6.36
3/14 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A33 1610905048 £8.67 £10.41
3/49 - END SHIELD BSD-1615700044.A92 1615700044 £2.16 £2.59
4/4 - SWITCH BSD-1617200131.A4 1617200131 £23.86 £28.63
4/5 - POWER SUPPLY CORD GB 110V 4.15m 2 x 1.0mm H07 RN-F BSD-1614460061.A52 1614460061 £21.68 £26.01
4/6 - GROMMET dia7.3-dia8.6x66 MM BSD-1600703034.A73 1600703034 £2.61 £3.13
4/102 - CONNECTING CABLE BSD-1614449015.A50 1614449015 £1.75 £2.10
4/103 - LENS HEAD SCREW 3x10 ST BSD-1613435034.A275 1613435034 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE GBH 2-28 DFV BSD-1611110Z96.A4 1611110Z96 £2.61 £3.13
10 - MANUFACTURER'S NAMEPLATE GBH 2-28 DFV BSD-1611110Z97.A5 1611110Z97 £2.61 £3.13
11 - REFERENCE PLATE BSD-1611110W02.A9 1611110W02 £2.61 £3.13
12 - SUPPRESSION FILTER BSD-1614465013.A4 1614465013 £5.30 £6.36
16 - BRUSH PLATE BSD-1614336093.A28 1614336093 £18.96 £22.75
19 - SWITCH CONTACT BSD-1611329024.A78 1611329024 £1.75 £2.10
24 - TOOTHED SHAFT BSD-16170006EJ.A41 16170006EJ £36.62 £43.95
24/61 - SWITCHING ELEMENT BSD-1615820097.A60 1615820097 £5.30 £6.36
24/65 - GROOVE BALL BEARING BSD-1610905016.A177 1610905016 £10.10 £12.12
26 - HAMMER PISTON BSD-16170006A5.A69 16170006A5 £41.62 £49.95
26/27 - STRIKER BSD-1610311019.A51 1610311019 £21.52 £25.83
26/29 - PISTON PIN BSD-1613105020.A54 1613105020 £5.30 £6.36
26/56 - O-RING 17.0x3.0 MM BSD-1610210121.A126 1610210121 £2.61 £3.13
26/71 - GUIDE DISC BSD-1610100016.A39 1610100016 £1.75 £2.10
32 - CLAMP HANDLE BSD-1612026037.A17 1612026037 £10.82 £12.99
32/46 - DRIVER PIN BSD-1614690002.A223 1614690002 £1.75 £2.10
32/49 - SWITCH BUTTON BSD-1612026035.A303 1612026035 £1.75 £2.10
32/76 - O-RING 10.5x2.7 MM BSD-1610210046.A302 1610210046 £2.16 £2.59
32/83 - COMPRESSION SPRING BSD-1614611006.A19 1614611006 £3.72 £4.47
36 - BEARING HOLDER BSD-1615808106.A33 1615808106 £1.75 £2.10
41 - HOUSING COVER BSD-1615500428.A31 1615500428 £10.10 £12.12
45 - AIR-DEFLECTOR RING BSD-1610522015.A28 1610522015 £2.16 £2.59
47 - CONTROL ELEMENT BSD-1616312010.A5 1616312010 £5.58 £6.70
54 - RUBBER BUSHING BSD-1610502016.A54 1610502016 £1.75 £2.10
55 - O-RING 59.5x5.0 MM BSD-1610290104.A35 1610290104 £3.72 £4.47
57 - O-RING 24.0x2.0 MM BSD-1610210208.A71 1610210208 £1.75 £2.10
76 - THREAD-FORMING TAP. SCREW BSD-160343000A.A125 160343000A £1.75 £2.10
77 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A316 2603490024 £1.75 £2.10
79 - THREAD-FORMING TAP. SCREW BSD-1613435042.A14 1613435042 £1.75 £2.10
80 - SCREW BSD-1613435043.A23 1613435043 £1.75 £2.10
96 - RETAINING RING BSD-1614601046.A44 1614601046 £1.75 £2.10
101 - CONNECTING CABLE BSD-1614449014.A98 1614449014 £2.16 £2.59
105 - COMPRESSION SPRING BSD-1614643027.A23 1614643027 £1.75 £2.10
106 - PROTECTIVE SLEEVE BSD-1610590024.A13 1610590024 £2.16 £2.59
109 - THREAD-FORMING TAP. SCREW BSD-160343508E.A15 160343508E £1.75 £2.10
120 - AUXILIARY HANDLE BSD-160202508X.A28 160202508X £18.96 £22.75
120/120 - AUXILIARY HANDLE BSD-160202507H.A390 160202507H £11.30 £13.56
120/124 - CLAMPING BAND dia50 MM BSD-1611316021.A108 1611316021 £2.80 £3.36
120/125 - T-HEAD BOLT M8x40 MM BSD-1613490002.A103 1613490002 £4.26 £5.11
120/802 - SUPPORT CLAMP BSD-1617000475.A105 1617000475 £10.10 £12.12
321 - TOOLHOLDER BSD-16170006BV.A33 16170006BV £88.07 £105.68
321/22 - CYLINDRICAL GEAR BSD-1616312004.A78 1616312004 £12.04 £14.45
321/28 - STRIKER PIN BSD-1613124097.A4 1613124097 £21.68 £26.01
321/33 - HOLDING JACKET BSD-1610590020.A33 1610590020 £6.52 £7.83
321/34 - SUPPORTING DISC BSD-1610190067.A138 1610190067 £2.16 £2.59
321/37 - STRAIGHT PIN DIN6325-2.5x12-RIKO BSD-1613100019.A197 1613100019 £1.75 £2.10
321/38 - CATCH DISK BSD-1600A008AG.A14 1600A008AG £3.72 £4.47
321/42 - THRUST RING BSD-1610102084.A74 1610102084 £8.67 £10.41
321/46 - GUIDE BUSHING BSD-1610390068.A53 1610390068 £16.41 £19.69
321/50 - COMPRESSION SPRING BSD-1614615008.A33 1614615008 £5.58 £6.70
321/58 - O-RING 18.0x3.5 MM BSD-1610210105.A143 1610210105 £4.26 £5.11
321/59 - SHAFT SEAL BSD-1600A009VC.A29 1600A009VC £2.80 £3.36
321/60 - O-RING 9.5x3.5 MM BSD-1610210209.A16 1610210209 £1.75 £2.10
321/72 - RETAINING RING BSD-1604601027.A87 1604601027 £1.75 £2.10
321/86 - RETAINING RING BSD-1614601034.A158 1614601034 £2.16 £2.59
321/87 - RETAINING RING A22 DIN 7993 BSD-1604601028.A210 1604601028 £1.75 £2.10
340 - GEAR HOUSING BSD-16170006BY.A7 16170006BY £46.37 £55.64
340/39 - COVER BSD-1615500429.A6 1615500429 £6.61 £7.93
340/48 - TAB WASHER BSD-1611098008.A34 1611098008 £2.16 £2.59
340/63/63 - NEEDLE BEARING dia30xdia37x12 MM BSD-1610910063.A199 1610910063 £5.58 £6.70
340/63/64 - BUSHING BSD-1610390069.A31 1610390069 £2.16 £2.59
340/68 - ROTARY SHAFT LIP SEAL BSD-1610283036.A171 1610283036 £7.36 £8.83
340/78 - SCREW 4x16 BSD-2603490022.A905 2603490022 £1.75 £2.10
390/89 - GUIDE SLEEVE BSD-1600A00NC8.A4 1600A00NC8 £2.61 £3.13
390/90 - COLLAR SLEEVE BSD-1610590016.A39 1610590016 £4.26 £5.11
390/91 - BACKUP RING BSD-1610200033.A26 1610200033 £2.80 £3.36
390/95 - COMPRESSION SPRING BSD-1614643016.A20 1614643016 £2.16 £2.59
390/97 - RETAINING RING BSD-1614601047.A39 1614601047 £1.75 £2.10
656/217 - COUNTERSUNK-HEAD SCREW M6x23 BSD-2603421229.A36 2603421229 £1.75 £2.10
688 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A635 1613001009 £3.72 £4.47
801 - MOTOR HOUSING BSD-16170006BS.A22 16170006BS £37.27 £44.72
808 - NAMEPLATE BSD-160111A3H5.A436 160111A3H5 £2.61 £3.13
811 - CARBON-BRUSH SET BSD-1617000525.A216 1617000525 £11.30 £13.56
811 - CARBON-BRUSH SET 10 x 1 617 000 525 BSD-1607000485.A51 1607000485 £72.18 £86.62
820 - INTERMEDIATE FLANGE BSD-16170006BT.A15 16170006BT £46.37 £55.64
821 - TOOL HOLDING FIXTURE BSD-16170006BU.A16 16170006BU £63.50 £76.20
823 - GEAR SLEEVE BSD-16170006BW.A24 16170006BW £24.45 £29.34
825 - TOOL HOLDING FIXTURE BSD-1617000895.A39 1617000895 £46.82 £56.18
825/203 - PROTECTIVE CAP BSD-1610508047.A109 1610508047 £2.29 £2.75
828 - STRIKER PIN BSD-16170006A7.A5 16170006A7 £48.38 £58.06
830 - DRIVE BEARING BSD-16170006BX.A12 16170006BX £37.72 £45.27
861 - SWITCHING ELEMENT BSD-1615820097.A62 1615820097 £5.30 £6.36
890 - GUIDE SLEEVE BSD-1617000V41.A39 1617000V41 £11.30 £13.56
891 - WEIGHT BSD-16170006BZ.A12 16170006BZ £6.52 £7.83
895 - LOCK BSD-1615438409.A16 1615438409 £6.52 £7.83
896 - GREASE TUBE 225 ML BSD-1615430001.A66 1615430001 £23.86 £28.63
897 - GREASE TUBE 225 ML BSD-1615430002.A18 1615430002 £45.67 £54.80
