Bosch GBH 2-28 DFV / 3611B672P0 / I 230 Volt Spare Parts

Home Details Reviews Delivery

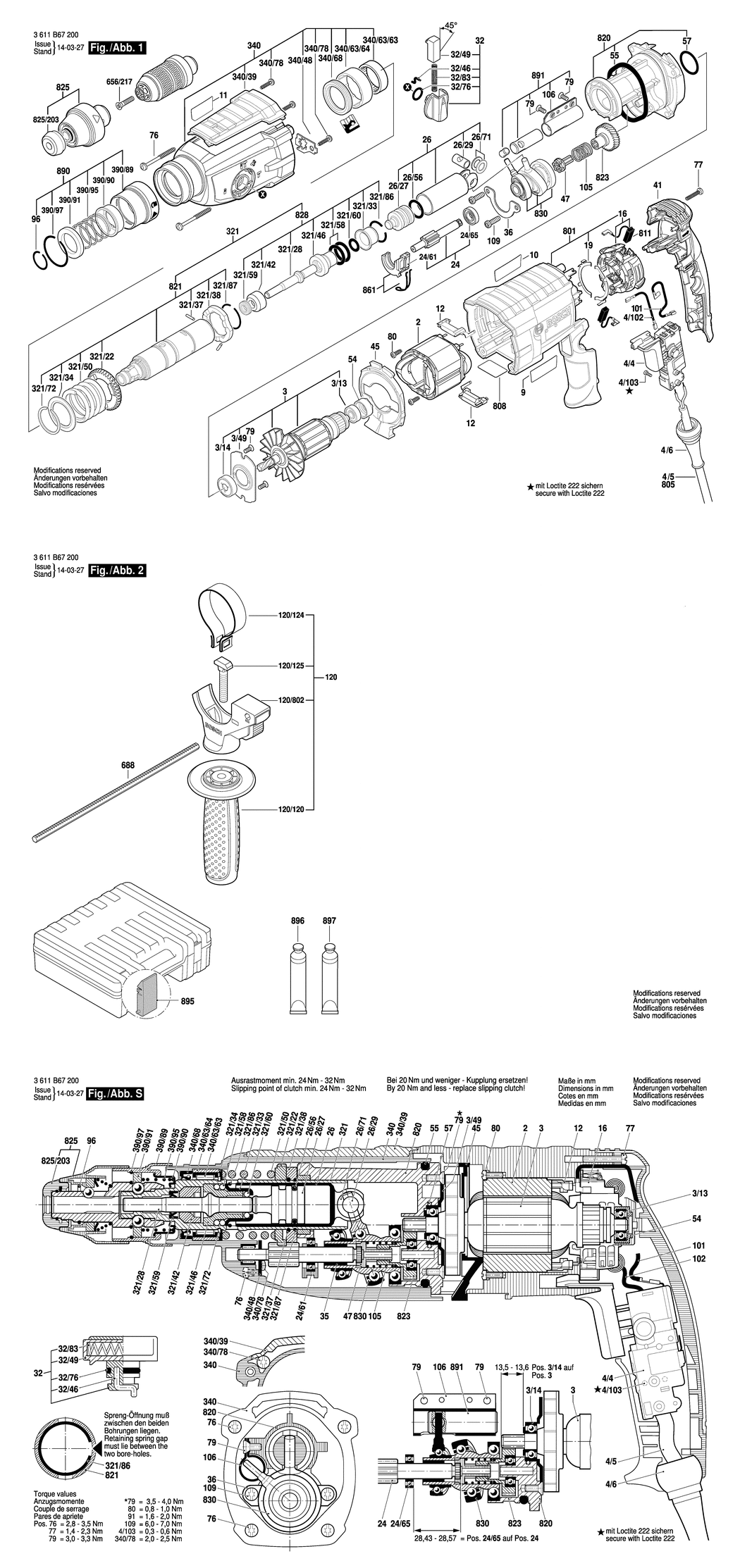

An exploded drawing and listing for the Bosch GBH 2-28 DFV / 3611B672P0 / I 230 Volt

	Ex VAT	Inc VAT
2 - FIELD 230V BSD-1614220208.A23 1614220208	£16.41	£19.69
3 - ARMATURE 230V BSD-1614010262.A19 1614010262	£54.42	£65.30
3/13 - GROOVE BALL BEARING 7x19x6 BSD-1610905032.A49 1610905032	£5.30	£6.36
3/14 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A38 1610905048	£8.67	£10.41
3/49 - END SHIELD BSD-1615700044.A89 1615700044	£2.16	£2.59
4/4 - SWITCH BSD-1617200532.A47 1617200532	£21.68	£26.01
4/5 - POWER SUPPLY CORD GB 230V 4.15m 2 x 1.0mm H07 RN-F BSD-3604460084.A69 3604460084	£21.68	£26.01
4/6 - GROMMET dia7.3-dia8.6x66 MM BSD-1600703034.A78 1600703034	£2.61	£3.13
4/102 - CONNECTING CABLE BSD-1614449015.A48 1614449015	£1.75	£2.10
4/103 - LENS HEAD SCREW 3x10 ST BSD-1613435034.A280 1613435034	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE GBH 2-28 DFV BSD-1611110Z96.A8 1611110Z96	£2.61	£3.13
10 - MANUFACTURER'S NAMEPLATE GBH 2-28 DFV BSD-1611110Z97.A1 1611110Z97	£2.61	£3.13
11 - REFERENCE PLATE BSD-1611110W02.A5 1611110W02	£2.61	£3.13
12 - SUPPRESSION FILTER BSD-1614465011.A60 1614465011	£6.52	£7.83
12 - ADAPTER MODULE BSD-1600A0032J.A23 1600A0032J	£1.75	£2.10
16 - BRUSH PLATE BSD-1614336093.A25 1614336093	£18.96	£22.75
19 - SWITCH CONTACT BSD-1611329024.A75 1611329024	£1.75	£2.10
24 - TOOTHED SHAFT BSD-16170006EJ.A44 16170006EJ	£36.62	£43.95
24/61 - SWITCHING ELEMENT BSD-1615820097.A56 1615820097	£5.30	£6.36
24/65 - GROOVE BALL BEARING BSD-1610905016.A181 1610905016	£10.10	£12.12
26 - HAMMER PISTON BSD-16170006A5.A71 16170006A5	£41.62	£49.95
26/27 - STRIKER BSD-1610311019.A47 1610311019	£21.52	£25.83
26/29 - PISTON PIN BSD-1613105020.A58 1613105020	£5.30	£6.36
26/56 - O-RING 17.0x3.0 MM BSD-1610210121.A131 1610210121	£2.61	£3.13
26/71 - GUIDE DISC BSD-1610100016.A43 1610100016	£1.75	£2.10
32 - CLAMP HANDLE BSD-1612026037.A14 1612026037	£10.82	£12.99
32/46 - DRIVER PIN BSD-1614690002.A220 1614690002	£1.75	£2.10
32/49 - SWITCH BUTTON BSD-1612026035.A307 1612026035	£1.75	£2.10
32/76 - O-RING 10.5x2.7 MM BSD-1610210046.A307 1610210046	£2.16	£2.59
32/83 - COMPRESSION SPRING BSD-1614611006.A15 1614611006	£3.72	£4.47
36 - BEARING HOLDER BSD-1615808106.A36 1615808106	£1.75	£2.10
41 - HOUSING COVER BSD-1615500428.A27 1615500428	£10.10	£12.12
45 - AIR-DEFLECTOR RING BSD-1610522015.A32 1610522015	£2.16	£2.59
47 - CONTROL ELEMENT BSD-1616312010.A2 1616312010	£5.58	£6.70
54 - RUBBER BUSHING BSD-1610502016.A59 1610502016	£1.75	£2.10
55 - O-RING 59.5x5.0 MM BSD-1610290104.A40 1610290104	£3.72	£4.47
57 - O-RING 24.0x2.0 MM BSD-1610210208.A66 1610210208	£1.75	£2.10
76 - THREAD-FORMING TAP. SCREW BSD-160343000A.A120 160343000A	£1.75	£2.10
77 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A312 2603490024	£1.75	£2.10
79 - THREAD-FORMING TAP. SCREW BSD-1613435042.A9 1613435042	£1.75	£2.10
80 - SCREW BSD-1613435043.A28 1613435043	£1.75	£2.10
96 - RETAINING RING BSD-1614601046.A41 1614601046	£1.75	£2.10
101 - CONNECTING CABLE BSD-1614449014.A102 1614449014	£2.16	£2.59
105 - COMPRESSION SPRING BSD-1614643027.A27 1614643027	£1.75	£2.10
106 - PROTECTIVE SLEEVE BSD-1610590024.A9 1610590024	£2.16	£2.59
109 - THREAD-FORMING TAP. SCREW BSD-160343508E.A20 160343508E	£1.75	£2.10
120 - AUXILIARY HANDLE BSD-160202508X.A33 160202508X	£18.96	£22.75
120/120 - AUXILIARY HANDLE BSD-160202507H.A385 160202507H	£11.30	£13.56
120/124 - CLAMPING BAND dia50 MM BSD-1611316021.A112 1611316021	£2.80	£3.36
120/125 - T-HEAD BOLT M8x40 MM BSD-1613490002.A98 1613490002	£4.26	£5.11
120/802 - SUPPORT CLAMP BSD-1617000475.A108 1617000475	£10.10	£12.12
321 - TOOLHOLDER BSD-16170006BV.A29 16170006BV	£88.07	£105.68
321/22 - CYLINDRICAL GEAR BSD-1616312004.A81 1616312004	£12.04	£14.45
321/28 - STRIKER PIN BSD-1613124097.A15 1613124097	£21.68	£26.01
321/33 - HOLDING JACKET BSD-1610590020.A15 1610590020	£6.52	£7.83
321/34 - SUPPORTING DISC BSD-1610190067.A122 1610190067	£2.16	£2.59
321/37 - STRAIGHT PIN DIN6325-2.5x12-RIKO BSD-1613100019.A179 1613100019	£1.75	£2.10
321/38 - CATCH DISK BSD-1600A008AG.A31 1600A008AG	£3.72	£4.47
321/42 - THRUST RING BSD-1610102084.A54 1610102084	£8.67	£10.41
321/46 - GUIDE BUSHING BSD-1610390068.A58 1610390068	£16.41	£19.69
321/50 - COMPRESSION SPRING BSD-1614615008.A14 1614615008	£5.58	£6.70
321/58 - O-RING 18.0x3.5 MM BSD-1610210105.A138 1610210105	£4.26	£5.11
321/59 - SHAFT SEAL BSD-1600A009VC.A12 1600A009VC	£2.80	£3.36
321/60 - O-RING 9.5x3.5 MM BSD-1610210209.A22 1610210209	£1.75	£2.10
321/72 - RETAINING RING BSD-1604601027.A115 1604601027	£1.75	£2.10
321/86 - RETAINING RING BSD-1614601034.A138 1614601034	£2.16	£2.59
321/87 - RETAINING RING A22 DIN 7993 BSD-1604601028.A182 1604601028	£1.75	£2.10
340 - GEAR HOUSING BSD-16170006BY.A0 16170006BY	£46.37	£55.64
340/39 - COVER BSD-1615500429.A20 1615500429	£6.61	£7.93
340/48 - TAB WASHER BSD-1611098008.A7 1611098008	£2.16	£2.59
340/63/63 - NEEDLE BEARING dia30xdia37x12 MM BSD-1610910063.A226 1610910063	£5.58	£6.70
340/63/64 - BUSHING BSD-1610390069.A26 1610390069	£2.16	£2.59
340/68 - ROTARY SHAFT LIP SEAL BSD-1610283036.A155 1610283036	£7.36	£8.83
340/78 - SCREW 4x16 BSD-2603490022.A902 2603490022	£1.75	£2.10
390/89 - GUIDE SLEEVE BSD-1600A00NC8.A16 1600A00NC8	£2.61	£3.13
390/90 - COLLAR SLEEVE BSD-1610590016.A29 1610590016	£4.26	£5.11
390/91 - BACKUP RING BSD-1610200033.A38 1610200033	£2.80	£3.36
390/95 - COMPRESSION SPRING BSD-1614643016.A36 1614643016	£2.16	£2.59
390/97 - RETAINING RING BSD-1614601047.A23 1614601047	£1.75	£2.10
656/217 - COUNTERSUNK-HEAD SCREW M6x23 BSD-2603421229.A37 2603421229	£1.75	£2.10
688 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A654 1613001009	£3.72	£4.47
801 - MOTOR HOUSING BSD-16170006BS.A8 16170006BS	£37.27	£44.72
808 - NAMEPLATE BSD-160111A3H5.A423 160111A3H5	£2.61	£3.13
811 - CARBON-BRUSH SET BSD-1617000525.A200 1617000525	£11.30	£13.56
811 - CARBON-BRUSH SET 10 x 1 617 000 525 BSD-1607000485.A65 1607000485	£72.18	£86.62
820 - INTERMEDIATE FLANGE BSD-16170006BT.A32 16170006BT	£46.37	£55.64
821 - TOOL HOLDING FIXTURE BSD-16170006BU.A5 16170006BU	£63.50	£76.20
823 - GEAR SLEEVE BSD-16170006BW.A9 16170006BW	£24.45	£29.34
825 - TOOL HOLDING FIXTURE BSD-1617000895.A34 1617000895	£46.82	£56.18
825/203 - PROTECTIVE CAP BSD-1610508047.A97 1610508047	£2.29	£2.75
828 - STRIKER PIN BSD-16170006A7.A21 16170006A7	£48.38	£58.06
830 - DRIVE BEARING BSD-16170006BX.A27 16170006BX	£37.72	£45.27
861 - SWITCHING ELEMENT BSD-1615820097.A96 1615820097	£5.30	£6.36
890 - GUIDE SLEEVE BSD-1617000V41.A33 1617000V41	£11.30	£13.56
891 - WEIGHT BSD-16170006BZ.A19 16170006BZ	£6.52	£7.83
895 - LOCK BSD-1615438409.A1 1615438409	£6.52	£7.83
896 - GREASE TUBE 225 ML BSD-1615430001.A72 1615430001	£23.86	£28.63
897 - GREASE TUBE 225 ML BSD-1615430002.A12 1615430002	£45.67	£54.80
