Hitachi / Hikoki M8SA2 Router Spare Parts

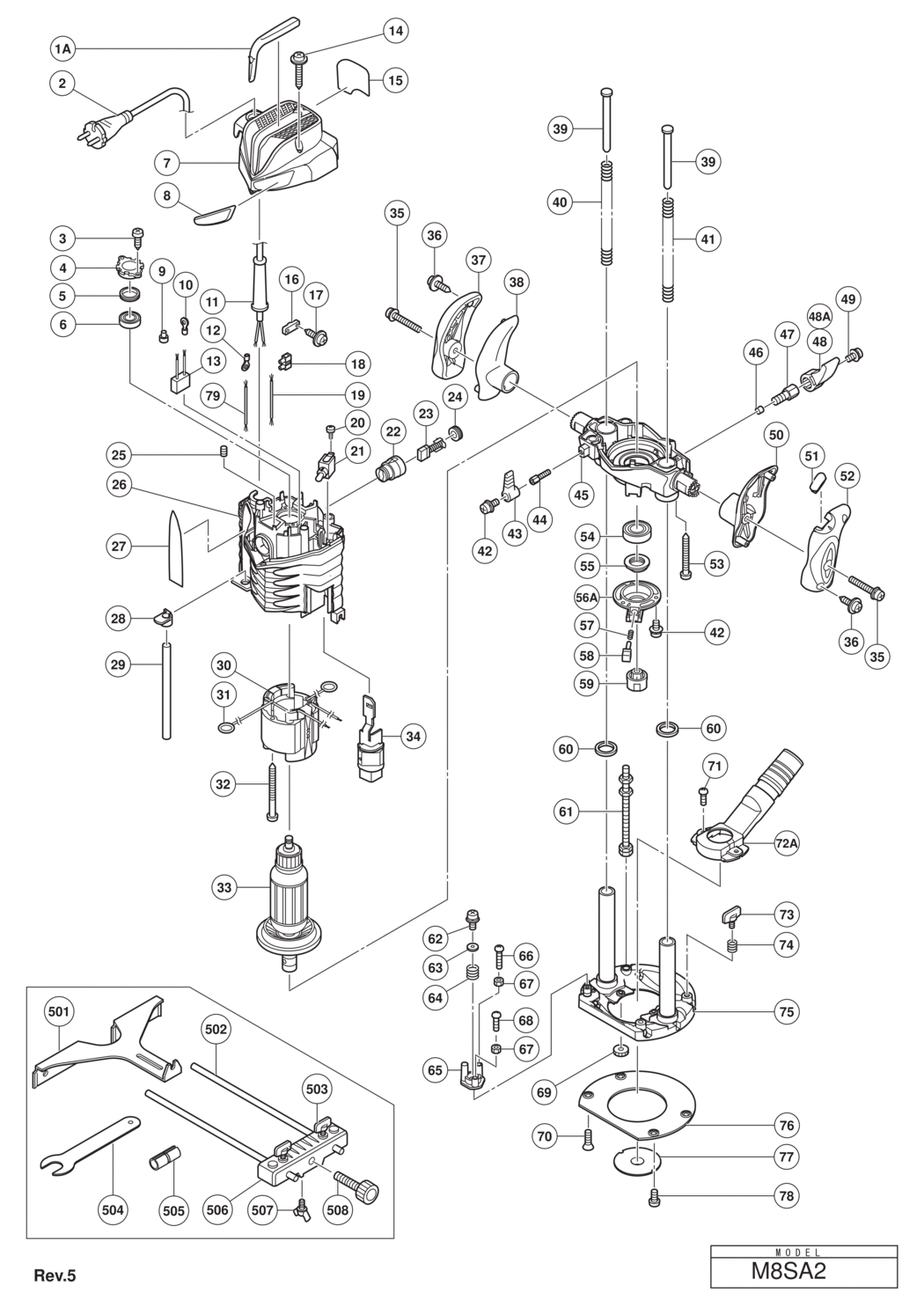

An exploded diagram and spare parts listing for the Hitachi / Hikoki M8SA2 Router

	Ex VAT	Inc VAT
1A - BRAND LABEL (B) BLACK HIT-000000.A2850 000000	-
*2 - CORD (CORD ARMOR D8.8) HIT-500234Z.A3 500234Z	-
*2 - CORD (CORD ARMOR D8.8) FOR AUT HIT-500247Z.A36 500247Z	-
*2 - CORD (CORD ARMOR D8.8) FOR AUS HIT-500439Z.A31 500439Z	-
*2 - CORD (CORD ARMOR D8.8) FOR SUI HIT-500447Z.A3 500447Z	£7.92	£9.51
3 - TAPPING SCREW D4X12 HIT-954017.A7 954017	£1.67	£2.00
4 - BEARING BUSHING HIT-326096.A0 326096	-
5 - RUBBER RING HIT-323420.A5 323420	£1.67	£2.00
6 - BALL BEARING 608VVC2PS2L HIT-608VVM.A192 608VVM	£5.70	£6.84
7 - HEAD COVER HIT-326109.A0 326109	-
8 - BRAND LABEL (A) HIT-000000.A2851 000000	-
9 - CONNECTOR 50092 (10 PCS.) HIT-959141.A81 959141	£7.12	£8.54
10 - TERMINAL M4.0 (10 PCS.) HIT-930804.A9 930804	£3.64	£4.37
11 - CORD ARMOR D8.8 HIT-953327.A113 953327	£1.67	£2.00
12 - TERMINAL FOR CORD HIT-980063.A57 980063	£1.67	£2.00
13 - NOISE SUPPRESSOR HIT-930039.A26 930039	£3.85	£4.62
14 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A44 307028	£1.67	£2.00
15 - NAME PLATE HIT-000000.A2852 000000	-
16 - CORD CLIP HIT-937631.A9 937631	£1.67	£2.00
17 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A246 984750	£1.67	£2.00
*18 - PILLAR TERMINAL HIT-938307.A20 938307	£3.28	£3.93
*18 - PILLAR TERMINAL (A) FOR AUT HIT-958308Z.A0 958308Z	£7.53	£9.04
19 - INTERNAL WIRE (BLUE) HIT-326177.A1 326177	-
20 - MACHINE SCREW (W/WASHER) M3.5X6 HIT-307887.A2 307887	£1.67	£2.00
21 - SWITCH (1P SOLDER TYPE) HIT-314603.A13 314603	£15.38	£18.45
22 - BRUSH HOLDER HIT-981586.A7 981586	£7.62	£9.15
23 - CARBON BRUSH (1 PAIR) HIT-999043.A17 999043	£5.54	£6.65
24 - BRUSH CAP HIT-961781.A7 961781	£3.15	£3.78
25 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A61 938477	£1.67	£2.00
26 - HOUSING ASS'Y INCLUD.22 HIT-326093.A1 326093	£55.17	£66.20
*27 - SCALE HIT-326090.A1 326090	-
28 - MARKER HIT-326084.A0 326084	£1.67	£2.00
29 - STOPPER POLE (A) HIT-325196.A3 325196	£6.18	£7.41
*30 - STATOR ASS'Y 230V INCLUD.31 HIT-340677E.A0 340677E	-
*30 - STATOR ASS'Y 240V INCLUD.31 HIT-340677F.A0 340677F	-
31 - BRUSH TERMINAL HIT-930703.A17 930703	£3.28	£3.93
32 - HEX. HD. TAPPING SCREW D5X65 HIT-960251.A4 960251	£1.67	£2.00
*33 - ARMATURE 230V HIT-360775E.A0 360775E	-
*33 - ARMATURE 240V HIT-360775F.A0 360775F	-
34 - LEVER HIT-326083.A1 326083	-
35 - MACHINE SCREW (W/WASHERS) M6X30 (BLACK) HIT-307443.A1 307443	£1.67	£2.00
36 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A3 305812	£1.67	£2.00
37 - HANDLE (L) B HIT-325220.A3 325220	£13.51	£16.21
38 - HANDLE (L) A HIT-325171.A3 325171	£4.65	£5.58
39 - SPRING GUIDE HIT-325180.A1 325180	£3.02	£3.63
40 - SPRING HIT-303316.A2 303316	£3.82	£4.58
41 - SPRING HIT-303317.A1 303317	£3.64	£4.37
42 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) HIT-935196.A67 935196	£1.67	£2.00
43 - LEVER (C) HIT-325174.A0 325174	£2.08	£2.50
44 - LOCK SCREW M6 HIT-325175.A1 325175	£3.02	£3.63
45 - END BRACKET HIT-326097.A0 326097	-
46 - LOCK PIECE HIT-971848.A2 971848	£1.67	£2.00
47 - LOCK SCREW M10 HIT-325187.A5 325187	£8.66	£10.39
*48 - LEVER (A) FOR AUS HIT-326042.A1 326042	£10.05	£12.06
48A - LEVER (A) HIT-323923.A6 323923	£1.67	£2.00
49 - MACHINE SCREW (W/WASHERS) M6X10 HIT-997314.A0 997314	£1.67	£2.00
50 - HANDLE (R) A HIT-325172.A0 325172	£4.57	£5.48
51 - DIAL COVER HIT-325227.A1 325227	£4.02	£4.83
52 - HANDLE (R) B HIT-325221.A0 325221	£8.52	£10.22
53 - TAPPING SCREW D5X50 HIT-307100.A5 307100	-
54 - BALL BEARING 6004TIXVV HIT-6004T1.A0 6004T1	£13.15	£15.78
55 - THRUST NUT HIT-325186.A0 325186	£8.66	£10.39
56A - BEARING COVER HIT-325185.A5 325185	£16.46	£19.75
57 - LOCK SPRING (A) HIT-325183.A4 325183	£1.67	£2.00
58 - PUSHING BUTTON HIT-325182.A1 325182	£3.02	£3.63
*59 - COLLET CHUCK 8MM HIT-325212.A1 325212	£13.15	£15.78
*59 - COLLET CHUCK 1/4 FOR AUS HIT-323293.A8 323293	£12.57	£15.08
60 - FELT HIT-323426.A4 323426	£2.71	£3.25
61 - SCREW M8 HIT-302315.A1 302315	£5.88	£7.06
62 - MACHINE SCREW (W/WASHERS) M4X8 (BLACK) HIT-317200.A15 317200	£1.67	£2.00
63 - WASHER (B) HIT-962569.A3 962569	£1.67	£2.00
64 - SPRING (A) HIT-971858.A0 971858	£1.67	£2.00
65 - STOPPER BLOCK HIT-326081.A0 326081	£4.02	£4.83
66 - MACHINE SCREW M5X25 (BLACK) HIT-302316.A0 302316	£1.67	£2.00
67 - NUT M5 (BLACK) HIT-302012.A48 302012	£1.67	£2.00
68 - MACHINE SCREW M5X16 (BLACK) HIT-302317.A3 302317	£1.67	£2.00
69 - KNOB NUT HIT-997467.A0 997467	£5.27	£6.32
70 - SEAL LOCK FLAT HD. SCREW M5X14 HIT-992013.A25 992013	£1.67	£2.00
71 - MACHINE SCREW M5X12 (10 PCS.) HIT-949237.A12 949237	£1.67	£2.00
72A - DUST COLLECTION ADAPTER SET INCLUD 69 HIT-339380.A5 339380	£44.42	£53.30
73 - WING BOLT M6X15 HIT-301806.A35 301806	£1.67	£2.00
74 - LOCK SPRING HIT-947859.A17 947859	£1.67	£2.00
75 - BASE HIT-326098.A0 326098	-
76 - SUB BASE HIT-326080.A1 326080	£5.88	£7.06
77 - TEMPLATE GUIDE D18 HIT-956790.A2 956790	£6.38	£7.66
78 - MACHINE SCREW M5X6 (10 PCS.) HIT-949234.A2 949234	£1.67	£2.00
79 - INTERNAL WIRE (BROWN) FOR AUT HIT-326179.A0 326179	-
501 - STRAIGHT GUIDE HIT-956797.A2 956797	£8.66	£10.39
502 - GUIDE BAR HIT-971622.A1 971622	£5.98	£7.18
503 - WING BOLT M6X15 HIT-301806.A34 301806	£1.67	£2.00
504 - WRENCH 23MM HIT-323295.A5 323295	£3.21	£3.85
505 - CHUCK SLEEVE 8X6 HIT-971852.A0 971852	£3.12	£3.74
506 - BAR HOLDER HIT-326091.A0 326091	£16.36	£19.63
507 - WING BOLT M6X10 (10 PCS.) HIT-949394.A5 949394	£8.55	£10.26
508 - FEED SCREW HIT-956793.A4 956793	£6.06	£7.27
601 - STRAIGHT BIT (TCT) D1/4X1/4 FOR AUS HIT-971878.A1 971878	-
602 - STRAIGHT BIT (TCT) D8X8 EXCEPT FOR AUS HIT-956808.A0 956808	-
603 - COLLET CHUCK 1/4 EXCEPT FOR AUS HIT-323293.A9 323293	£12.57	£15.08
604 - TRIMMER GUIDE HIT-956794.A1 956794	£8.66	£10.39
605A - DUST COLLECTION ADAPTER SET INCLUD.606 HIT-339380.A4 339380	£44.42	£53.30
606 - KNOB NUT HIT-997467.A1 997467	£5.27	£6.32
607 - MACHINE SCREW M5X12 (10 PCS.) HIT-949237.A13 949237	£1.67	£2.00
608 - NO LONGER AVAILABLE HIT-318304.A1 318304	-
609 - SQUARE NUT HIT-318350.A0 318350	£3.88	£4.66
610 - SLEEVE HIT-317300.A0 317300	£5.88	£7.06
611 - WASHER (B) HIT-956046.A1 956046	£1.67	£2.00
612 - SPRING (A) HIT-971858.A1 971858	£1.67	£2.00
613 - TEMPLATE GUIDE D9.5 HIT-303347.A1 303347	£13.34	£16.01
614 - TEMPLATE GUIDE D10 HIT-303348.A2 303348	£13.34	£16.01
615 - TEMPLATE GUIDE D11.1 HIT-303349.A1 303349	£13.34	£16.01
616 - TEMPLATE GUIDE D12 HIT-303350.A2 303350	£13.34	£16.01
617 - TEMPLATE GUIDE D12.7 HIT-303351.A1 303351	£13.34	£16.01
618 - TEMPLATE GUIDE D14 HIT-303352.A2 303352	£13.34	£16.01
619 - TEMPLATE GUIDE D16 HIT-303353.A1 303353	£13.34	£16.01
620 - TEMPLATE GUIDE D24 HIT-303354.A2 303354	£13.34	£16.01
621 - TEMPLATE GUIDE D40 HIT-303355.A1 303355	£13.34	£16.01
