Black & Decker BD780E Type 1 Router Spare Parts

Home Details Reviews Delivery

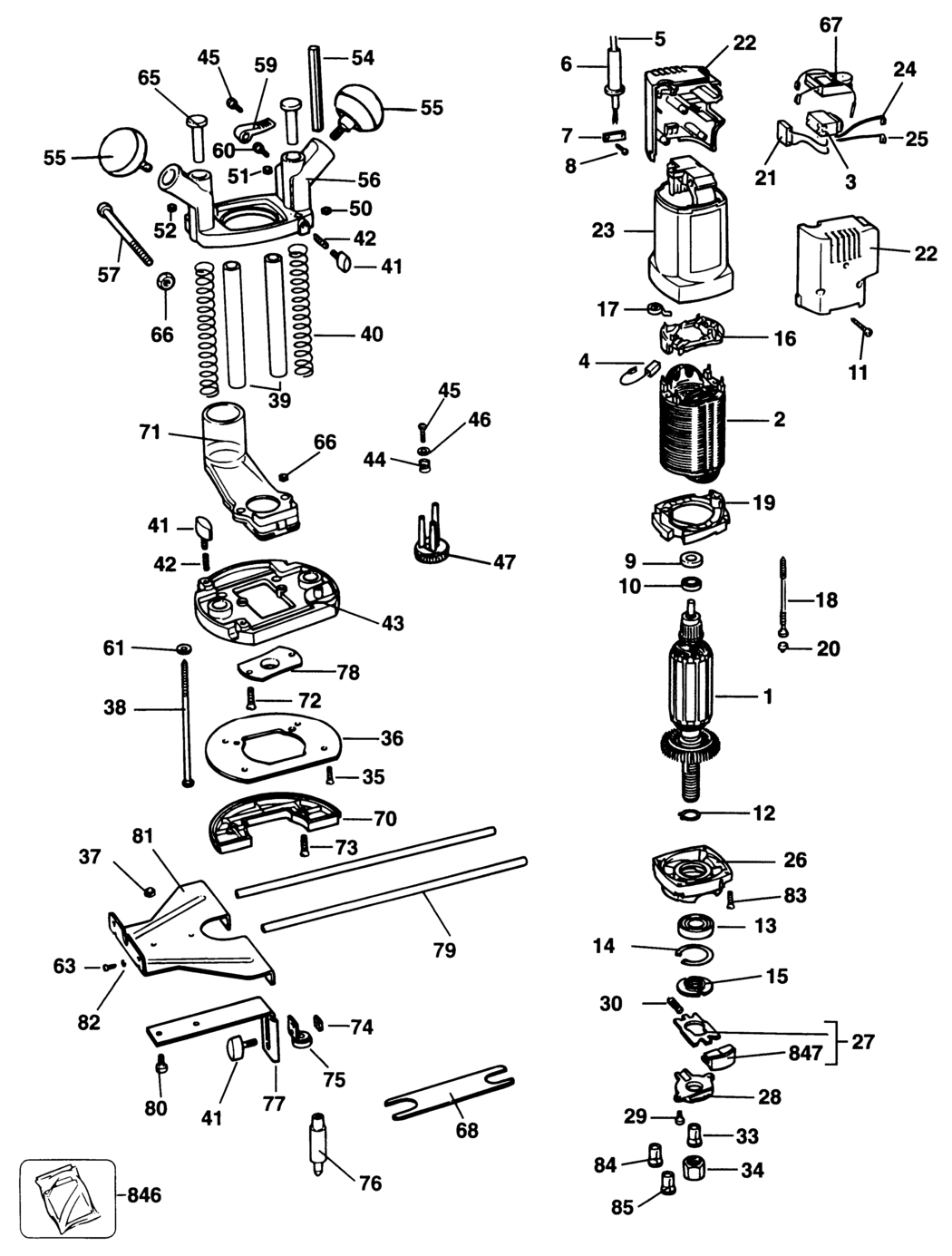

An exploded drawing and spare parts listing for the Black & Decker BD780E Type 1 Router

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE GB BDE-000000-00.A102239 000000-00	-
2 - NO LONGER AVAILABLE GB BDE-000000-00.A102240 000000-00	-
3 - SWITCH BDE-N566709.A7 N566709	£30.08	£36.10
4 - NO LONGER AVAILABLE BDE-000000-00.A102241 000000-00	-
5 - NO LONGER AVAILABLE GB BDE-000000-00.A102242 000000-00	-
6 - PROTECTOR BDE-949835-01.A0 949835-01	-
7 - CORD CLAMP BDE-930103-00.A25 930103-00	£1.50	£1.80
8 - NO LONGER AVAILABLE BDE-000000-00.A102243 000000-00	-
9 - HOLDER BEARING BDE-930029-00.A144 930029-00	£1.50	£1.80
10 - BEARING BDE-330003-34.A33 330003-34	£24.39	£29.27
11 - SCREW BDE-930079-01.A250 930079-01	£1.42	£1.70
12 - RETAINER BDE-930098-00.A76 930098-00	£1.50	£1.80
13 - BEARING BDE-868768-02.A12 868768-02	£10.85	£13.02
14 - RING BDE-931398.A18 931398	-
15 - LOCKING RING BDE-944484-00.A13 944484-00	£1.42	£1.70
16 - NO LONGER AVAILABLE BDE-000000-00.A102244 000000-00	-
17 - BRUSH SPRING BDE-930090-00.A70 930090-00	£1.50	£1.80
18 - SCREW BDE-930077-00.A7 930077-00	£1.42	£1.70
19 - BAFFLE BDE-943173-00.A17 943173-00	£3.22	£3.86
20 - CAP BDE-933657-00.A74 933657-00	£3.22	£3.86
21 - CAPACITOR BDE-949877-01.A173 949877-01	£1.50	£1.80
22 - NO LONGER AVAILABLE BDE-000000-00.A102245 000000-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A102246 000000-00	-
24 - LEAD BDE-949801-11.A14 949801-11	£3.70	£4.44
25 - LEAD BDE-949801-10.A7 949801-10	£1.42	£1.70
26 - HOUSING BDE-943178-01.A0 943178-01	£4.58	£5.49
27 - NO LONGER AVAILABLE BDE-000000-00.A102247 000000-00	-
28 - COVER BDE-944386-00.A4 944386-00	£1.42	£1.70
29 - SCREW BDE-930224-00.A30 930224-00	£1.50	£1.80
30 - SPRING COMPRESSION BDE-N406641.A30 N406641	£1.50	£1.80
33 - COLLET 6MM BDE-943269-00.A2 943269-00	-
34 - COLLET NUT BDE-943270-00.A14 943270-00	£5.88	£7.06
35 - SCREW.TEMP BDE-945121-00.A59 945121-00	£1.50	£1.80
36 - NO LONGER AVAILABLE BDE-000000-00.A102248 000000-00	-
37 - NO LONGER AVAILABLE BDE-000000-00.A102249 000000-00	-
38 - NO LONGER AVAILABLE BDE-000000-00.A102250 000000-00	-
39 - NO LONGER AVAILABLE BDE-000000-00.A102251 000000-00	-
40 - NO LONGER AVAILABLE BDE-000000-00.A102252 000000-00	-
41 - SCREW WING BDE-326573-01.A85 326573-01	£1.82	£2.19
42 - SPRING BDE-868082-00.A136 868082-00	£1.50	£1.80
43 - NO LONGER AVAILABLE BDE-000000-00.A102253 000000-00	-
44 - NO LONGER AVAILABLE BDE-000000-00.A102254 000000-00	-
45 - NO LONGER AVAILABLE BDE-000000-00.A102255 000000-00	-
46 - NO LONGER AVAILABLE BDE-000000-00.A102256 000000-00	-
47 - NO LONGER AVAILABLE BDE-000000-00.A102257 000000-00	-
50 - NUT BDE-949726-05.A25 949726-05	£1.50	£1.80
51 - NUT BDE-896369.A105 896369	£1.78	£2.13
52 - NUT BDE-860083-14.A94 860083-14	£1.50	£1.80
54 - NO LONGER AVAILABLE GB BDE-000000-00.A102258 000000-00	-
55 - NO LONGER AVAILABLE BDE-000000-00.A102259 000000-00	-
56 - NO LONGER AVAILABLE BDE-000000-00.A102260 000000-00	-
57 - NO LONGER AVAILABLE BDE-000000-00.A102261 000000-00	-
59 - NO LONGER AVAILABLE BDE-000000-00.A102262 000000-00	-
60 - NO LONGER AVAILABLE BDE-000000-00.A102263 000000-00	-
61 - WASHER BDE-937883.A2 937883	-
63 - NO LONGER AVAILABLE BDE-000000-00.A102264 000000-00	-
65 - NO LONGER AVAILABLE BDE-000000-00.A102265 000000-00	-
66 - NUT BDE-930244-00.A4 930244-00	£3.30	£3.96
67 - NO LONGER AVAILABLE GB BDE-000000-00.A102275 000000-00	-
68 - NO LONGER AVAILABLE BDE-000000-00.A102276 000000-00	-
70 - NO LONGER AVAILABLE BDE-000000-00.A102277 000000-00	-
71 - NO LONGER AVAILABLE BDE-000000-00.A102278 000000-00	-
72 - SCREW BDE-869076-00.A38 869076-00	£1.50	£1.80
73 - NO LONGER AVAILABLE BDE-000000-00.A102266 000000-00	-
74 - NO LONGER AVAILABLE BDE-000000-00.A102267 000000-00	-
75 - NO LONGER AVAILABLE BDE-000000-00.A102268 000000-00	-
76 - NO LONGER AVAILABLE BDE-000000-00.A102269 000000-00	-
77 - NO LONGER AVAILABLE BDE-000000-00.A102270 000000-00	-
78 - NO LONGER AVAILABLE BDE-000000-00.A102271 000000-00	-
79 - NO LONGER AVAILABLE BDE-000000-00.A102272 000000-00	-
80 - NO LONGER AVAILABLE BDE-000000-00.A102273 000000-00	-
81 - NO LONGER AVAILABLE BDE-000000-00.A102274 000000-00	-
82 - WASHER BDE-930248-00.A14 930248-00	£1.50	£1.80
83 - SCREW BDE-930079-01.A253 930079-01	£1.42	£1.70
84 - COLLET 6.35MM BDE-943269-01.A15 943269-01	£19.90	£23.88
85 - COLLET 8MM BDE-943269-02.A2 943269-02	£14.57	£17.48
846 - NO LONGER AVAILABLE BDE-000000-00.A102279 000000-00	-
847 - NO LONGER AVAILABLE BDE-000000-00.A102280 000000-00	-

Attribute Name	Value
Brand	Black & Decker
