Black & Decker KW1200E Type 1 Plunge Router Spare Parts

Home Details Reviews Delivery

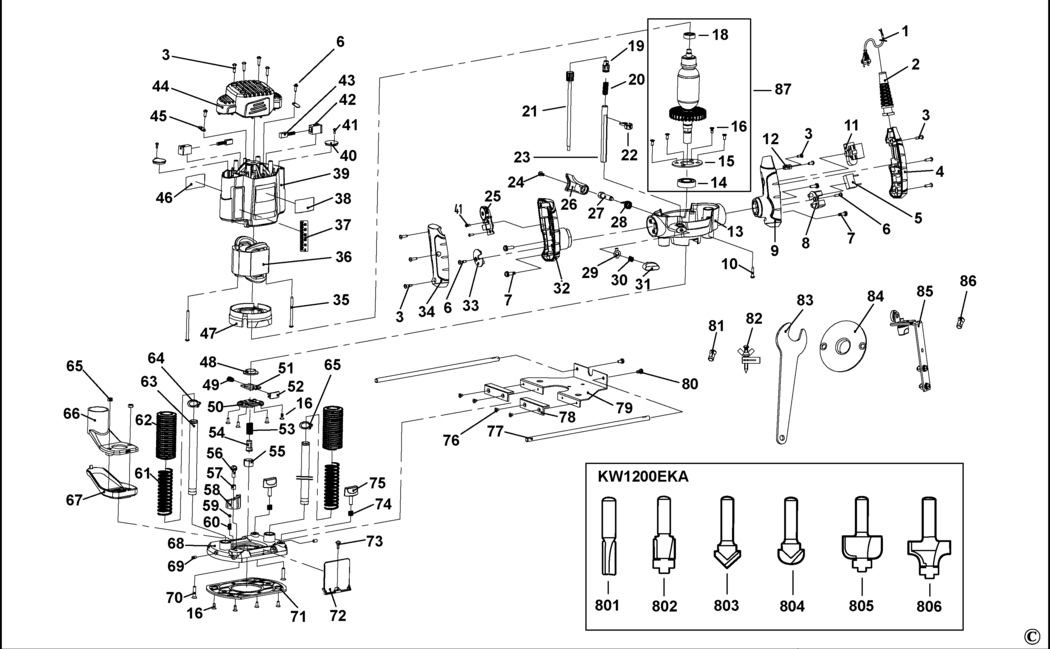

An exploded drawing and spare parts listing for the Black & Decker KW1200E Type 1 Plunge Router

	Ex VAT	Inc VAT
1 - CORDSET KW1200E + EKA GB BDE-1004730-89 1004730-89	£17.48	£20.97
2 - CORD PROTECTOR BDE-5170025-18.A1 5170025-18	£1.50	£1.80
3 - SCREW BDE-5170025-19.A0 5170025-19	£1.50	£1.80
4 - HANDLE COVER BDE-1004730-91 1004730-91	£7.18	£8.62
5 - CAPACITOR BDE-5170025-21.A1 5170025-21	£1.50	£1.80
6 - SCREW BDE-5170025-22.A0 5170025-22	£1.50	£1.80
7 - SCREW BDE-5170025-23.A1 5170025-23	£1.50	£1.80
8 - BOARD BDE-5170025-24.A0 5170025-24	£1.50	£1.80
9 - HANDLE RH BDE-1004730-92 1004730-92	£7.18	£8.62
10 - SCREW BDE-5170025-26.A1 5170025-26	£1.50	£1.80
11 - SWITCH BDE-5170025-27.A0 5170025-27	£16.03	£19.24
12 - CORD CLAMP BDE-5170025-28.A1 5170025-28	£1.50	£1.80
13 - GEARBOX BDE-5170025-29.A0 5170025-29	£16.03	£19.24
14 - BEARING BDE-5170025-30.A1 5170025-30	£7.18	£8.62
15 - PLATEN BDE-5170025-31.A0 5170025-31	£1.50	£1.80
16 - SCREW BDE-5170025-32.A1 5170025-32	£1.50	£1.80
18 - BEARING BDE-5170025-34.A1 5170025-34	£3.30	£3.96
19 - ADJUSTER BDE-1004730-93 1004730-93	£1.50	£1.80
20 - SPRING BDE-5170025-36.A1 5170025-36	£1.50	£1.80
21 - ADJUSTER BDE-1004730-94 1004730-94	£1.50	£1.80
22 - PIECE BDE-5170025-38.A1 5170025-38	£1.50	£1.80
23 - DEPTH ROD BDE-5170025-39.A0 5170025-39	£1.50	£1.80
24 - SCREW BDE-5170025-40.A1 5170025-40	£1.50	£1.80
25 - BOARD BDE-1004730-90 1004730-90	£12.17	£14.60
26 - SPANNER BDE-1004730-95 1004730-95	£1.50	£1.80
27 - SCREW BDE-5170025-43.A1 5170025-43	£1.50	£1.80
28 - SPRING BDE-5170025-44.A0 5170025-44	£1.50	£1.80
29 - WASHER BDE-5170025-45.A1 5170025-45	£1.50	£1.80
30 - SPRING BDE-5170025-46.A0 5170025-46	£1.50	£1.80
31 - KNOB BDE-1004730-96 1004730-96	£1.50	£1.80
32 - HANDLE SA LH BDE-1004730-97 1004730-97	£7.18	£8.62
33 - BOARD BDE-5170025-49.A1 5170025-49	£1.50	£1.80
34 - HANDLE COVER BDE-1004730-98 1004730-98	£7.18	£8.62
35 - SCREW BDE-5170025-51.A1 5170025-51	£1.50	£1.80
36 - FIELD BDE-5170025-52.A0 5170025-52	£25.70	£30.84
37 - LABEL BDE-5170025-53.A1 5170025-53	£1.50	£1.80
38 - BRAND LABEL BDE-1004731-00 1004731-00	£1.50	£1.80
39 - HOUSING BDE-1004731-01 1004731-01	£14.57	£17.48
40 - PLATE BDE-5170025-56.A1 5170025-56	£1.50	£1.80
41 - SCREW BDE-5170025-57.A0 5170025-57	£1.50	£1.80
42 - BRUSH HOLDER BDE-5170025-58.A1 5170025-58	£1.50	£1.80
43 - BRUSH PAIR BDE-5170025-59.A0 5170025-59	£5.88	£7.06
44 - CASING UPPER BDE-1004731-02 1004731-02	£7.18	£8.62
45 - CORD CLAMP BDE-5170025-61.A1 5170025-61	£1.50	£1.80
46 - RATING PLATE KW1200E + EKA GB BDE-1004731-04 1004731-04	£1.50	£1.80
47 - BAFFLE BDE-5170025-63.A0 5170025-63	£1.50	£1.80
48 - NUT BDE-5170025-64.A1 5170025-64	£1.50	£1.80
49 - SPRING BDE-5170025-65.A0 5170025-65	£1.50	£1.80
50 - COVER BDE-5170025-66.A1 5170025-66	£1.50	£1.80
51 - PIECE BDE-5170025-67.A0 5170025-67	£1.50	£1.80
52 - KNOB BDE-1004731-05 1004731-05	£1.50	£1.80
53 - SPRING BDE-5170025-69.A1 5170025-69	£1.50	£1.80
54 - COLLET 8MM BDE-5170025-70.A0 5170025-70	£7.18	£8.62
55 - NUT BDE-5170025-71.A1 5170025-71	£2.78	£3.34
56 - SCREW BDE-5170025-72.A0 5170025-72	£1.50	£1.80
57 - SLEEVE BDE-5170025-73.A1 5170025-73	£1.50	£1.80
58 - PIECE BDE-5170025-74.A0 5170025-74	£1.50	£1.80
59 - BALL STEEL BDE-5170025-75.A1 5170025-75	£1.50	£1.80
60 - SPRING BDE-5170025-76.A0 5170025-76	£1.50	£1.80
61 - SPRING BDE-5170025-77.A1 5170025-77	£1.50	£1.80
62 - SLEEVE BDE-5170025-78.A0 5170025-78	£1.50	£1.80
63 - POLE PIECE SA BDE-5170025-79.A1 5170025-79	£3.30	£3.96
64 - CIRCLIP BDE-5170025-80.A0 5170025-80	£1.50	£1.80
65 - NUT BDE-5170025-81.A1 5170025-81	£1.50	£1.80
66 - COVER BDE-5170025-82.A0 5170025-82	£2.26	£2.71
67 - COVER BDE-5170025-83.A1 5170025-83	£1.50	£1.80
68 - BASE BDE-5170025-84.A0 5170025-84	£10.85	£13.02
69 - SCREW BDE-5170025-85.A1 5170025-85	£1.50	£1.80
70 - SCREW BDE-5170025-86.A0 5170025-86	£1.50	£1.80
71 - PLATE BDE-5170025-87.A1 5170025-87	£2.26	£2.71
72 - BAFFLE BDE-5170025-88.A0 5170025-88	£1.50	£1.80
73 - SCREW BDE-5170025-89.A1 5170025-89	£1.50	£1.80
74 - SPRING BDE-5170025-90.A0 5170025-90	£1.50	£1.80
75 - KNOB BDE-5170025-91.A1 5170025-91	£1.50	£1.80
76 - SCREW BDE-5170025-92.A0 5170025-92	£1.50	£1.80
77 - BAR BDE-5170025-93.A1 5170025-93	£1.50	£1.80
78 - BOARD BDE-5170025-94.A0 5170025-94	£1.50	£1.80
79 - GUIDE BDE-5170025-95.A1 5170025-95	£9.41	£11.29
80 - SCREW BDE-5170025-96.A0 5170025-96	£1.50	£1.80
81 - COLLET 6MM BDE-5170025-97.A0 5170025-97	£7.18	£8.62
82 - PIN BDE-5170025-98.A1 5170025-98	£1.50	£1.80
83 - SPANNER BDE-5170025-99.A0 5170025-99	£1.50	£1.80
84 - GUIDE BDE-5170026-00.A1 5170026-00	£1.50	£1.80
85 - FOLLOWER BDE-5170026-01.A0 5170026-01	£7.85	£9.42
86 - COLLET BDE-5170026-02.A1 5170026-02	£7.18	£8.62
87 - ARMATURE SA BDE-N544913.A0 N544913	£55.30	£66.36
801 - BIT KW1200EKA BDE-5170026-03.A0 5170026-03	£5.88	£7.06
802 - BIT KW1200EKA BDE-5170026-04.A1 5170026-04	£7.85	£9.42
803 - BIT KW1200EKA BDE-5170026-06.A1 5170026-06	£7.18	£8.62
804 - BIT KW1200EKA BDE-5170026-05.A0 5170026-05	£7.18	£8.62
805 - BIT KW1200EKA BDE-5170026-08.A1 5170026-08	£12.17	£14.60
806 - BIT KW1200EKA BDE-5170026-07.A0 5170026-07	£12.17	£14.60

Attribute Name	Value
Brand	Black & Decker
