Black & Decker KW779 Type 1 Router Spare Parts

Home Details Reviews Delivery

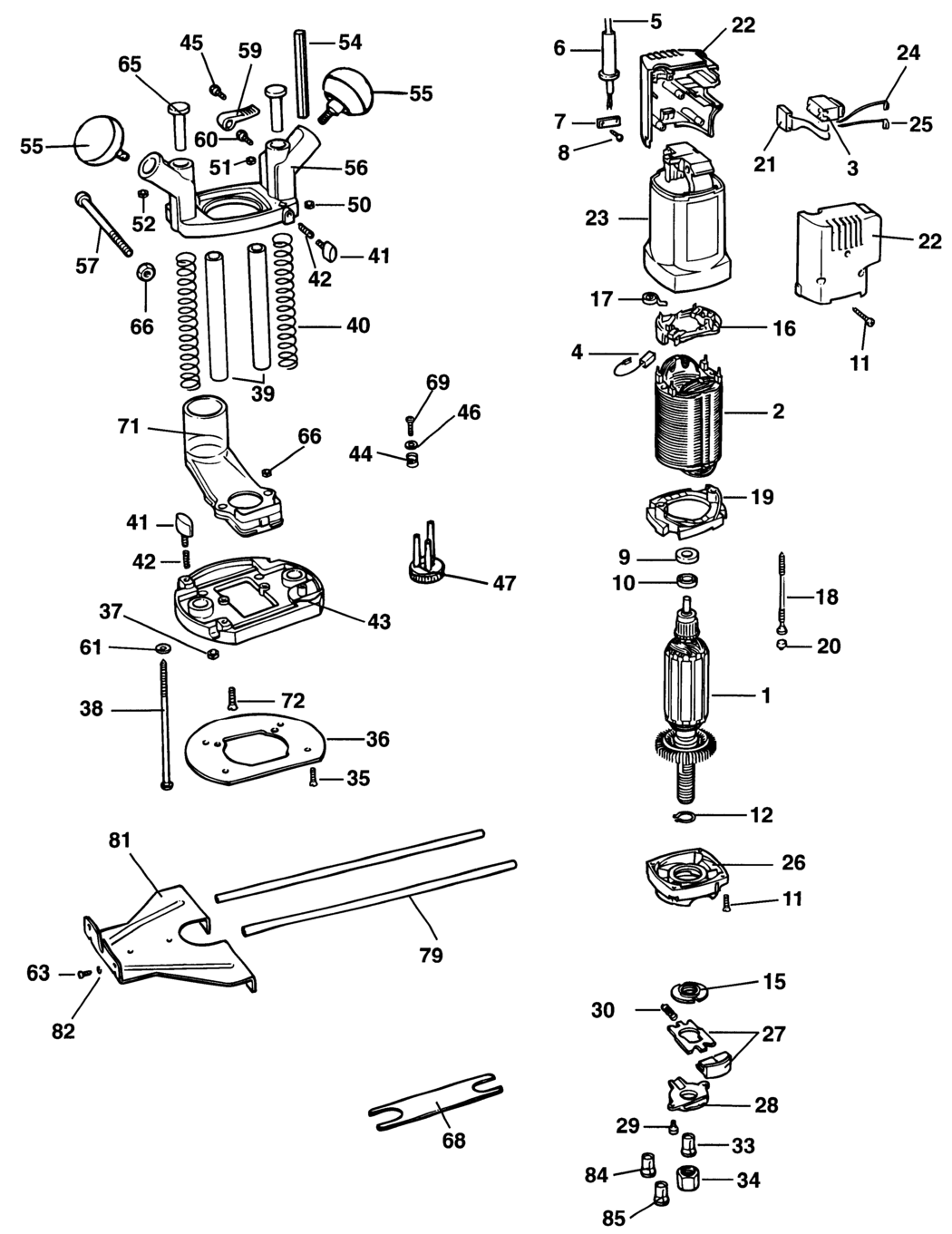

An exploded drawing and spare parts listing for the Black & Decker KW779 Type 1 Router

	Ex VAT	Inc VAT
1 - ARMATURE BDE-868630-00.A9 868630-00	£107.82	£129.39
2 - FIELD GB BDE-868629-02.A28 868629-02	£63.87	£76.64
3 - SWITCH BDE-N566709.A45 N566709	£30.08	£36.10
4 - BRUSH 230V BDE-930760-00.A51 930760-00	£5.88	£7.06
6 - PROTECTOR GB BDE-949835-01.A44 949835-01	-
7 - CORD CLAMP BDE-930103-00.A152 930103-00	£1.50	£1.80
8 - NO LONGER AVAILABLE BDE-000000-00.A36263 000000-00	-
9 - HOLDER BEARING BDE-930029-00.A67 930029-00	£1.50	£1.80
10 - BEARING BDE-330003-34.A55 330003-34	£24.39	£29.27
11 - SCREW BDE-930079-01.A99 930079-01	£1.42	£1.70
12 - RETAINER BDE-930098-00.A31 930098-00	£1.50	£1.80
15 - LOCKING RING BDE-944484-00.A11 944484-00	£1.42	£1.70
16 - BRUSH HOLDER SA BDE-930746-00.A15 930746-00	£3.22	£3.86
17 - BRUSH SPRING BDE-930090-00.A183 930090-00	£1.50	£1.80
18 - SCREW BDE-930077-00.A65 930077-00	£1.42	£1.70
19 - BAFFLE BDE-943173-00.A6 943173-00	£3.22	£3.86
20 - CAP BDE-933657-00.A35 933657-00	£3.22	£3.86
21 - CAPACITOR BDE-949877-01.A48 949877-01	£1.50	£1.80
22 - NO LONGER AVAILABLE BDE-000000-00.A36264 000000-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A36265 000000-00	-
24 - LEAD BDE-949801-11.A8 949801-11	£3.70	£4.44
25 - LEAD BDE-949801-10.A13 949801-10	£1.42	£1.70
26 - HOUSING LOWER BDE-944856-00.A0 944856-00	-
27 - NO LONGER AVAILABLE BDE-000000-00.A36266 000000-00	-
28 - COVER BDE-944386-00.A8 944386-00	£1.42	£1.70
29 - SCREW.TEMP BDE-930251-01.A7 930251-01	£1.42	£1.70
30 - SPRING COMPRESSION BDE-N406641.A9 N406641	£1.50	£1.80
33 - COLLET 6MM BDE-943269-00.A17 943269-00	-
34 - COLLET NUT BDE-943270-00.A2 943270-00	£5.88	£7.06
35 - NO LONGER AVAILABLE BDE-000000-00.A36267 000000-00	-
36 - NO LONGER AVAILABLE BDE-000000-00.A36268 000000-00	-
37 - NO LONGER AVAILABLE BDE-000000-00.A36269 000000-00	-
38 - NO LONGER AVAILABLE BDE-000000-00.A36270 000000-00	-
39 - NO LONGER AVAILABLE BDE-000000-00.A36271 000000-00	-
40 - NO LONGER AVAILABLE BDE-000000-00.A36272 000000-00	-
41 - SCREW WING BDE-326573-01.A12 326573-01	£1.82	£2.19
42 - SPRING BDE-868082-00.A61 868082-00	£1.50	£1.80
43 - NO LONGER AVAILABLE BDE-000000-00.A36273 000000-00	-
44 - NO LONGER AVAILABLE BDE-000000-00.A36274 000000-00	-
45 - NO LONGER AVAILABLE BDE-000000-00.A36275 000000-00	-
46 - NO LONGER AVAILABLE BDE-000000-00.A36276 000000-00	-
47 - NO LONGER AVAILABLE BDE-000000-00.A36277 000000-00	-
50 - NUT BDE-949726-05.A63 949726-05	£1.50	£1.80
51 - NUT BDE-896369.A33 896369	£1.78	£2.13
52 - NUT BDE-860083-14.A42 860083-14	£1.50	£1.80
54 - NO LONGER AVAILABLE GB BDE-000000-00.A36278 000000-00	-
55 - NO LONGER AVAILABLE BDE-000000-00.A36279 000000-00	-
56 - NO LONGER AVAILABLE BDE-000000-00.A36280 000000-00	-
57 - NO LONGER AVAILABLE BDE-000000-00.A36281 000000-00	-
59 - NO LONGER AVAILABLE BDE-000000-00.A36282 000000-00	-
60 - NO LONGER AVAILABLE BDE-000000-00.A36283 000000-00	-
61 - WASHER BDE-937883.A16 937883	-
63 - NO LONGER AVAILABLE BDE-000000-00.A36289 000000-00	-
65 - NO LONGER AVAILABLE BDE-000000-00.A36290 000000-00	-
66 - NUT BDE-930244-00.A16 930244-00	£3.30	£3.96
68 - NO LONGER AVAILABLE BDE-000000-00.A36284 000000-00	-
69 - NO LONGER AVAILABLE BDE-000000-00.A36285 000000-00	-
71 - NO LONGER AVAILABLE BDE-000000-00.A36286 000000-00	-
72 - SCREW BDE-869076-00.A9 869076-00	£1.50	£1.80
79 - NO LONGER AVAILABLE BDE-000000-00.A36287 000000-00	-
81 - NO LONGER AVAILABLE BDE-000000-00.A36288 000000-00	-
82 - WASHER BDE-930248-00.A34 930248-00	£1.50	£1.80
84 - COLLET 6.35MM BDE-943269-01.A1 943269-01	£19.90	£23.88
85 - COLLET 8MM BDE-943269-02.A15 943269-02	£14.57	£17.48
