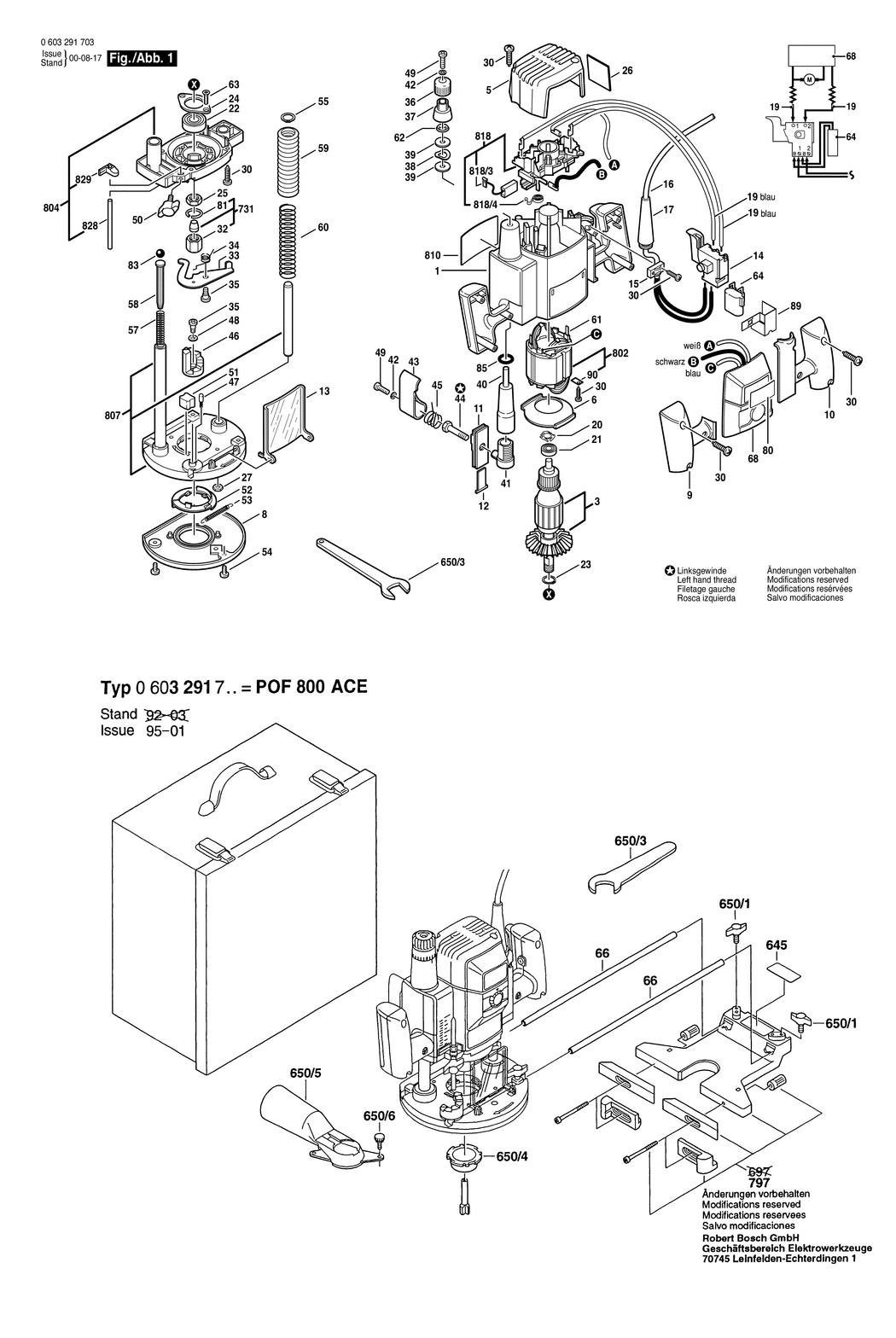

An exploded drawing and listing for the Bosch POF 800 ACE / 0603291703 / EU 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-3605108582.A3 3605108582 -
3 - ARMATURE 230-240V BSD-3604010501.A15 3604010501 -
5 - HOUSING COVER BSD-3605500594.A0 3605500594 -
6 - AIR-DEFLECTOR RING BSD-3600590507.A19 3600590507 -
8 - INTERMEDIATE PLATE BSD-3600190520.A5 3600190520 -
9 - HANDLE COVER LT BSD-3605133527.A0 3605133527 -
10 - HANDLE COVER RT BSD-3605133529.A3 3605133529 -
11 - COVER BSD-3601010520.A3 3601010520 -
12 - INSERT BSD-3601010518.A0 3601010518 -
13 - CHIP DEFLECTOR BSD-2610912599.A19 2610912599 -
14 - ON-OFF SWITCH BSD-1607000231.A99 1607000231 £18.96 £22.75
15 - CABLE CLIP BSD-2601035001.A459 2601035001 £1.75 £2.10
16 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1607000386.A162 1607000386 £21.52 £25.83
17 - GROMMET dia7.4 MM BSD-3600703509.A2 3600703509 -
19 - CONNECTING CABLE BSD-3604445718.A5 3604445718 -
20 - SPRING WASHER BSD-2610992432.A19 2610992432 £2.33 £2.80
21 - GROOVE BALL BEARING BSD-2610913173.A3 2610913173 £14.72 £17.67
22 - BALL BEARING BSD-3600905510.A3 3600905510 £6.61 £7.93
23 - RETAINING CLIP DIN 471-15x1-FSt BSD-2916650006.A480 2916650006 £1.75 £2.10
24 - RETAINING PLATE BSD-3600034505.A6 3600034505 £3.72 £4.47
25 - HEX NUT M15 BSD-3603300501.A14 3603300501 £4.26 £5.11
27 - HEX NUT DIN 934 -M4-m-8 BSD-2915011005.A667 2915011005 £1.75 £2.10
30 - TAPPING SCREW BSD-2610910566.A3 2610910566 £1.32 £1.58
32 - UNION NUT BSD-3603301524.A11 3603301524 £7.78 £9.33
33 - SWING-PLATE BSD-3601021509.A13 3601021509 £8.67 £10.41
34 - TORSION SPRING BSD-3604651502.A26 3604651502 £2.33 £2.80
35 - SHOULDER SCREW M4 BSD-3603415556.A63 3603415556 £2.33 £2.80
36 - KNOB BSD-3603231539.A1 3603231539 £2.33 £2.80
37 - INDICATOR RING BSD-3600209500.A19 3600209500 £3.80 £4.56
38 - SPRING WASHER BSD-3600100528.A16 3600100528 £1.95 £2.34
39 - WASHER BSD-3600100527.A23 3600100527 £2.52 £3.02
40 - ADJUSTING SLEEVE BSD-3600360507.A39 3600360507 -
41 - LOCKING PIECE BSD-3600400507.A0 3600400507 £2.80 £3.36
42 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A320 2916690003 £1.75 £2.10
43 - LOCKING LEVER BSD-3602000510.A28 3602000510 £2.61 £3.13
44 - LOCK BOLT BSD-3603450503.A1 3603450503 £5.01 £6.01
45 - LOCK SPRING BSD-3604651503.A16 3604651503 £2.33 £2.80
46 - DEPTH-GAUGE BSD-3600232503.A13 3600232503 £10.82 £12.99
47 - RATCHET CAP BSD-2600590006.A905 2600590006 £1.75 £2.10
48 - SPRING WASHER BSD-3916060500.A32 3916060500 £1.75 £2.10
49 - OVAL-HEAD SCREW DIN 7985-M4X12-4.8-H BSD-2910641122.A44 2910641122 £2.16 £2.59
50 - WING SCREW M6x20 MM BSD-1613480008.A223 1613480008 £1.75 £2.10
51 - KNOB BSD-3603211501.A22 3603211501 £2.61 £3.13
52 - LOCKING RING BSD-3600240500.A8 3600240500 £5.58 £6.70
53 - EXTENSION SPRING BSD-3604648504.A0 3604648504 -
54 - SCREW BSD-2610915161.A59 2610915161 -
55 - SPRING RETAINING RING DIN 471-12x1-FSt BSD-2916650003.A250 2916650003 £1.75 £2.10
57 - COMPRESSION SPRING BSD-3604613508.A39 3604613508 £2.33 £2.80
58 - GUIDE PIECE BSD-3603120502.A23 3603120502 £2.52 £3.02
59 - BELLOWS BSD-3605510548.A23 3605510548 £5.58 £6.70
60 - COMPRESSION SPRING BSD-2610997100.A9 2610997100 £2.33 £2.80
61 - BLADE TERMINAL BSD-1604477005.A92 1604477005 £2.61 £3.13
62 - RETAINING SNAP RING BSD-3604680502.A36 3604680502 £2.33 £2.80
63 - COUNTERSUNK-HEAD SCREW DIN 965-M4x12-8.8 BSD-2910871122.A11 2910871122 -
64 - SUPPRESSION FILTER BSD-1617328025.A83 1617328025 £5.58 £6.70
68 - SPEED GOVERNOR 230-240V BSD-3607233501.A3 3607233501 £102.57 £123.08
80 - STICKER BSD-3601119787.A1 3601119787 £3.80 £4.56
81 - RETAINING RING BSD-2916540007.A15 2916540007 £1.75 £2.10
83 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A207 1903230007 £1.75 £2.10
85 - O-RING BSD-3600210507.A36 3600210507 £2.33 £2.80
89 - SET RING BSD-2610996090.A0 2610996090 -
90 - TAB WASHER BSD-1601030022.A151 1601030022 £1.75 £2.10
650/3 - SINGLE-HEAD ENG. WRENCH SW19 BSD-1907950511.A2 1907950511 £11.78 £14.13
731 - COLLET 8 MM BSD-2608570102.A13 2608570102 £24.99 £29.99
731 - COLLET 6 MM BSD-2608570100.A17 2608570100 £24.99 £29.99
802 - FIELD 230-240V BSD-2610907797.A7 2610907797 -
804 - FAN HOUSING BSD-2610907867.A2 2610907867 -
807 - BASE PLATE BSD-3605702581.A2 3605702581 £51.22 £61.47
810 - NAMEPLATE BSD-3601119779.A24 3601119779 -
818 - BRUSH HOLDER BSD-3604336511.A2 3604336511 £24.45 £29.34
818/3 - CARBON-BRUSH SET BSD-3604321513.A17 3604321513 £13.12 £15.75
818/4 - SPRING BSD-3604652501.A29 3604652501 £3.72 £4.47
828 - ROD BSD-2610907864.A12 2610907864 £11.30 £13.56
829 - POINTER BSD-2610907865.A11 2610907865 £10.10 £12.12
