Festool OF 650 / 485900 Spare Parts

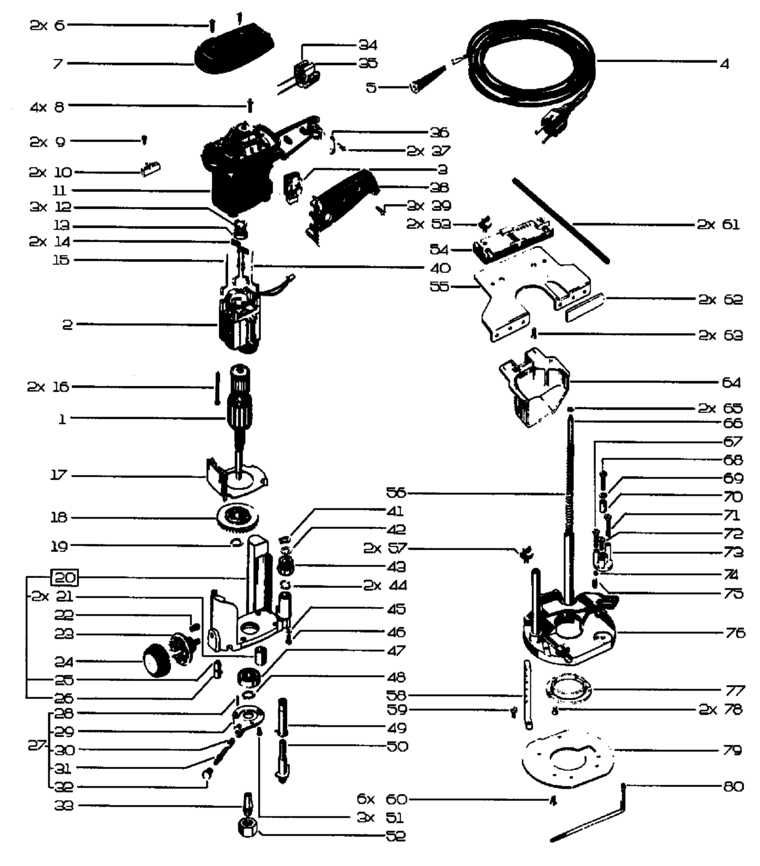

An exploded diagram and spare parts listing for the Festool OF 650 / 485900

	Ex VAT	Inc VAT
1 - ARMATURE 230 V FSP-492039.A5 492039	£119.08	£142.90
3 - SWITCH ATTACHMENT FSP-486317.A49 486317	£15.47	£18.56
4 - MAINS CABLE GB 240V FSP-441749.A50 441749	£25.08	£30.09
4 - CABLE EU FSP-457603.A3 457603	£25.58	£30.69
5 - CABLE CONDUIT FSP-432436.A55 432436	£2.00	£2.40
6 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A41 219031	£2.00	£2.40
7 - CAP RS 3 FSP-451430.A0 451430	£6.46	£7.75
8 - RAISED-HEAD SCREW M4 X 20 FSP-228569.A48 228569	£2.00	£2.40
9 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A42 219031	£2.00	£2.40
10 - BRUSH HOLDER (PAIR) 230V FSP-488579.A22 488579	£10.17	£12.20
11 - MOTOR HOUSING FSP-487836.A5 487836	£33.30	£39.96
12 - COMPENSATING WASHER 15 X 21.8 X 0.2 MM FSP-228759.A26 228759	£2.00	£2.40
13 - BALL BEARING FSP-401524.A40 401524	£4.82	£5.78
15 - FLEXIBLE LEAD FSP-434527.A0 434527	£2.00	£2.40
16 - RAISED-HEAD SCREW 4 X 50 MM FSP-228707.A7 228707	£2.00	£2.40
17 - AIR GUIDE WASHER FSP-434430.A6 434430	£2.00	£2.40
18 - NO LONGER AVAILABLE FSP-00000.A89 00000	-
19 - SNAP RING FSP-401191.A3 401191	£2.00	£2.40
20 - BEARING COVER FSP-488771.A4 488771	£99.77	£119.72
21 - BUSH FSP-400994.A19 400994	£2.00	£2.40
22 - PRESSURE SPRING FSP-440729.A5 440729	£2.00	£2.40
23 - PART OF GRIP FSP-436192.A6 436192	£9.04	£10.85
24 - KNOB FSP-436189.A14 436189	£4.31	£5.17
25 - RING FSP-436301.A1 436301	£2.00	£2.40
26 - DU BUSHING FSP-210031.A10 210031	£2.00	£2.40
27 - COVER FSP-494788.A29 494788	£15.10	£18.12
28 - SLEEVE FSP-200747.A17 200747	£2.00	£2.40
29 - COVER FSP-473550.A13 473550	£7.58	£9.09
30 - PRESSURE SPRING FSP-444754.A44 444754	£2.00	£2.40
31 - BOLT FSP-436305.A26 436305	£9.32	£11.19
32 - CAP FSP-450206.A25 450206	£2.00	£2.40
33 - COLLET FSP-488755.A22 488755	£38.86	£46.63
33 - COLLET FSP-488761.A7 488761	£38.86	£46.63
34 - FOAM STRIP FSP-434716.A45 434716	£2.00	£2.40
35 - CAPACITOR FSP-492778.A25 492778	£19.73	£23.68
36 - CABLE CLAMP FSP-439288.A101 439288	£2.00	£2.40
37 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A109 228663	£2.00	£2.40
38 - COVER FSP-451403.A9 451403	£6.30	£7.56
39 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A10 228567	£2.00	£2.40
40 - FLEXIBLE LEAD FSP-434865.A0 434865	£2.00	£2.40
41 - SNAP RING FSP-216770.A0 216770	£2.00	£2.40
42 - SHIM RING 13 X 19 X 0.5 MM FSP-228503.A23 228503	£2.00	£2.40
43 - ADJUSTING KNOB FSP-439282.A0 439282	£5.09	£6.11
44 - COMPENSATING WASHER 13.2 X 18.8 X 0.2 MM FSP-436828.A16 436828	£2.00	£2.40
45 - WASHER 4.3 MM FSP-200576.A19 200576	£2.00	£2.40
46 - RAISED-HEAD SCREW M4 X 8 FSP-228570.A39 228570	£2.00	£2.40
47 - BALL BEARING FSP-462795.A10 462795	£9.72	£11.67
48 - SNAP RING FSP-401191.A4 401191	£2.00	£2.40
49 - NO LONGER AVAILABLE FSP-00000.A90 00000	-
50 - NO LONGER AVAILABLE FSP-00000.A91 00000	-
51 - FLAT HEAD SCREW M4 X 10 FSP-228581.A0 228581	£2.00	£2.40
52 - COLLET FSP-488755.A23 488755	£38.86	£46.63
53 - ROTARY KNOB FSP-436195.A0 436195	£2.00	£2.40
54 - GUIDE FSP-483449.A23 483449	£5.64	£6.77
55 - STOP FSP-10035623.A0 10035623	£18.72	£22.46
56 - PRESSURE SPRING FSP-436377.A0 436377	£2.00	£2.40
57 - ROTARY KNOB FSP-436195.A1 436195	£2.00	£2.40
58 - STOP FSP-437197.A7 437197	£17.98	£21.57
59 - CHEESE HEAD SCREW M6 X 8 FSP-437999.A7 437999	£2.00	£2.40
60 - FLAT HEAD SCREW M4 X 8 FSP-219043.A44 219043	£2.00	£2.40
61 - ROUND GUIDE FSP-451754.A0 451754	£6.12	£7.34
62 - SUPPORT FSP-437478.A9 437478	£2.00	£2.40
63 - FLAT HEAD SCREW 4.0 X 10 MM FSP-219102.A50 219102	£2.00	£2.40
64 - CHIP GUARD FSP-437307.A8 437307	£6.68	£8.01
65 - NO LONGER AVAILABLE FSP-00000.A70 00000	-
66 - NO LONGER AVAILABLE FSP-00000.A71 00000	-
67 - FLAT HEAD SCREW M5 FSP-436812.A13 436812	£2.00	£2.40
68 - CHEESE HEAD SCREW M6 X 25 FSP-400859.A10 400859	£2.00	£2.40
69 - WASHER 6.4 MM FSP-200578.A37 200578	£2.00	£2.40
70 - BUSH FSP-436300.A35 436300	£2.00	£2.40
71 - FLAT HEAD SCREW M5 FSP-436813.A3 436813	£2.00	£2.40
72 - FLAT HEAD SCREW M5 X 20 FSP-436811.A3 436811	£2.00	£2.40
73 - STOP FSP-436520.A0 436520	£15.25	£18.30
74 - BALL FSP-783305.A30 783305	£2.00	£2.40
75 - PRESSURE SPRING FSP-436528.A50 436528	£2.00	£2.40
76 - PLATE FSP-497763.A9 497763	£76.16	£91.39
77 - BUSH FSP-10364663.A6 10364663	£2.00	£2.40
78 - FLAT HEAD SCREW M4 X 8 FSP-228737.A26 228737	£2.00	£2.40
79 - PLATE FSP-436477.A2 436477	£14.60	£17.52
80 - NO LONGER AVAILABLE FSP-00000.A69 00000	-

Attribute Name	Value
Brand	Festool
