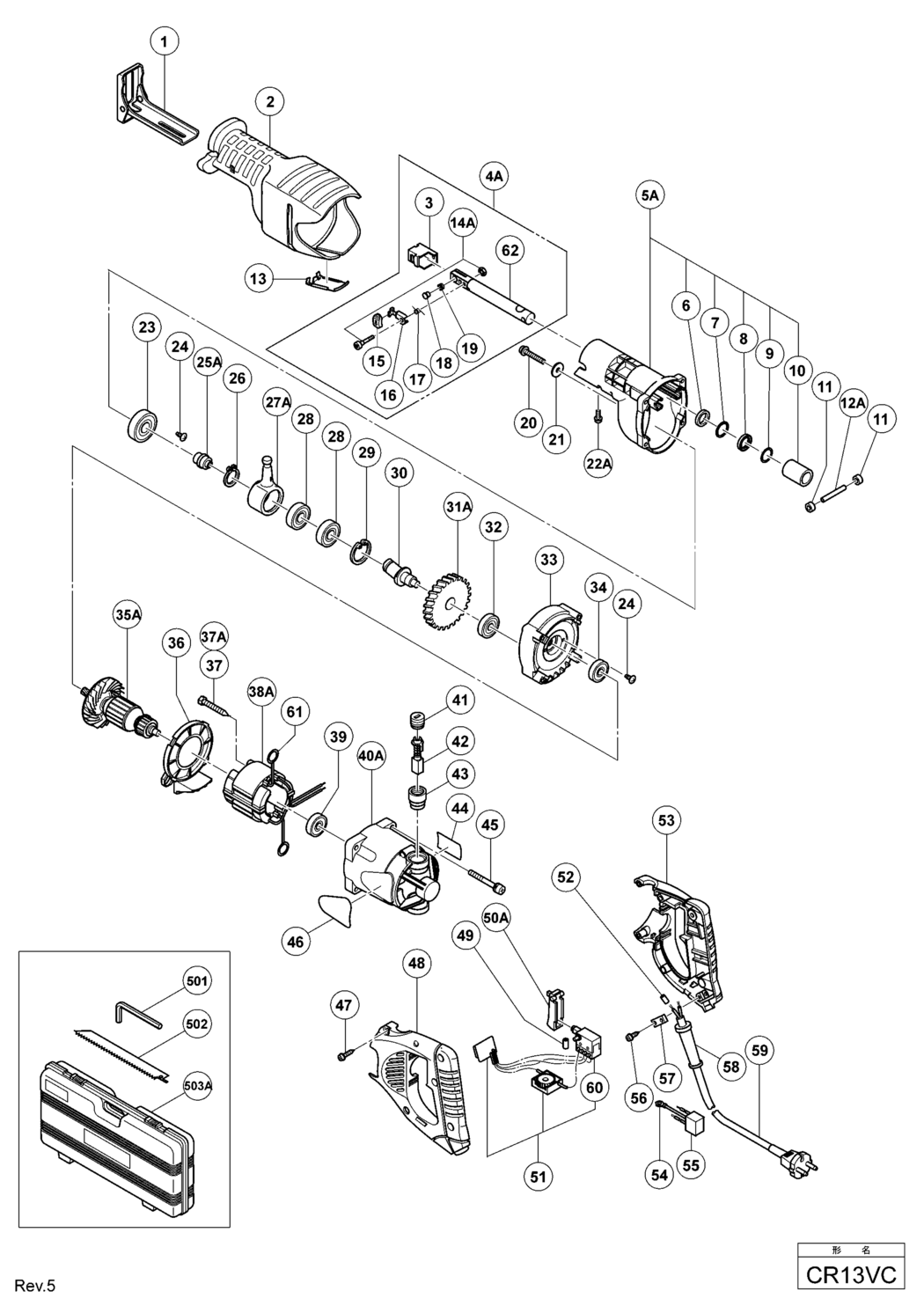

1 - BASE (B)
HIT-321116.A2
321116
|
£15.48
|
£18.57
|
|
2 - FRONT COVER (C)
HIT-321125.A0
321125
|
£32.13
|
£38.56
|
|
3 - BLADE HOLDER (A)
HIT-321132.A2
321132
|
£26.92
|
£32.30
|
|
4A - PLUNGER (B) ASS'Y INCLUD.3
HIT-333738.A1
333738
|
£104.96
|
£125.95
|
|
5A - GEAR COVER (B) ASS'Y INCLUD.6-10
HIT-326232.A0
326232
|
£55.11
|
£66.13
|
|
6 - FELT WASHER
HIT-318458.A2
318458
|
£1.67
|
£2.00
|
|
7 - WASHER (H)
HIT-321117.A0
321117
|
£1.67
|
£2.00
|
|
8 - V-RING
HIT-318459.A1
318459
|
£1.67
|
£2.00
|
|
9 - O-RING
HIT-321118.A2
321118
|
£1.67
|
£2.00
|
|
10 - METAL (B)
HIT-321214.A0
321214
|
£9.14
|
£10.97
|
|
11 - SWING ROLLER
HIT-321136.A0
321136
|
£1.67
|
£2.00
|
|
12A - PIN D6
HIT-326585.A2
326585
|
£4.99
|
£5.99
|
|
13 - COVER CLIP
HIT-321126.A1
321126
|
£10.15
|
£12.18
|
|
14A - SPECIAL BOLT M4 SET
HIT-322708.A1
322708
|
£4.78
|
£5.73
|
|
15 - CAP
HIT-321130.A3
321130
|
£1.67
|
£2.00
|
|
16 - LEVER (A)
HIT-321131.A3
321131
|
£14.97
|
£17.96
|
|
17 - SPRING (D)
HIT-321135.A2
321135
|
£4.78
|
£5.73
|
|
18 - HOLDER PIN (B)
HIT-321134.A3
321134
|
£14.97
|
£17.96
|
|
19 - SPRING (B)
HIT-318483.A1
318483
|
£1.67
|
£2.00
|
|
20 - NYLOCK BOLT (W/FLANGE) M6X35
HIT-318451.A3
318451
|
£1.67
|
£2.00
|
|
21 - WASHER (G)
HIT-318452.A0
318452
|
£1.67
|
£2.00
|
|
22A - NYLOCK BOLT (W/FLANGE) M5X12
HIT-322142.A1
322142
|
£1.67
|
£2.00
|
|
23 - BALL BEARING 6002DDCMPS2L
HIT-6002DD.A15
6002DD
|
£8.64
|
£10.37
|
|
24 - SLOTTED HD. SCREW (SEAL LOCK) M4X10
HIT-314430.A3
314430
|
£1.67
|
£2.00
|
|
25A - SUB SHAFT (B)
HIT-322119.A2
322119
|
£3.37
|
£4.04
|
|
26 - RETAINING RING FOR D17 SHAFT
HIT-967261.A3
967261
|
£1.67
|
£2.00
|
|
27A - RECIPRO PLATE
HIT-329898.A0
329898
|
-
|
|
|
28 - BALL BEARING 6003VVCMPS2L
HIT-6003VV.A12
6003VV
|
£9.03
|
£10.84
|
|
29 - RETAINING RING FOR D35 HOLE (10 PCS.)
HIT-939556.A16
939556
|
£11.82
|
£14.18
|
|
30 - SECOND SHAFT (B)
HIT-321128.A0
321128
|
£37.38
|
£44.86
|
|
31A - GEAR
HIT-318473.A1
318473
|
£18.56
|
£22.27
|
|
32 - BALL BEARING 608VVC2PS2L
HIT-608VVM.A150
608VVM
|
£5.70
|
£6.84
|
|
33 - INNER COVER (B)
HIT-321124.A1
321124
|
£19.53
|
£23.44
|
|
34 - BALL BEARING 6001VV
HIT-6001VV.A13
6001VV
|
£8.68
|
£10.42
|
|
*35A - ARMATURE 110V-115V
HIT-360616C.A0
360616C
|
£48.23
|
£57.88
|
|
*35A - ARMATURE 220V-230V
HIT-360616E.A1
360616E
|
£48.23
|
£57.88
|
|
36 - FAN GUIDE
HIT-321122.A0
321122
|
£5.94
|
£7.13
|
|
37 - HEX. HD. TAPPING SCREW D5X60 TILL 12.2010
HIT-961501.A0
961501
|
£1.67
|
£2.00
|
|
37A - HEX. HD. TAPPING SCREW D5X55 SINCE.1.2011
HIT-953174.A32
953174
|
£1.67
|
£2.00
|
|
*38A - STATOR ASS'Y 110V-115V INCLUD.61
HIT-340563H.A0
340563H
|
-
|
|
|
*38A - STATOR ASS'Y 220V-230V INCLUD.61
HIT-340563J.A1
340563J
|
£36.38
|
£43.66
|
|
39 - BALL BEARING 608VVC2PS2L
HIT-608VVM.A152
608VVM
|
£5.70
|
£6.84
|
|
40A - HOUSING
HIT-322120.A0
322120
|
£14.31
|
£17.17
|
|
41 - BRUSH CAP
HIT-945161.A30
945161
|
£1.67
|
£2.00
|
|
42 - CARBON BRUSH (1 PAIR)
HIT-999043.A1
999043
|
£5.54
|
£6.65
|
|
43 - BRUSH HOLDER
HIT-958900.A17
958900
|
£8.24
|
£9.89
|
|
44 - NAME PLATE
HIT-000000.A331
000000
|
-
|
|
|
45 - MACHINE SCREW (W/WASHERS) M5X60 (BLACK)
HIT-307224.A25
307224
|
£1.67
|
£2.00
|
|
46 - BRAND LABEL
HIT-000000.A332
000000
|
-
|
|
|
47 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK)
HIT-307028.A38
307028
|
£1.67
|
£2.00
|
|
*48 - HANDLE (B)
HIT-321140.A0
321140
|
£18.48
|
£22.18
|
|
*49 - TUBE (D) EXCEPT FOR USA
HIT-981373.A10
981373
|
£1.67
|
£2.00
|
|
50A - SWITCH TRIGGER
HIT-322133.A0
322133
|
£1.67
|
£2.00
|
|
*51 - SWITCH ASS'Y (1P SCREW TYPE) INCLUD.60
HIT-318505.A1
318505
|
£46.64
|
£55.97
|
|
*51 - SWITCH ASS'Y (1P SCREW TYPE) INCLUD.60 FOR TPE
HIT-318817.A1
318817
|
£46.64
|
£55.97
|
|
52 - TUBE (D)
HIT-981373.A11
981373
|
£1.67
|
£2.00
|
|
53 - HANDLE (A)
HIT-321139.A0
321139
|
£18.48
|
£22.18
|
|
*54 - TERMINAL FOR NOISE SUPPRESSOR
HIT-938108.A2
938108
|
£1.67
|
£2.00
|
|
*55 - NOISE SUPPRESSOR FOR NZL
HIT-994273.A20
994273
|
£7.30
|
£8.76
|
|
56 - TAPPING SCREW (W/FLANGE) D4X16
HIT-984750.A180
984750
|
£1.67
|
£2.00
|
|
57 - CORD CLIP
HIT-937631.A80
937631
|
£1.67
|
£2.00
|
|
*58 - CORD ARMOR D8.8
HIT-953327.A148
953327
|
£1.67
|
£2.00
|
|
*59 - CORD (CORD ARMOR D8.8) FOR SIN
HIT-500423Z.A43
500423Z
|
-
|
|
|
*59 - CORD (CORD ARMOR D8.8) FOR GBR (110V)
HIT-500237Z.A6
500237Z
|
£14.33
|
£17.20
|
|
*60 - SWITCH (1P SCREW TYPE)
HIT-321960.A1
321960
|
-
|
|
|
*60 - SWITCH (1P SCREW TYPE) FOR TPE
HIT-321961.A0
321961
|
-
|
|
|
61 - BRUSH TERMINAL
HIT-930703.A12
930703
|
£3.28
|
£3.93
|
|
62 - PLUNGER (B)
HIT-321120.A0
321120
|
£49.01
|
£58.81
|
|
501 - HEX. BAR WRENCH 4MM
HIT-944458.A135
944458
|
£1.67
|
£2.00
|
|
*502 - SABER SAW BLADES NO.103 150L P.14 (5 PCS
HIT-318613.A9
318613
|
-
|
|
|
503A - CASE
HIT-327054.A3
327054
|
£47.63
|
£57.16
|
|
602 - SABER SAW BLADES NO.2 (5 PCS.)
HIT-958182.A1
958182
|
-
|
|
|
603 - SABER SAW BLADES NO.3 (5 PCS.)
HIT-958183.A7
958183
|
-
|
|
|
604 - SABER SAW BLADES NO.4 (5 PCS.)
HIT-959611.A7
959611
|
-
|
|
|
605 - SABER SAW BLADES NO.5 (5 PCS.)
HIT-958185.A1
958185
|
-
|
|
|
606 - SABER SAW BLADES NO.8 (5 PCS.)
HIT-958188.A2
958188
|
-
|
|
|
607 - SABER SAW BLADES NO.101 150L P.10 (5 PCS
HIT-318611.A9
318611
|
-
|
|
|
608 - SABER SAW BLADES NO.102 228L P.10 (5 PCS
HIT-318612.A1
318612
|
-
|
|
|
609 - SABER SAW BLADES NO.104 228L P.14 (5 PCS
HIT-318614.A1
318614
|
-
|
|
|
610 - SABER SAW BLADES NO.109 150L P.18 (5 PCS
HIT-324818.A1
324818
|
-
|
|
|
611 - SABER SAW BLADES NO.110 228L P.18 (5 PCS
HIT-324819.A8
324819
|
-
|
|
|
612 - SABER SAW BLADES NO.107 150L P.24 (5 PCS
HIT-318617.A10
318617
|
-
|
|
|
613 - SABER SAW BLADES NO.108 228L P.24 (5 PCS
HIT-318618.A1
318618
|
-
|
|
|
614 - SABER SAW BLADES NO.121 305L P.6 (5 PCS.
HIT-318619.A8
318619
|
-
|
|
|
615 - SABER SAW BLADES NO.131 305L P.10/14(5PC
HIT-318620.A1
318620
|
-
|
|
|
616 - SABER SAW BLADES NO.132 203L (5 PCS.)
HIT-318621.A7
318621
|
-
|
|
|
