Black & Decker KA400 Type 1 Orbital Sander Spare Parts

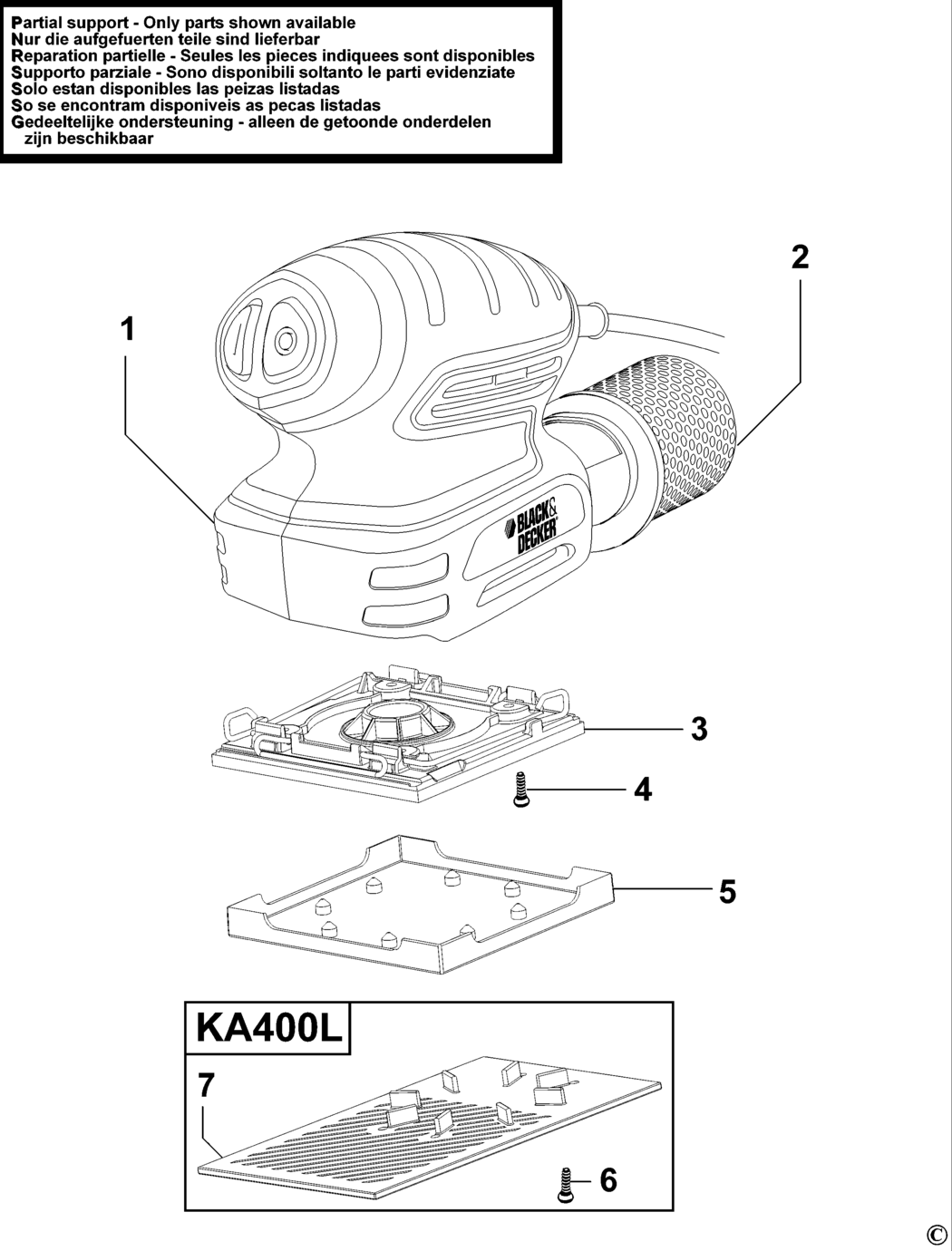

An exploded drawing and spare parts listing for the Black & Decker KA400 Type 1 Orbital Sander

	Ex VAT	Inc VAT
1 - PARTIAL SUPPORT - ONLY PARTS LISTED AVAILABLE KA400 KA400L GB BDE-000000-05.A430 000000-05	-
2 - DUSTBAG BDE-90536116.A0 90536116	£4.69	£5.63
2 - SWITCH COVER BDE-90500267.A1 90500267	£1.50	£1.80
3 - SWITCH BDE-90531913.A4 90531913	£1.50	£1.80
3 - BASEPLATE SA BDE-90502002.A2 90502002	£10.85	£13.02
4 - BRUSH & HOLDER SA BDE-90534051 90534051	-
4 - SCREW BDE-90500654.A5 90500654	£1.50	£1.80
5 - PUNCH SA BDE-90501703.A1 90501703	£1.50	£1.80
8 - SCREW BDE-90532648.A0 90532648	£1.50	£1.80
9 - BEARING BDE-90530454.A17 90530454	£1.50	£1.80
11 - BEARING BDE-90532404.A13 90532404	£1.50	£1.80
12 - BRAND LABEL BDE-90532374 90532374	-
14 - SCREW BDE-370748.A42 370748	£1.50	£1.80
15 - CORD CLAMP BDE-329301-00.A277 329301-00	£1.50	£1.80
16 - CORD PROTECTOR BDE-90511285.A7 90511285	£1.50	£1.80
18 - LEG BDE-90531137.A3 90531137	£1.50	£1.80
19 - SHROUD BDE-90500269.A4 90500269	£1.50	£1.80
20 - SCREW BDE-90504947.A2 90504947	£1.50	£1.80
21 - BASEPLATE SA BDE-90502002.A3 90502002	£10.85	£13.02
22 - SCREW BDE-90500654.A4 90500654	£1.50	£1.80
23 - FAN BDE-90500266.A2 90500266	£4.69	£5.63
24 - FAN SA BDE-90500265.A2 90500265	£7.85	£9.42
25 - PCB BDE-90500666.A0 90500666	-
26 - O RING BDE-90504693.A1 90504693	£1.50	£1.80
28 - SCREW BDE-747329.A145 747329	£1.50	£1.80
30 - DUSTBAG BDE-90536116.A1 90536116	£4.69	£5.63
31 - PUNCH SA BDE-90501703.A0 90501703	£1.50	£1.80
