Fein ASt 638 (50/60Hz 220/230V) / 72341700239 Spare Parts

Fein ASt 638 ⡐/60Hz 220/230V) / 72341700239 Spare Parts

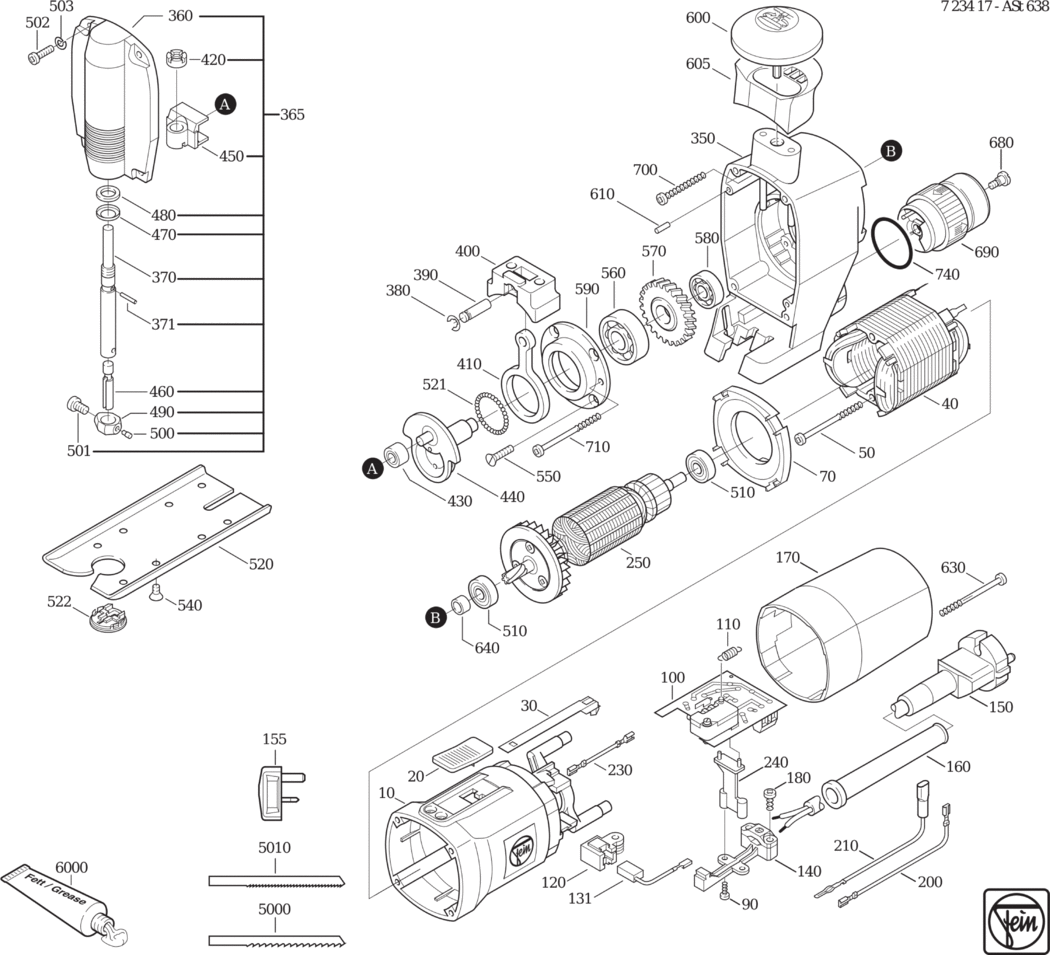

An exploded diagram and spare parts listing for the Fein ASt 638 (50/60Hz 220/230V) / 72341700239

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901103008.A14 31901103008	£62.53	£75.04
20 - SLIDE SWITCH FEI-32805128003.A23 32805128003	£3.42	£4.10
30 - CONTROL ROD FEI-32816040003.A2 32816040003	£2.88	£3.46
40 - STATOR FEI-51271007230.A3 51271007230	-
50 - SCREW FEI-43070004001.A19 43070004001	£1.60	£1.92
70 - AIR GUIDE RING FEI-31428075007.A2 31428075007	£4.18	£5.01
90 - SHEET METAL SCREW FEI-43046019009.A10 43046019009	-
100 - ELECTRONICS FEI-30762136008.A4 30762136008	-
110 - SPIRAL SPRING FEI-30902040004.A23 30902040004	£3.17	£3.80
120 - BRUSH HOLDER FEI-30712086011.A2 30712086011	£8.42	£10.11
131 - CARBON BRUSH (SOLD SINGLY) FEI-30711127007.A12 30711127007	£18.88	£22.65
140 - CABLE CLAMPING PIECE FEI-32431036008.A12 32431036008	£3.75	£4.50
150 - CABLE WITH PLUG FEI-30707401010.A3 30707401010	£22.79	£27.35
160 - CABLE GROMMET FEI-31413007007.A76 31413007007	£1.60	£1.92
170 - COVER FEI-31201072020.A6 31201072020	£10.81	£12.97
180 - SCREW FEI-43070001006.A0 43070001006	£1.60	£1.92
210 - CONNECTING CABLE FEI-30719340018.A4 30719340018	£1.60	£1.92
210 - CONNECTING CABLE FEI-30719340024.A13 30719340024	£3.04	£3.65
240 - HOLDER FEI-31428086009.A12 31428086009	£4.09	£4.91
250 - ARMATURE FEI-53270003236.A3 53270003236	£186.71	£224.05
350 - GEARBOX HOUSING FEI-31209029002.A4 31209029002	£154.02	£184.83
360 - COVER FEI-32429104006.A0 32429104006	£89.38	£107.25
365 - COVER FEI-32429104015.A9 32429104015	£302.89	£363.47
370 - PLUNGER FEI-30109054008.A3 30109054008	£107.02	£128.42
371 - CLAMPING SLEEVE FEI-40238007005.A9 40238007005	£1.60	£1.92
405 - N.A. FEI-32714091000.A5 32714091000	-
410 - CON ROD FEI-32714042000.A9 32714042000	£80.49	£96.59
420 - NUT FEI-42007047005.A0 42007047005	£8.38	£10.05
430 - NEEDLE BEARING FEI-41706017004.A0 41706017004	-
440 - ECCENTRIC SHAFT FEI-33405017007.A0 33405017007	£133.23	£159.88
450 - LINK FEI-32714041007.A0 32714041007	£94.54	£113.45
460 - BOLT FEI-30217181009.A4 30217181009	£21.52	£25.82
470 - CAP FEI-32435041008.A1 32435041008	£1.60	£1.92
480 - FELT RING FEI-30601057007.A4 30601057007	£1.60	£1.92
490 - CLAMPING RING FEI-32607038001.A5 32607038001	£35.88	£43.06
500 - SET SCREW FEI-43019055990.A5 43019055990	£1.60	£1.92
501 - CYLINDER HEAD SCREW FEI-43033008058.A21 43033008058	£1.60	£1.92
502 - FILLISTER HEAD SCREW FEI-43041030049.A1 43041030049	-
503 - SPRING WASHER FEI-42445001044.A12 42445001044	£1.60	£1.92
510 - GROOVED BALL BEARING FEI-41701001260.A226 41701001260	£7.11	£8.53
520 - PLATE FEI-32714082006.A0 32714082006	£16.16	£19.39
521 - BALL FEI-41708013003.A0 41708013003	-
522 - ANTI-CHIPPING PROTECTOR FEI-31428102016.A4 31428102016	£19.01	£22.81
540 - COUNTERSUNK SCREW FEI-43069001045.A0 43069001045	£1.60	£1.92
550 - COUNTERSUNK SCREW FEI-43069004040.A10 43069004040	-
560 - GROOVED BALL BEARING FEI-41701213011.A49 41701213011	£8.92	£10.70
570 - GEAR-WHEEL FEI-33657031001.A0 33657031001	£50.53	£60.64
580 - GROOVED BALL BEARING FEI-41701004015.A5 41701004015	£6.83	£8.20
590 - BEARING PLATE FEI-32419109006.A0 32419109006	£40.98	£49.17
600 - HANDLE FEI-32119091003.A5 32119091003	£15.95	£19.14
605 - RECESSED HANDLE FEI-31428113000.A5 31428113000	£5.10	£6.12
610 - STRAIGHT PIN FEI-40201024000.A4 40201024000	-
630 - SCREW FEI-43070004001.A21 43070004001	£1.60	£1.92
640 - SEALING RING FEI-32612052002.A5 32612052002	£5.35	£6.42
680 - FLAT HEADED SCREW FEI-43013043044.A5 43013043044	-
690 - SLIDER FEI-31428090007.A0 31428090007	£7.17	£8.60
700 - SCREW FEI-43070005005.A15 43070005005	-
710 - SCREW FEI-43070012008.A15 43070012008	£1.60	£1.92
740 - SEALING RING FEI-40612143008.A9 40612143008	-
5000 - SAW BLADES FOR METAL AND SANDWICH MATERIAL FEI-63503113010.A4 63503113010	£28.53	£34.24
5010 - SAW BLADES FOR WOOD AND OTHER MATERIALS FEI-63503037018.A2 63503037018	£18.30	£21.96
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A142 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A622 34130054061	-
