Fein ASt 638 (50Hz 240V) / 72341700245 Spare Parts

Fein ASt 638 ⡐Hz 240V) / 72341700245 Spare Parts

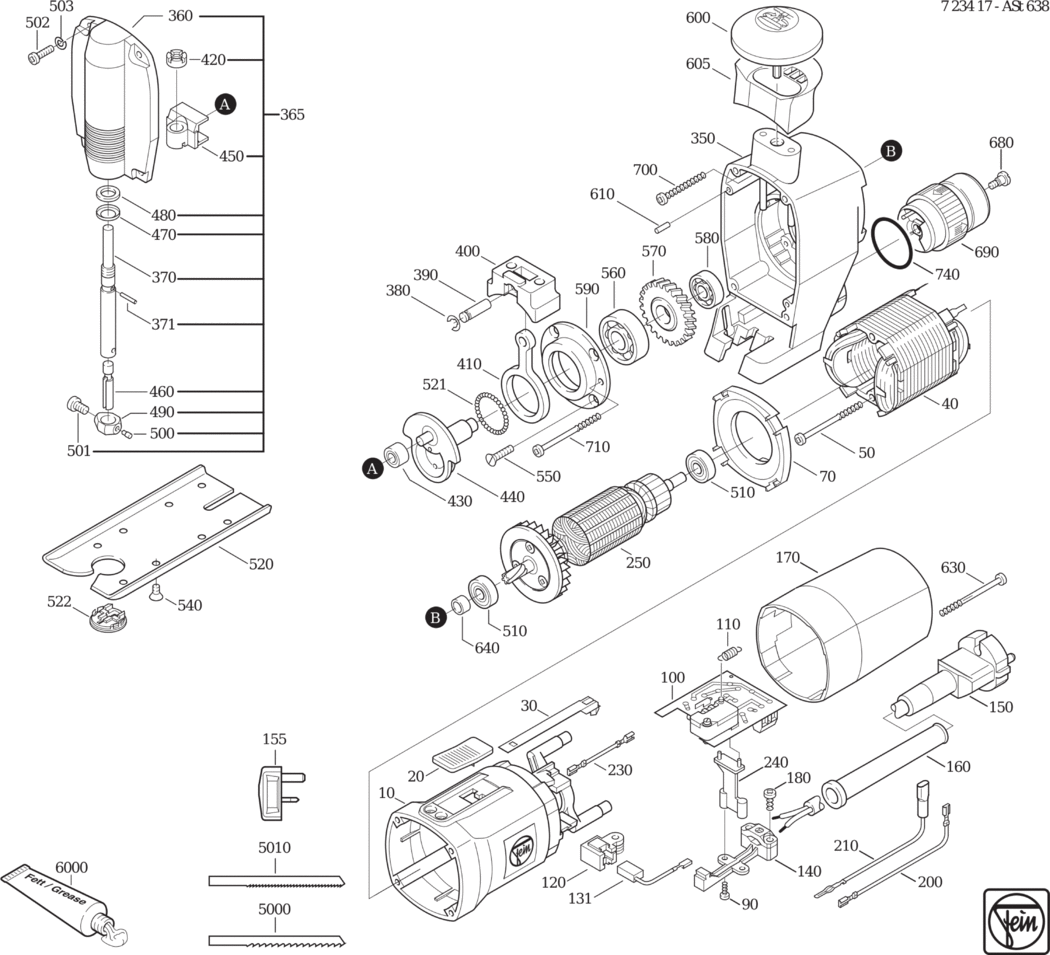

An exploded diagram and spare parts listing for the Fein ASt 638 (50Hz 240V) / 72341700245

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901103008.A11 31901103008	£62.53	£75.04
20 - SLIDE SWITCH FEI-32805128003.A26 32805128003	£3.42	£4.10
30 - CONTROL ROD FEI-32816040003.A5 32816040003	£2.88	£3.46
40 - STATOR FEI-51270003240.A0 51270003240	-
50 - SCREW FEI-43070004001.A13 43070004001	£1.60	£1.92
70 - AIR GUIDE RING FEI-31428075007.A5 31428075007	£4.18	£5.01
90 - SHEET METAL SCREW FEI-43046019009.A13 43046019009	-
100 - ELECTRONICS FEI-30762136008.A6 30762136008	-
110 - SPIRAL SPRING FEI-30902040004.A28 30902040004	£3.17	£3.80
120 - BRUSH HOLDER FEI-30712086011.A5 30712086011	£8.42	£10.11
131 - CARBON BRUSH (SOLD SINGLY) FEI-30711127007.A10 30711127007	£18.88	£22.65
140 - CABLE CLAMPING PIECE FEI-32431036008.A16 32431036008	£3.75	£4.50
150 - CABLE WITH PLUG FEI-30707401010.A6 30707401010	£22.79	£27.35
160 - CABLE GROMMET FEI-31413007007.A80 31413007007	£1.60	£1.92
170 - COVER FEI-31201072020.A3 31201072020	£10.81	£12.97
180 - SCREW FEI-43070001006.A6 43070001006	£1.60	£1.92
200 - CONNECTING CABLE FEI-30719339016.A2 30719339016	-
210 - CONNECTING CABLE FEI-30719340018.A0 30719340018	£1.60	£1.92
210 - CONNECTING CABLE FEI-30719340024.A16 30719340024	£3.04	£3.65
230 - CONNECTING CABLE FEI-30719448017.A3 30719448017	£2.82	£3.38
240 - HOLDER FEI-31428086009.A9 31428086009	£4.09	£4.91
250 - ARMATURE FEI-53270003242.A2 53270003242	-
350 - GEARBOX HOUSING FEI-31209029002.A8 31209029002	£154.02	£184.83
360 - COVER FEI-32429104006.A2 32429104006	£89.38	£107.25
365 - COVER FEI-32429104015.A7 32429104015	£302.89	£363.47
370 - PLUNGER FEI-30109054008.A6 30109054008	£107.02	£128.42
371 - CLAMPING SLEEVE FEI-40238007005.A12 40238007005	£1.60	£1.92
405 - N.A. FEI-32714091000.A2 32714091000	-
410 - CON ROD FEI-32714042000.A6 32714042000	£80.49	£96.59
420 - NUT FEI-42007047005.A3 42007047005	£8.38	£10.05
430 - NEEDLE BEARING FEI-41706017004.A3 41706017004	-
440 - ECCENTRIC SHAFT FEI-33405017007.A3 33405017007	£133.23	£159.88
450 - LINK FEI-32714041007.A3 32714041007	£94.54	£113.45
460 - BOLT FEI-30217181009.A6 30217181009	£21.52	£25.82
470 - CAP FEI-32435041008.A4 32435041008	£1.60	£1.92
480 - FELT RING FEI-30601057007.A7 30601057007	£1.60	£1.92
490 - CLAMPING RING FEI-32607038001.A2 32607038001	£35.88	£43.06
500 - SET SCREW FEI-43019055990.A2 43019055990	£1.60	£1.92
501 - CYLINDER HEAD SCREW FEI-43033008058.A24 43033008058	£1.60	£1.92
502 - FILLISTER HEAD SCREW FEI-43041030049.A3 43041030049	-
503 - SPRING WASHER FEI-42445001044.A14 42445001044	£1.60	£1.92
510 - GROOVED BALL BEARING FEI-41701001172.A122 41701001172	£9.63	£11.56
520 - PLATE FEI-32714082006.A2 32714082006	£16.16	£19.39
521 - BALL FEI-41708013003.A2 41708013003	-
522 - ANTI-CHIPPING PROTECTOR FEI-31428102016.A1 31428102016	£19.01	£22.81
540 - COUNTERSUNK SCREW FEI-43069001045.A1 43069001045	£1.60	£1.92
550 - COUNTERSUNK SCREW FEI-43069004040.A9 43069004040	-
560 - GROOVED BALL BEARING FEI-41701213011.A51 41701213011	£8.92	£10.70
570 - GEAR-WHEEL FEI-33657031001.A3 33657031001	£50.53	£60.64
580 - GROOVED BALL BEARING FEI-41701004015.A8 41701004015	£6.83	£8.20
590 - BEARING PLATE FEI-32419109006.A3 32419109006	£40.98	£49.17
600 - HANDLE FEI-32119091003.A8 32119091003	£15.95	£19.14
605 - RECESSED HANDLE FEI-31428113000.A8 31428113000	£5.10	£6.12
610 - STRAIGHT PIN FEI-40201024000.A2 40201024000	-
630 - SCREW FEI-43070004001.A18 43070004001	£1.60	£1.92
640 - SEALING RING FEI-32612052002.A8 32612052002	£5.35	£6.42
680 - FLAT HEADED SCREW FEI-43013043044.A8 43013043044	-
690 - SLIDER FEI-31428090007.A3 31428090007	£7.17	£8.60
700 - SCREW FEI-43070005005.A16 43070005005	-
710 - SCREW FEI-43070012008.A19 43070012008	£1.60	£1.92
740 - SEALING RING FEI-40612143008.A12 40612143008	-
5000 - SAW BLADES FOR METAL AND SANDWICH MATERIAL FEI-63503113010.A0 63503113010	£28.53	£34.24
5010 - SAW BLADES FOR WOOD AND OTHER MATERIALS FEI-63503037018.A4 63503037018	£18.30	£21.96
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A139 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A624 34130054061	-

Attribute Name	Value
Brand	Fein
