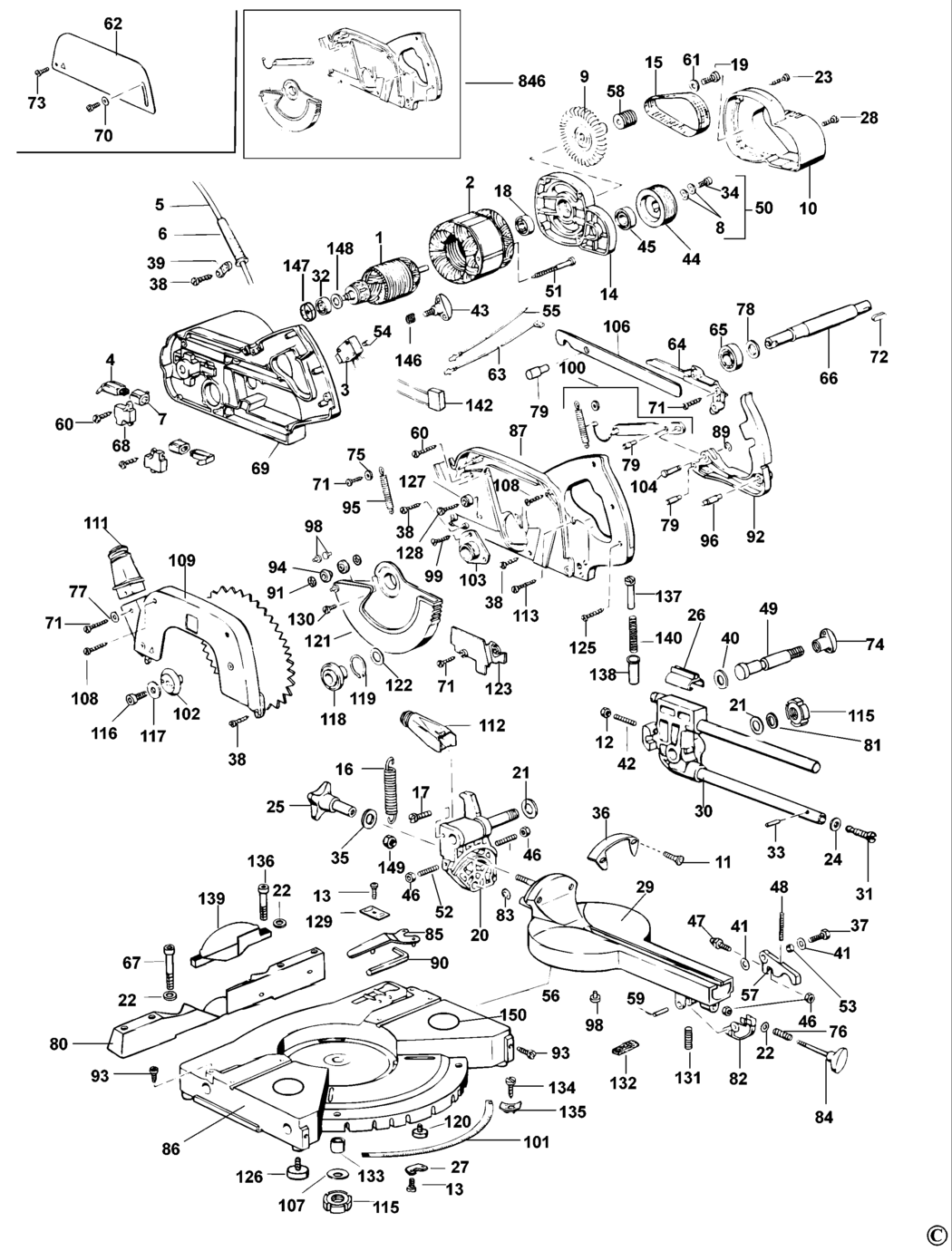

An exploded drawing and spare parts listing for the Black & Decker 1707 Type 1 Crosscut Mitre Saw
Ex VAT Inc VAT
1 - NO LONGER AVAILABLE SG-AE-MX-PA-120-1707 BDE-000000-00.A108426 000000-00 -
1 - NO LONGER AVAILABLE SG-AE-MX-PA120-TY174 BDE-000000-00.A42306 000000-00 -
1 - NO LONGER AVAILABLE PT 1707 BDE-000000-00.A42307 000000-00 -
1 - NO LONGER AVAILABLE GB 115 BDE-000000-00.A42308 000000-00 -
1 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A42309 000000-00 -
1 - NO LONGER AVAILABLE SG-AE-CL-AR 1707 BDE-000000-00.A42310 000000-00 -
1 - NO LONGER AVAILABLE SG-AE-CL-AR TY174 BDE-000000-00.A42311 000000-00 -
2 - FIELD 115V SG-AE-MX-PA-120-1707 BDE-868405-02.A10 868405-02 -
2 - FIELD SG-AE-CL-AR TY174 BDE-868405-00.A10 868405-00 £93.62 £112.35
2 - FIELD 115V SG-AE-MX-PA120-TY174 BDE-868405-02.A8 868405-02 -
2 - FIELD GB 240V BDE-868405-00.A7 868405-00 £93.62 £112.35
2 - FIELD PT 1707 BDE-868405-00.A8 868405-00 £93.62 £112.35
2 - FIELD SG-AE-CL-AR 1707 BDE-868405-00.A9 868405-00 £93.62 £112.35
2 - FIELD 115V GB 115 BDE-868405-02.A9 868405-02 -
3 - SWITCH SG-AE-CL-AR TY174 BDE-864720-05.A11 864720-05 -
3 - SWITCH SG-AE-MX-PA120-TY174 BDE-864720-05.A12 864720-05 -
3 - SWITCH GB 240V BDE-864720-05.A13 864720-05 -
3 - SWITCH GB 115 BDE-864720-05.A14 864720-05 -
3 - SWITCH SG-AE-CL-AR 1707 BDE-864720-05.A15 864720-05 -
3 - SWITCH PT 1707 BDE-864720-05.A16 864720-05 -
3 - SWITCH SG-AE-MX-PA-120-1707 BDE-864720-05.A17 864720-05 -
4 - BRUSH 230V PT 1707 BDE-940146-00.A30 940146-00 £5.88 £7.06
4 - BRUSH 230V SG-AE-CL-AR TY174 BDE-940146-00.A31 940146-00 £5.88 £7.06
4 - BRUSH KIT GB 115 BDE-868203-00.A17 868203-00 £25.70 £30.84
4 - BRUSH 230V GB 240V BDE-940146-00.A33 940146-00 £5.88 £7.06
4 - BRUSH KIT SG-AE-MX-PA-120-1707 BDE-868203-00.A18 868203-00 £25.70 £30.84
4 - BRUSH KIT SG-AE-MX-PA120-TY174 BDE-868203-00.A19 868203-00 £25.70 £30.84
4 - BRUSH 230V SG-AE-CL-AR 1707 BDE-940146-00.A32 940146-00 £5.88 £7.06
5 - NO LONGER AVAILABLE SG-AE-MX-PA120-TY174 BDE-000000-00.A42316 000000-00 -
5 - CABLE SA PT 1707 BDE-947108-07.A3 947108-07 £24.39 £29.27
5 - NO LONGER AVAILABLE SG-AE-MX-PA-120-1707 BDE-000000-00.A42315 000000-00 -
5 - CABLE SA SG-AE-CL-AR 1707 BDE-947108-07.A4 947108-07 £24.39 £29.27
5 - CABLE SA SG-AE-CL-AR TY174 BDE-947108-07.A5 947108-07 £24.39 £29.27
5 - CABLE SA GB 240V BDE-947108-10.A5 947108-10 £43.02 £51.63
5 - CABLE SA GB 115 BDE-947108-11.A4 947108-11 £50.60 £60.72
6 - PROTECTOR BDE-720703-00.A61 720703-00 £1.50 £1.80
7 - BRUSHBOX SA GB 240V BDE-761202-00.A35 761202-00 £3.30 £3.96
7 - BRUSHBOX SA PT 1707 BDE-761202-00.A36 761202-00 £3.30 £3.96
7 - BRUSH KIT SG-AE-MX-PA-120-1707 BDE-868203-00.A16 868203-00 £25.70 £30.84
7 - BRUSHBOX SA SG-AE-CL-AR 1707 BDE-761202-00.A34 761202-00 £3.30 £3.96
7 - BRUSH KIT GB 115 BDE-868203-00.A21 868203-00 £25.70 £30.84
7 - BRUSHBOX SA SG-AE-CL-AR TY174 BDE-761202-00.A33 761202-00 £3.30 £3.96
7 - BRUSH KIT SG-AE-MX-PA120-TY174 BDE-868203-00.A20 868203-00 £25.70 £30.84
8 - WASHER BDE-860074-07.A1 860074-07 £1.50 £1.80
9 - FAN BDE-760210-00.A2 760210-00 -
10 - COVER BDE-942568-01.A4 942568-01 -
11 - SCREW BDE-949894-12.A19 949894-12 £1.50 £1.80
12 - NUT BDE-860083-14.A39 860083-14 £1.50 £1.80
13 - SCREW BDE-860094-05.A11 860094-05 £1.50 £1.80
14 - HOUSING BDE-942567-00.A2 942567-00 -
15 - BELT BDE-760215-00.A7 760215-00 £14.57 £17.48
16 - NO LONGER AVAILABLE BDE-000000-00.A42317 000000-00 -
17 - NO LONGER AVAILABLE BDE-000000-00.A42318 000000-00 -
17 - SCREW BDE-949743-02.A27 949743-02 £1.66 £1.99
18 - BEARING BDE-861721-02.A5 861721-02 £4.69 £5.63
19 - SCREW BDE-760219-00.A36 760219-00 £1.50 £1.80
20 - SEGMENT BDE-868317-00.A7 868317-00 -
21 - WASHER BDE-860226-02.A15 860226-02 £1.50 £1.80
22 - WASHER BDE-720959-00.A23 720959-00 £1.50 £1.80
23 - SCREW BDE-949896-10.A26 949896-10 £1.50 £1.80
24 - WASHER BDE-760224-00.A4 760224-00 -
25 - KNOB BDE-861838-00.A6 861838-00 -
26 - GUIDE BDE-942597-01.A2 942597-01 -
27 - INSERT BDE-943010-01.A5 943010-01 -
28 - NO LONGER AVAILABLE BDE-000000-00.A42319 000000-00 -
29 - TABLE ROTARY WEEK 46-97> BDE-861832-00.A0 861832-00 -
30 - GUIDE BDE-943005-01.A5 943005-01 -
31 - SCREW BDE-760231-00.A4 760231-00 -
32 - BEARING BDE-577745-00.A135 577745-00 £7.85 £9.42
33 - PIN BDE-760233-00.A14 760233-00 £1.50 £1.80
34 - SCREW BDE-760219-00.A37 760219-00 £1.50 £1.80
35 - WASHER BDE-861483-00.A10 861483-00 £1.50 £1.80
36 - SCALE GB 240V BDE-942996-02.A19 942996-02 -
36 - SCALE PT 1707 BDE-942996-02.A20 942996-02 -
36 - SCALE SG-AE-CL-AR 1707 BDE-942996-02.A21 942996-02 -
36 - SCALE SG-AE-CL-AR TY174 BDE-942996-02.A22 942996-02 -
36 - SCALE SG-AE-MX-PA-120-1707 BDE-942996-02.A23 942996-02 -
36 - SCALE GB 115 BDE-942996-02.A24 942996-02 -
36 - SCALE SG-AE-MX-PA120-TY174 BDE-942996-02.A25 942996-02 -
37 - SCREW.TEMP BDE-860085-09.A32 860085-09 £1.50 £1.80
38 - SCREW BDE-860084-11.A60 860084-11 £1.50 £1.80
39 - CLAMP BDE-720748-00.A16 720748-00 -
40 - O RING BDE-943030-00.A3 943030-00 £1.50 £1.80
41 - SPACER BDE-760241-01.A5 760241-01 £1.50 £1.80
42 - SCREW BDE-760242-00.A16 760242-00 £1.50 £1.80
43 - SCREW BDE-760243-00.A17 760243-00 £12.17 £14.60
44 - PULLEY BDE-861356-01.A2 861356-01 -
45 - BEARING BDE-861721-01.A25 861721-01 £7.85 £9.42
46 - NUT M6 BDE-860083-12.A104 860083-12 £1.50 £1.80
47 - SCREW BDE-760247-00.A2 760247-00 £1.82 £2.19
48 - SPRING BDE-760248-00.A3 760248-00 £1.50 £1.80
49 - NO LONGER AVAILABLE BDE-000000-00.A42320 000000-00 -
50 - NO LONGER AVAILABLE WEEK 23-96> BDE-000000-00.A42321 000000-00 -
51 - SCREW BDE-760251-00.A6 760251-00 £1.42 £1.70
52 - STUD BDE-760252-00.A2 760252-00 £1.78 £2.13
52 - SCREW BDE-949743-02.A25 949743-02 £1.66 £1.99
53 - BUSH BDE-760253-00.A4 760253-00 -
54 - SCREW BDE-861378-00.A6 861378-00 £1.42 £1.70
55 - LEAD GB 240V BDE-942590-00.A12 942590-00 -
55 - LEAD GB 115 BDE-942590-00.A13 942590-00 -
55 - LEAD PT 1707 BDE-942590-00.A14 942590-00 -
55 - LEAD SG-AE-CL-AR 1707 BDE-942590-00.A15 942590-00 -
55 - LEAD SG-AE-CL-AR TY174 BDE-942590-00.A16 942590-00 -
55 - LEAD SG-AE-MX-PA120-TY174 BDE-942590-00.A17 942590-00 -
55 - LEAD SG-AE-MX-PA-120-1707 BDE-942590-00.A18 942590-00 -
56 - NO LONGER AVAILABLE BDE-000000-00.A42322 000000-00 -
57 - RATCHET BDE-760257-00.A2 760257-00 -
58 - PULLEY BDE-760258-00.A4 760258-00 £14.57 £17.48
59 - PIN BDE-760259-00.A2 760259-00 £3.80 £4.56
60 - SCREW BDE-949896-12.A106 949896-12 £1.50 £1.80
61 - WASHER BDE-760261-00.A11 760261-00 £1.42 £1.70
62 - COVER PT 1707 BDE-942577-01.A2 942577-01 -
63 - LEAD GB 115 BDE-942589-00.A14 942589-00 -
63 - LEAD PT 1707 BDE-942589-00.A15 942589-00 -
63 - LEAD SG-AE-CL-AR 1707 BDE-942589-00.A16 942589-00 -
63 - LEAD SG-AE-CL-AR TY174 BDE-942589-00.A17 942589-00 -
63 - LEAD GB 240V BDE-942589-00.A18 942589-00 -
63 - LEAD SG-AE-MX-PA120-TY174 BDE-942589-00.A19 942589-00 -
63 - LEAD SG-AE-MX-PA-120-1707 BDE-942589-00.A20 942589-00 -
64 - NO LONGER AVAILABLE BDE-000000-00.A42323 000000-00 -
65 - BEARING BDE-861721-12.A36 861721-12 £7.85 £9.42
66 - SPINDLE SA BDE-861369-01.A3 861369-01 -
67 - NO LONGER AVAILABLE BDE-000000-00.A42325 000000-00 -
68 - CLAMP BDE-942569-00.A8 942569-00 -
69 - NO LONGER AVAILABLE BDE-000000-00.A42324 000000-00 -
70 - WASHER PT 1707 BDE-860073-01.A37 860073-01 £1.50 £1.80
71 - SCREW BDE-860084-20.A71 860084-20 £1.50 £1.80
72 - KEY BDE-860539-01.A25 860539-01 £1.82 £2.19
73 - SCREW PT 1707 BDE-943023-00.A28 943023-00 £1.50 £1.80
74 - KNOB BDE-941756-00.A105 941756-00 £1.50 £1.80
75 - WASHER BDE-941633-00.A28 941633-00 £1.50 £1.80
76 - SPRING BDE-760276-00.A14 760276-00 £1.50 £1.80
77 - WASHER BDE-860073-00.A179 860073-00 £1.50 £1.80
78 - NO LONGER AVAILABLE BDE-000000-00.A42326 000000-00 -
79 - PIN BDE-760279-00.A0 760279-00 -
80 - FENCE BDE-938855-01.A7 938855-01 £58.69 £70.43
81 - NO LONGER AVAILABLE BDE-000000-00.A42327 000000-00 -
82 - LEVER BDE-760282-00.A6 760282-00 -
83 - CIRCLIP BDE-949728-03.A6 949728-03 -
84 - SCREW WING BDE-760284-00.A0 760284-00 £7.85 £9.42
85 - SPANNER BDE-939072-00.A0 939072-00 £9.41 £11.29
86 - NO LONGER AVAILABLE WEEK 46-97> BDE-000000-00.A42328 000000-00 -
87 - HANDLE COVER BDE-945018-06.A3 945018-06 -
89 - CIRCLIP BDE-860322-03.A9 860322-03 -
90 - WRENCH 6 MM BDE-860098-04.A48 860098-04 £1.50 £1.80
91 - QUICKLOCK BDE-861366-00.A12 861366-00 £1.50 £1.80
92 - NO LONGER AVAILABLE BDE-000000-00.A42329 000000-00 -
93 - SCREW BDE-N409486.A7 N409486 £1.50 £1.80
94 - ROLLER BDE-861367-01.A7 861367-01 £1.66 £1.99
95 - SPRING BDE-760295-01.A25 760295-01 £1.66 £1.99
96 - PIVOT BDE-760296-01.A9 760296-01 £1.50 £1.80
98 - INSERT BDE-760298-01.A42 760298-01 £1.66 £1.99
99 - SCREW BDE-760299-00.A14 760299-00 -
100 - LEVER SA BDE-868398-00.A0 868398-00 £24.39 £29.27
101 - SCALE BDE-942997-01.A0 942997-01 -
102 - OUTER FLANGE BDE-942959-02.A6 942959-02 -
103 - FLANGE BDE-760303-01.A6 760303-01 -
104 - NO LONGER AVAILABLE BDE-000000-00.A42330 000000-00 -
105 - NO LONGER AVAILABLE BDE-000000-00.A42331 000000-00 -
106 - NO LONGER AVAILABLE BDE-000000-00.A42332 000000-00 -
107 - WASHER BDE-760307-00.A0 760307-00 £1.42 £1.70
108 - SCREW BDE-949896-11.A22 949896-11 £1.50 £1.80
109 - GUARD BDE-943004-02.A4 943004-02 -
111 - ADAPTOR BDE-760311-00.A13 760311-00 £2.41 £2.89
112 - ADAPTOR BDE-760312-00.A7 760312-00 £2.49 £2.99
113 - SCREW BDE-949896-10.A28 949896-10 £1.50 £1.80
115 - LOCK NUT BDE-943016-00.A0 943016-00 £1.50 £1.80
116 - SCREW BDE-949886-27.A14 949886-27 -
117 - WASHER BDE-949876-19.A1 949876-19 £1.50 £1.80
118 - INNER FLANGE BDE-947022-00.A4 947022-00 -
119 - CIRCLIP BDE-949727-04.A6 949727-04 £1.50 £1.80
120 - FOOT BDE-761299-00.A6 761299-00 £1.82 £2.19
121 - GUARD SA BDE-861362-03.A3 861362-03 -
122 - WASHER BDE-760270-00.A3 760270-00 -
123 - NO LONGER AVAILABLE BDE-000000-00.A42333 000000-00 -
125 - SCREW BDE-N456928.A6 N456928 £1.82 £2.19
126 - FOOT SA BDE-861809-00.A19 861809-00 £7.85 £9.42
127 - BUMPER BDE-761306-00.A9 761306-00 £1.50 £1.80
128 - SCREW BDE-761307-00.A16 761307-00 -
129 - NO LONGER AVAILABLE BDE-000000-00.A42334 000000-00 -
130 - SCREW BDE-949894-06.A54 949894-06 £1.50 £1.80
131 - STUD BDE-943017-00.A0 943017-00 -
132 - FELT BDE-943009-01.A0 943009-01 -
133 - BUSH BDE-943021-00.A5 943021-00 -
134 - SCREW BDE-943024-01.A0 943024-01 £1.42 £1.70
135 - PLATE BDE-943025-00.A11 943025-00 £1.50 £1.80
136 - SCREW BDE-860093-11.A8 860093-11 £1.50 £1.80
137 - PLUNGER BDE-942578-01.A3 942578-01 -
138 - SOCKET BDE-942584-01.A3 942584-01 £3.80 £4.56
139 - INSERT SA PT 1707 BDE-401457-00.A1 401457-00 £17.48 £20.97
139 - INSERT SA SG-AE-CL-AR 1707 BDE-401457-00.A2 401457-00 £17.48 £20.97
139 - INSERT SA GB 115 BDE-401457-00.A3 401457-00 £17.48 £20.97
139 - INSERT SA GB 240V BDE-401457-00.A4 401457-00 £17.48 £20.97
139 - INSERT SA SG-AE-CL-AR TY174 BDE-401457-00.A5 401457-00 £17.48 £20.97
139 - INSERT SA SG-AE-MX-PA-120-1707 BDE-401457-00.A6 401457-00 £17.48 £20.97
139 - INSERT SA SG-AE-MX-PA120-TY174 BDE-401457-00.A7 401457-00 £17.48 £20.97
140 - NO LONGER AVAILABLE BDE-000000-00.A42335 000000-00 -
142 - CAPACITOR GB 240V BDE-947025-00.A23 947025-00 -
142 - CAPACITOR PT 1707 BDE-947025-00.A24 947025-00 -
142 - CAPACITOR SG-AE-CL-AR 1707 BDE-947025-00.A25 947025-00 -
142 - CAPACITOR SG-AE-CL-AR TY174 BDE-947025-00.A26 947025-00 -
146 - SPRING BDE-760249-00.A3 760249-00 £1.42 £1.70
147 - SLEEVE BDE-934409-00.A8 934409-00 -
148 - SPACER BDE-944975-00.A1 944975-00 -
149 - LOCK-NUT BDE-943016-01.A17 943016-01 £3.70 £4.44
542 - SCREW BDE-949743-02.A26 949743-02 £1.66 £1.99
846 - NO LONGER AVAILABLE BDE-000000-00.A42336 000000-00 -

Recently Viewed


x
Powered by kartris
